1991 Toshiba BF-130A Horizontal Boring Mill
1991 Toshiba BF-130A Horizontal Boring Mill
Available quantity:1
Description
The Toshiba BF-130A is a heavy-duty CNC horizontal boring mill designed for large, precision machining applications. Featuring a 5.12" spindle with #50 taper, 40 HP spindle motor, and wide travels of 354" (X) and 118" (Y), this machine delivers exceptional rigidity and reach. The traveling column design, combined spindle and quill Z-axis, and Fanuc Series 15-M control make the BF-130A ideal for large components, mold work, and heavy fabrication requiring accuracy and power.
Specifications
| Manufacturer | Toshiba |
| Model | BF-130A |
| Year | 1991 |
| Condition | Used |
| Serial Number | 123.834 |
| Stock Number | MAC-BOR-TOS-3834 |
| Spindle Diameter ( IN ) | 5.12 |
| Spindle Taper | #50 |
| Spindle Speed ( RPM ) | 5 – 800 |
| Spindle Motor ( HP ) | 40 |
| X Travel ( IN ) | 354 |
| Y Travel ( IN ) | 118 |
| Z-1 Travel – Spindle ( IN ) | 39.37 |
| Z-2 Travel – Quill ( IN ) | 17.7 |
| Total Axial Travel ( IN ) | 39.37 |
| Infeeding Rotary Table Size | 78.74" x 98.42" |
| Table Infeed | 78.74" |
| Table Rotation | .001 IPM |
| Table Weight Capacity | 44,000 lbs |
Equipped With

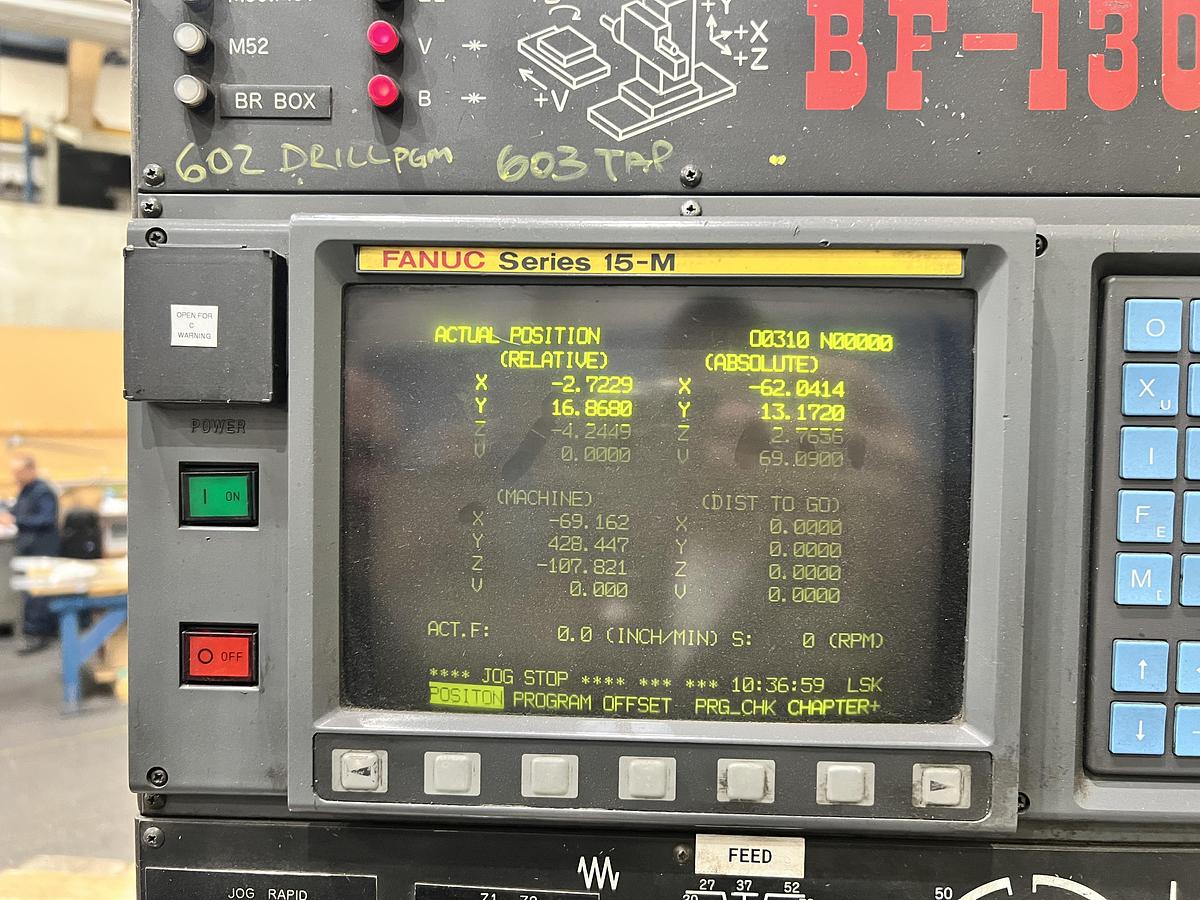

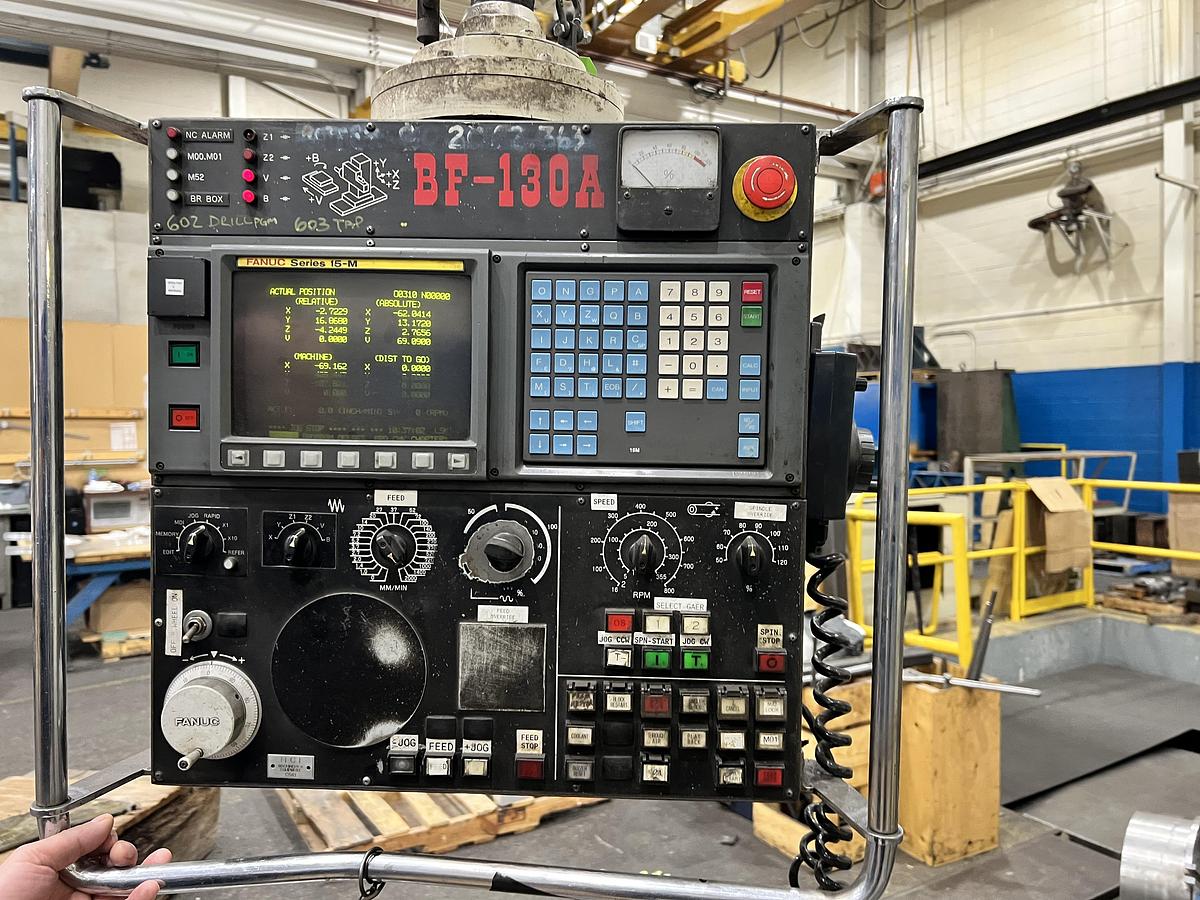

Fanuc 15M CNC Control

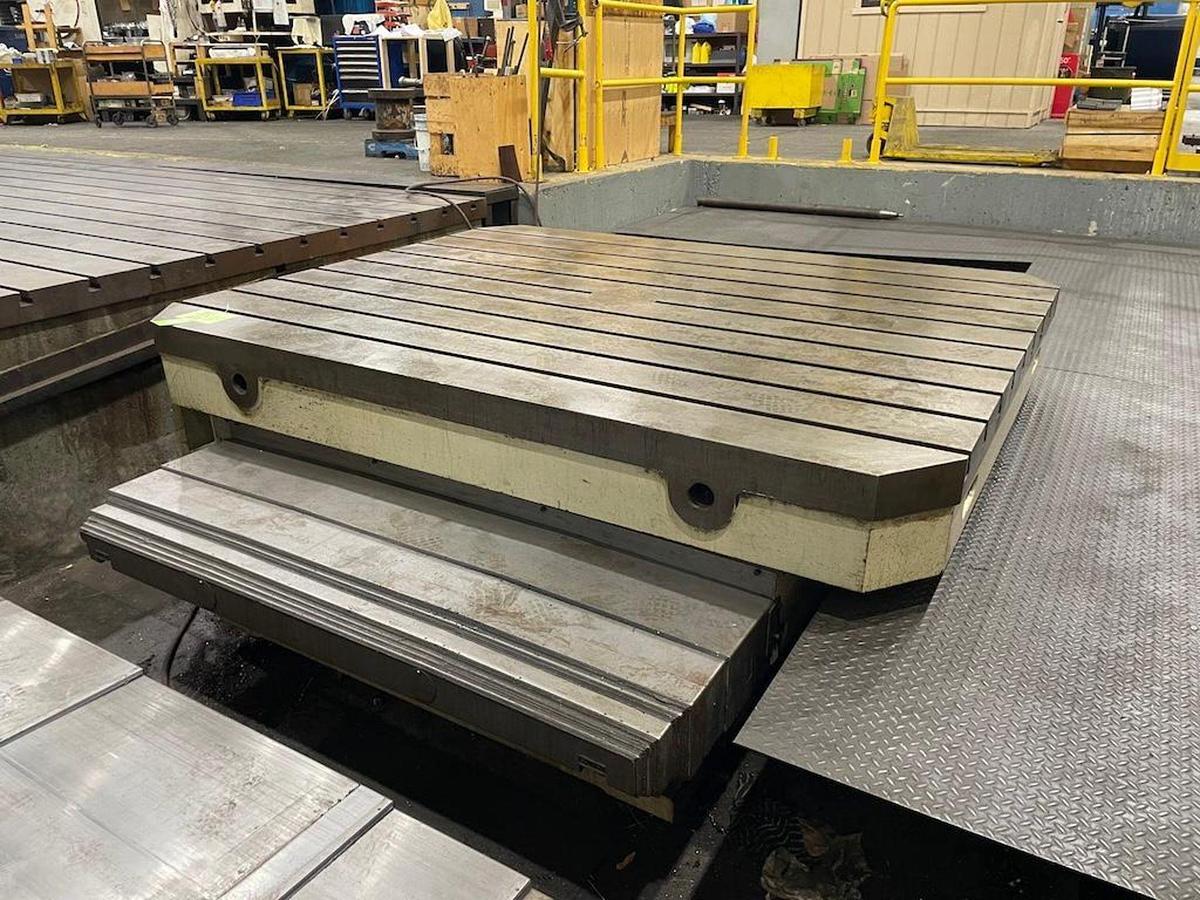

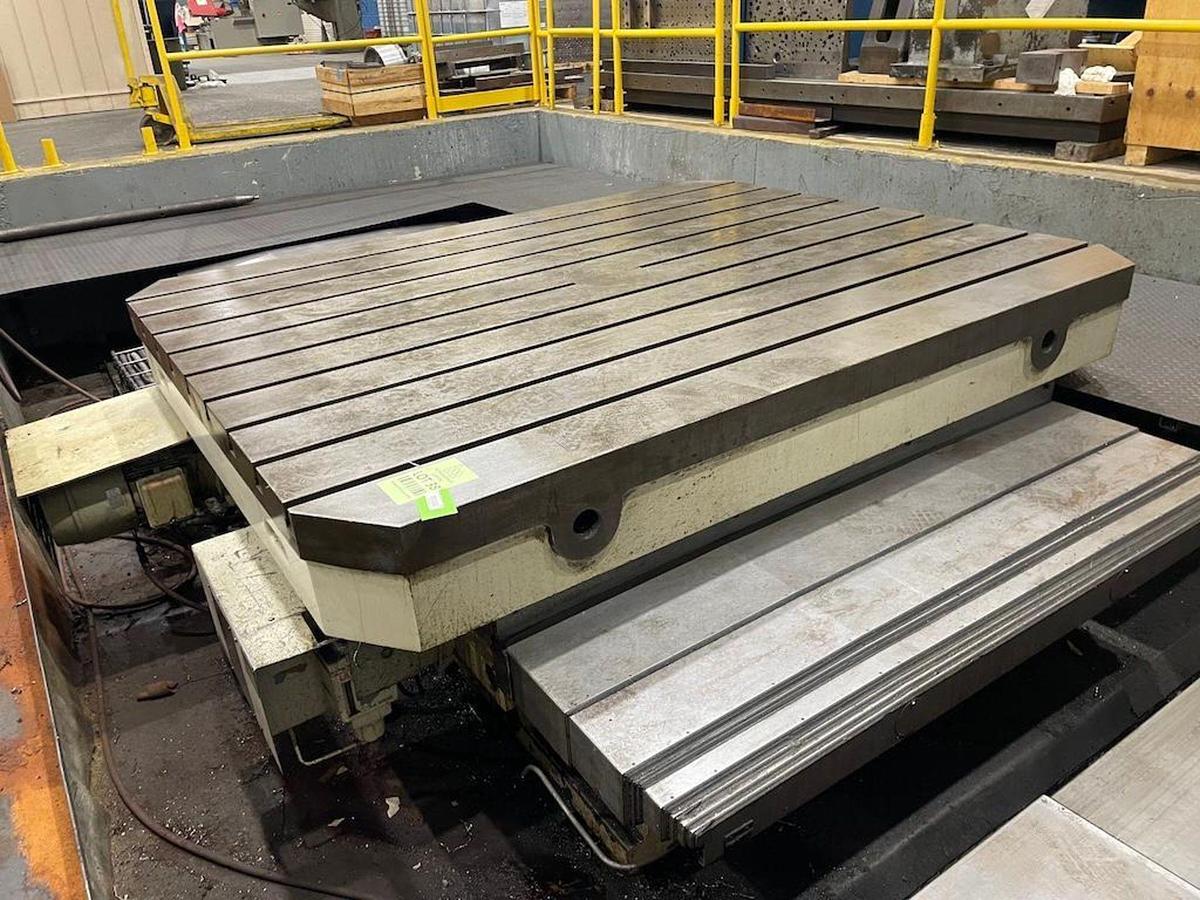

Toshiba BD 20/25 CNC Infeeding Rotary Table
Telescoping Way Covers on Runway
Ball Screws & Independent Drives
40 HP Spindle Drive
Chip Conveyor
