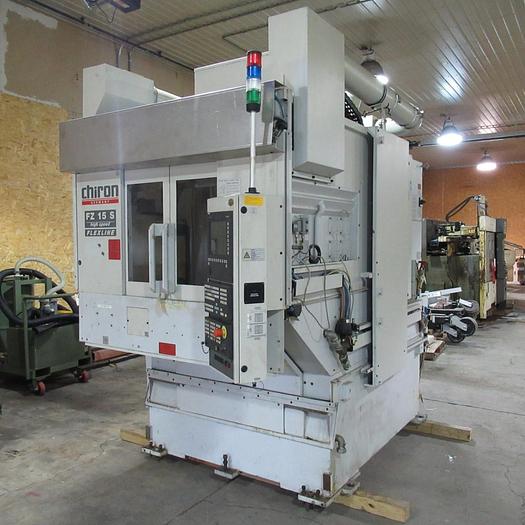

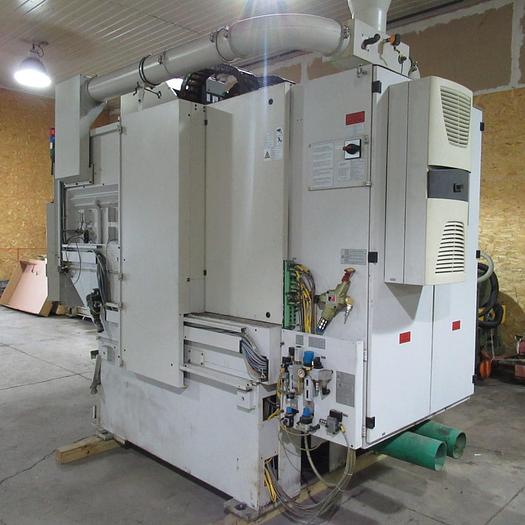

CHIRON FZ15S VERTICAL MACHINING CENTER

CHIRON FZ15S VERTICAL MACHINING CENTER

Available quantity:1

Request a QuoteInterested in Financing?

Description

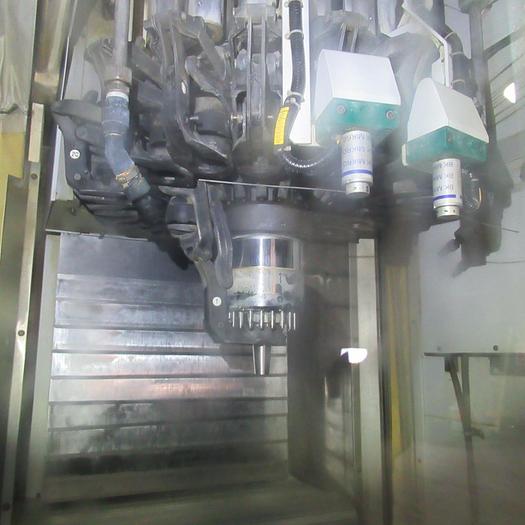

Unlock the full potential of your production line with the Chiron FZ 15 S Vertical Machining Center. This advanced system is outfitted with a basket tool changer and a 2-axis swivel rotary table, allowing for 5-axis simultaneous and complete machining. With its combination of speed, compact design, and unparalleled flexibility, the FZ 15 S sets the standard in its class. Each unit undergoes a rigorous inspection by Gizmo Machine Tools INC to guarantee you're getting the best machining center for your industrial needs. Experience next-level machining with Chiron's trusted engineering and Gizmo's seal of quality.

All specifications are subject to verification by the purchasing entity.






Specifications

ManufacturerChiron
ModelFZ15S
Year2005
ConditionUsed
Serial Number235-93
Stock NumberVMC-CHI-508
TRAVEL(X)730 MM
TRAVEL (Y)400 MM
TRAVEL(Z)425 MM
POWER MAX.58 KW
SPINDLE SPEED MAX.15,000 RPM
AXIS ACCELERATION X-Y-Z MAX.12 / 12 / 12 M/S2
RAPID FEED MAX.75 M/MIN.
BASKET TYPE ATC20
TOOL TAPERHSK-63A
TOOL WEIGHT MAX.10.0 KGS
TOOL DIAMETER MAX.175 MM
TOOL LENGHT MAX.300 MM
APPROX. WEIGHT5000 KGS
CONTROLLERSiemens 840D

Equipped With

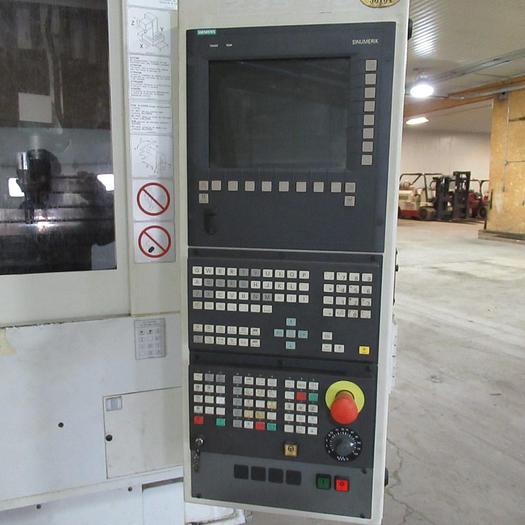

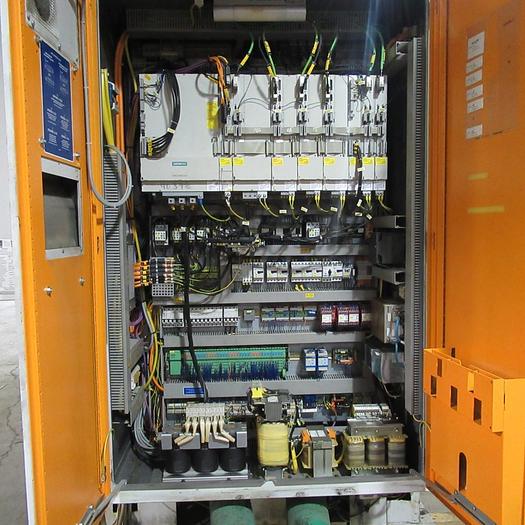

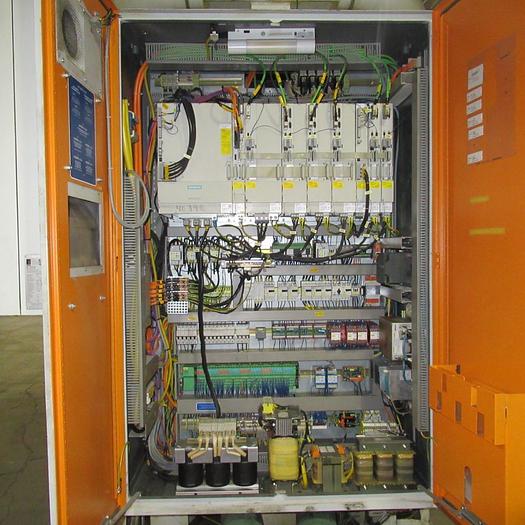

Siemens 840D CNC controller

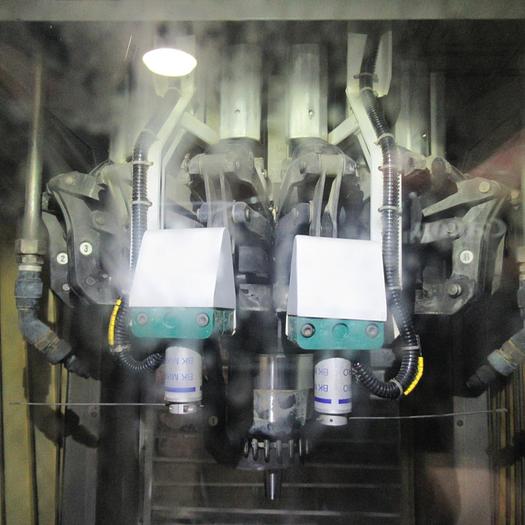

Basket Tool changer

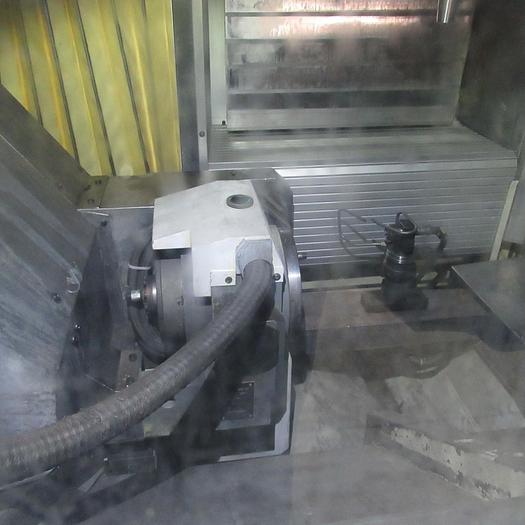

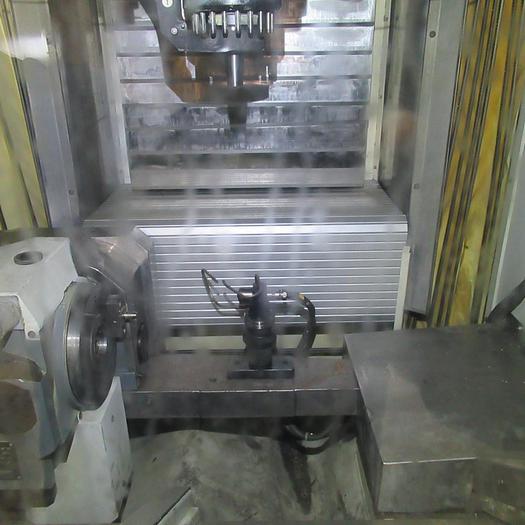

2-axis swivel rotary table for 5-axis simultaneous and complete machining
Controller Siemens 840D
