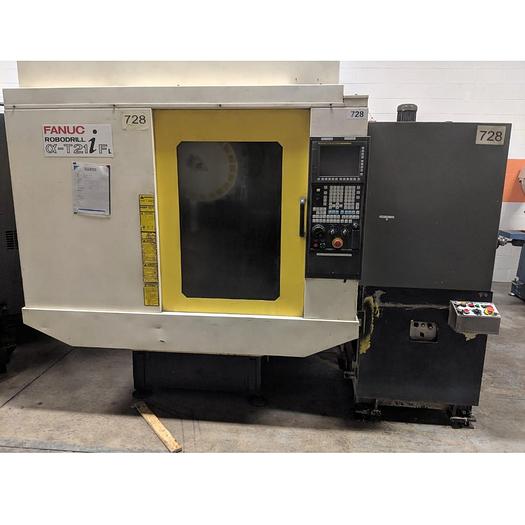

2008 Fanuc Robodrill Alpha T21iF L (1)
Sold
2008 Fanuc Robodrill Alpha T21iF L (1)
Description

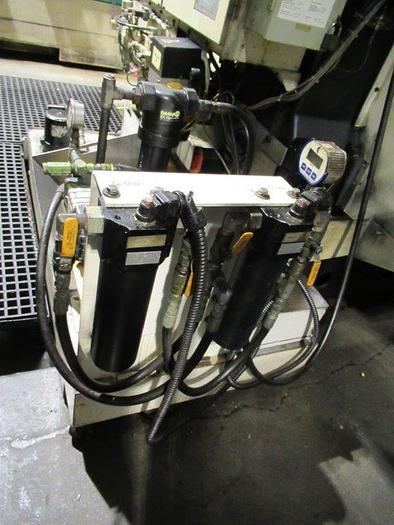

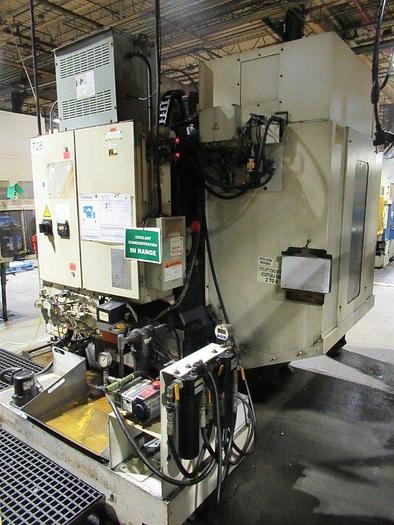

EQUIPPED WITH Coolant System Coolant Filtration System Rigid Tapping All specifications are subject to verification by purchasing entity.
Specifications
| Manufacturer | Fanuc |
| Model | Fanuc Robodrill Alpha T21iFL |
| Year | 2008 |
| Condition | Used |

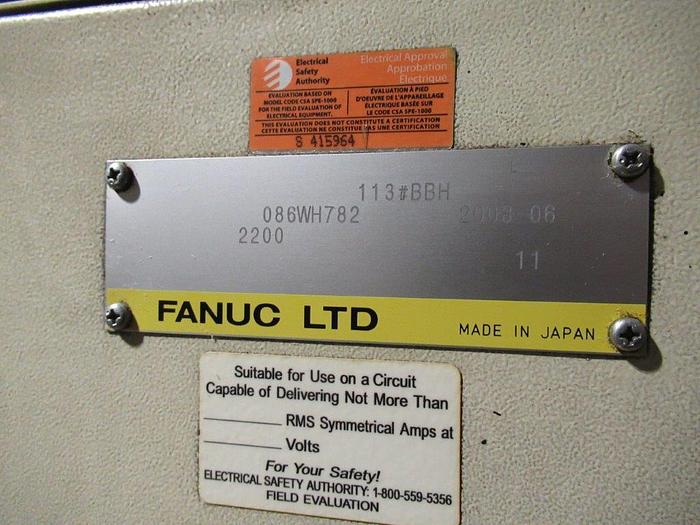

| Serial Number | 086WH782 |
| Travels ( x / y / z ) | 27.55 IN / 15.74 IN / 12.99 IN |
| Table size | 33.46 IN x 16.1 IN |
| Max table load | 660 LBS |
| Max distance spindle to table top | 29.75 IN |
| Max distance spindle nose to trunnion center | 16.25 IN |
| Rapid traverse rate (x-,y-,z-axes) | 2125 IPM |
| Feed rate (x-,y-,z-axes). | 1181 IPM |

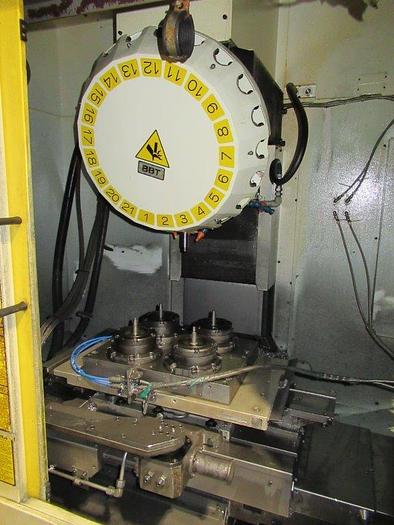

| Atc | 21 |
| Tool change time | 0.9 Sec Tool-To-Tool |
| Spindle speed | 10000 RPM |
| Taper | BBT30 |
| Approximate dimensions (l x w x h) | 68 IN x 84 IN x 116 IN |
| Approximate weight | 5,500 LBS |

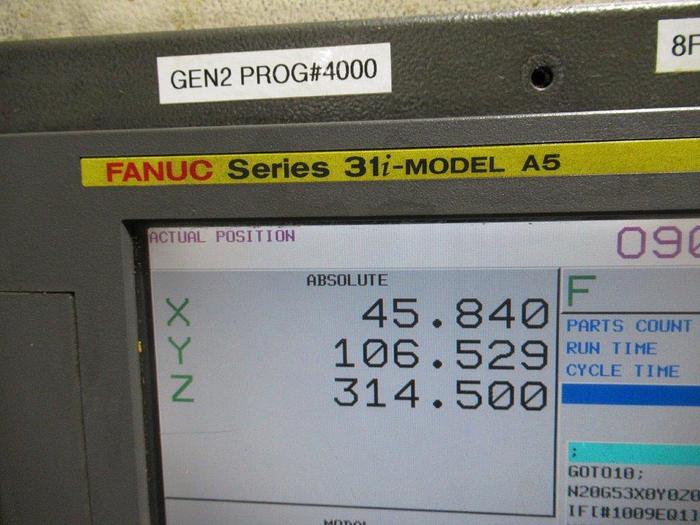

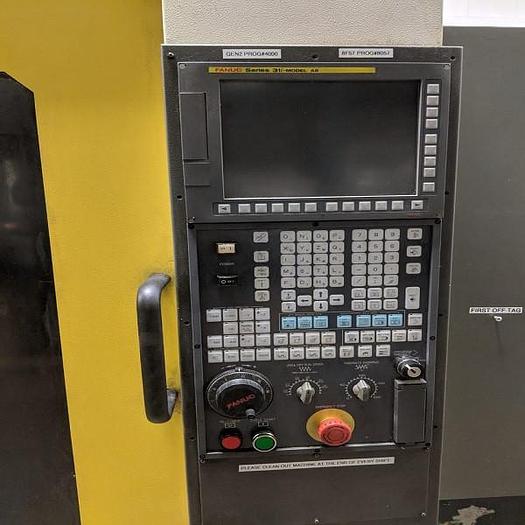

| Controller | Fanuc Series 31i-Model A5 |
