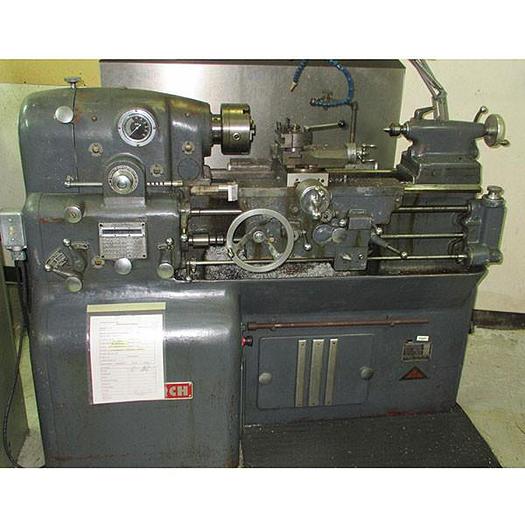

Monarche 10EE Engine Lathe
Sold
Monarche 10EE Engine Lathe
Description
Eqipped With
3-jaw chuck
Quick change toolpost

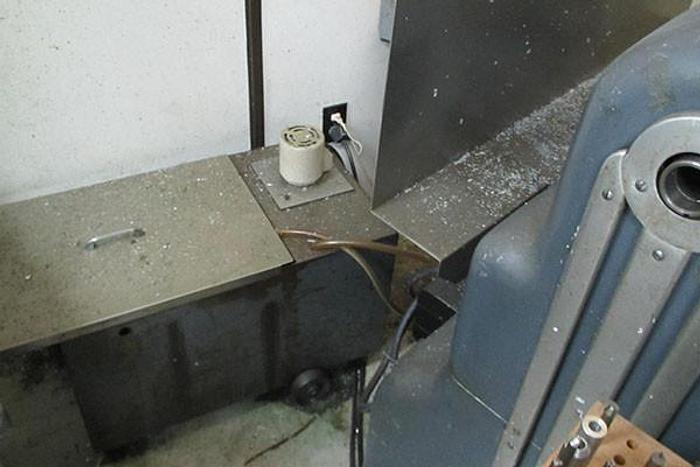

Coolant Pump
Variable speed spindle
All specifications are subject to verification by purchasing entity.
Specifications
| Condition | Used |
| Swing over bed. | 12-1/2" |
| Distance between centres | 20" |
| Swing over cross slide | 7-1/2" |
| Spindle bore | 1-13/32" |
| Spindle nose | D1-3 |
| Spindle speeds | Inf. Variable to 4000 RPM |
| Tailstock taper | #2 MT |
| Tailstock diameter | 1-1/4" |
| Tailstock travel | 3-1/2" |
| Threads | (60) 3-184 TPI |
| Longitudinal feeds | (50) 0.0005 - 0.016 IPR |
| Electrics | 440v, 3ph |
| Machine dimensions | 61" x 30" x 45" |
| Machine weight (approx.) | 3450 lbs |
