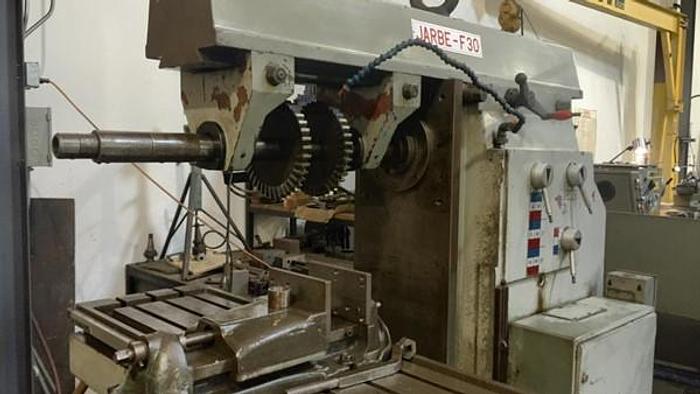

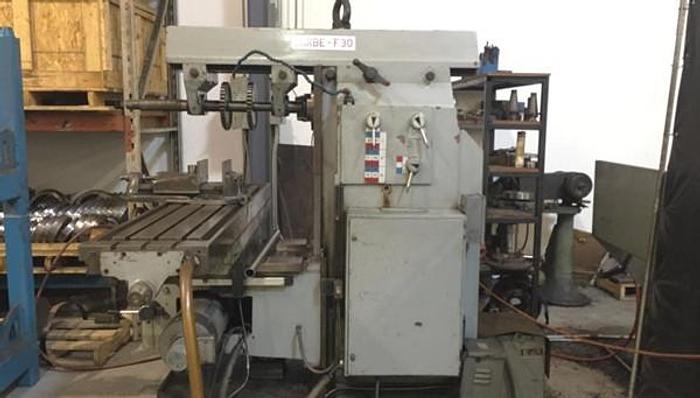

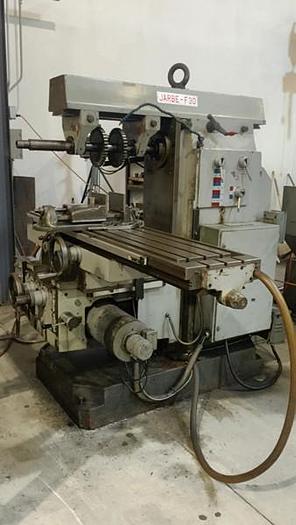

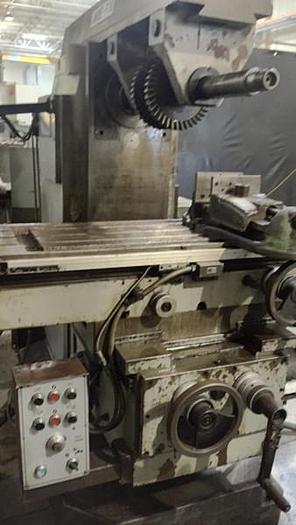

Jarbe Universal Milling Machine with Digital Readout
Sold
Jarbe Universal Milling Machine with Digital Readout
Description
Specifications:
Equipped with :
Universal vertical head
3 axes Mitutoyo digital readout
2 arbor support
Milling vice
miscellaneous tooling
3 axes power feed
All specifications are subject to verification by purchasing entity.
Specifications
| Condition | Used |
| Travel-longitudinal | 54" |
| Table size | 14.5"x70" |
| Travel-cross | 16" |
| Travel-knee | 20" |
| Spindle taper. | 50 |
| Vertical spindle to column | 16" |
| Spindle speeds | 28-1400 RPM |
| Main motor | 15 HP |
| Electrics | 600/3/60 |
| Machine dimensions | 75"x80"x80" |
