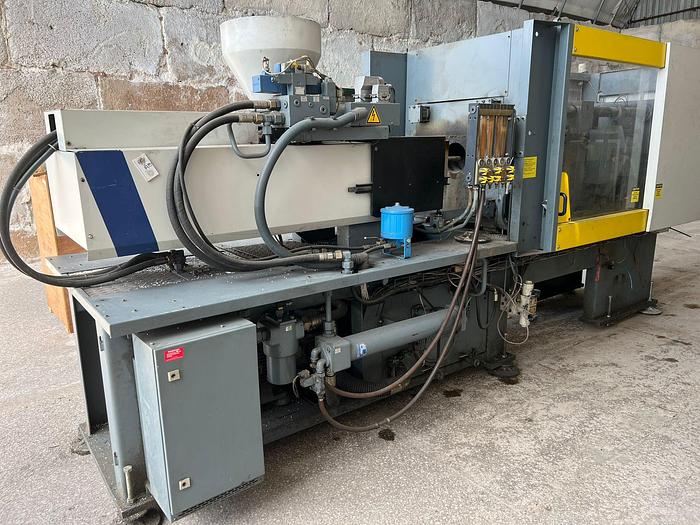

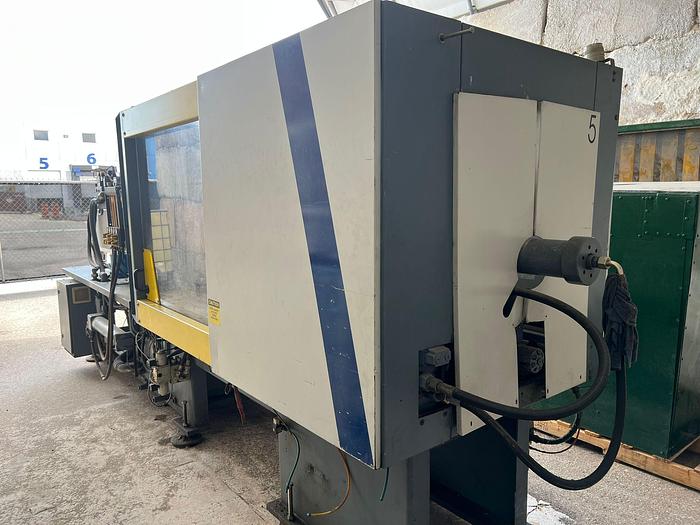

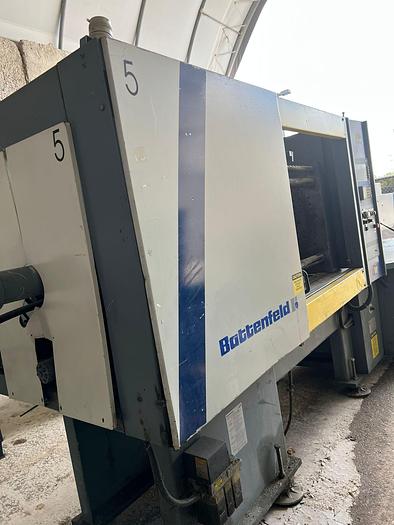

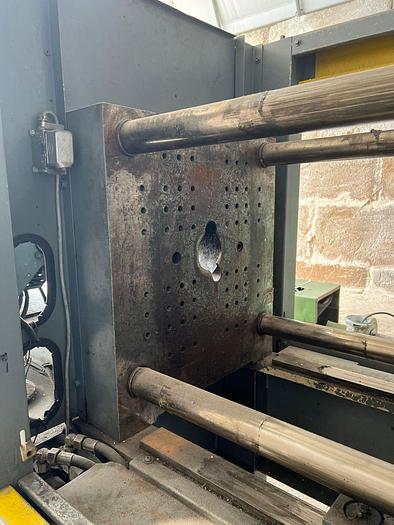

BATTENFELD BK T1500/630 INJECTION MOLDING MACHINE
BATTENFELD BK T1500/630 INJECTION MOLDING MACHINE
Available quantity: 1
Specifications
| Manufacturer | Battenfeld |
| Model | BK T1500/630 |
| Year | 1995 |
| Condition | Used |

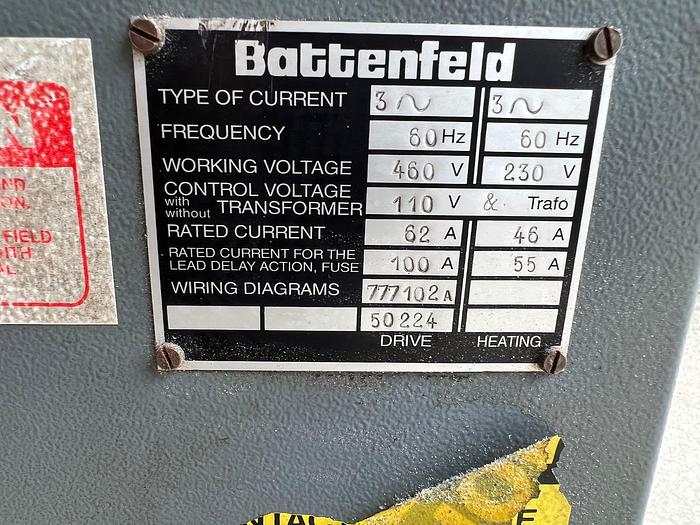

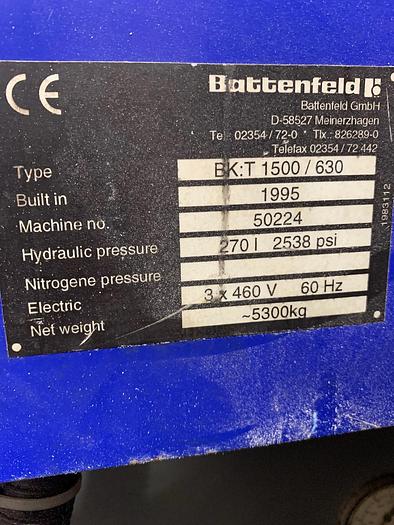

| Serial Number | 50224 |
| Stock Number | INJ-BTF-680 |
| Clamping force | 1500 kN |

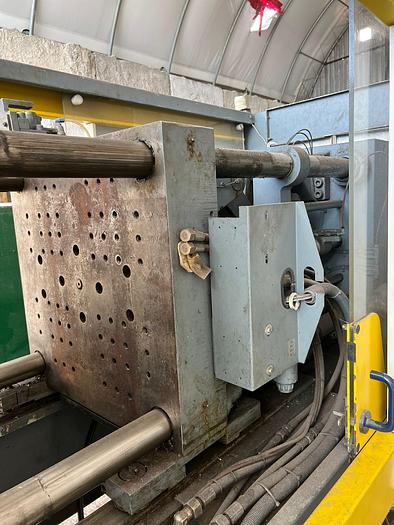

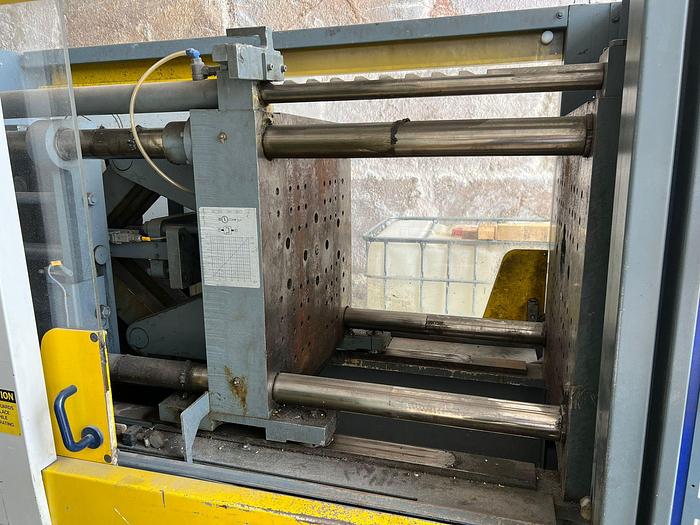

| Size of mould platens (h x v) | 700 mm x 700 mm |
| Distance between tie bars (h x v) | 500 mm x 500 mm |
| Mould opening stroke | 420 mm |
| Mould height min. | 200 mm |
| Mould height max. | 470 mm |
| Max daylight | 890 mm |
| Hydraulic ejector - stroke | 160 mm |
| Ejector force forward/backward | 67 kN |
| Screw diameter | 45 mm |
| Ls/D ratio | 20 |
| Injection pressure | 2182 bar |
| Stroke volume | 286 ccm |
| Shot weight, PS | 260 g |
| Screw speed | 280 1/min |
| Plasticising rate max. | 33 g/s |
| Nozzle pressure | 99 kN |
| Nominal capacity of pump motor | 22 kW |
| Installed heating capacity | 11,2 kW |
| Reservoir capacity | 320 ltr. |
| Dimensions of the machine ca. | 4,840 m x 1,422 m x 2,05 m |
| Total machine weight | 5300 kg |
