MAIN FEATURES

Rigid 30 degree one piece cast iron slant bed

Wide box way construction with Turcite-B anti-friction way surfaces

High precision, pre-tensioned X & Z axes double nut ball screws with electric torque

limiter protection

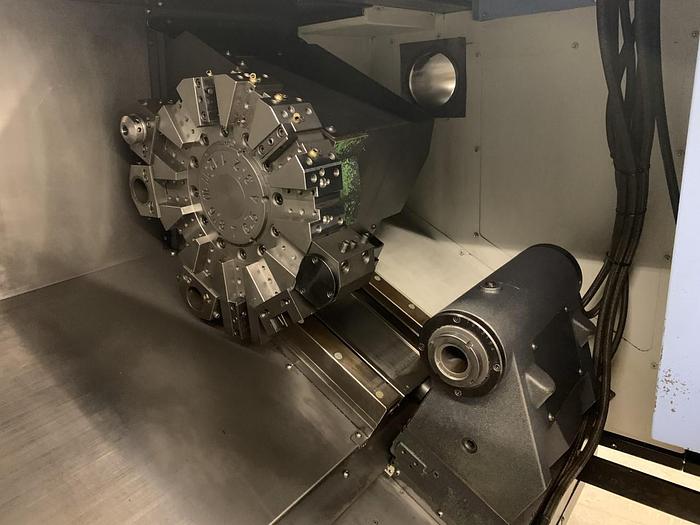

12 station heavy duty servo controlled turret (.15 second turret swivel)

25 hp high speed - high torque digital AC spindle motor

Large 18.1" maximum turning diameter

Large 3.19" bar capacity

25.9" maximum turning length

Fast 1,181 ipm Z axis rapid traverse

Full sliding cover protection for tailstock guide ways

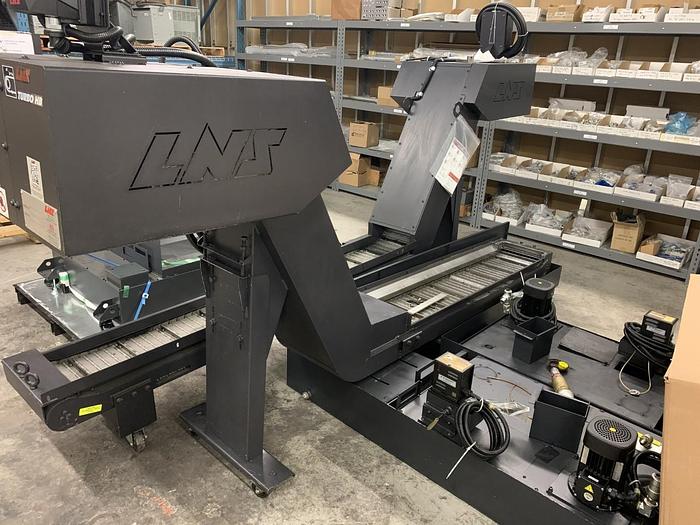

Bolt up chip conveyor design for easy access and removal of coolant tank

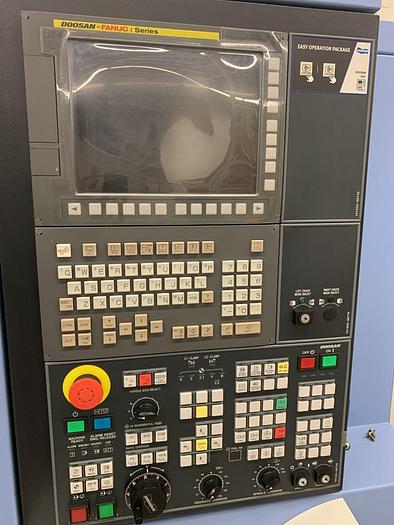

FANUC Oi-T control with swiveling operator's panel

Doosan EZ Guide i Conversational Programming

Doosan Tool Load Monitoring System

Manufacturer	Doosan Machine Tools
Model	Puma GT 2600
Year	2018
Condition	Used
Serial Number	ML0258-000771
Stock Number	MAC-TC-DSN-70
Max Swing Over Bed	24.8 IN
Swing Over Carriage	18.1 IN
Max Turning Diameter	18.1 IN
Max. Turning Length	25.9 IN
Distance Between Spindle Nose and Tailstock	33.19 IN
Slant Bed Angle	30 Degree
X-Axis Travel	10.43 IN
Z-Axis Travel	26.8 IN
Turret Station	12
Tool Holder Type	DI Base Holder
Turning Tool Shank Size	1 IN
Boring Bar Diameter	2 IN
Turret Index Time	0.15 Seconds
Tool Selection	Bi-Directional
Curvic Coupling Diameter	7.99 IN
Turret Clamping Force	11915 IB
Turret Index Repeatability	+-0.0005 IN
Spindle Speed	3500 RPM
Spindle Bar Capacity	3.2 IN
Spindle Nose	A2-8

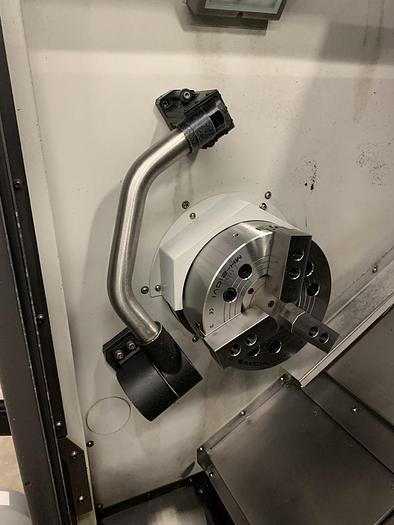

Chuck Size	10 IN
Floor Space (LxW)	129.5 IN x 64.2 IN
Machine Height	68 IN
Machine Weight	10364 lbs
