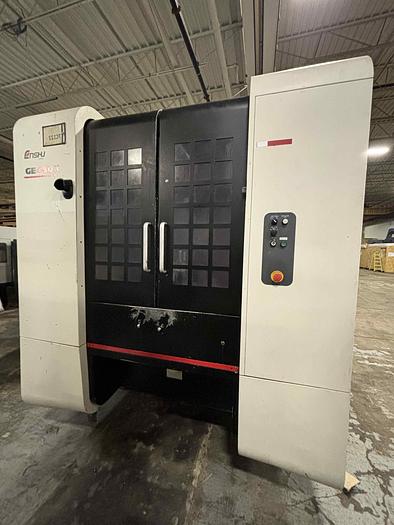

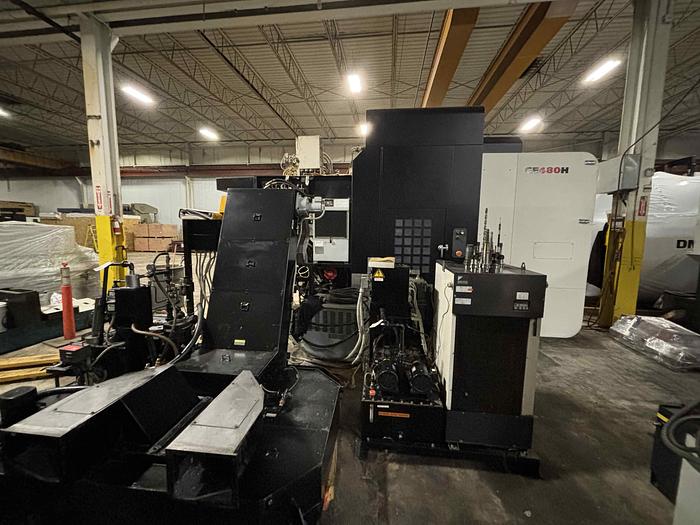

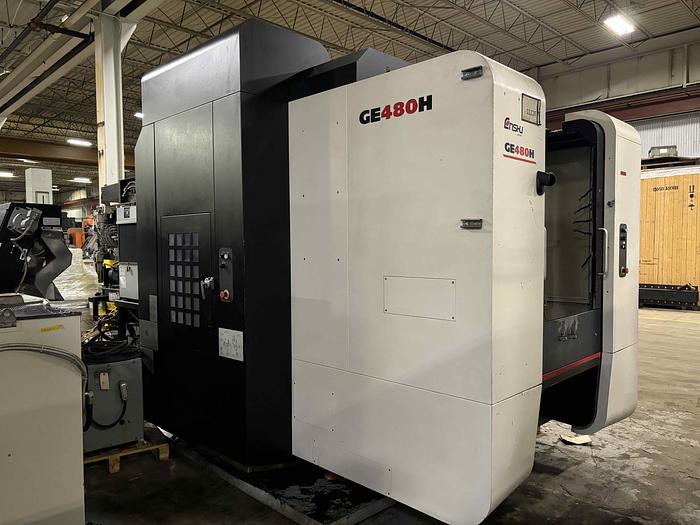

2019 ENSHU GE 480H HMC 20K RPM, HSK63A (VERY LOW HOURS)

2019 ENSHU GE 480H HMC 20K RPM, HSK63A (VERY LOW HOURS)

Available quantity: 1

Request a Quote Interested in Financing?orCall +1 905-488-0709

Description

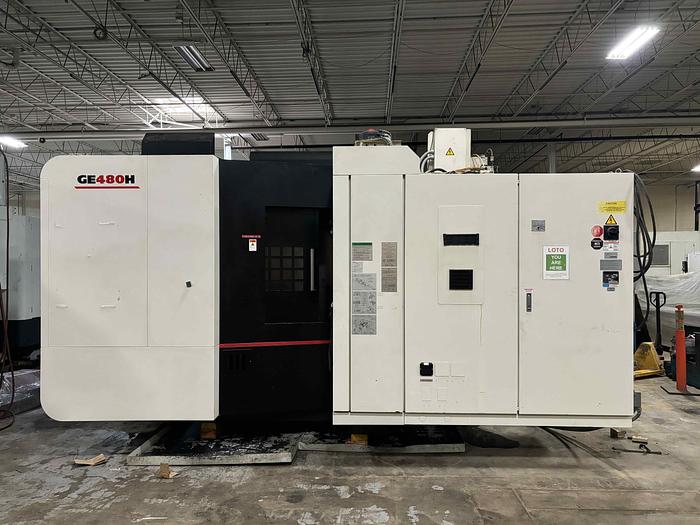

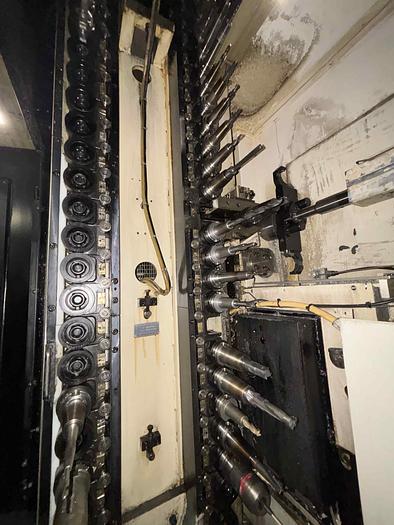

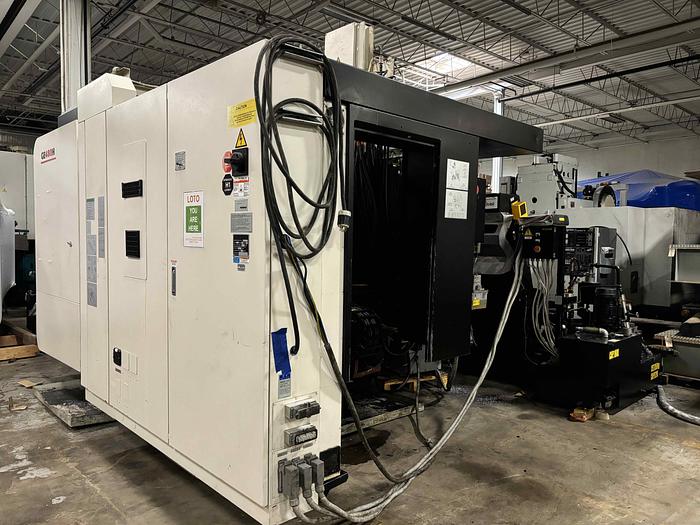

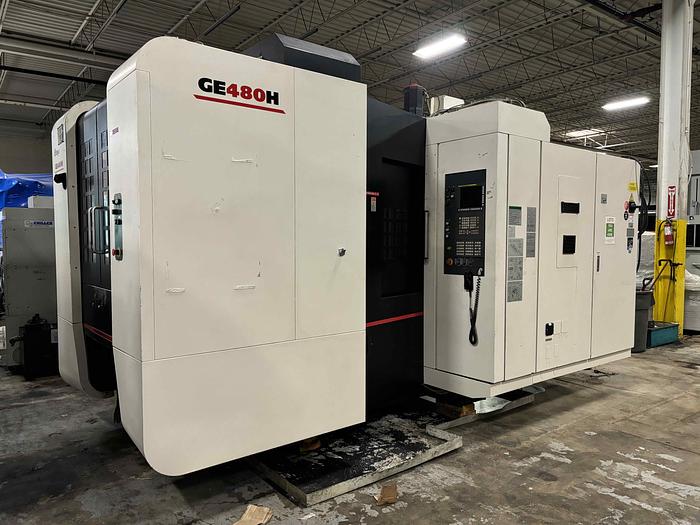

Dive into the unparalleled capabilities of the preowned ENSHU GE 480H HORIZONTAL MACHINING CENTER. Fully inspected and vetted by our expert team, this state-of-the-art machine boasts the sophisticated Fanuc Series 31i Model B. Experience smooth operations with the Full Rotary Bi-Directional B Axis and the Rotary automatic pallet changer. Efficient tool management is ensured with a 60-tool automatic tool changer. The high-volume rolling filter chip conveyor, combined with spindle features like the air curtain, oil chiller, flood coolant, and powerful 1000 PSI thru-spindle coolant, guarantees top-tier performance. Trust in the precision of its Linear Guideway (Cross Roller) for accuracy every time.


Equipped with:

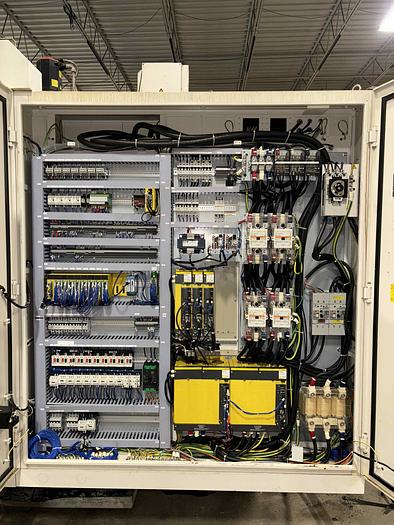

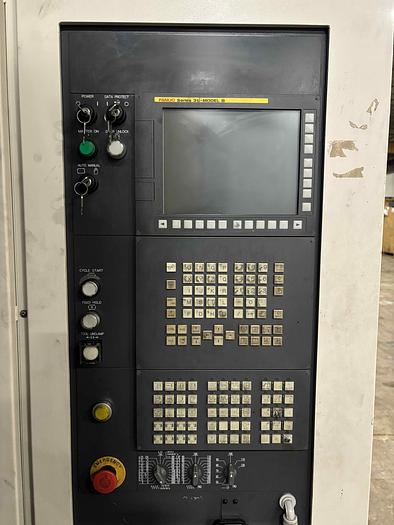

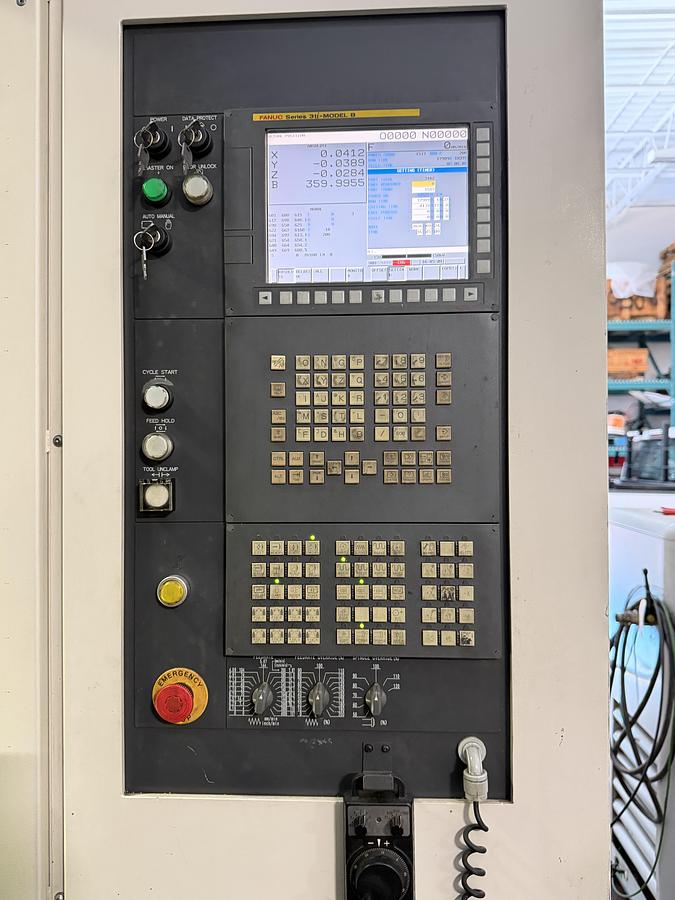

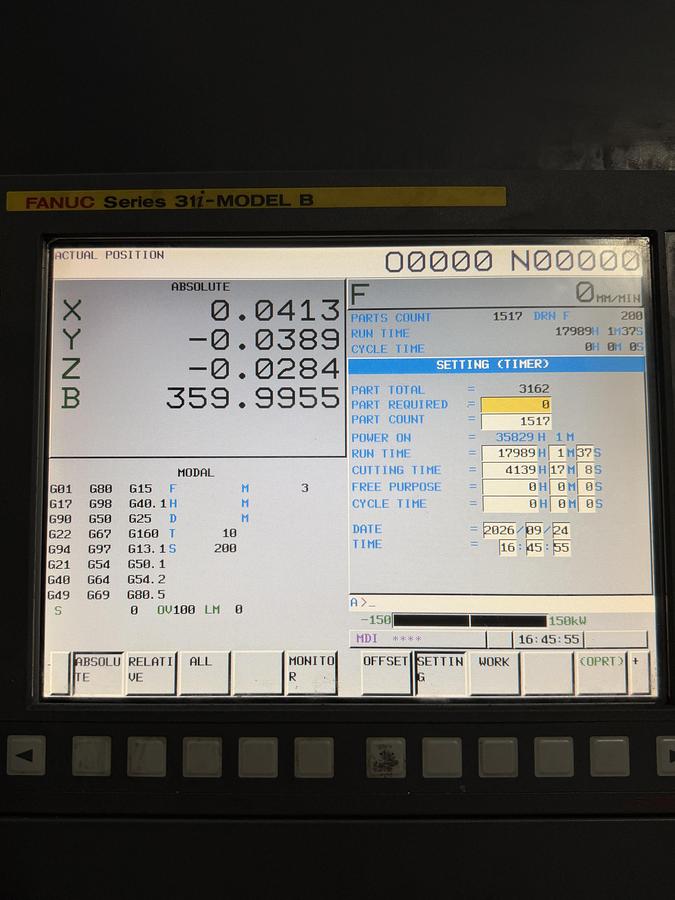

Fanuc Series 31i Model B

Coolant thru-spindle

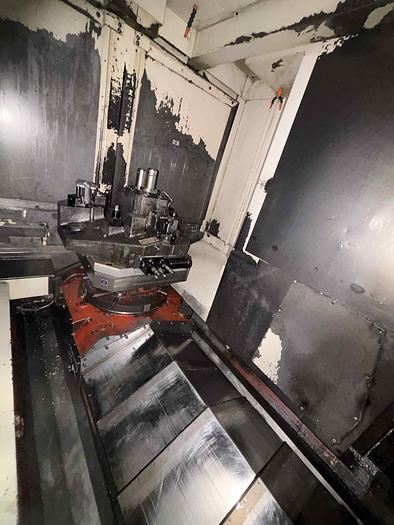

Full Rotary Bi-Directional B Axis

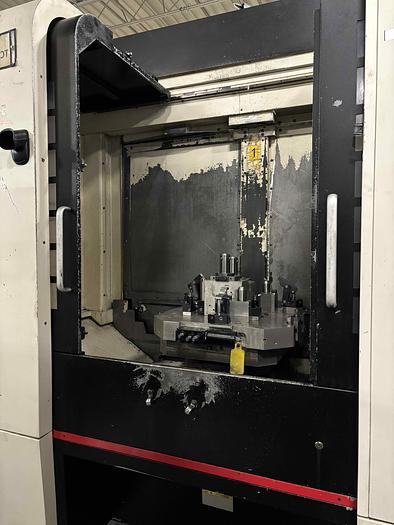

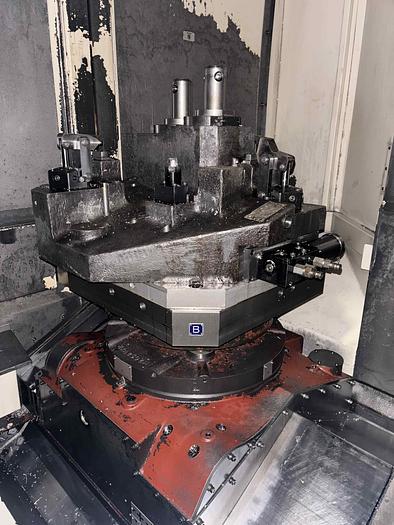

Rotary automatic pallet changer

Chip Blaster

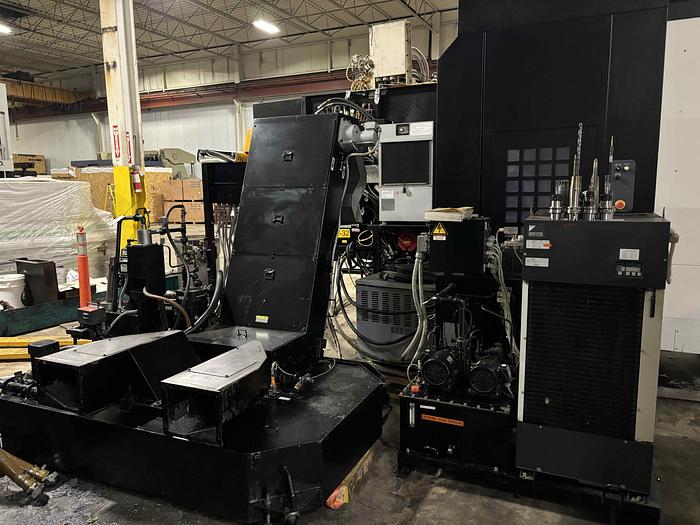

High-volume rolling filter chip conveyor.

Linear Guides (Cross roller)

Spindle air curtain

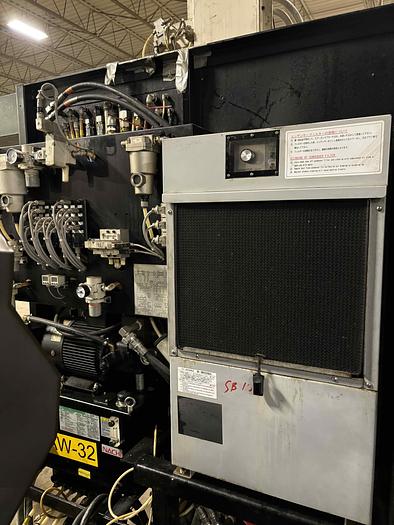

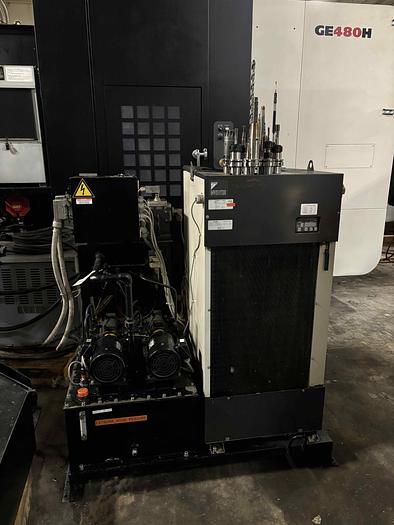

Spindle oil chiller

Flood coolant

2 MB Total program memory

Tool offset memory type C

Custom Macro B

Specifications

ManufacturerEnshu Ltd.
ModelGE 480H
Year2019
ConditionUsed

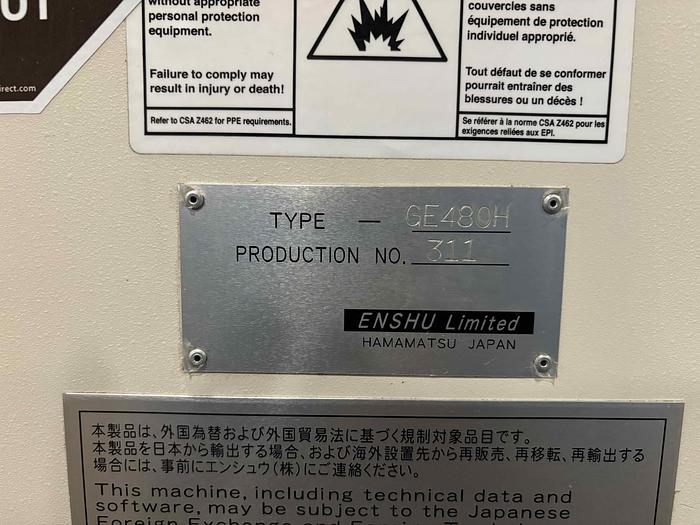

Serial Number311
Stock NumberHMC-ENS-860
Axis4
X Axis31.5”
Y Axis31.5”
Z Axis31.5”

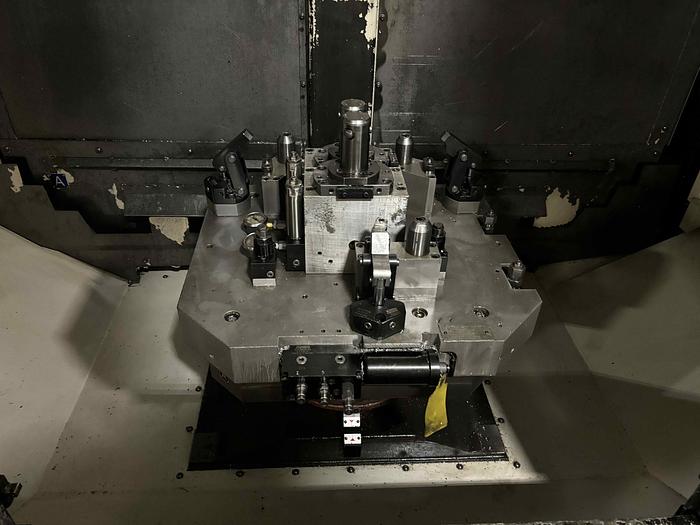

Pallet Size19.7 x19.7 INCHES
DISTANCE PALLET TOP TO SPINDLE CENTERLINE (Y)2.75/34.2 INCHES
DISTANCE PALLET CENTERLINE TO SPINDLE FACE (Z)5.9/37.4 INCHES
Rapid Traverse (x/y/z)3543 IPM
Max. Programmable Feedrate3543 IPM
Feed Motors7.4 HP
Spindle Power/Type30 HP/ Integral

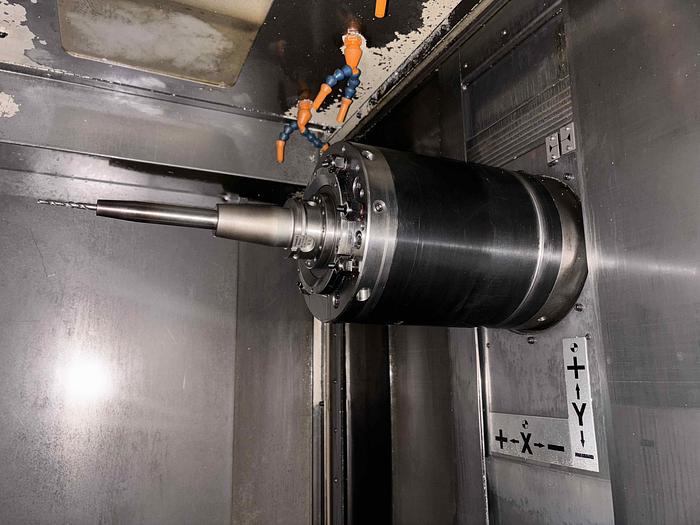

Max spindle speed20000 RPM

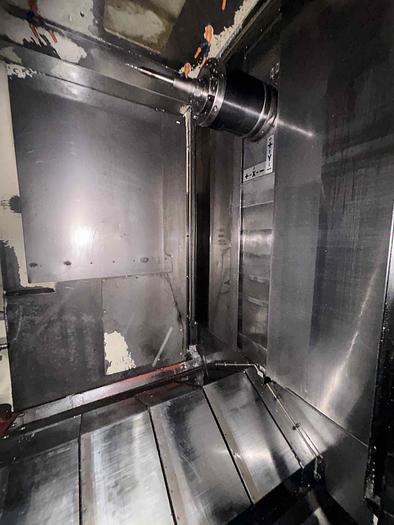

Spindle TaperHSK-A63
Pallet Load Capacity Per Side1100 lbs
Max Workpiece Weight (lbs)1,100
Number of pallets2
PALLET CHANGE TIME7 S
Max Tool Weight17.6 lbs
CHIP TO CHIP TIME3.2 S
Pallet Clamp force57.6 Kn
Rigid Tapping Max RPM4000
TOOL CHANGE TIME1.2 S
Approximate Machine Dimensions L x W x H190 x 110 x 117 INCHES
Weight25000 lbs
