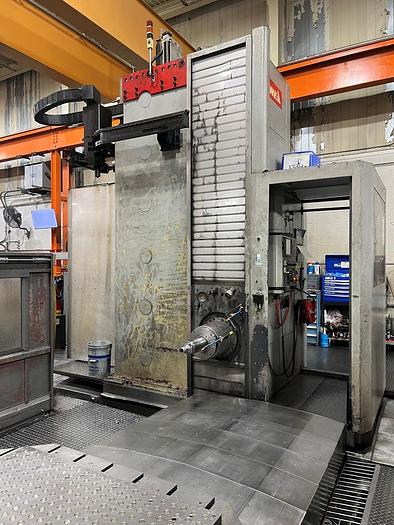

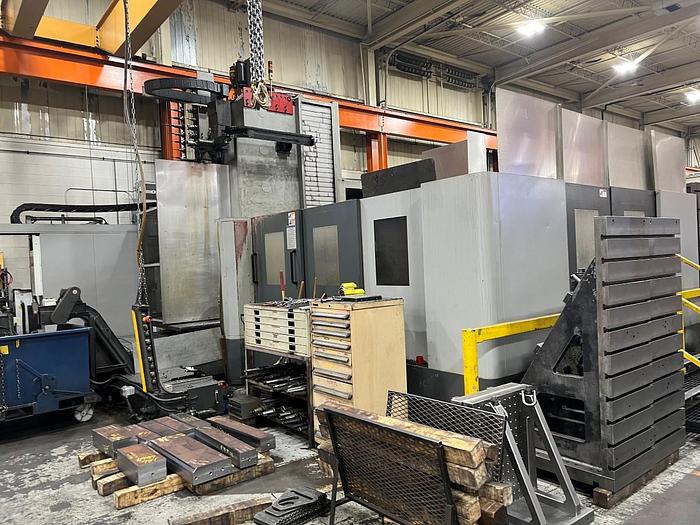

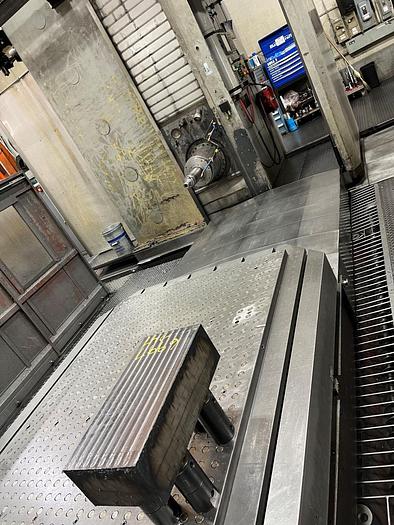

Superior Structural Integrity
Engineered through Finite Element Method (FEM) analysis, the BL-4024S features a light-weighted yet optimized design. This ensures unparalleled machine rigidity, so you can execute your projects with unmatched precision.
Quality You Can Feel
Constructed with "MEEHANITE" casting, the machine's ribbed bed, column, table, headstock, and saddle have undergone a full annealing process and aging. This guarantees long-term stability, even under the most demanding conditions.
- High-Precision Feed System: Experience unrivalled accuracy with a heavy-duty feed system that’s built to last.

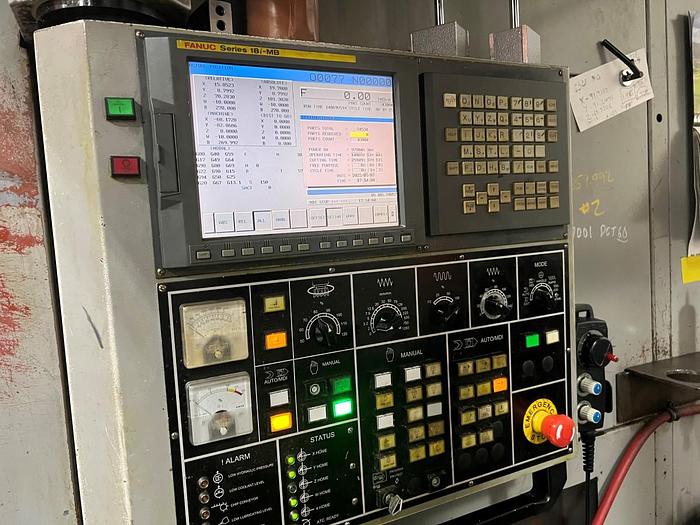

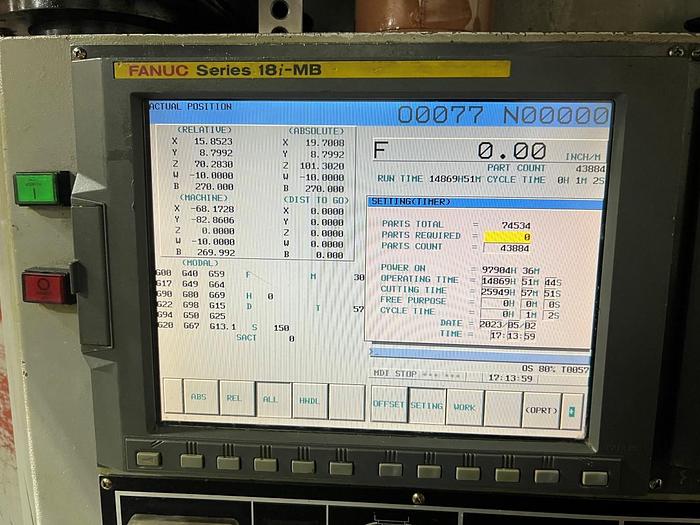

- Direct Drive by FANUC αi Motors: Achieve speeds up to 12 m/min thanks to high-torque motors.
- Full Travel Support with Linear Guide Ways: 3 axes are fitted with high-rigidity linear guide ways, designed to withstand heavy cutting requirements.
Equipped with a HEIDENHAIN linear scale as standard on 3 axes, you can expect a resolution up to 1μm and positioning accuracy at ±0.010 mm over the full travel.
Efficient Chip Management
The machine comes with two augers and a caterpillar chip conveyor, making chip removal efficient and improving cooling effects. An optional enclosure splash guard provides a safe and clean working environment.

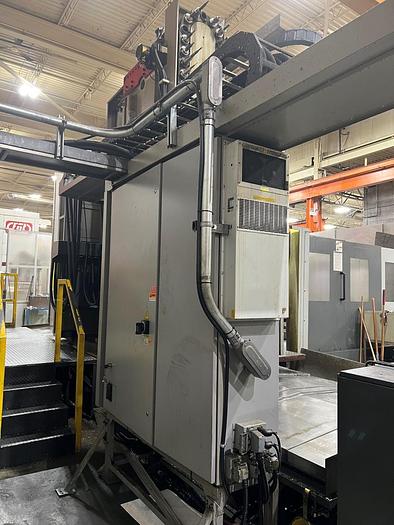

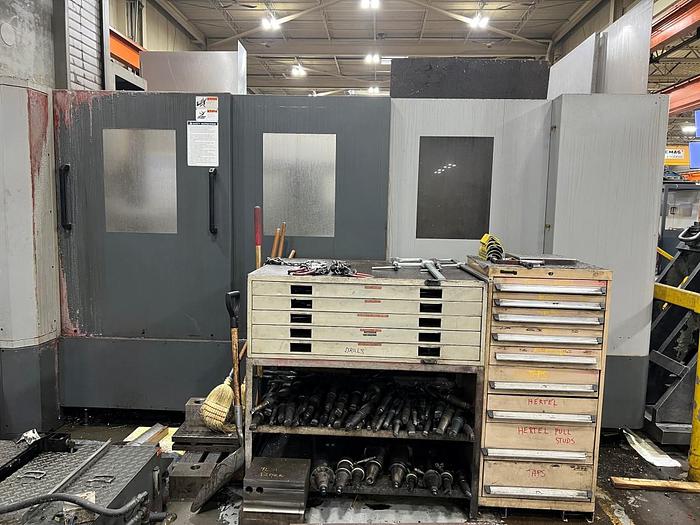

Enjoy peace of mind with a fully enclosed operator room that moves along with the column, keeping the operator safe while maximizing ease of use.
|X-axis travel||4,000 mm|
|Y-axis travel||2,400 mm|
|Z-axis travel||1,300 mm|
|W-axis travel||600 mm|
|Distance from spindle nose to table top||885 mm|

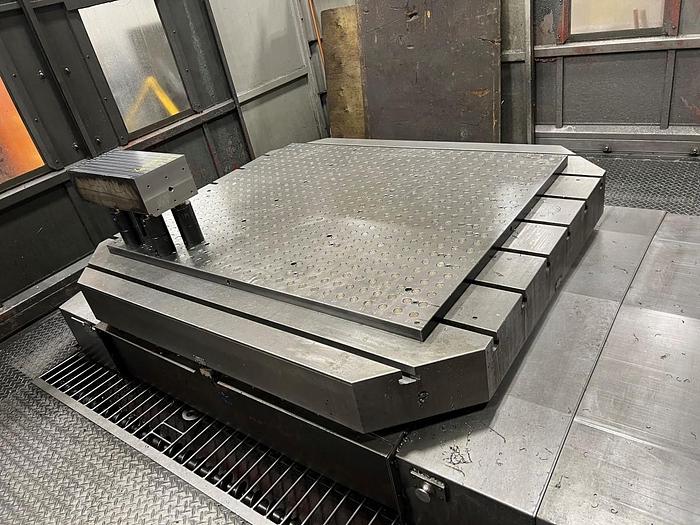

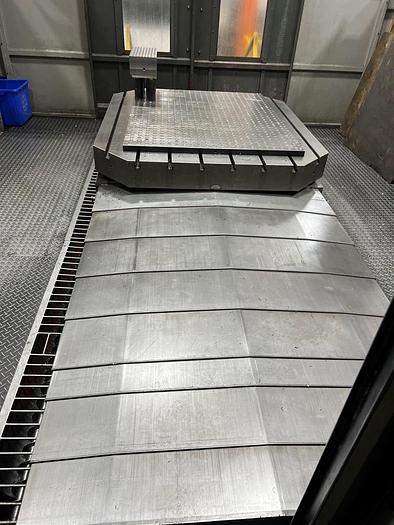

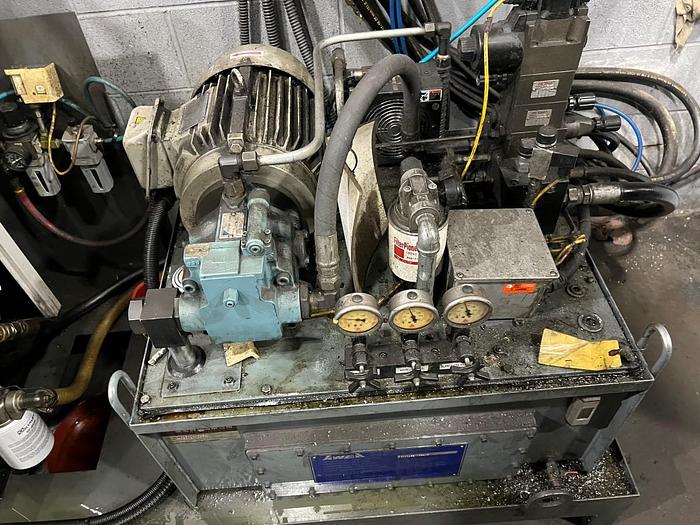

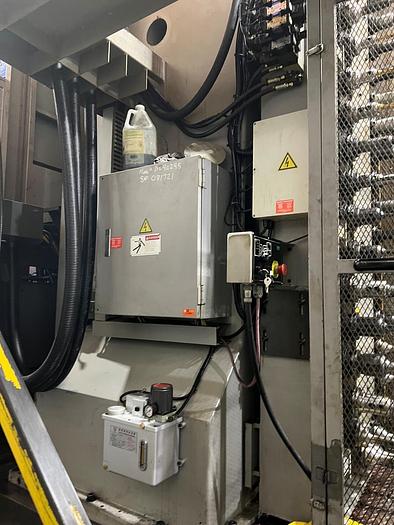

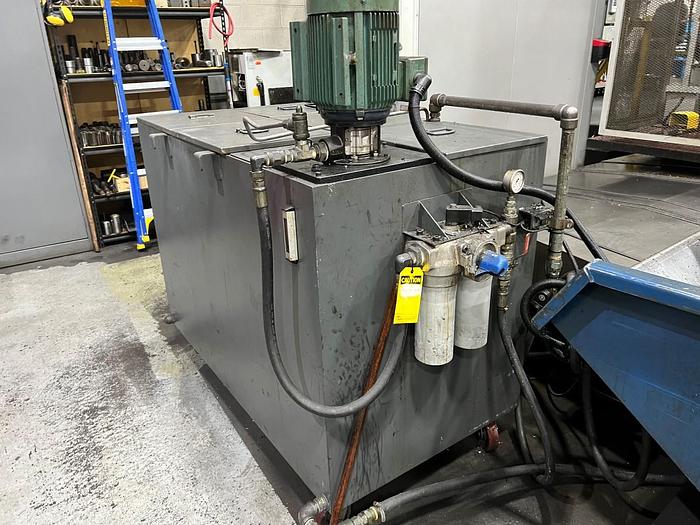

|Table size ( X x Y )||1,600 x 1,800 mm|
|Table load capacity||15,000 kg|
|Boring spindle size||Quill with Ø 120 mm|
|Spindle motor ( cont. / 30 min. )||22 / 26 kW ( 30 / 35 HP )|
|Spindle speed||2,400 rpm|
|Spindle torque||1,308 N-m|
|X / Y / Z axes rapid feedrate||12,000 mm/min.|
|W-axis rapid feedrate||5,000 mm/min.|
|Cutting feedrate||1 ~ 5,000 mm/min.|
|Tool magazine capacity||40T|
|Max. tool diameter / adj. pocket empty||Ø 125 / Ø 250 mm|
|Max. tool length ( from gauge line )||400 mm|
|Max. tool weight||25 kg|
|Positioning accuracy ( JIS B 6338 )||± 0.01 mm / Full Travel|
|Positioning accuracy ( VDI 3441 )||P= 0.025 mm / Full Travel|
|Repeatability ( JIS B 6338 )||± 0.003 mm|
|Repeatability ( VDI 3441 )||Ps= 0.018 mm|
|Power requirement||70 kVA, 220±10%, 3 phase, 50/60 Hz|
|Pneumatic pressure requirement ( min. )||5 ~ 8 ( 5 ) kg/cm2|
|Lubrication oil tank capacity||4.6 liter|
|Coolant tank capacity ( pump )||560 liter|
|Machine weight||39,500 kg|
