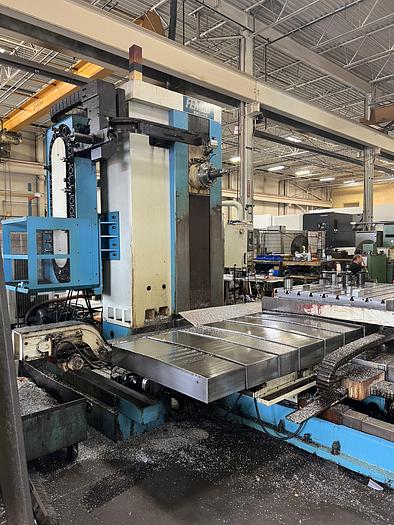

FEMCO BMC-110R2 BORING MILL
FEMCO BMC-110R2 BORING MILL
Available quantity: 1
Description
EQUIPPED WITH
Saddle Slideway Cover
Working Light
Anchors and Levels for Installation
Rotary Table, 90 Degree Precision Indexing
Table Slideway Cover
X-, Y-, Z-Axes Ball Screw Cover

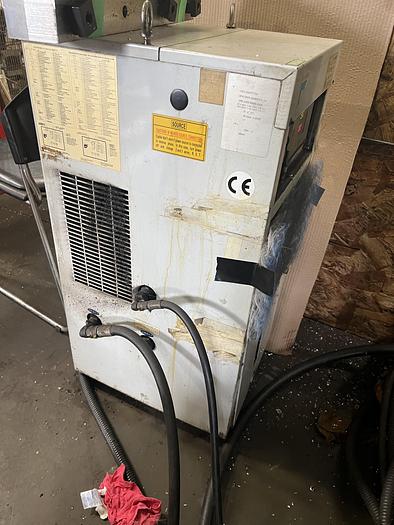

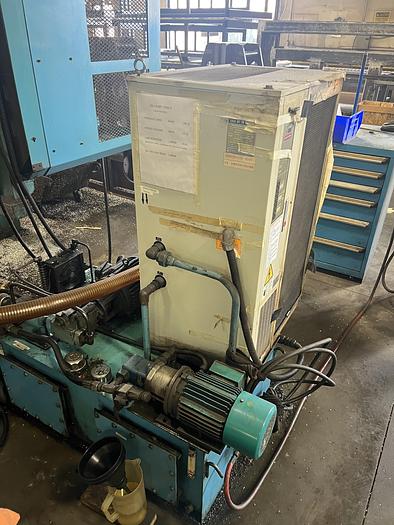

Headstock Cooling System
Operator’s Manual
Specifications
| Manufacturer | Femco |
| Model | BMC-110R2 |
| Year | 2003 |
| Condition | Used |

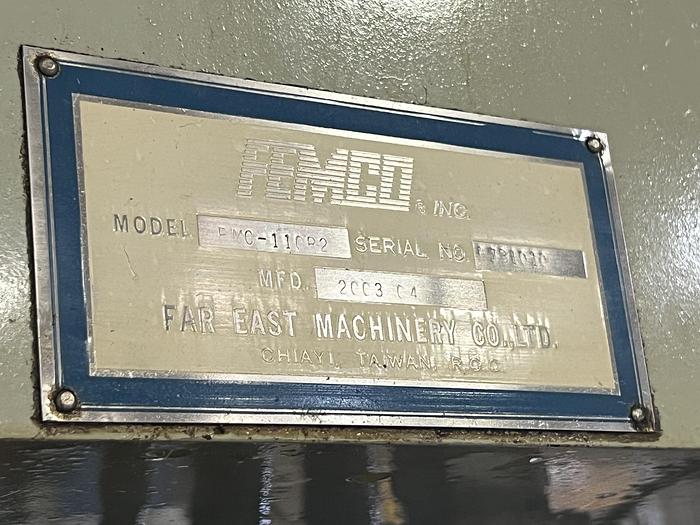

| Serial Number | 1731010 |
| Stock Number | MAC-BRM-FMC-117 |
| Table Cross Travel X Axis | 78.74” |
| Headstock Travel Y Axis | 70.87” |
| Table Longitudinal Travel Z Axis | 64.96” |

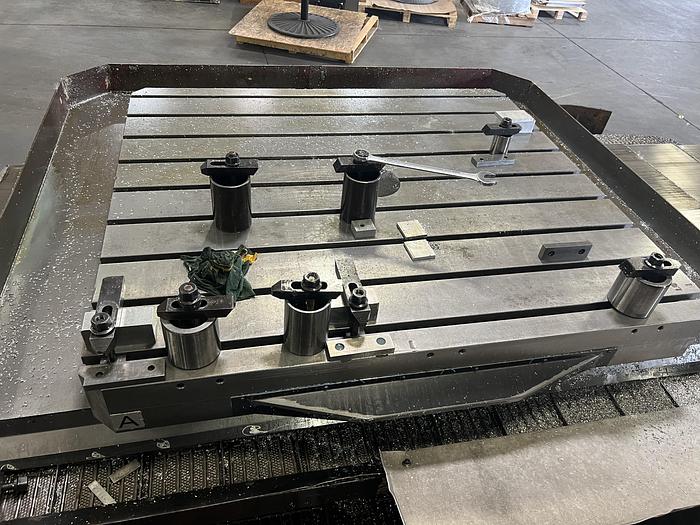

| Table Size | 56.69” x 62.99” |
| Table Load | 13,889 lbs. |
| Bar Diameter | 4.33” |
| Stroke (W Axis) | 19.69” |
| Taper | ISO #50 with power operated drawbar |
| Tool Shank | CT50 |
| Milling Spindle Diameter | 8.86” |
| Rapid Traverse Rate X-Y-Z- Axis | 394” IPM |
| W-Axis | 157” IPM |
| Rapid Rotation of Rotary Table | 0.72 RPM |
| Height | 147” |
| Floor Space (L x W) | 308” x 244” |
| Net Weight | 41,887 lbs. |
