HWACHEON Hi-ECO 21HS TURNING CENTER
No longer available
HWACHEON Hi-ECO 21HS TURNING CENTER
Available quantity:1
Description
EQUIPPED WITH
Fanuc Series 18-T
Tailstock
Tool Pre setter
Specifications
| Manufacturer | Darbert Machinery Co.ltd. |
| Model | Hi-ECO 21HS |
| Year | 1998 |
| Condition | Used |

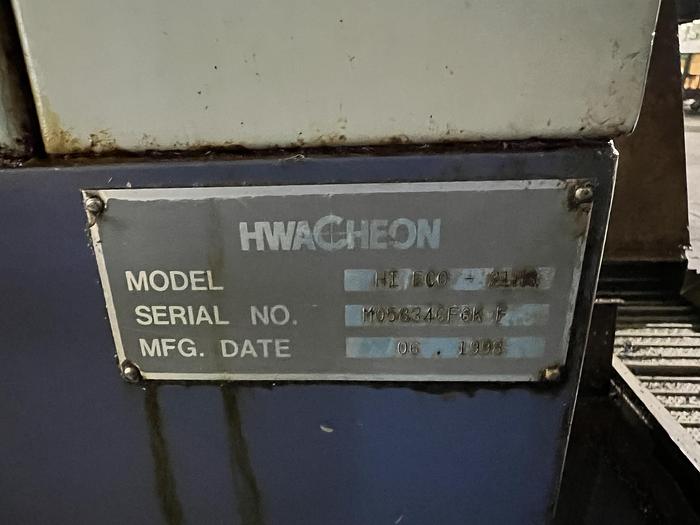

| Serial Number | M058346F6K F |
| Stock Number | TC-HWC-781 |
| Axis | 2 |
| X-Axis Travel | 6.61” |
| Z-Axis Travel | 17.32” |
| Chuck Size | 8” |
| Max. Swing | 22.83” |
| Max. Turning Diameter | 11.02” |
| Max. Turning Length | 15.74” |
| Bar Diameter | 2” |
| Spindle Nose | A2-6 |
| Spindle Bore | 2.4” |
| Spindle Speed | 40-4000 RPM |
| Spindle Horsepower (cont./30min.) | 15/20 (a.c.) |
| Rapid Traverse X | 1181 IPM |
| Rapid Traverse Z | 1181 IPM |
| Tailstock Quill Stroke | 3.93” |
| Tailstock Quill Diameter | 3.14” |
| Tailstock Qill Taper | MT#4 |
| Approx. Dimensions | 101”x60.6”x74” |
| Approx. Weight | 8900 lbs. |
