DOOSAN PUMA TT-1500SY TURNING CENTER
DOOSAN PUMA TT-1500SY TURNING CENTER
Available quantity:1
Description

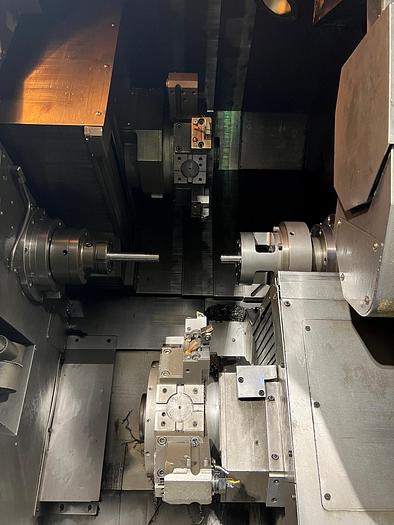

Elevate your manufacturing capabilities with the DOOSAN TT-1500SY Turning Center, a trusted machine that has undergone rigorous testing by Gizmo Machine Tools to ensure top-notch performance. This exceptional turning center comes equipped with reliable FANUC 18i TB CNC control. Two 24-station turrets offering 48 possible positions provide versatility for diverse operations. It boasts a Y-axis, chip conveyor, and tool setter for seamless operations. The parts catcher and conveyor ensure efficient part management. Choose reliability and performance with DOOSAN and Gizmo's seal of quality.
Specifications
| Manufacturer | Doosan |
| Model | TT1500SY |
| Year | 2006 |
| Condition | Used |
| Serial Number | PT15SY0068 |
| Stock Number | LTH-DOO-658 |
| Number of Axis | 6 |
| BAR CAPACITY | 2.008 INCHES |
| Turning Diameter Upper and Lower each | 9.055 INCHES |
| Machining length: Left and Right each Spindle | 4.724 INCHES |
| MAXIMUM DISTANCE BETWEEN SPINDLE NOSE | 29.52 INCHES |
| LEFT SPINDLE | 20HP 6,000 RPM |
| RIGHT SPINDLE | 20HP 6,000 RPM |
| X1 axis travel | 6.5 INCHES |
| Y1 Axis | 5.89 INCHES |
| Z1 axis travel | 18.5 INCHES |
| X2 axis travel | 7.48 INCHES |
| Z2 axis travel | 19.29 INCHES |
| Rapid rates | X / Z 787 IPM / 1,575 IPM |
| Number of Turret | 2 |
| RPM | 6000 |
| MAXIMUM TURNING DIAMETER | 9.05 INCHES |
| Bar capacity (L/R) | 2 INCHES |
| Left / right spindle | FULL C AXIS |
| Driven tool motors | 7.5HP 5,000 RPM |
| Number of Stations | 12 |
| Machine Dimensions (L X W X H) | 137.7 x 81.49 x 81.88 INCHES |
| Weight | 7800 kgs |
Equipped With

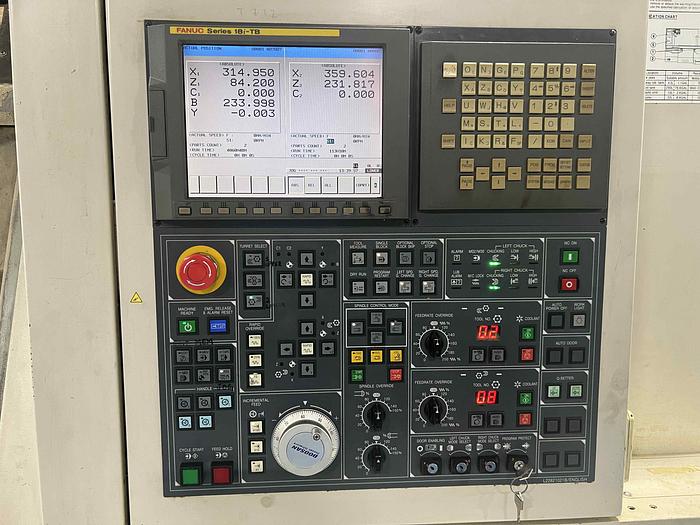

FANUC 18i TB CNC CONTROL
Y-AXIS, B Axis
Full C Axis
CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER
PARTS CONVEYOR
