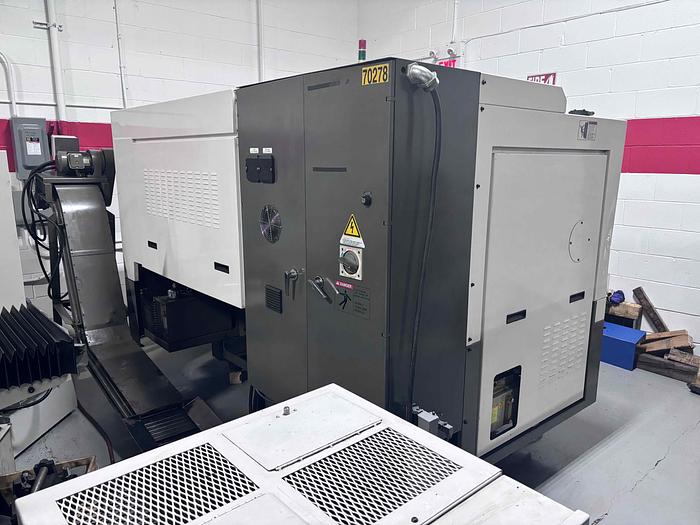

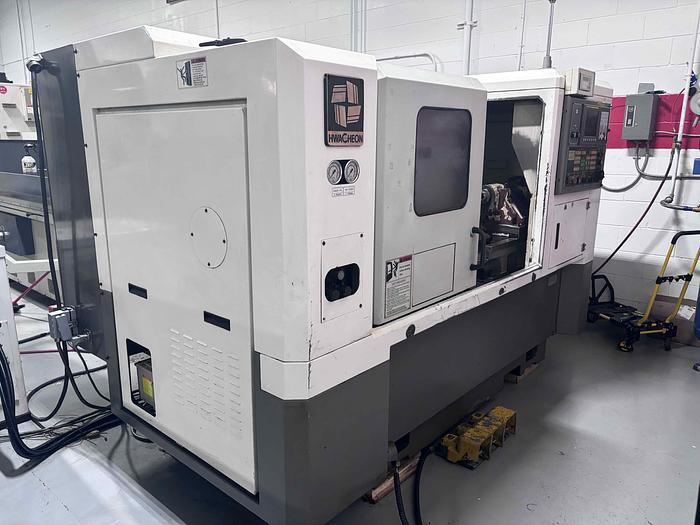

HWACHEON HI TECH 200 CL WITH INDEX CHUCK
HWACHEON HI TECH 200 CL WITH INDEX CHUCK
Available quantity: 1
Description
Equipped with

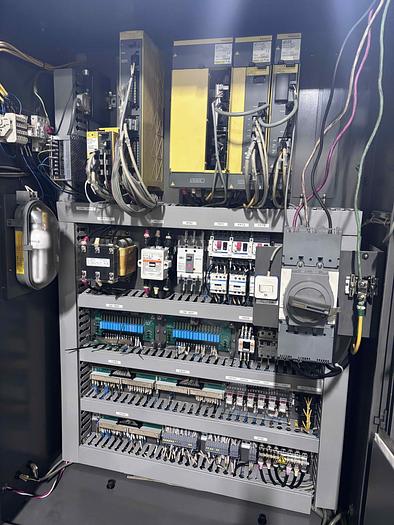

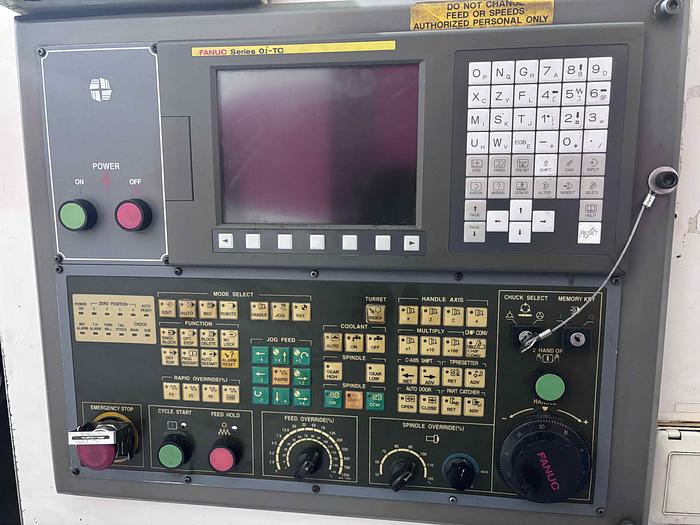

Controller FANUC Series 0i-TC

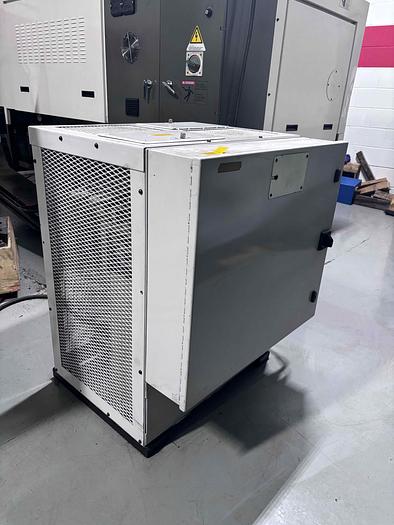

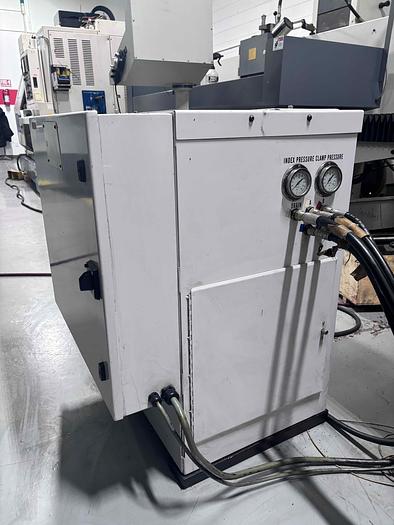

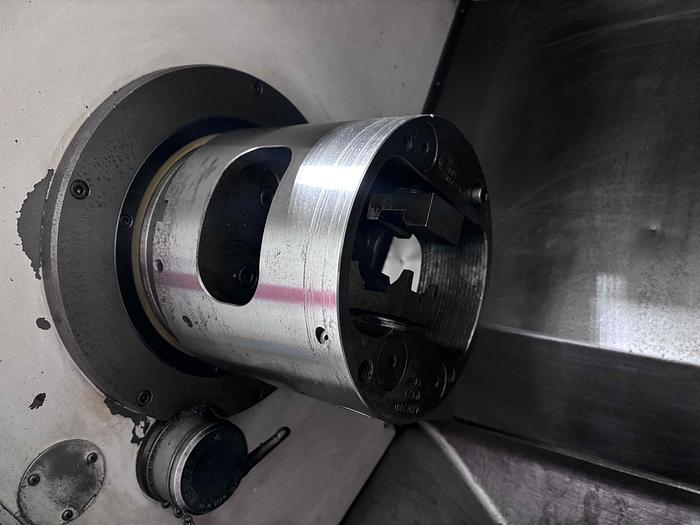

Indexing chuck with hydraulic unit

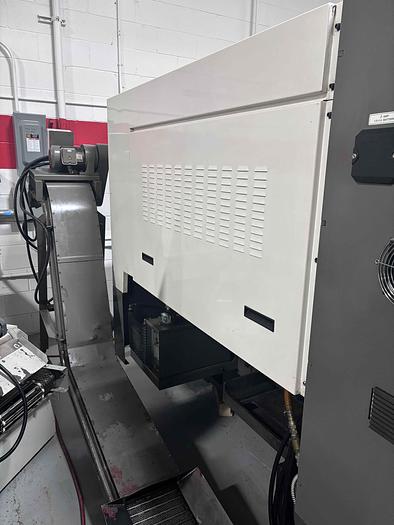

Chip conveyor
Miscellaneous tool holders
Tail Stock
Tool Eye
Specifications
| Manufacturer | Hwacheon |
| Model | HI TECH 200 CL |
| Year | 2005 |
| Condition | Used |
| Serial Number | M017353K1F N |
| Stock Number | TC-HCH-820 |
| Year | 2005-11 |
| Swing over bed | 19.6 INCHES |
| Max cutting Diameter | 13.78 INCHES |
| Standard cutting Diameter | 10.24 INCHES |
| Max Cutting Length | 15 INCHES |
| Chuck size | 10 INCHES |
| Spindle Nose | A2-8 |
| Max. Spindle Speed | 3500 RPM |
| Through Spindle Hole Diameter | 3.54 INCHES |
| Max. Bar Size | 3 |
| Spindle Bearing Inner Diameter | 5.12 INCHES |
| Spindle Motor | 11/15 HP |

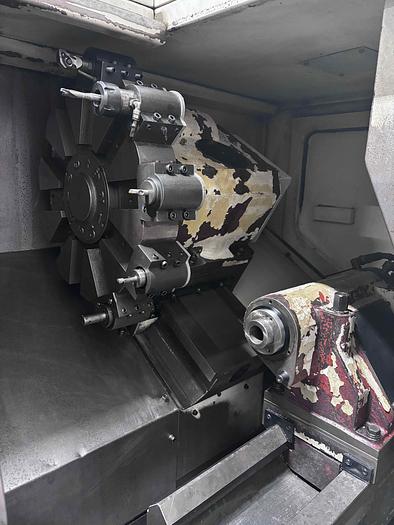

| Number of Tool Station | 10 |
| Tool Size | 1 X 1.5 INCHES |
| Turret Indexing Time | 0.15 sec/step |
| Rapid Speed (X/Z) | 1181/1181 |
| Max. Stroke (X/Z) | 7.68/16.93 INCHES |
| Feed Motor (X/Z) | 2.2/4 |
| TAPER hOLE | 4 |
| HEIGHT | 68.89 INCHES |
| FLOOR SPACE (LXW) | 103.26 X 65.31 INCHES |
| WEIGHT | 4250 kgs |
