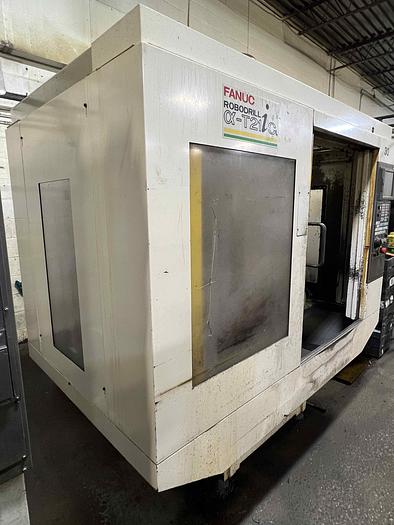

FANUC ROBODRILL ALPHA T21ICL WITH 4TH AXIS (YEAR 2002-12)
Sold
FANUC ROBODRILL ALPHA T21ICL WITH 4TH AXIS (YEAR 2002-12)
Available quantity:1
Description
Equipped with:

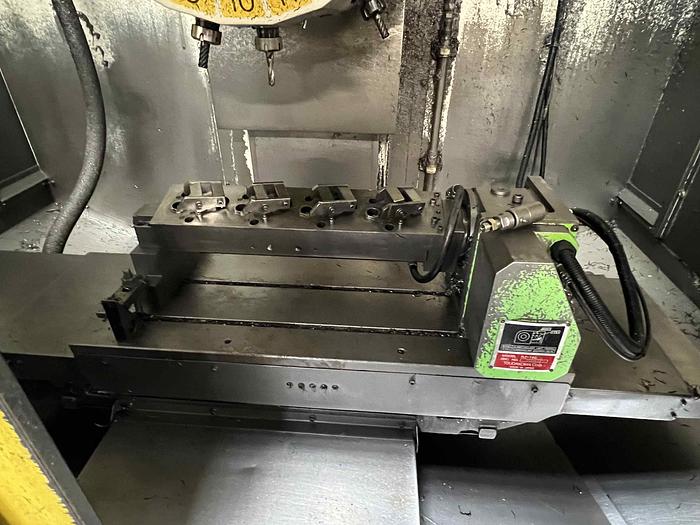

Tsudakoma rotary table
High-pressure Coolant system : 500 psi
High pressure Though Spindle coolant

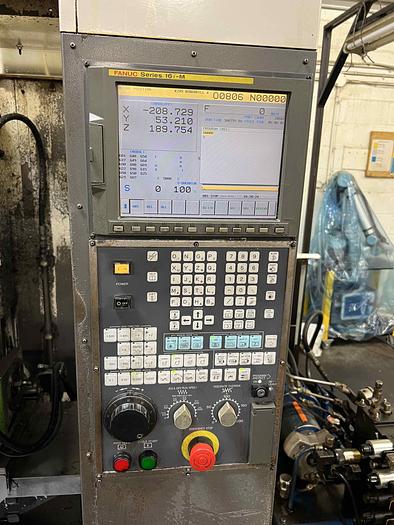

Controller FANUC Series 16i-M
Specifications
| Manufacturer | Fanuc |
| Model | Alpha T21iCL |
| Year | 2002 |
| Condition | Used |

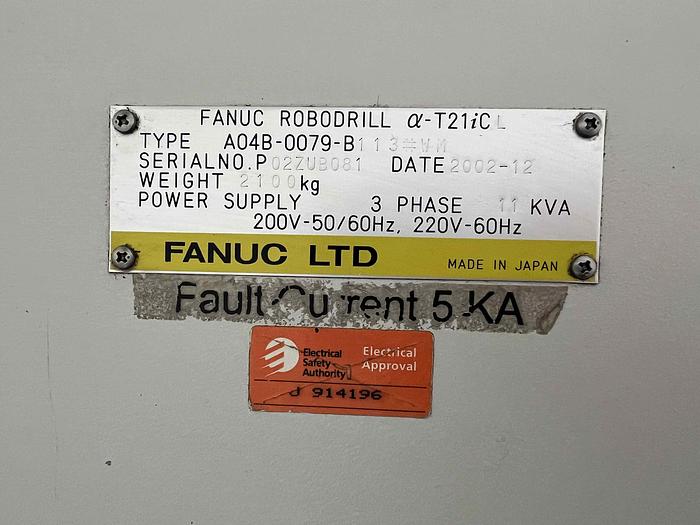

| Serial Number | P02ZUB081 |
| Stock Number | VMC-FBD-821 |
| Year | 2002-12 |
| Number of axes | 4 |
| Spindle power | 5.5 kW /3.5 kW continuous |
| Tool holder type | BT30 |
| Spindle speeds | 10000 rpm |
| Speed ranges LINEAR AXES Travels on X/Y/Z axes | 700/400/330 mm |
| Distance table / spindle nose (min./max.) | 250-580 mm |
| B-axis Rotation Increment: | 0.001 Degrees (Full 4th-axis) |
| TOOL CHANGER | Auto |

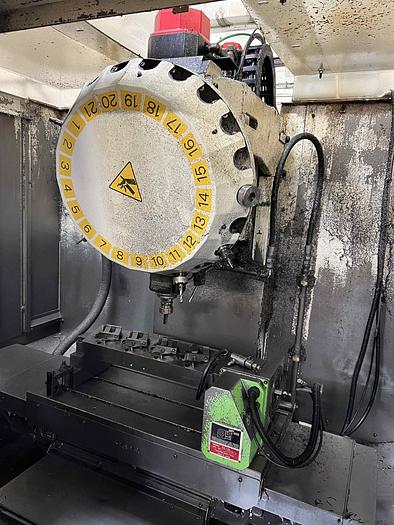

| Tool Changer type | Umbrella |
| Tool magazine capacity | 21 |
| Table dimensions | 850 x 410 mm |
| Maximum weight upon table | 300 kg |
| Machine floor space | 2115 x 2040 mm |
| Machine height | 2429 mm |
| Approximate weight | 2200 kg |
