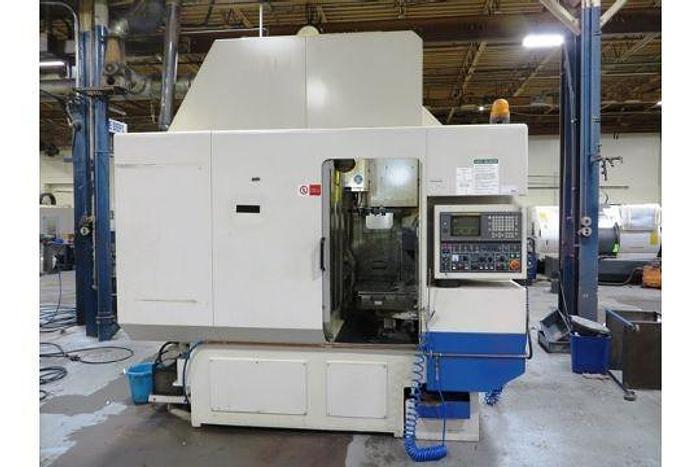

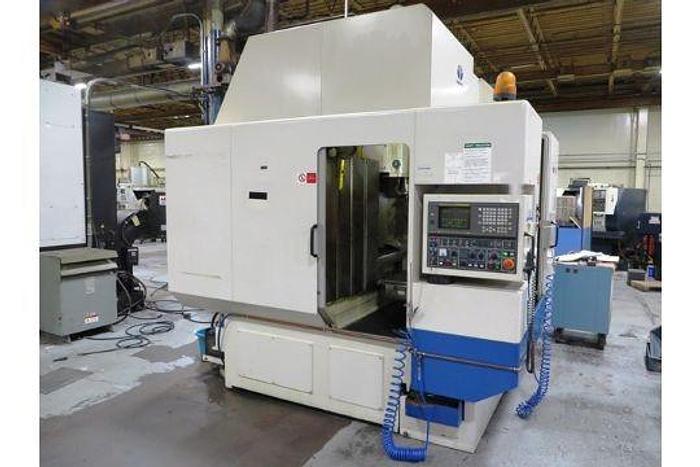

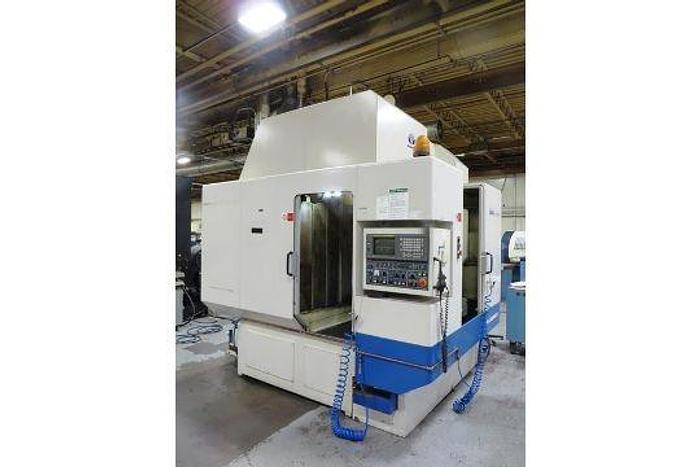

DAEWOO DMV400 VERTICAL MACHINING CENTER
No longer available
DAEWOO DMV400 VERTICAL MACHINING CENTER
Available quantity:1
Description
EQUIPPED WITH

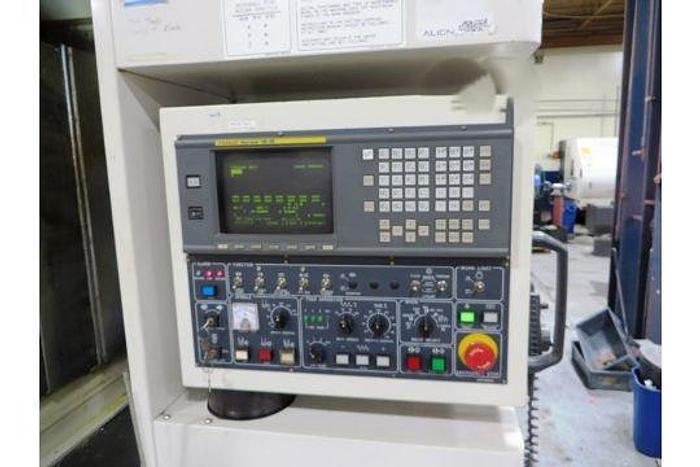

Fanuc 18-M Control
Spindle Chiller Unit
Pallet Changer (180 degree index)
Chip Conveyor
Coolant Tank
Daewoo DMV400 Vertical Machining Center features a Fanuc 18-M Control for precise operations, along with a Spindle Chiller Unit to maintain optimal spindle performance. Equipped with a 180-degree index Pallet Changer for efficient workflow, a Chip Conveyor for effective chip removal, and a Coolant Tank for proper temperature management, this machine is designed for high productivity and reliability.
Specifications
| Manufacturer | Daewoo |
| Model | DMV400 |
| Year | 2000 |
| Condition | Used |
| Serial Number | AV3S1069 |
| Stock Number | VMC-DWO-827 |
| Number of Axis | 3 |
| X-Axis | 22.0” |
| Y-Axis | 15.7” |
| Z-Axis | 22.4” |
| Pallet Size | 17.7″ x 25.6″ |
| Max Pallet Load | 660 lbs |
| Spindle Nose to Pallet Top | 5.9″-28.3″ |
| Rapid Traverse Rate X & Y Axes | 1181 IPM |
| Rapid Traverse Rate Z Axis | 945 IPM |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Tool Changer Capacity | 30 Station ATC |
| Dimension (LxWxH) | 110″x 88″x 120″ |
| Weight | 13,500 lbs. |
