DAEWOO PUMA 200C TURNING CENTER
Sold
DAEWOO PUMA 200C TURNING CENTER
Available quantity:1
Description
EQUIPPED WITH

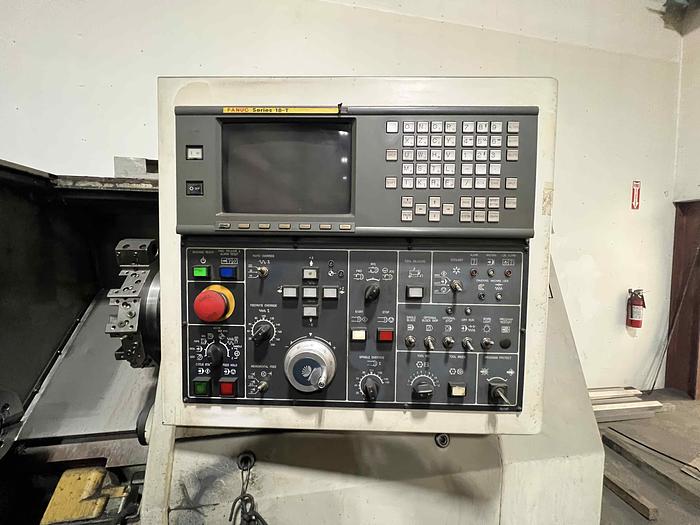

Fanuc 18-T Control

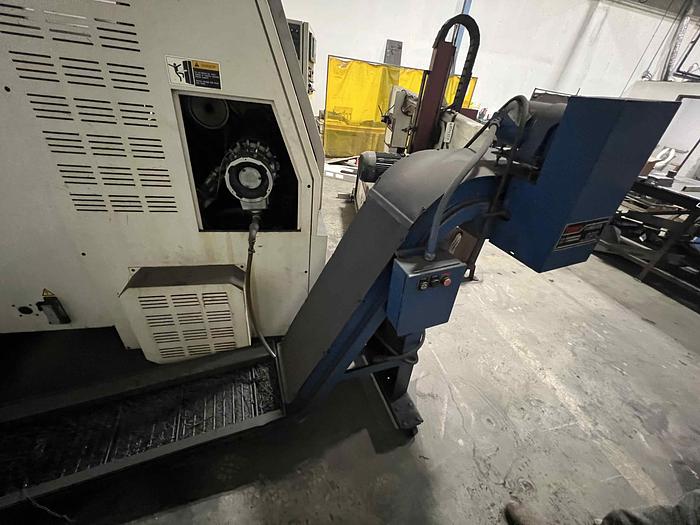

Chip Conveyor
Tool Setter
Specifications
| Manufacturer | Daewoo |
| Model | 200C |
| Year | 1998 |
| Condition | Used |
| Serial Number | PM200519 |
| Stock Number | TC-DWO-831 |
| Swing Over Bed | 21 INCHES |
| Swing Over Carriage | 13 INCHES |
| Distance Between Centers | 26.3 INCHES |
| Maximum Turning Diameter | 13.8 INCHES |
| Maximum Turning Length | 21.6 INCHES |
| Spindle Speed | 4500 |
| Spindle Nose | A2-6 |
| Draw Tube I.D. | 2.56 INCHES |
| Spindle Bore Diameter | 2.99 INCHES |
| Spindle Motor | 20 HP |
| Chuck Size | 8.25 INCHES |
| X Axis Travel | 9.3 INCHES |
| Z Axis Travel | 22.8 INCHES |
| Turret Capacity | 12 |
| Turret Index Time (next station) | 0.15 sec. |
| Tool Selection | Bi-directional |
| Turret Index Repeatability | ±.0005 deg. |
| Tailstock quill diameter | 3.0 INCHES |
| Floor Space | 124 x 62 INCHES |
| Machine Dimensions (L X W X H) | 108 x 65 x 70 INCHES |
| Machine Weight | 9,900 lbs |
