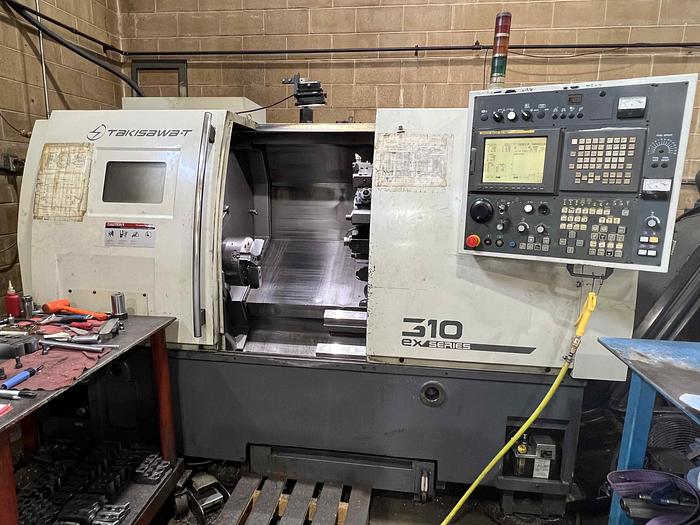

TAKISAWA EX310 TURNING CENTER WITH LIVE MILLING
![Used TAKISAWA EX310 TURNING CENTER WITH LIVE MILLING](https://i.machineryhost.com/c1a3d34711ab5d85335331ca0e57f067/556f9f1235aaff927dbe460d9cec8fe7/large-used-takisawa-ex-310-turning-center-with-live-milling.jpg)
Sold
TAKISAWA EX310 TURNING CENTER WITH LIVE MILLING
Available quantity:1
Description
Equipped With

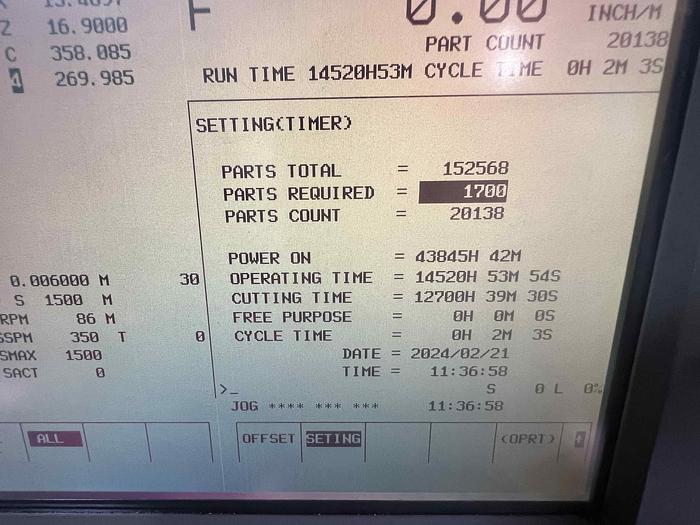

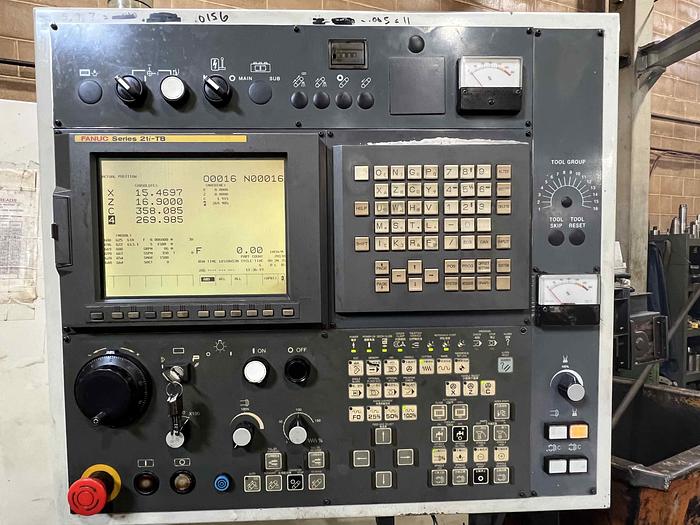

Controller: FANUC SERIES 21i-TB
2 Radial live tools
2 Axial live tools

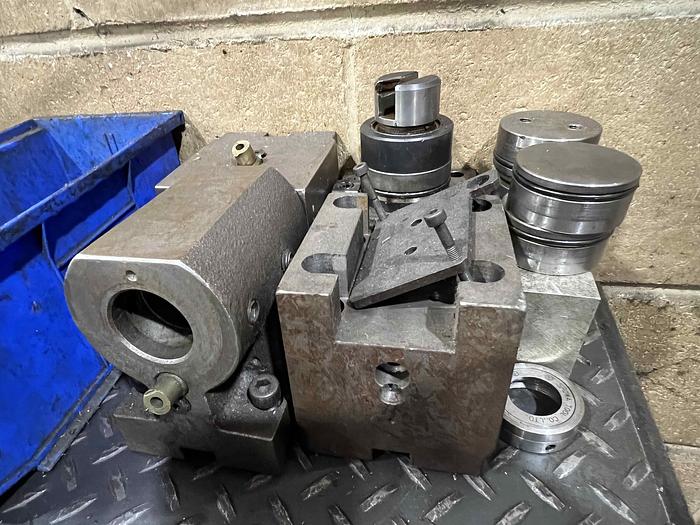

Miscellaneous tool holders

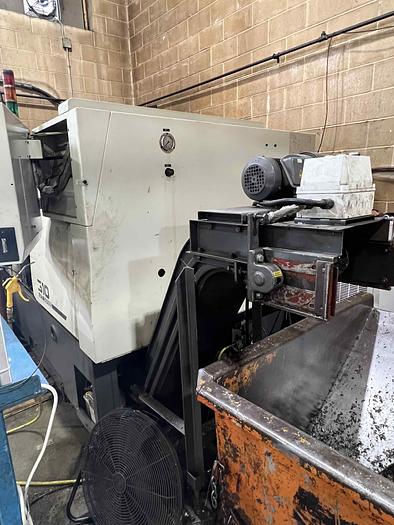

Chip Conveyor
Tool pre-setter

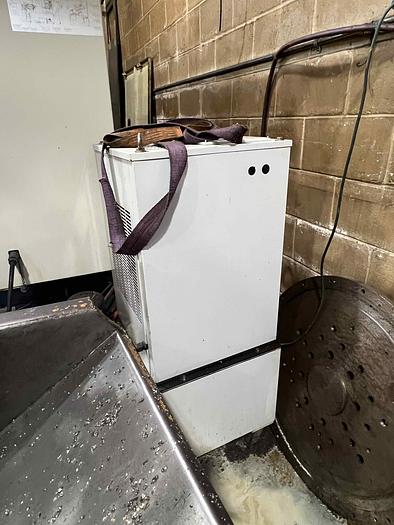

Spindle Chiller
Coolant tanks
Tailstock
All manuals
Specifications
Manufacturer | TAKISAWA |
Model | EX310 |
Year | 2006 |
Condition | Used |
Serial Number | CG03E400BB |
Stock Number | TC-TKS-840 |
Max swing (mm). | 670 |
Max turning diameter (mm). | 350 |
Max turning length (mm). | 710 |
Bar capacity (mm). | 75 |
Spindle Hole diameter (mm). | 86 |
Spindle speed (RPM) | 3500 |
Spindle nose | ASA A2-8 |
Min C Axis indexing increment degree | 0.001 |
X-axis travel (mm). | 200 |
Z-axis travel (mm). | 710 |
Rapid feed X axis (mm)/min | 16000 |
Rapid feed Z axis (mm)/min | 20000 |

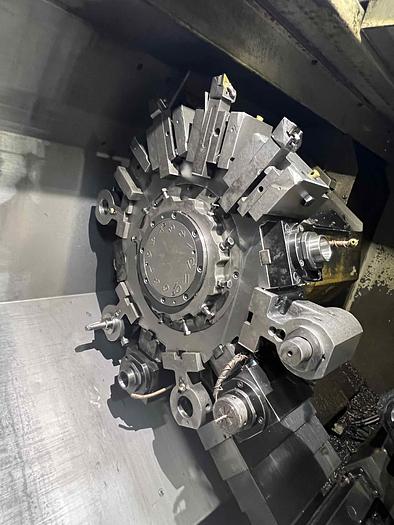

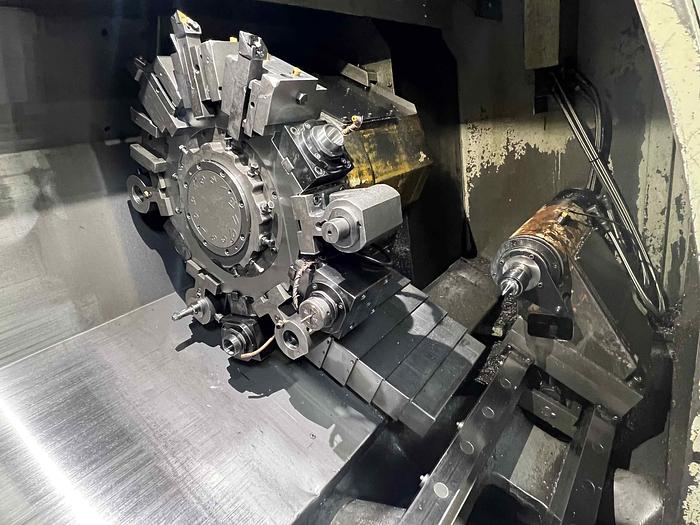

Number of tool stations in the motorized turret n° | 12 |
Tool turret speed (RPM) | 4000 |
Tailstock body travel (mm). | 580 |
Quill travel (mm). | 150 |
Floor space (mm). | 2890x1855 |
Height machine (mm). | 2020 |
Weight machine Kg. | 5600 |
