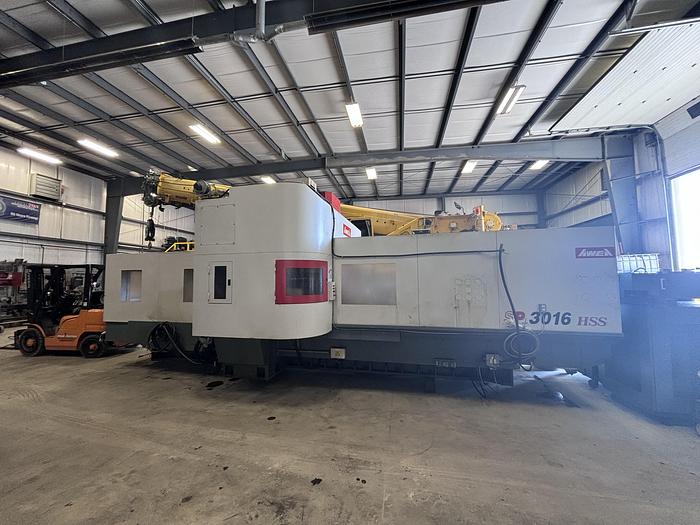

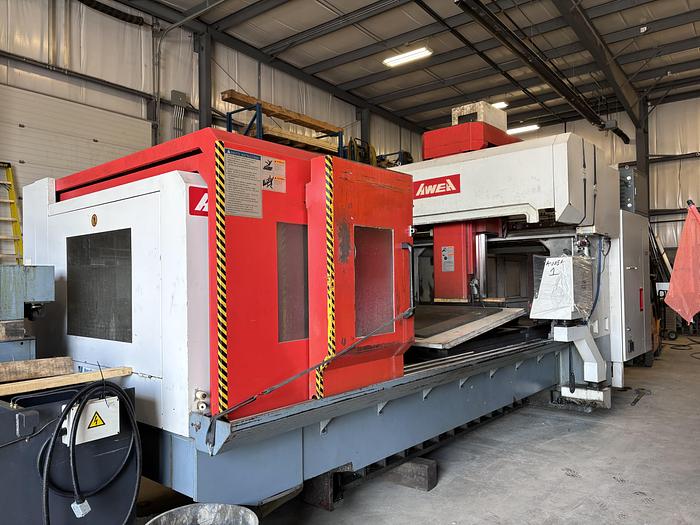

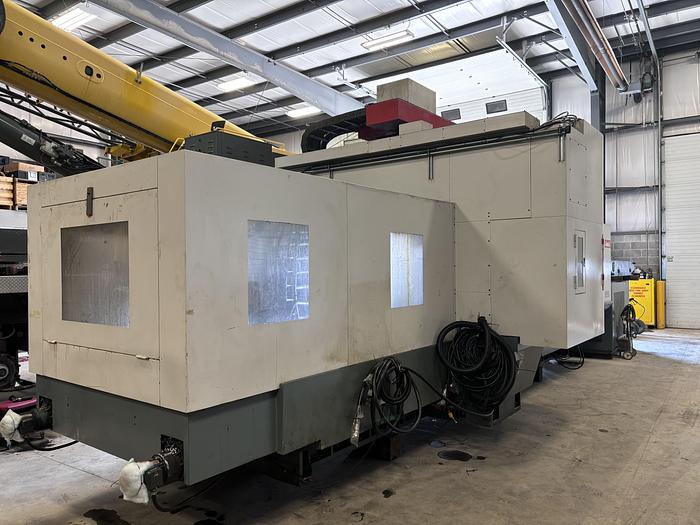

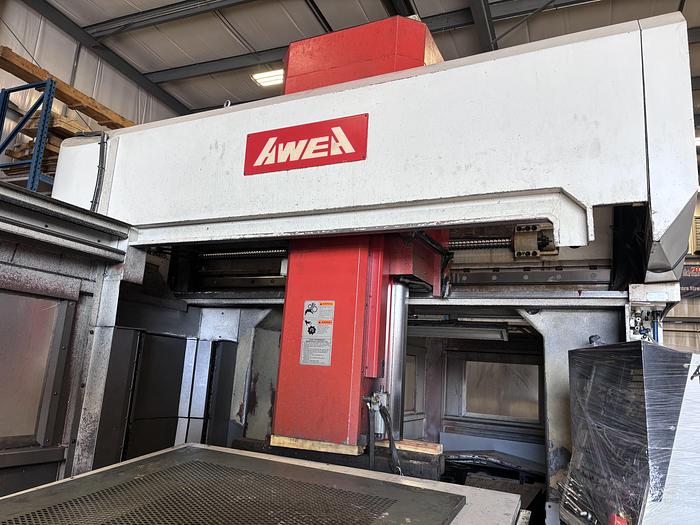

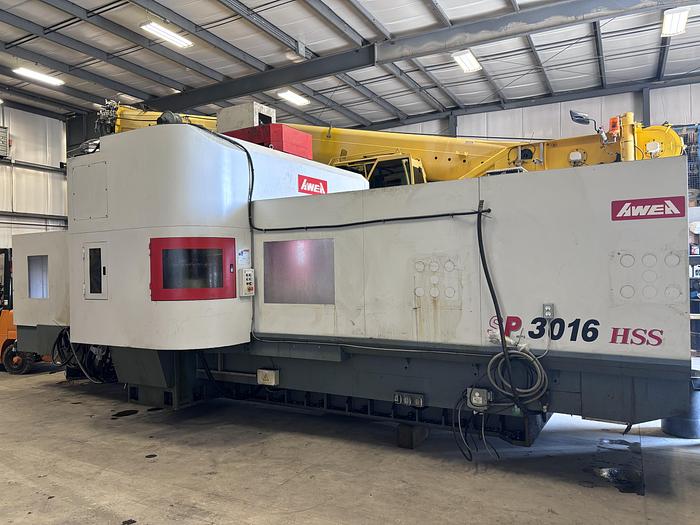

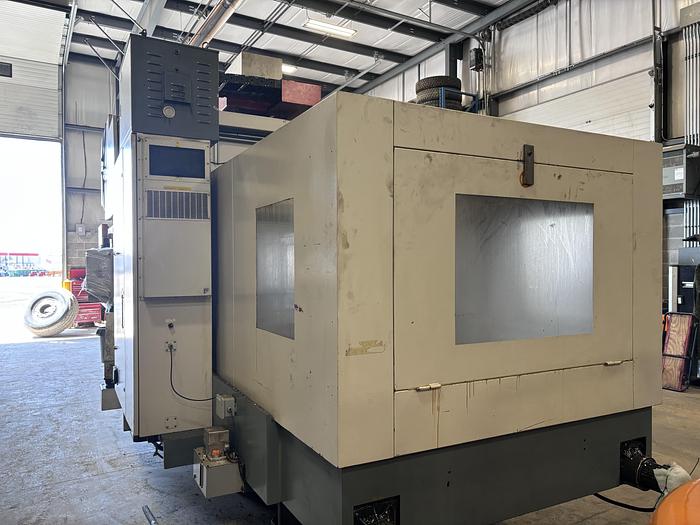

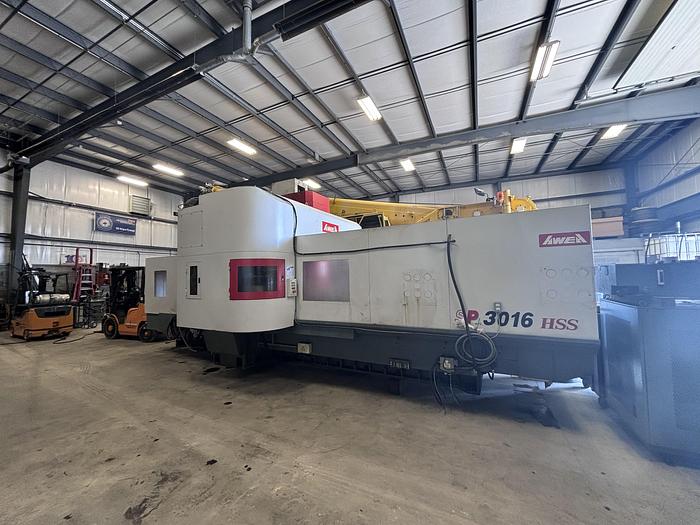

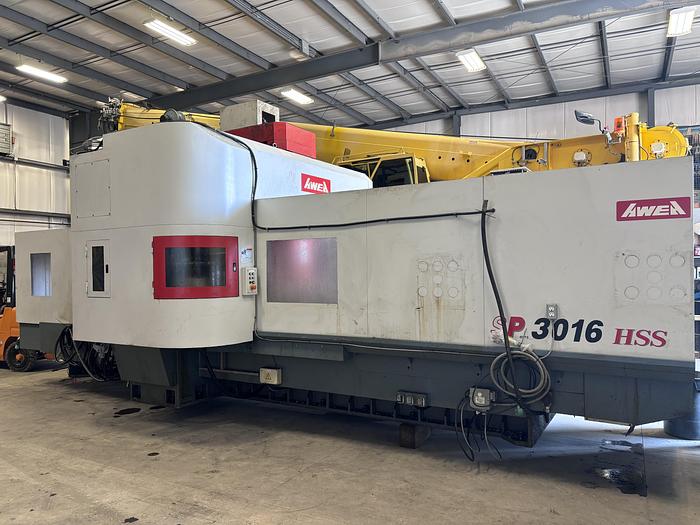

AWEA SP3016 – HSS Bridge Type Vertical Machining Center
Sold
AWEA SP3016 – HSS Bridge Type Vertical Machining Center
Available quantity:1
Description
Equipped With

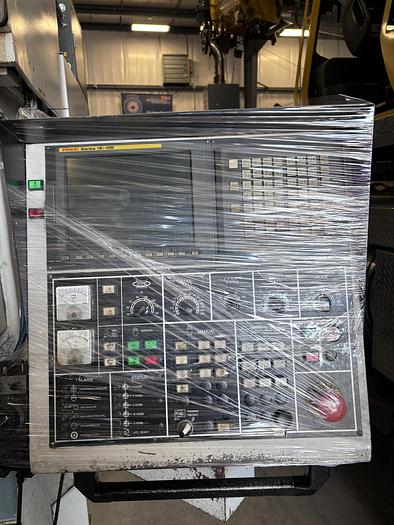

Controller Fanuc Series 18i-MB

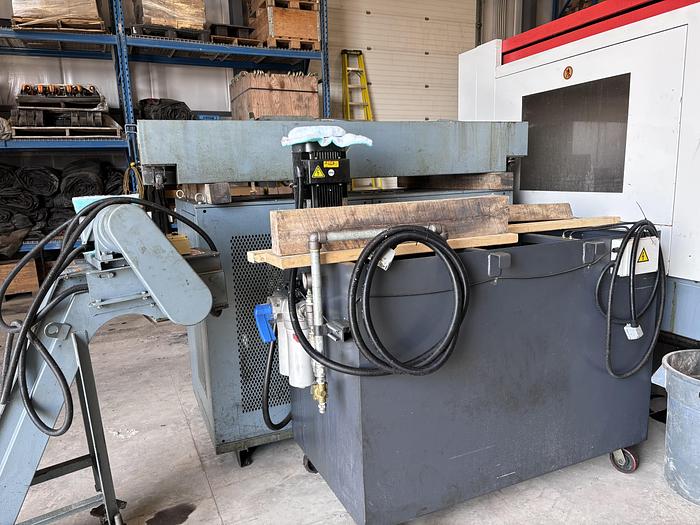

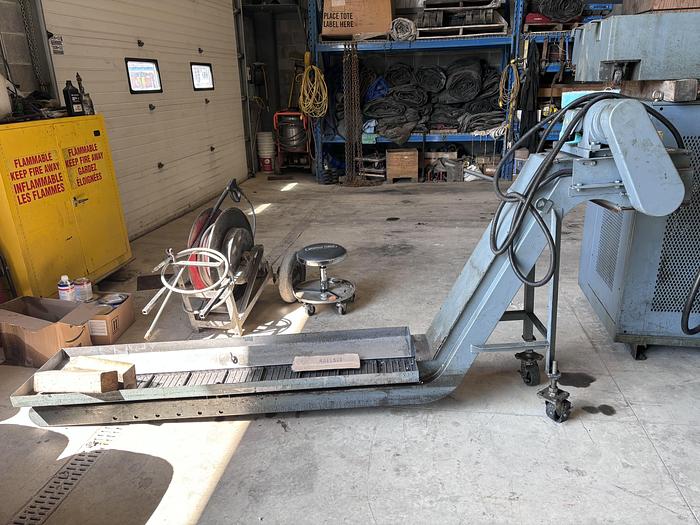

Chip Conveyor
Coolant Tank
Chiller
Through Spindle Coolant
Specifications
| Manufacturer | Awea |
| Model | SP3016 - HSS |
| Year | 2005 |
| Condition | Used |

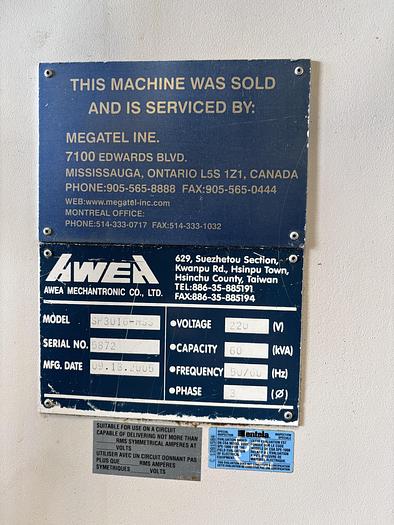

| Serial Number | 5872 |
| Stock Number | VMC-AWA-856 |
| X-axis travel | 3,060 mm ( 120.5") |
| Y-axis travel | 1,600 mm ( 63.0" ) |
| Z-axis travel | 760 mm ( 30.0" ) |
| Table size | 3,260 x 1,500 mm( 128.3" x 59.0" ) |
| Table load capacity | 10,000 kg ( 22,000 lb ) |
| Dist. Between columns | 1,700 mm ( 66.9" ) |
| Spindle motor( cont. / 30min. ) | 18.5 / 22 kW( 25 / 30 HP ) |
| Spindle speed | 14000 |
| Spindle taper | CAT 40 |
| Dist. From spindle nose to table top | 160 ~ 920 mm( 6.3" ~ 36.2" ) |
| X / Y axes rapids | 20,000 mm/min.( 787.4 IPM ) |
| Z-axis rapids | 15,000 mm/min.( 590.6 IPM ) |
| Cutting feedrate | 10 ~ 15,000mm/min.( 0.4 ~ 590.6IPM ) |
| Tool magazine capacity | 19 |
| Max. tool length | 300 mm ( 11.8" ) |
| Max. tool Wt. | 7 kg ( 15lb ) |
| Length | 8,680 mm ( 342" ) |
| Width | 4,160 mm ( 184" ) |
| Height | 3,890 mm ( 153" ) |
| Weight | 23600 kgs |
