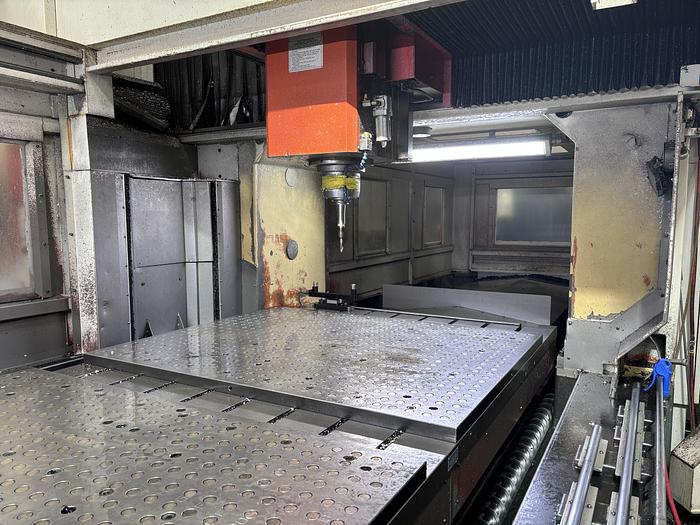

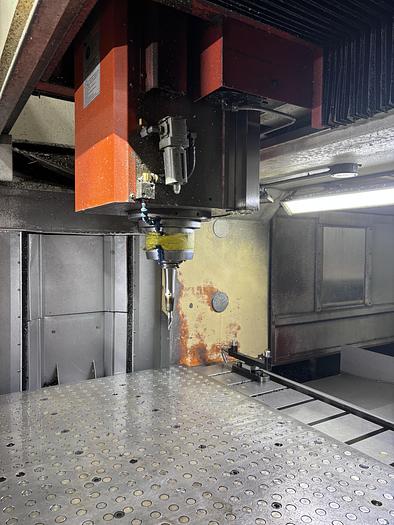

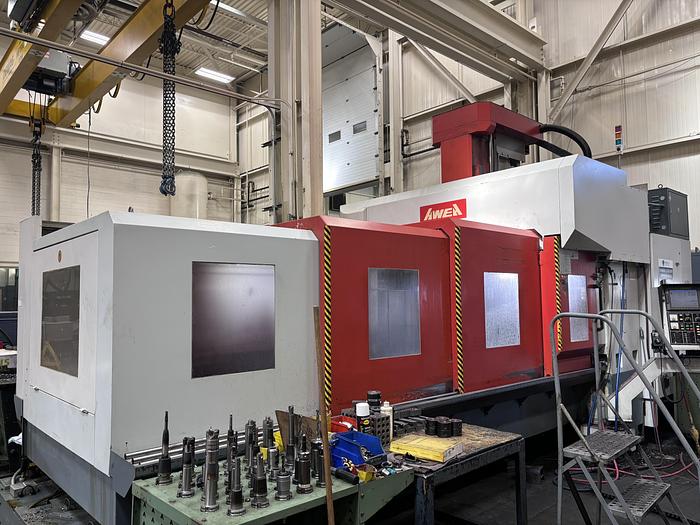

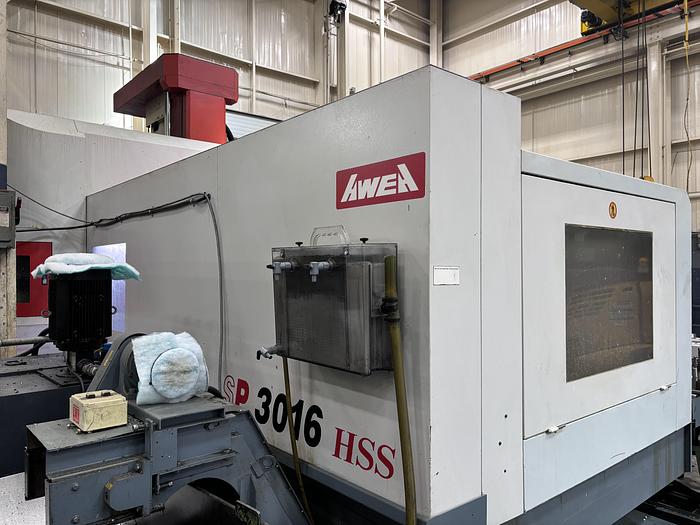

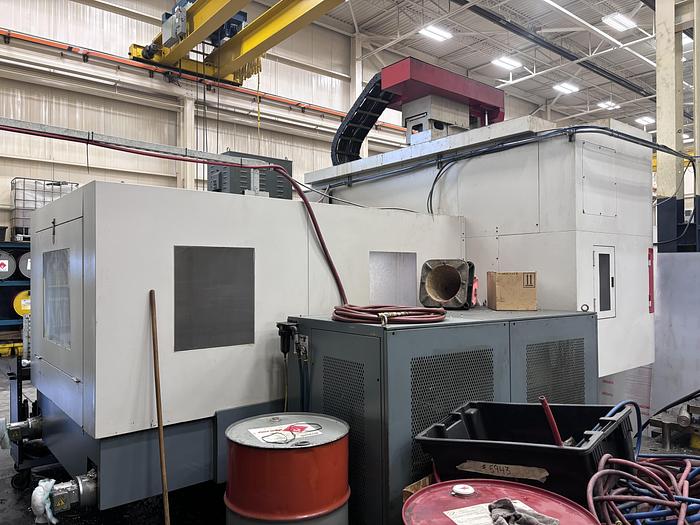

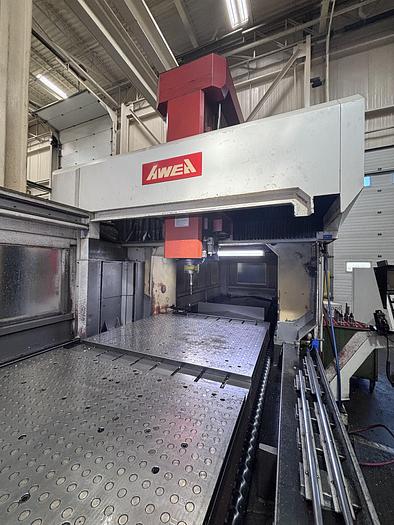

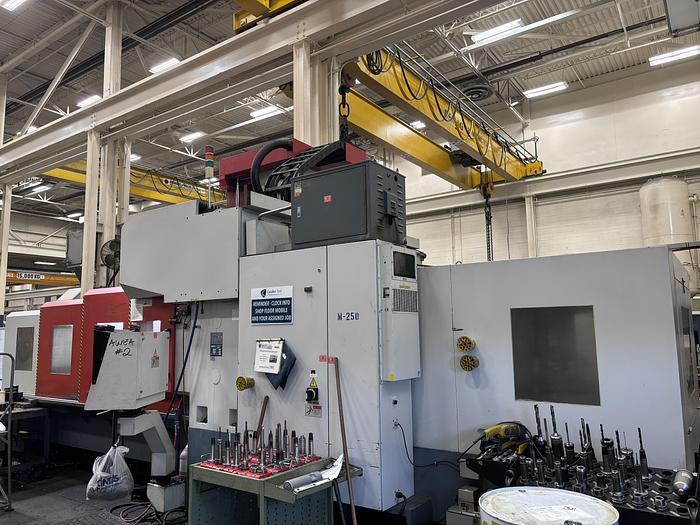

Awea SP-3016 HSS Bridge Type Vertical Machining Center
Awea SP-3016 HSS Bridge Type Vertical Machining Center
Available quantity:1
Description
Equipped With

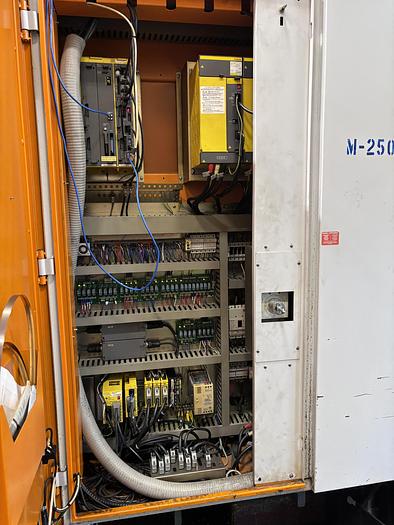

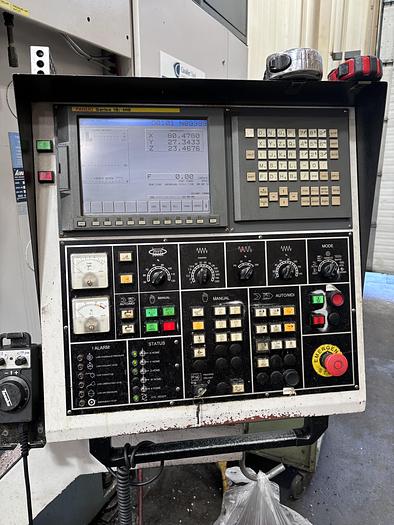

Controller Fanuc Series 18i-MB

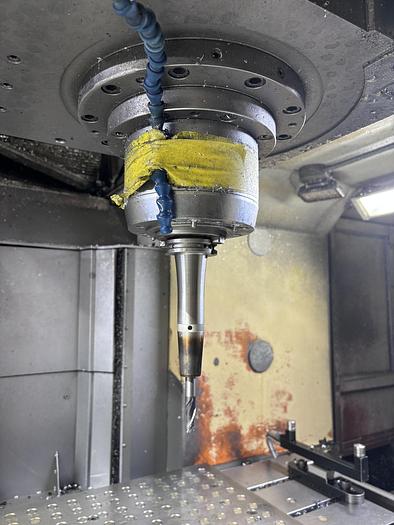

Spindle Through Coolant
Spindle Chiller
Chip conveyor
Coolant tank
Awea SP-3016 HSS Bridge Type Vertical Machining Center is equipped with the advanced Fanuc Series 18i-MB Controller, offering precision and control for demanding machining tasks. It features Spindle Through Coolant for efficient cooling, a Spindle Chiller to maintain optimal spindle temperatures, a Chip Conveyor for effective chip management, and a Coolant Tank for enhanced cooling performance. Ideal for high-precision and heavy-duty applications.
Specifications
| Manufacturer | Awea |
| Model | SP-3016 |
| Year | 2005 |
| Condition | Used |

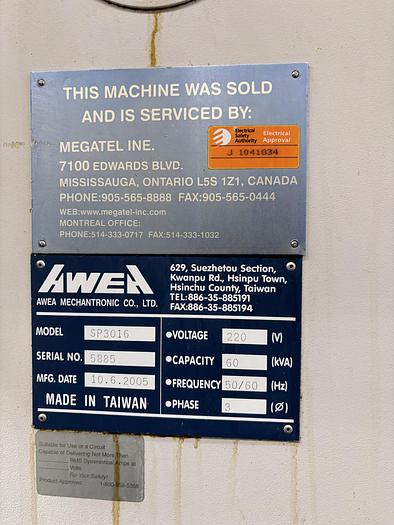

| Serial Number | 5885 |
| Stock Number | MAC-AWE-2027 |
| X-axis travel | 3,060 mm ( 120.5") |
| Y-axis travel | 1,600 mm ( 63.0" ) |
| Z-axis travel | 760 mm ( 30.0" ) |

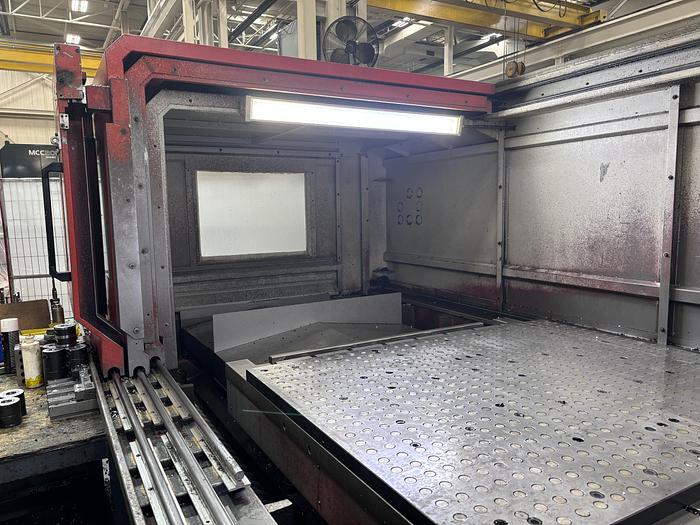

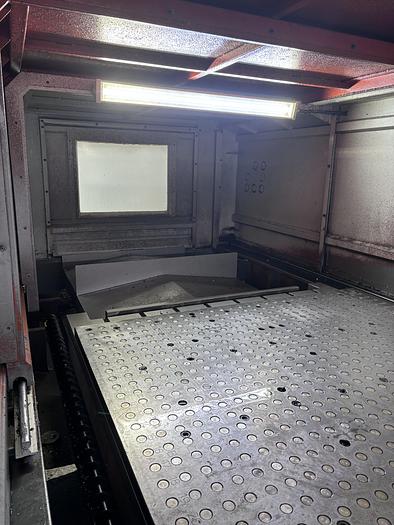

| Table size | 3,260 x 1,500 mm( 128.3" x 59.0" ) |
| Table load capacity | 10,000 kg ( 22,000 lb ) |
| Dist. Between columns | 1,700 mm ( 66.9" ) |
| Spindle motor( cont. / 30min. ) | 18.5 / 22 kW( 25 / 30 HP ) |
| Spindle speed | 10 ~ 15,000 rpm |
| Spindle taper | CAT 40 |
| Dist. From spindle nose to table top | 160 ~ 920 mm( 6.3" ~ 36.2" ) |
| X / Y axes rapids | 20,000 mm/min.( 787.4 IPM ) |
| Z-axis rapids | 15,000 mm/min.( 590.6 IPM ) |
| Cutting feedrate | 10 ~ 15,000mm/min.( 0.4 ~ 590.6IPM ) |
| Repeatability | ± 0.003 mm( ± 0.0001" ) |
| Positioning accuracy | ± 0.01 mm( ± 0.0004" )Full travel |
| Tool magazine capacity | 19 |
| Max. tool DIA. /adjacent empty | 102 / 127 mm( 4" / 5" ) |
| Max. tool length | 300 mm ( 11.8" ) |
| Max. tool | 7 kg ( 15lb ) |
| Length | 8,680 mm ( 342" ) |
| Width | 4,160 mm ( 184" ) |
| Height | 3,890 mm ( 153" ) |
| Weight | 23600 kgs |
