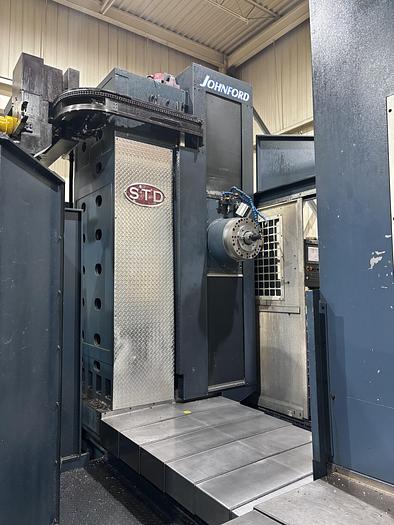

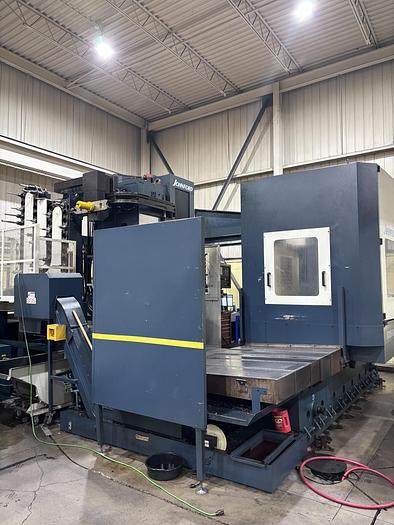

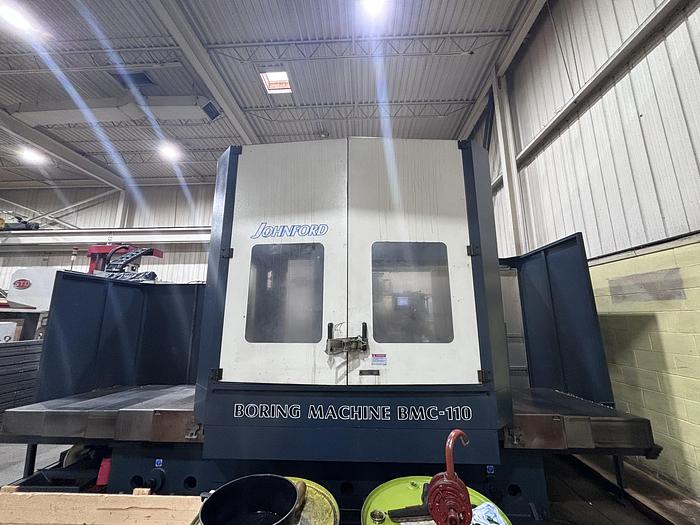

JOHNFORD BMC110 2012 BORING MILL
No longer available
JOHNFORD BMC110 2012 BORING MILL
Available quantity:1
Description
Equipped With

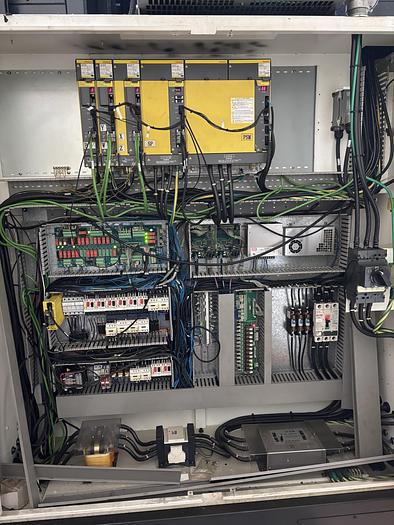

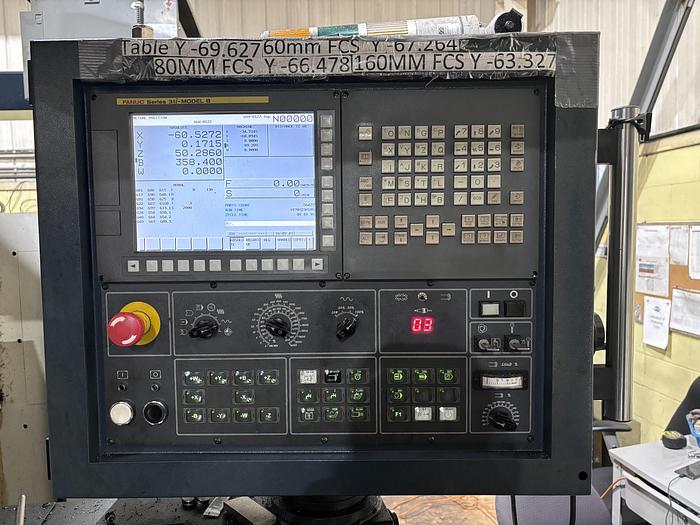

FANUC Series 31i - MODEL B

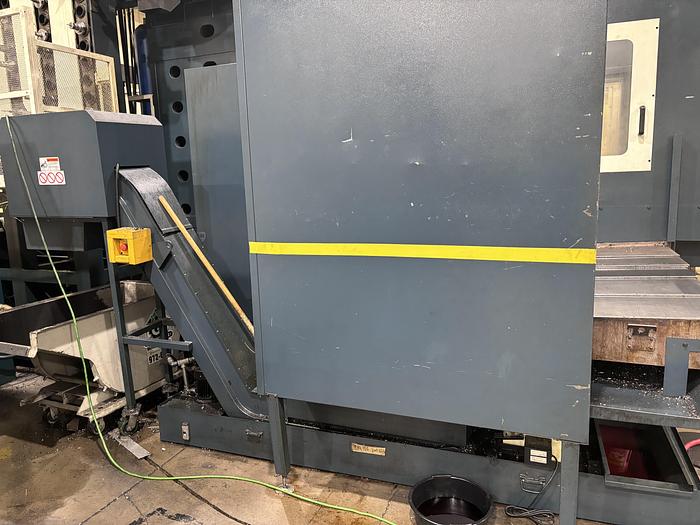

Chip Conveyor

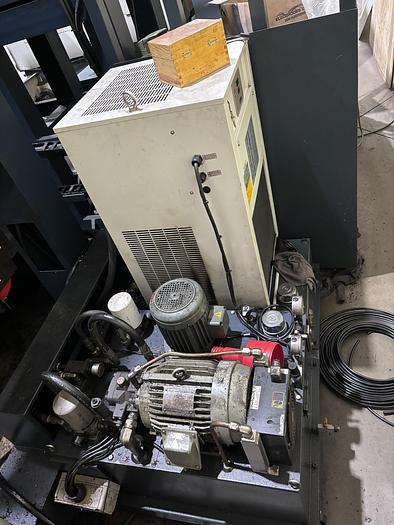

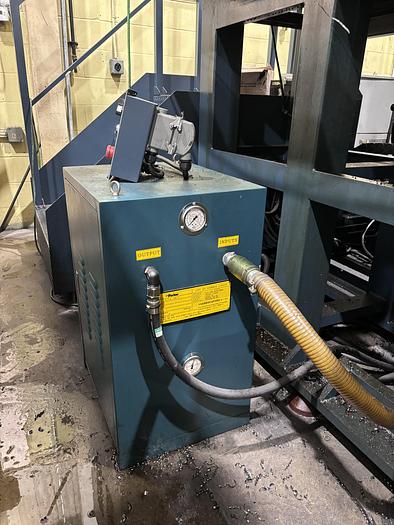

Chiller

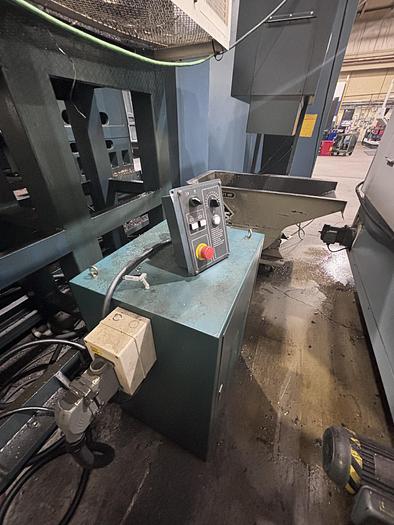

Screw Conveyor
Coolant Tank
Through Coolant Spindle

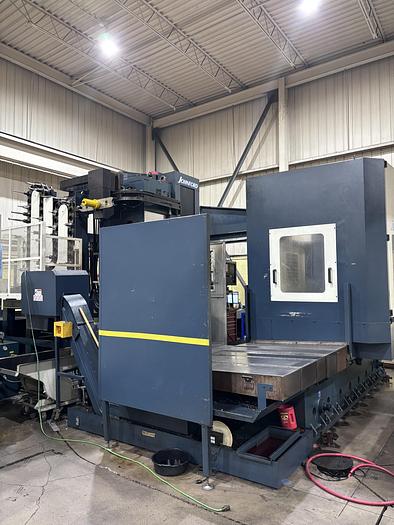

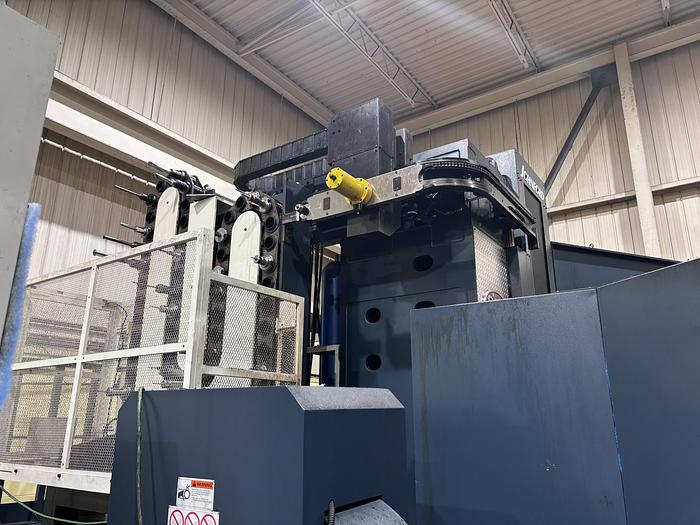

This 2012 JOHNFORD BMC110 Boring Mill is equipped with the advanced FANUC Series 31i-Model B Control for high-precision operations. It features a Chip Conveyor and Screw Conveyor for efficient material and chip management. The machine also includes a Chiller to maintain optimal operating temperatures, a Coolant Tank, and a Through-Spindle Coolant system to enhance cooling during demanding machining processes. Built for accuracy and productivity, this boring mill is ideal for heavy-duty manufacturing applications.
Specifications
| Manufacturer | Johnford |
| Model | BMC110 |
| Year | 2012 |
| Condition | Used |
| Serial Number | VWA12036 |
| Stock Number | MAC-JNF-859 |
| X Travel (in.) | 78.7 |
| Y Travel (in.) | 70.8 |
| Z Travel (in.) | 63 |
| W Travel (in.) | 21.7 |
| Spindle Bar (in.) | 4.33 |
| Table Size (in.) | 55 x 63 |
| Max. Workpiece Load (lbs.) | 15432 |
| Spindle Power (hp.) | 35 |
| Spindle Speed (rpm) | 3000 |
| Spindle Speed Steps | 2 |
| Spindle Drive | 2 Speed Gearbox |

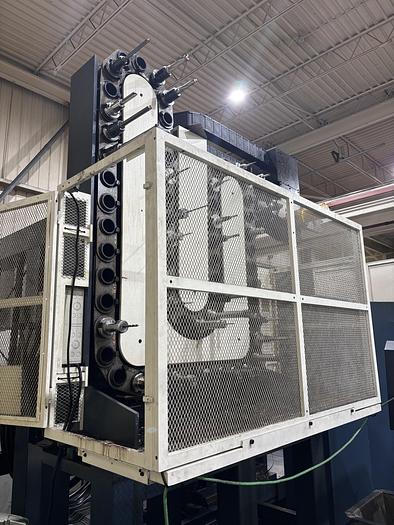

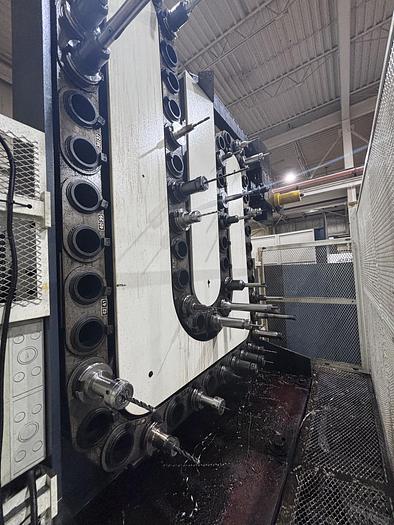

| ATC Capacity | 60 |
| Dimension (L X W X H) in. | 283 X 250 X 151 |
| Weight (lbs.) | 59525 |
