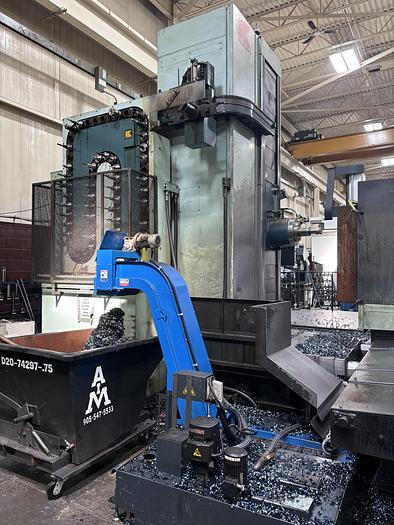

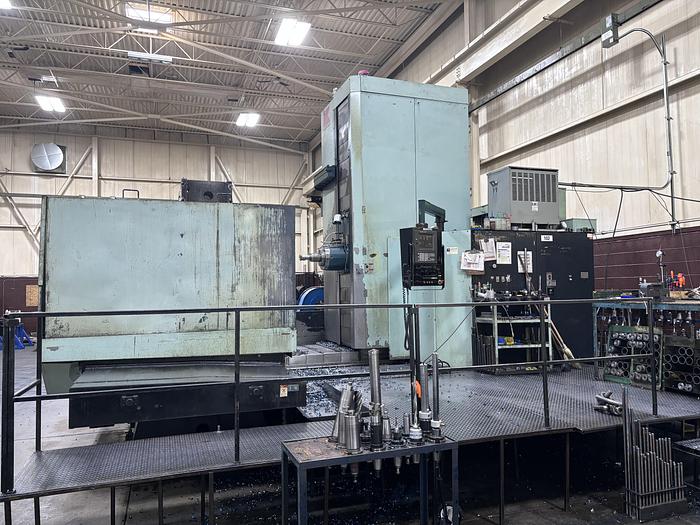

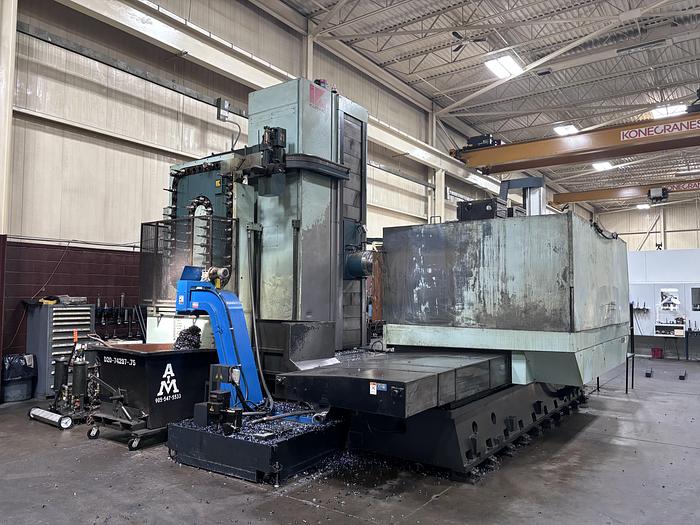

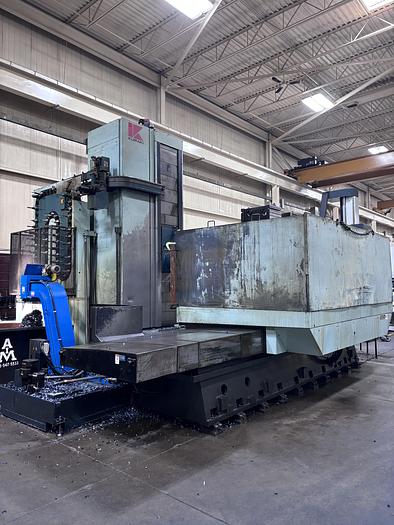

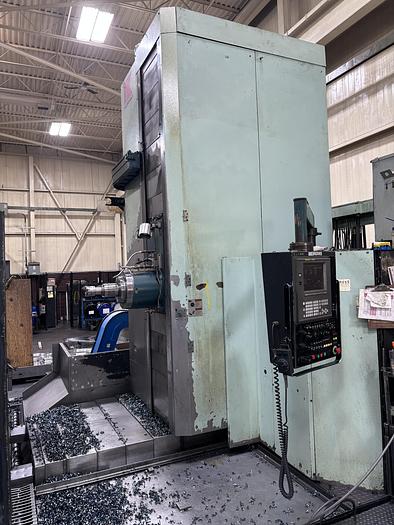

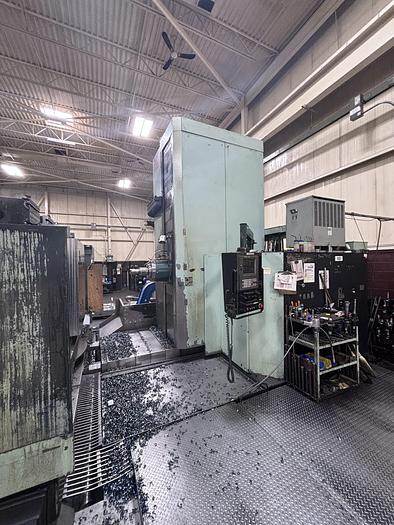

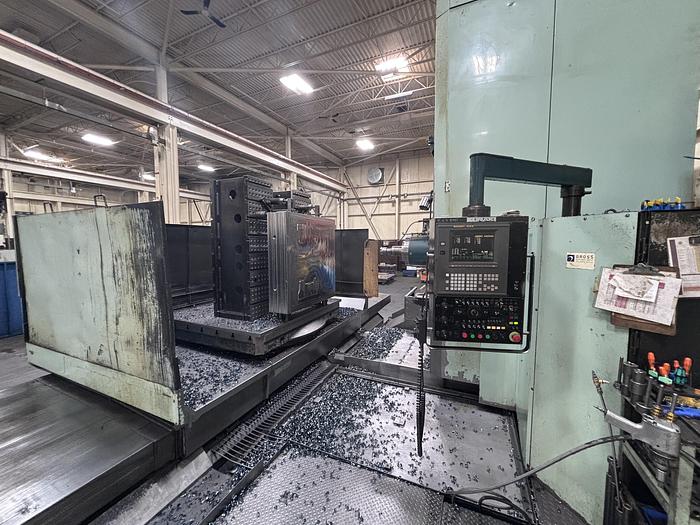

KURAKI Boring Mill KBT – 13A
KURAKI Boring Mill KBT – 13A
Available quantity: 1
Description
EQUIPPED WITH

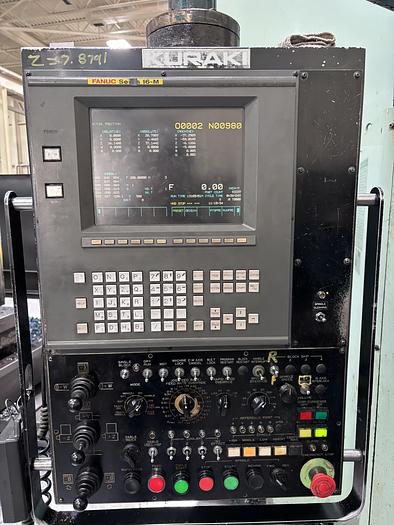

FANUC SERIES 16M

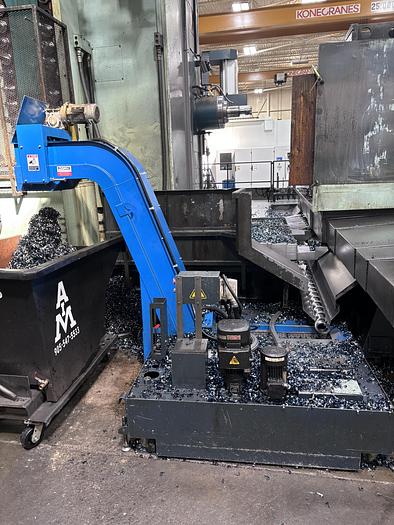

Chip Conveyor
Coolant Tank

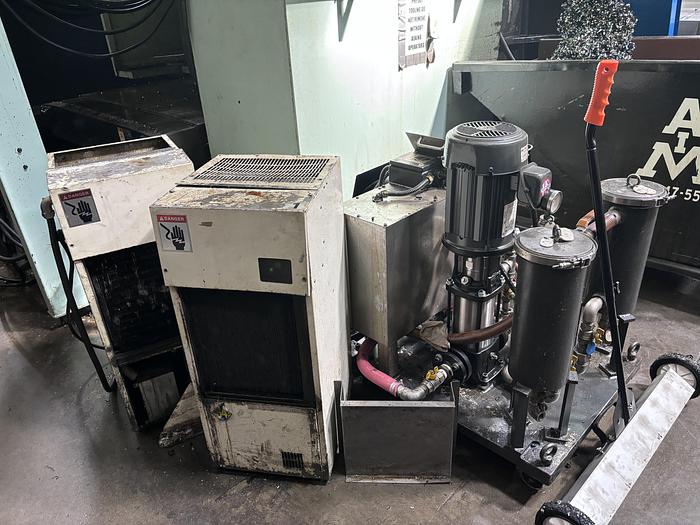

Chiller
Through Spindle Coolant
Specifications
| Manufacturer | Kuraki |
| Model | KBT-13A |
| Year | 1999 |
| Condition | Used |

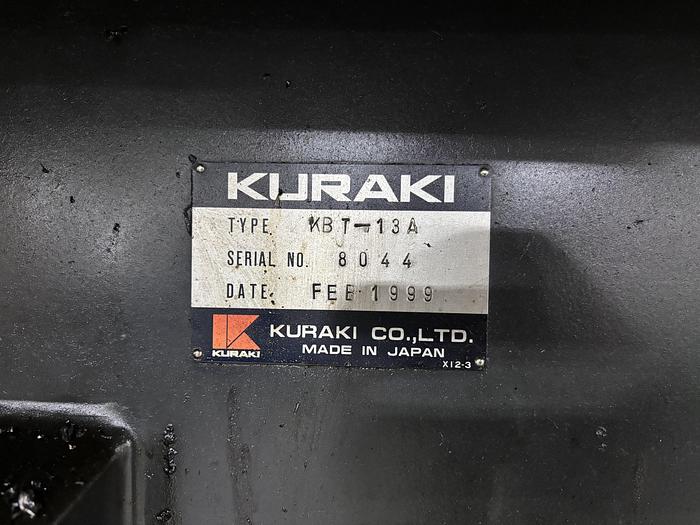

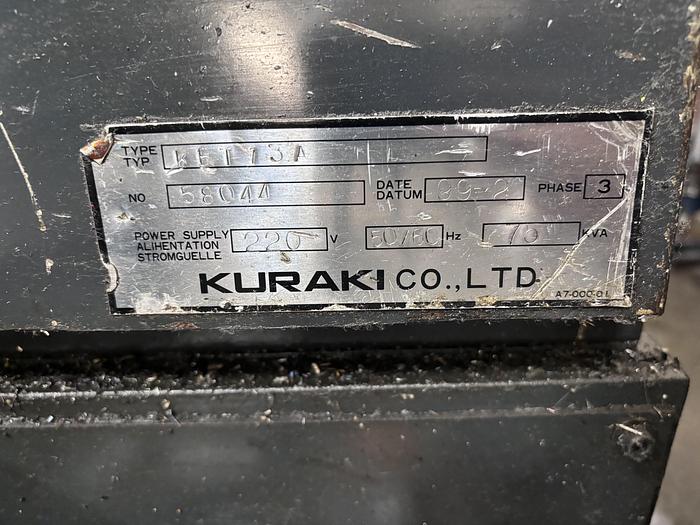

| Serial Number | 8044 |
| Stock Number | BRM-KRK-860 |
| X axis travel (table longitudinal) Inch (mm) | 118.11 (3,000) |
| Y axis travel (spindle head vertical) Inch (mm) | 90.55 (2,300) |
| Z axis travel (column cross) Inch (mm) | 62.99 (1,600) |
| W axis travel (boring spindle axial) Inch (mm) | 27.56 (700) |
| Distance from table top to spindle center Inch (mm) | 0～90.55 (0～2,300) |
| Distance from table center to spindle nose Inch (mm) | 27.56～90.55 (700～2,300) |

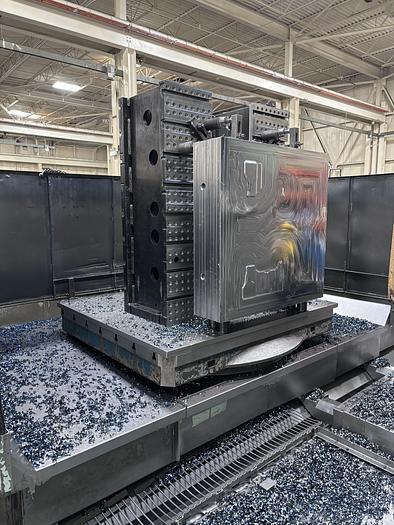

| Table work space Inch (mm) | 70.87 x 86.61 (1,800 x 2,200) |
| Table maximum loading capacity lbs (kg) | 44,000 (20,000) |
| Table top profile Inch (mm) | 0.87 (22) x 7 T-slots |
| Table auto. Indexing Degree | 0.001 (every 90 degree index by locator pin) |

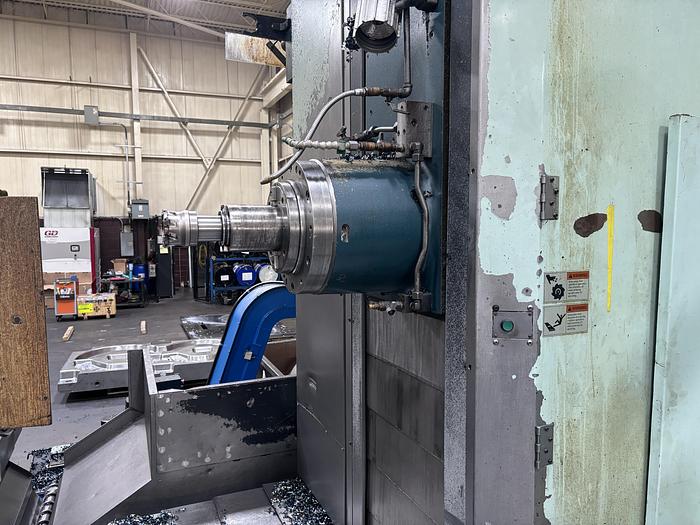

| Boring spindle diameter Inch (mm) | 5.12 (130) |
| Spindle speed rpm | 5～3,000 |
| Spindle speed change range step | 3 |
| Spindle taper | Taper No. 50 |
| Rapid traverse (X axis) inch/min (m/min) | 236.22 (6) |
| (Y, Z, W axes) inch/min (m/min) Rapid | 393.70 (10) |
| Feedrate (X axis) inch/min (m/min) | 0.04～141.73 (1～3,600) |
| (Y, Z, W axes) inch/min (m/min) Feedrate | 0.04～157.48 (1～4,000) |
| Tool shank | MAS CAT50 |
| Pull stud | MAS P50T-1 (45 degree) |

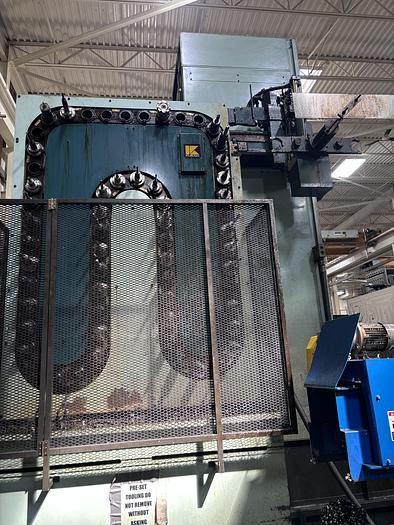

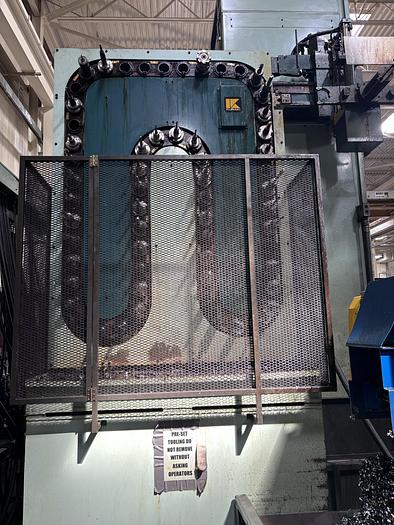

| Tool storage capacity | 60 |
| Max. tool length) Inch (mm) | 23.62 (600) |
| Max. tool weight lbs (kg) | 66 (30) |
| Spindle motor (30min/Continuous) HP (kW) | 40/32 (30/24) |
