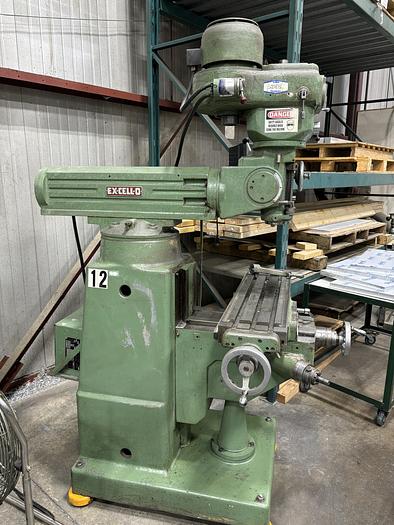

EX-CELLO-O 602 XLO Knee Mill
No longer available
EX-CELLO-O 602 XLO Knee Mill
Available quantity:1
Description
Equipped With

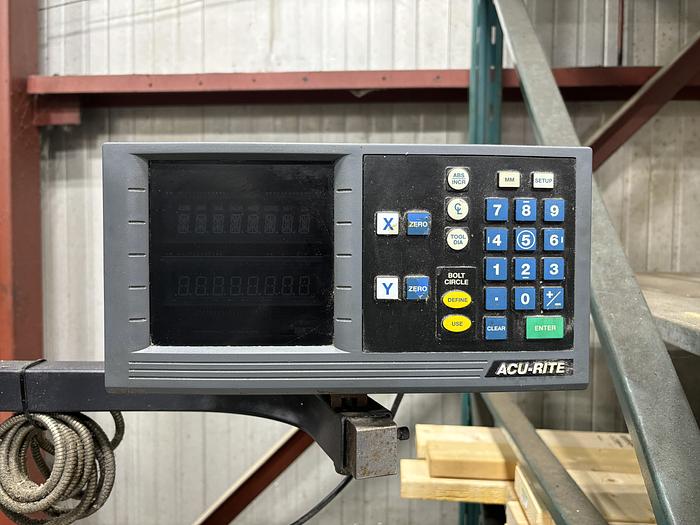

Acu-Rite 2-Axis Digital Readout
Servo Power Feed
The Used Ex-Cell-O 602 XLO Knee Mill is equipped with an Acu-Rite 2-Axis Digital Readout for precise measurement and a Servo Power Feed for smooth, controlled table movement. This setup makes it ideal for various milling applications that require accuracy and ease of operation.
Specifications
| Manufacturer | EX-CELLO KNEE MILL |
| Model | EX-CELLO-O 602 |
| Condition | Used |

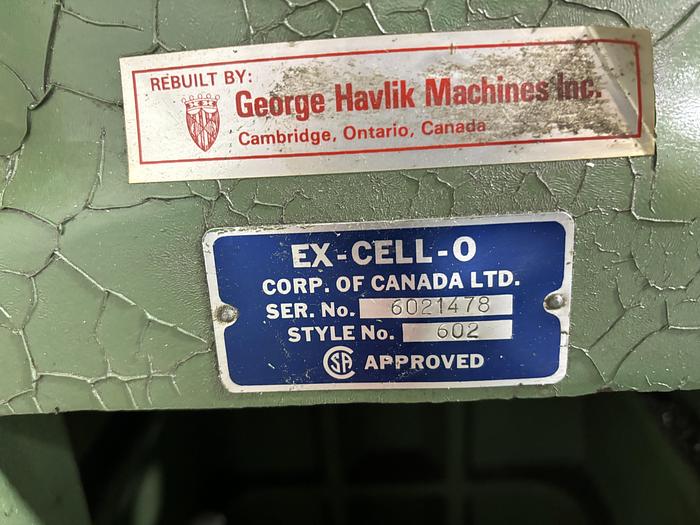

| Serial Number | 6021478 |
| Stock Number | EGL-XLO-898 |

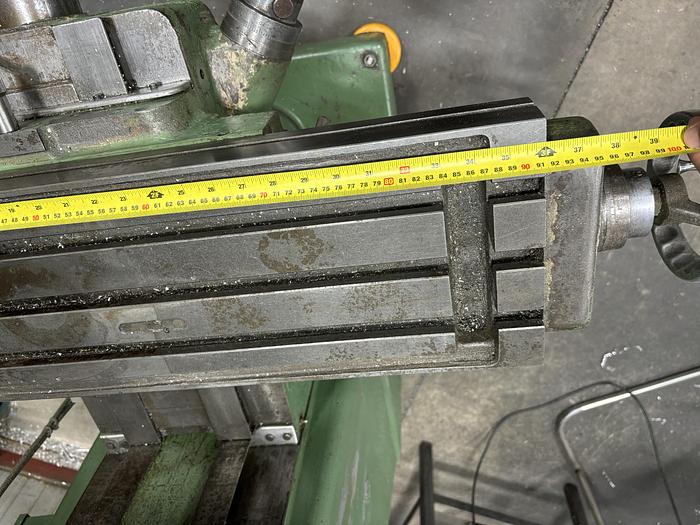

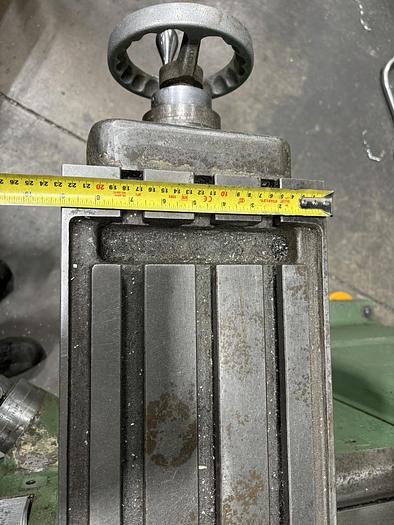

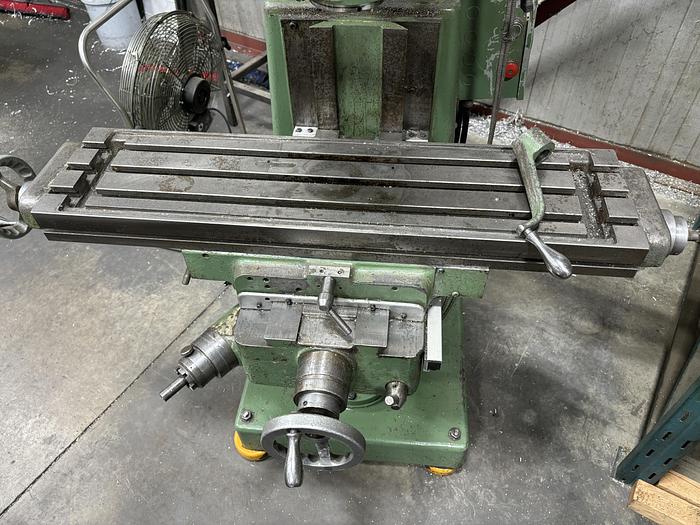

| Table Size | 9" x 42" |
| Longitudinal Travel | 31" Manual / 27.25" Auto |
| Cross Travel | 16" |
| Quill Travel | 6" Power or Hand Feed |
| Knee Travel | 16" |
| Spindle Taper | R8 Taper |

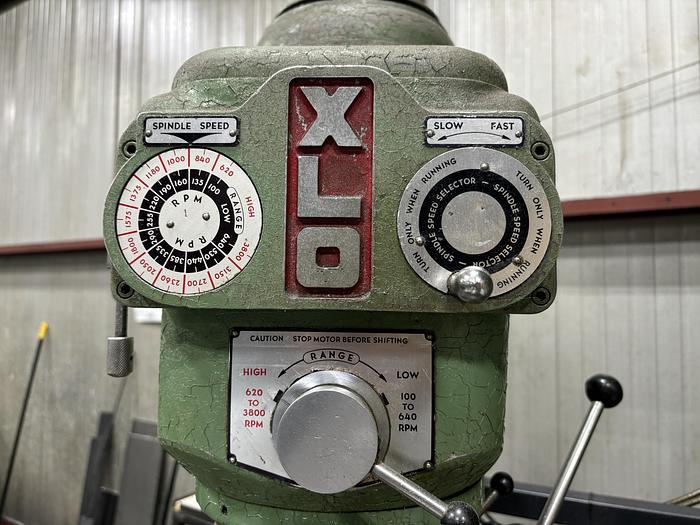

| Spindle Speeds | Two Ranges, 100-640RPM and 620-3800 RPM |
| Spindle Drive | 1.5HP |
| Ram adjustment | 16" |
| Distance Spindle Nose to Table | 0 - 18.5" |
| Power Quill Feeds | 0.0015, .003, .006 Inches Per Revolution |
| Main Unit Approx Weight | 2500.00 lbs |
| Main Unit Dimensions (in inches) | L 60.00” W 60.00” H 75.00" |
