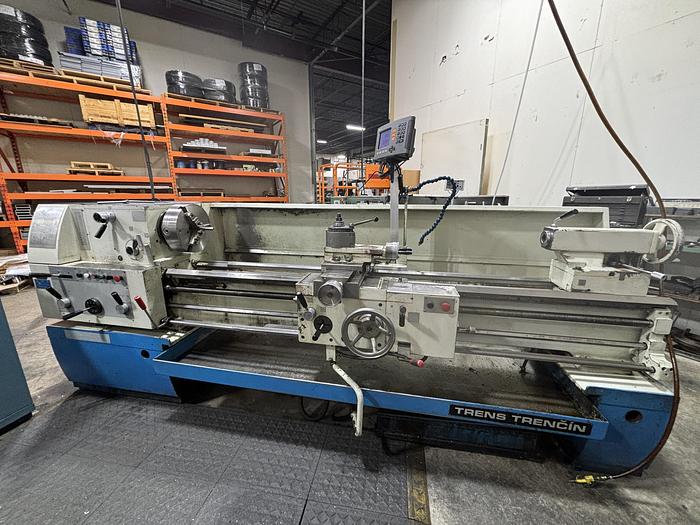

TOS TRENS ENGINE LATHE
Sold
TOS TRENS ENGINE LATHE
Description
Equipped With:

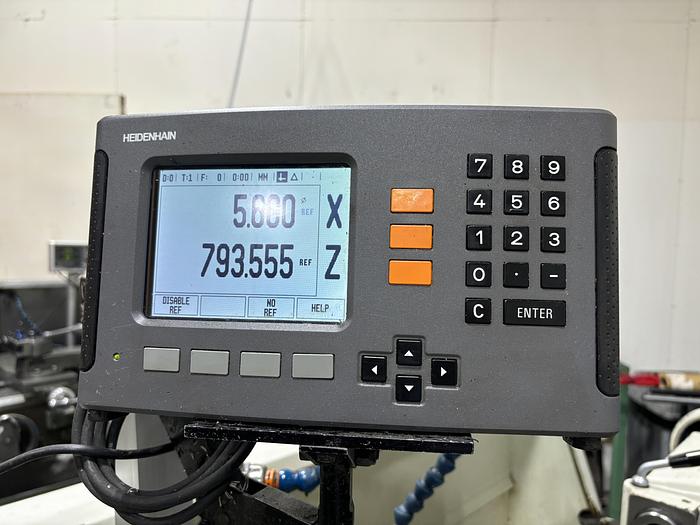

2 Axis HEIDENHAIN DRO

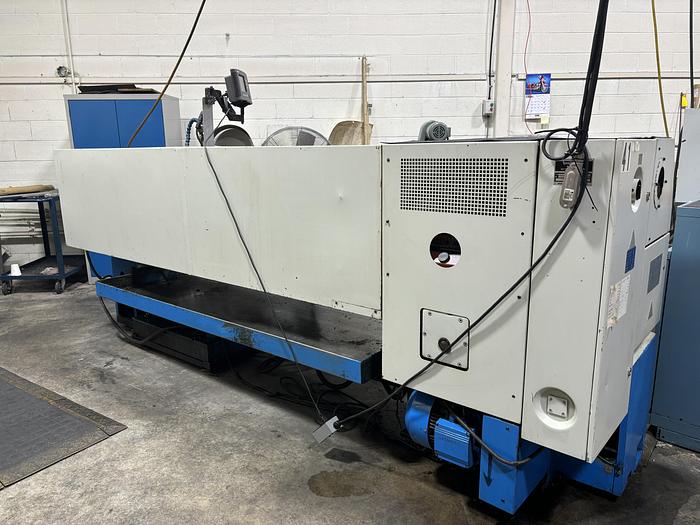

Coolant tank and motor
The Used TOS Trens Engine Lathe is equipped with a 2-axis HEIDENHAIN Digital Readout (DRO) for accurate measurements and a coolant tank with motor to maintain optimal cutting conditions. This lathe is well-suited for precision turning operations in various industrial applications.
Specifications
| Manufacturer | TOS VARNSDORF |
| Model | TRENS TRENCINE |
| Condition | Used |
| Stock Number | EGL-TOS-895 |
| Swing over bed | 20 INCHES |
| Swing over cross-slide | 10.6 INCHES |
| Swing in gap | 27.5 INCHES |
| Length of gap, from spindle nose | 12.25 INCHES |
| Center distance | 80 INCHES |
| Spindle Speeds | 22-2000 rpm |
| Spindle nose CAMLOCK D1 | 6 INCHES |
| Bed Width x Depth | 13.5 x 16 INCHES |
| Feed range carriage (38 selections) | 0.002-0.242 in./rev. |
| Cross slide (38 selections) | 0.001-0.121 in./rev. |
| Cross slide travel | 12 INCHES |
| Top slide travel | 5.5 INCHES |
| Main drive motor | 7.5 hp |
| Floor space, width x length | 44 x 102 INCHES |
| Net weight (approx.) | 3700 Lbs |
