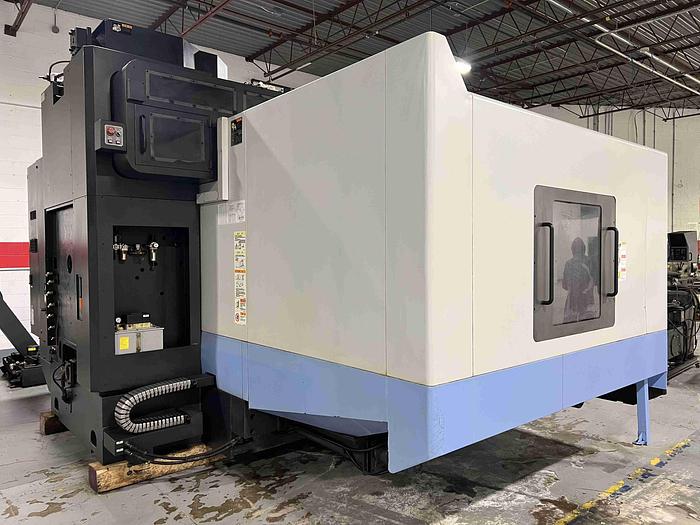

2012 DOOSAN VM960L VERTICAL MACHINING CENTER
Sold
2012 DOOSAN VM960L VERTICAL MACHINING CENTER
Description

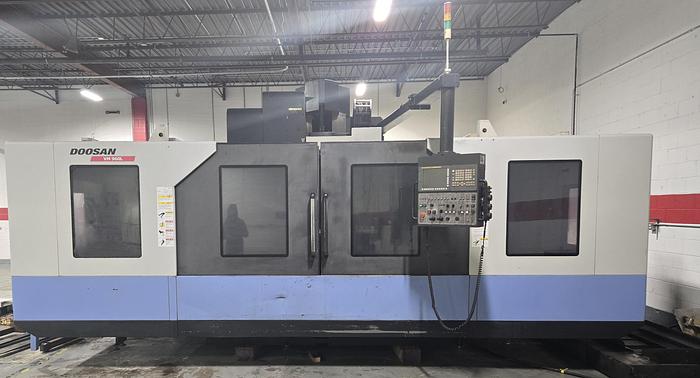

The Pre-Owned 2012 Doosan VM960L Vertical Machining Center is a high-precision machine equipped with a FANUC Series 31i-MODEL A controller, spindle chiller, through spindle coolant, and a gear head spindle for robust performance. Additional features include a hydraulic pack, chip conveyor, coolant tanks, and a dual chip auger for efficient chip management and cooling. This machining center is ideal for demanding industrial applications requiring precision and reliability.
Specifications
| Manufacturer | Doosan |
| Model | VM960L |
| Year | 2012 |
| Condition | Used |

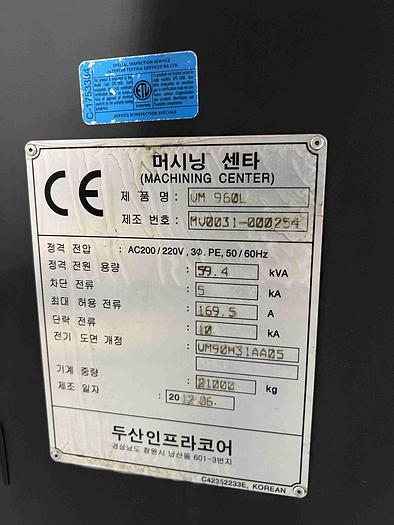

| Serial Number | MV0031-000254 |
| Stock Number | VMC-DSN-923 |
| Controller | FANUC Series 31i-MODEL A |
| X-Axis Travel | 94.5 Inch |
| Y-Axis Travel | 37.8 Inch |
| Z-Axis Travel | 31.5 Inch |

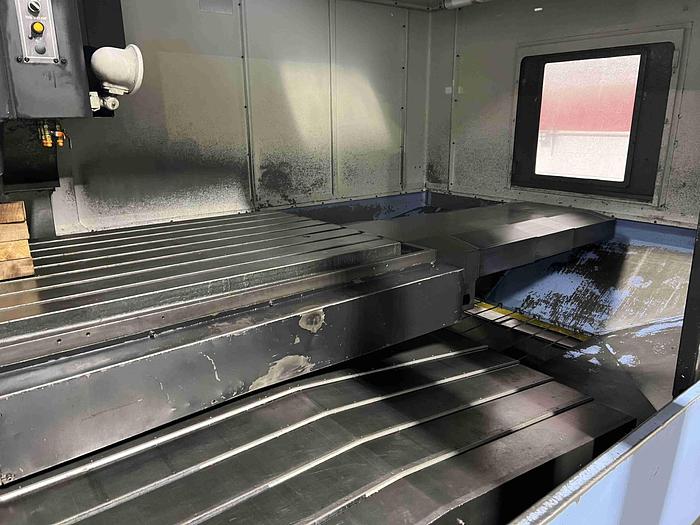

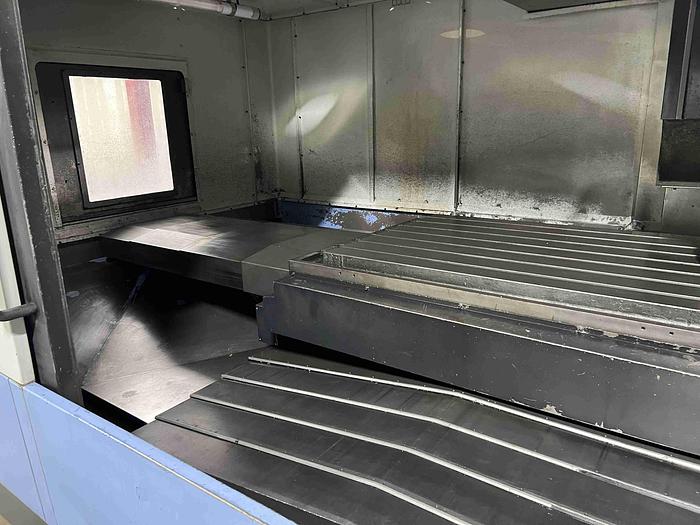

| Table Length | 102.4 Inch |
| Table Width | 37.4 Inch |
| Distance from table to surface | 7.9 – 39.4 Inch |
| Distance from column slideway to spindle center | 39.4 Inch |
| Max. Table Weight | 4500K kgs |
| No. of tool station | 40 |
| Spindle Speed | 12000 |
| Spindle Taper | 50 |
| Spindle Dia. | 3.94 Inch |
| Rapid Traverse (X,Y FEED) | 16 m/min |
| Rapid Traverse (Z FEED) | 16 m/min |
| Cutting Feed Rate | 1-8000 mm/min |

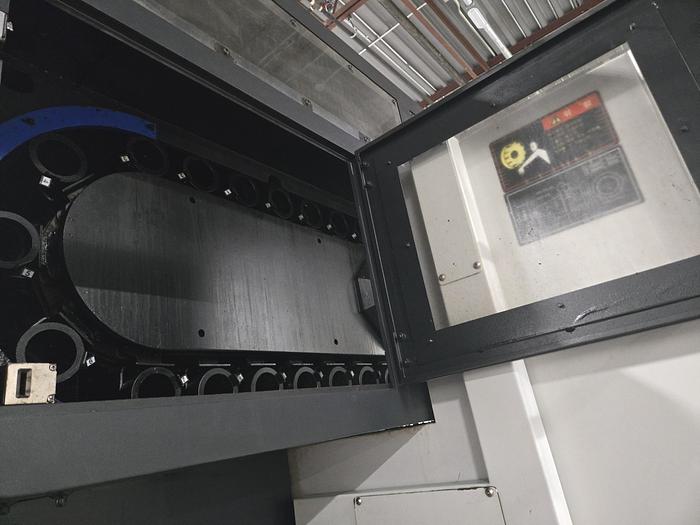

| ATC Capacity | 40 |
| Dimensions (LxB) | 267.7 x 211.2 Inches |
| Machine Height | 139.6 Inches |
| Machine Weight | 21000 Kgs |
Equipped With
Controller FANUC series 31i-MODEL A

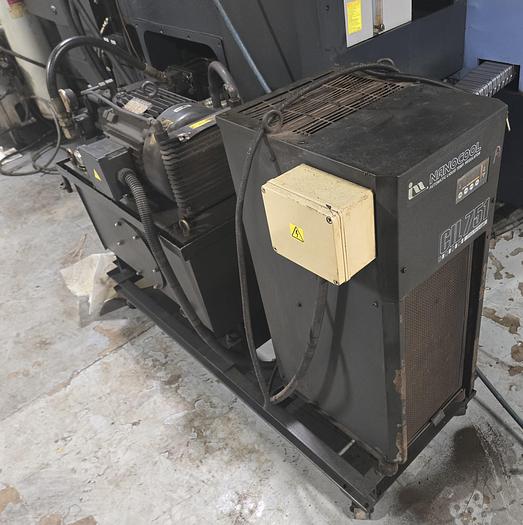

Spindle Chiller
Through Spindle Coolant

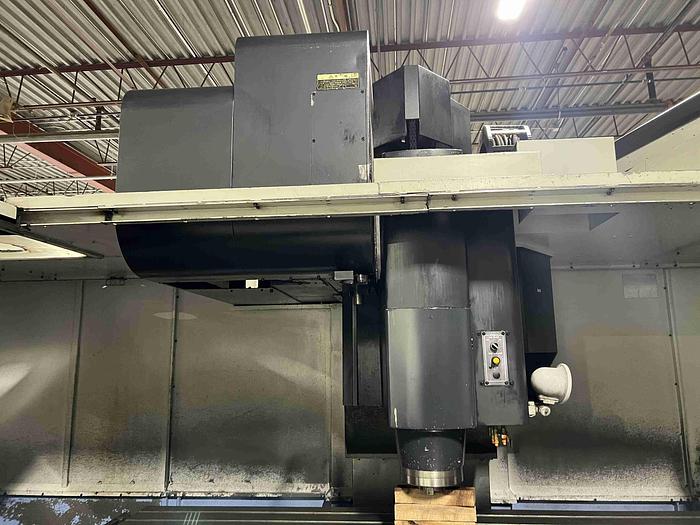

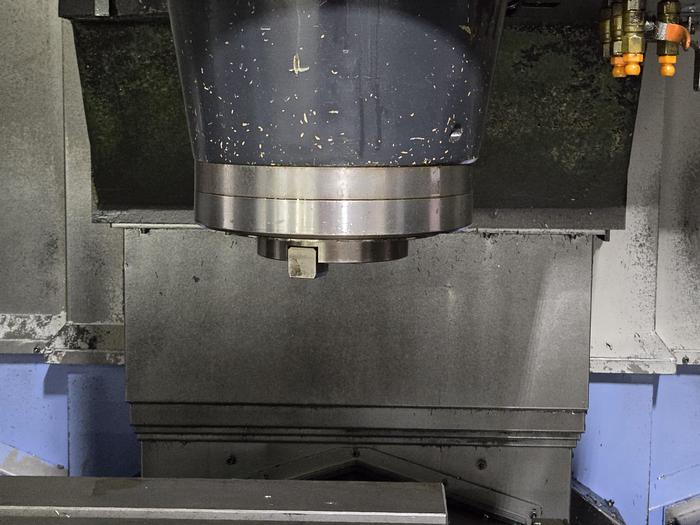

Gear Head Spindle
Hydraulic Pack

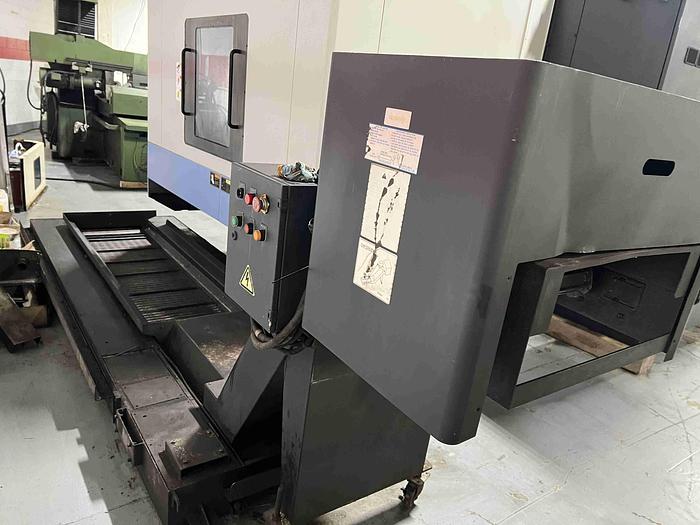

Chip Conveyor

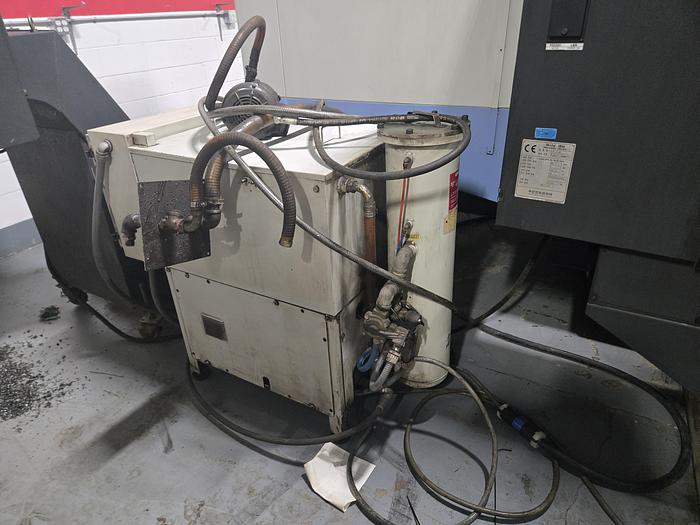

Coolant Tanks
Dual Chip Auger
