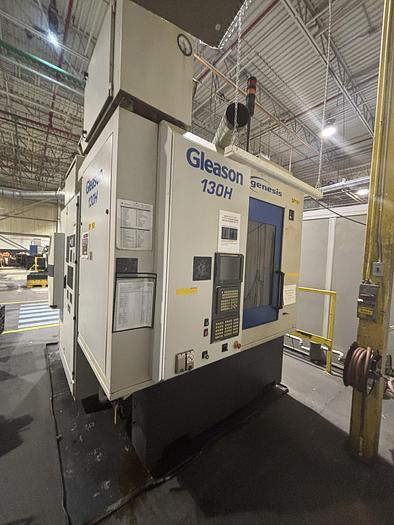

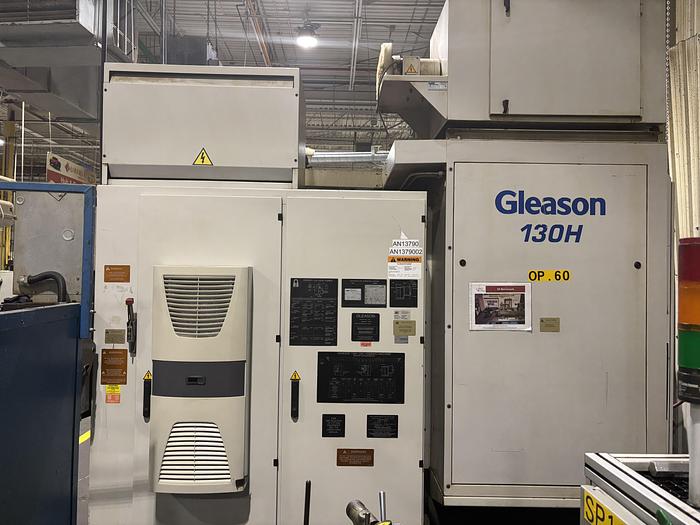

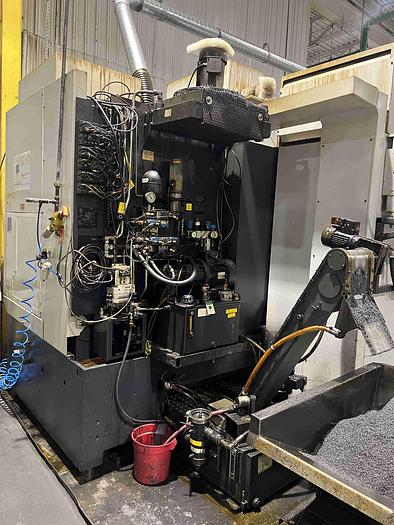

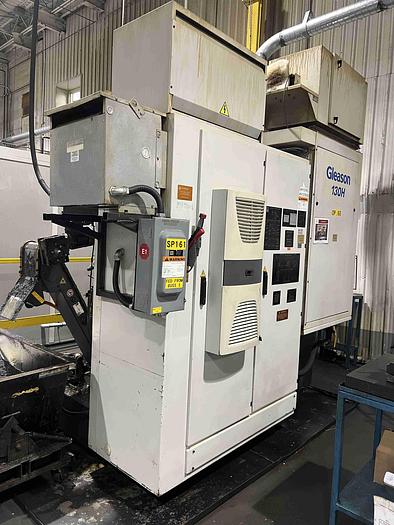

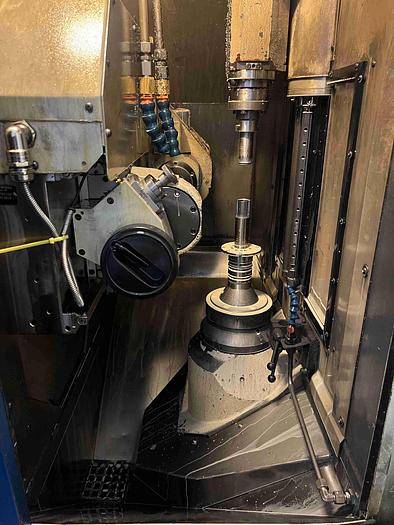

Gleason Pfauter 130H Gear Hobber (7-Axis Machine)
No longer available
Gleason Pfauter 130H Gear Hobber (7-Axis Machine)
Available quantity:1
Description
The Pre-Owned 2011 Gleason Pfauter 130H is a precision gear hobbing machine equipped with a FANUC Series 180i-MB controller for advanced control and accuracy. It features a chip conveyor for efficient chip management, making it an excellent choice for high-performance gear manufacturing applications.
Specifications
| Manufacturer | Gleason |
| Model | Pfauter 130H |
| Year | 2011 |
| Condition | Used |
| Stock Number | MAC-VMC-GLS-153 |
| Workpiece diameter | 130mm |
| Nominal modulus | 3mm |
| Maximum axial travel | 350mm |
| Workpiece shaft speed range | 10-1000rpm |
| Minimum/maximum diameter of hob | 20-100mm |
| Minimum/maximum length of hob (toothed part) | 125-240mm |
| Maximum displacement travel | 220mm |
| Hob tool holder rotation range | ±45 degree |
| Hob speed range | 10-4000rpm |

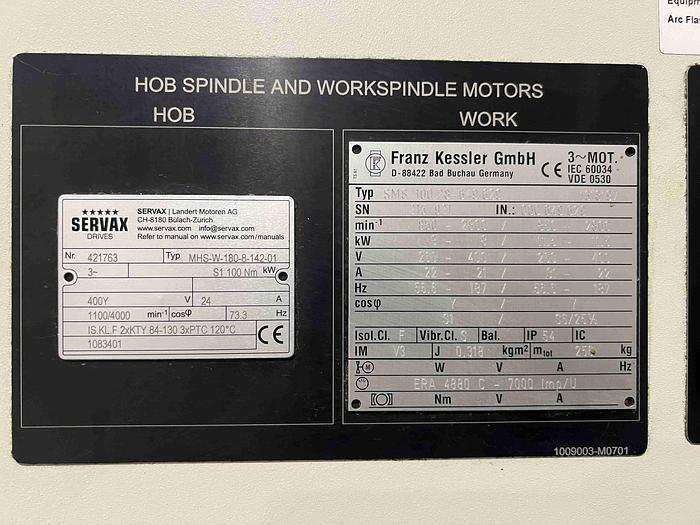

| Hob shaft power | 11.5Kw |
| Machine Approximate weight | 9000kg |
Equipped With

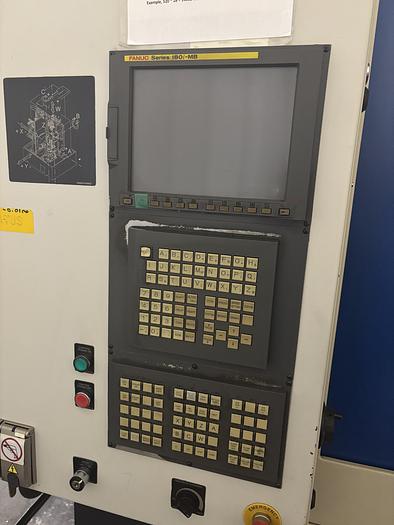

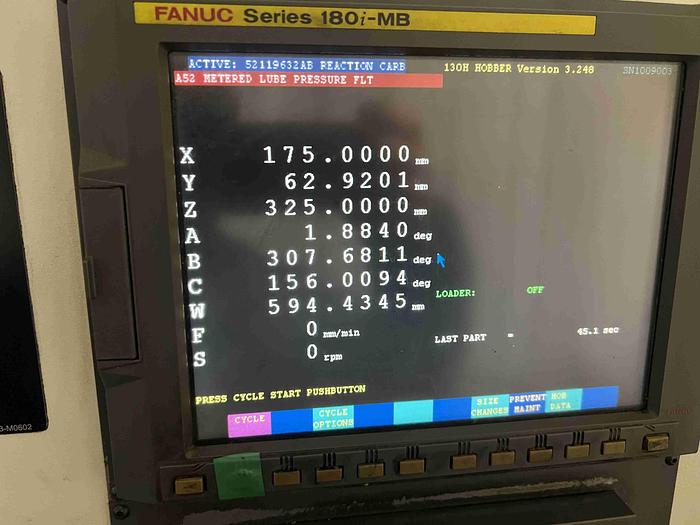

FANUC Series 180i-MB controller
Chip Conveyor
