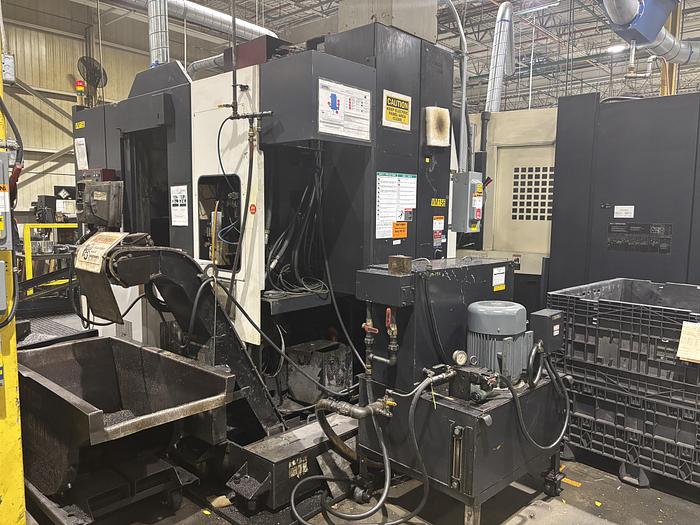

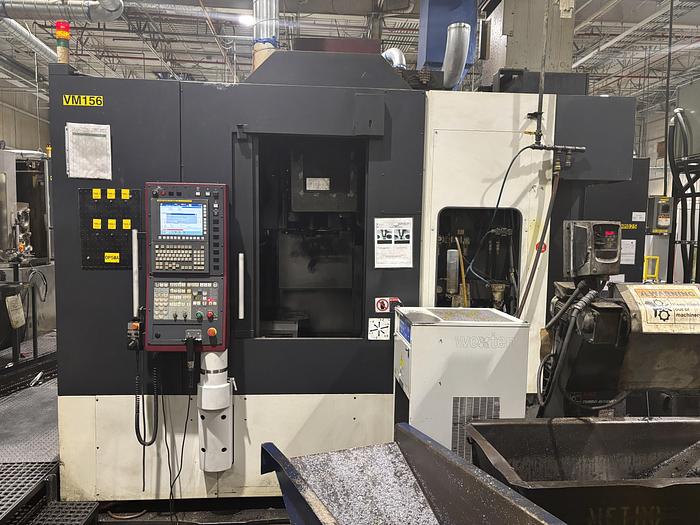

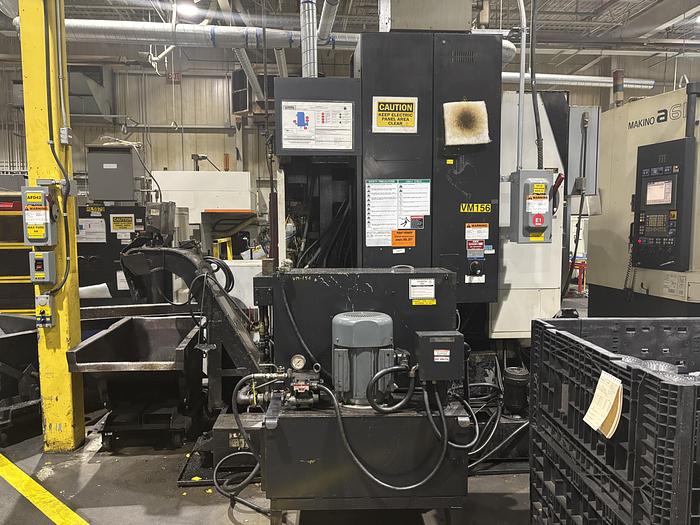

OKK VP500 Vertical Machining Center
OKK VP500 Vertical Machining Center
Available quantity:1
Description
The Pre-Owned OKK VP500 Vertical Machining Center is equipped with a FANUC SERIES 31i-MODEL B controller, chip conveyor, and coolant system for efficient and precise machining operations. This machine is ideal for various industrial applications, delivering high performance and reliability for demanding tasks.
Specifications
| Manufacturer | OKK |
| Model | VP-500 |
| Year | 2014 |
| Condition | Used |
| Stock Number | MAC-DSN-2025 |
| X-Axis Travel | 23.6" (600mm) |
| Y-Axis Travel | 20.1" (510mm) |
| Z-Axis Travel | 18.1" (460mm) |
| Table Top to Spindle Nose | 5.9" - 24.0" (150mm - 610mm) |

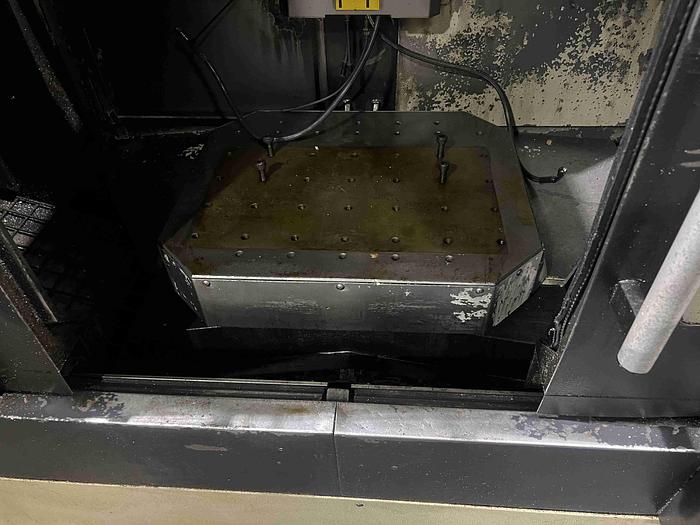

| Pallet Size | 23.6" x 19.7" (600mm x 500mm) |
| Pallet Load Capacity | 881 lbs (400 kg) |
| Rapid Traverse Rate X/Y | 1890 in/min (48 m/min) |
| Rapid Traverse Rate Z | 1417 in/min (36 m/min) |
| Cutting Feed (X/Y/Z) | 1417 in/min (36 m/min) |
| Spindle Power | 50/25 HP |
| Spindle Speed | 12,000 rpm |
| Spindle Taper | CAT40 |
| Tool Changing Time- Tool to Tool | 1.2 sec |
| Machine Weight | 22,046 lbs (10,000 kg) |
Equipped With

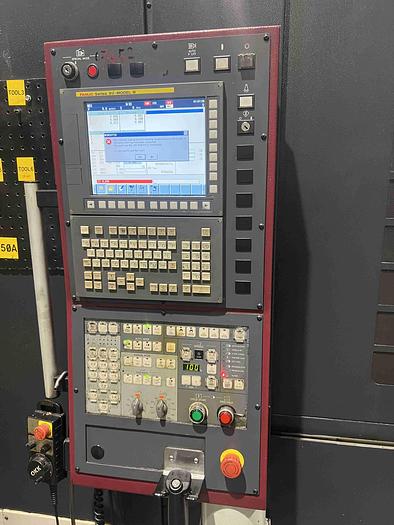

FANUC SERIES 31I-MODEL B
Chip Conveyor

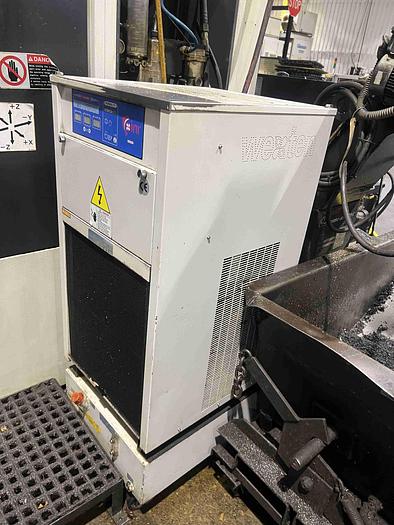

Coolant System
