Okuma Howa HL-20

Okuma Howa HL-20
Available quantity:1
Description
Results our buyers got:
The HL-20 is engineered to handle a variety of turning operations with precision. Its substantial turning diameter and length capacities make it suitable for a wide range of workpieces. The high spindle speed ensures efficient material removal, while the robust spindle motor delivers consistent performance during heavy-duty operations.
User-Friendly Control System:
Equipped with the FANUC Series 18i-T control, the HL-20 offers an intuitive interface that simplifies programming and operation. This control system is renowned for its reliability and ease of use, enabling operators to maximize productivity with minimal training.
Applications and Additional Features:
The inclusion of a chip conveyor and coolant system ensures a clean working environment and prolongs tool life. The tailstock provides additional support for longer workpieces, enhancing machining accuracy and stability. The HL-20 excels in producing components that require high precision and repeatability as this machine is ideal for industries such as automotive, aerospace, and general manufacturing. Its versatility and reliability make it a valuable addition to any production floor.
The Okuma Howa HL-20 CNC Turning Center combines precision, reliability, and user-friendly operation as a packaged deal. Whether you're looking to expand your machining capabilities or replace an aging machine, the HL-20 from Okuma offers a cost-effective solution without compromising on performance.
Specifications
Manufacturer | Okuma Howa |
Model | HL-20 |
Condition | Used |
Serial Number | 201 |
Stock Number | TC-OKH-929 |
Maximum turning length (Z-axis) | 18.1 INCHES |
Turning diameter over bed (max) | 19.6 INCHES |
Turning diameter over cross slide (max) | 11.8 INCHES |
Maximum rotary speed of the main spindle | 4500 rpm |
Maximum travel length in the X-axis | 7.1 INCHES |
Maximum feed rate in X-axis | 944.9 INCHES/MIN |
Maximum feed rate in Z-axis | 944.9 IN/MIN |
Maximum power of the main spindle | 14.7 HP |
Diameter of the spindle bore | 2 INCHES |
Equipped With

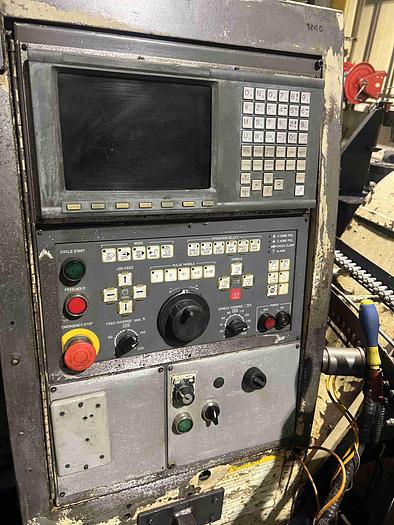

Controller : FANUC Series 18i-T

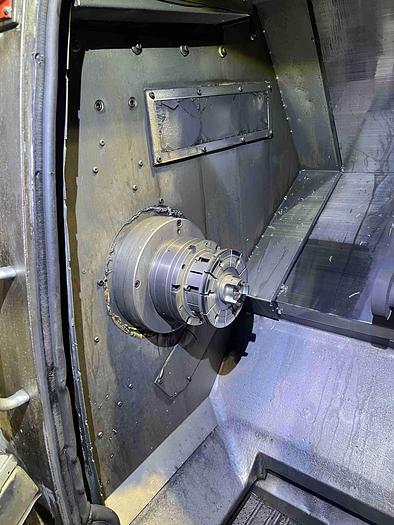

6-inch chuck

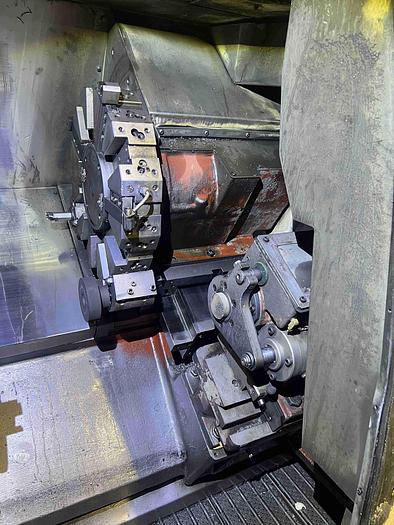

Misc. Tool Holders

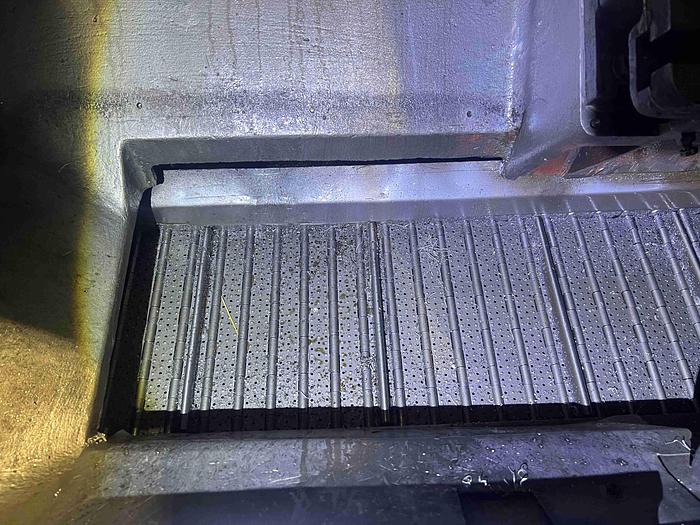

Chip conveyor
Coolant system
Tailstock
