SIP GENEVOISE JIG BORING MACHINE (MPKT-3KT)
SIP GENEVOISE JIG BORING MACHINE (MPKT-3KT)
Available quantity:1
Description
Discover the ultimate in precision with the SIP GENEVOISE Jig Boring Machine, model MPKT-3KT, enhanced with the Fagor 2 Axis DRO for exceptional accuracy. Tailored for high-precision engineering, this machine delivers meticulous control and stability for your most critical boring projects. The MPKT-3KT model stands out with its robust design and superior performance, making it ideal for creating intricate parts in toolmaking, mold manufacturing, and more. With easy-to-use features and reliable performance, the SIP GENEVOISE Jig Boring Machine ensures consistent, high-quality results on all your complex boring tasks. Elevate your manufacturing processes with this top-tier equipment, designed to meet the needs of modern precision engineering
Specifications
| Manufacturer | SIP GENEVOISE |
| Model | MPKT-3KT |
| Condition | Used |
| Serial Number | 2067 |
| Stock Number | MM-SG-897 |

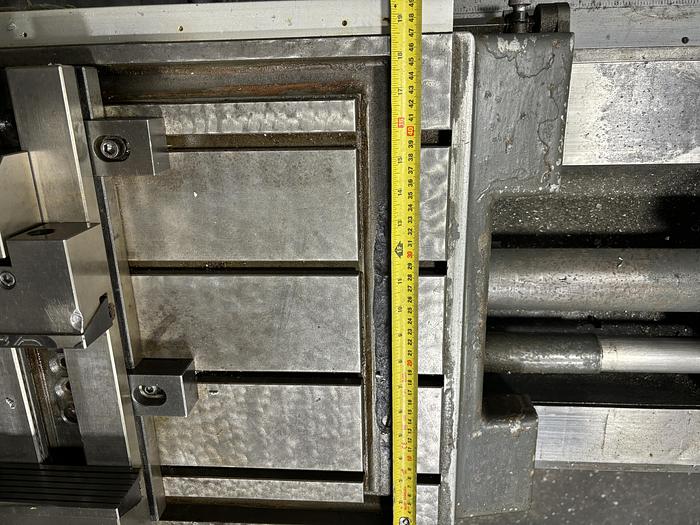

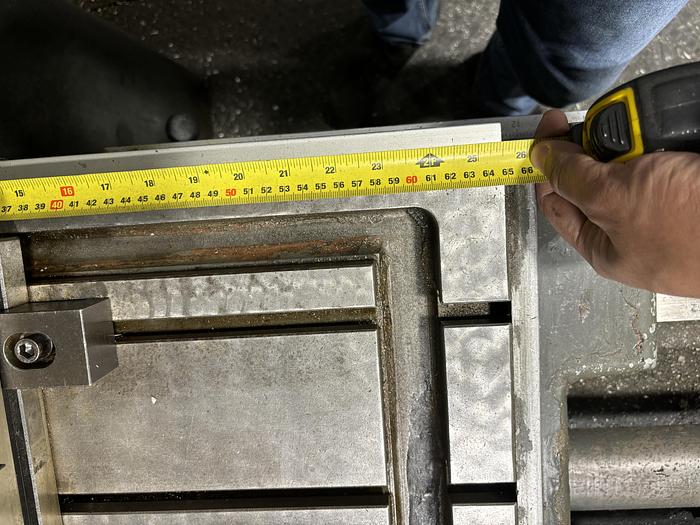

| Table Area | 650mm x 470mm |
| Approx Distance Between Columns | 600mm |
| Approx Max Distance from Table Top to Under Cross Rail | 650mm |
| Spindle Speeds | 75 to 2000 RPM |
| Total Vertical Travel | 480 MM |
| Longitudinal Table Travel | 470 MM |

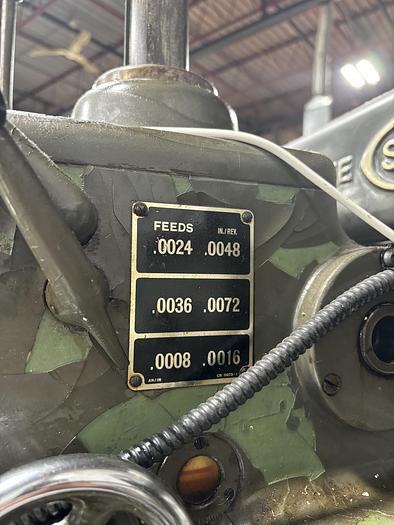

| Spindle Feed Rates | 0.02 MM/REV TO 0.18 MM/REV |
| Spindle Travel | 150 MM |
| Cross (Side-To-Side) Travel Of Head | 370 MM |
| Max. Distance B/W Table Top & Spindle Nose | 640MM |
| Spindle Taper | MT 2 |
Equipped With
2 Axis FAGOR DRO
