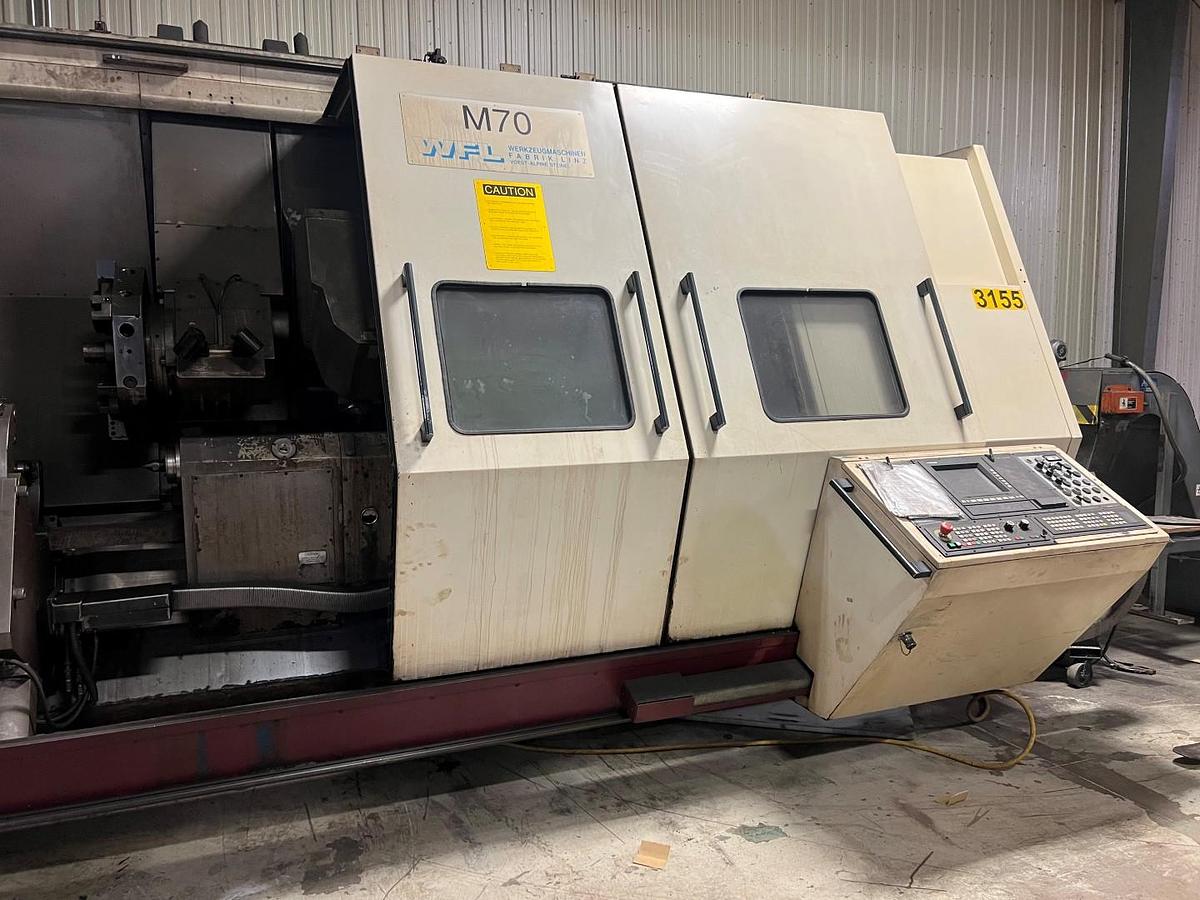

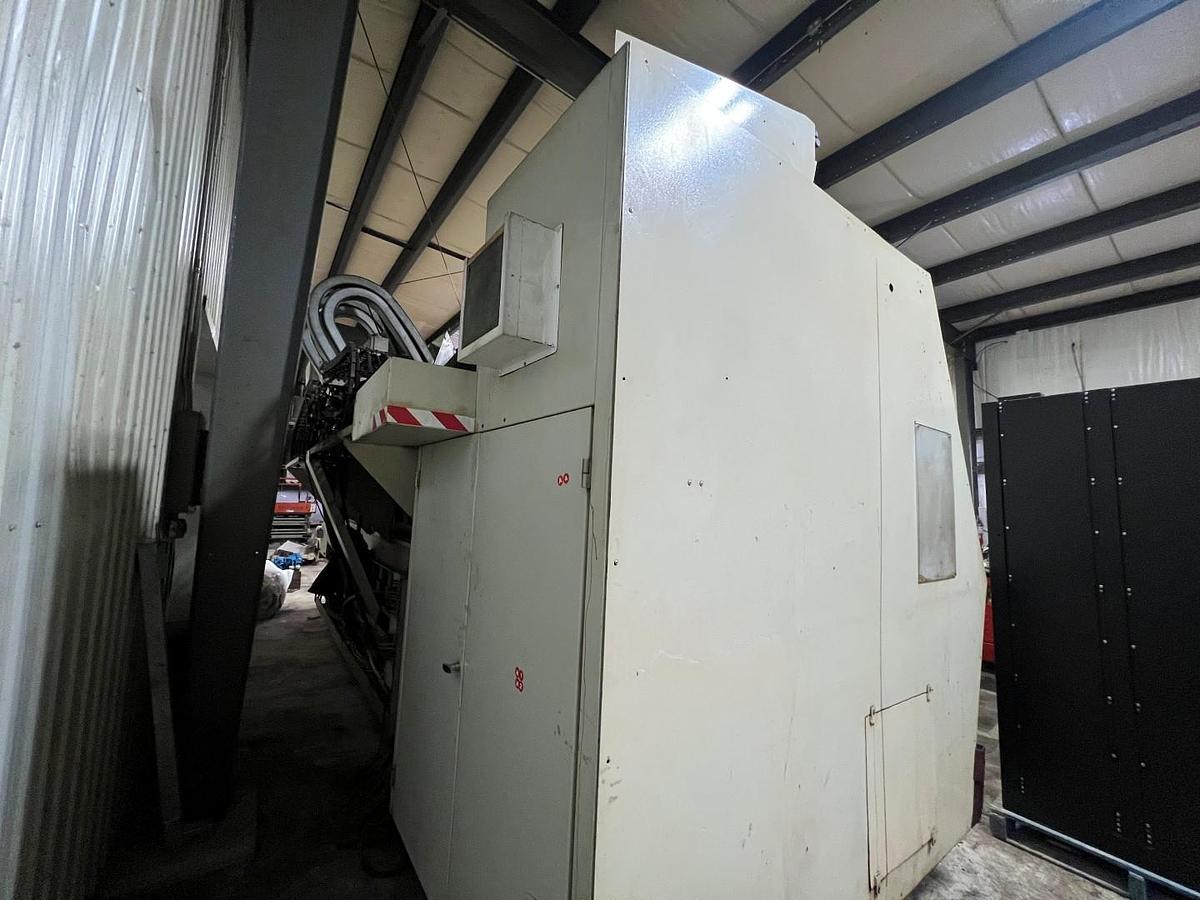

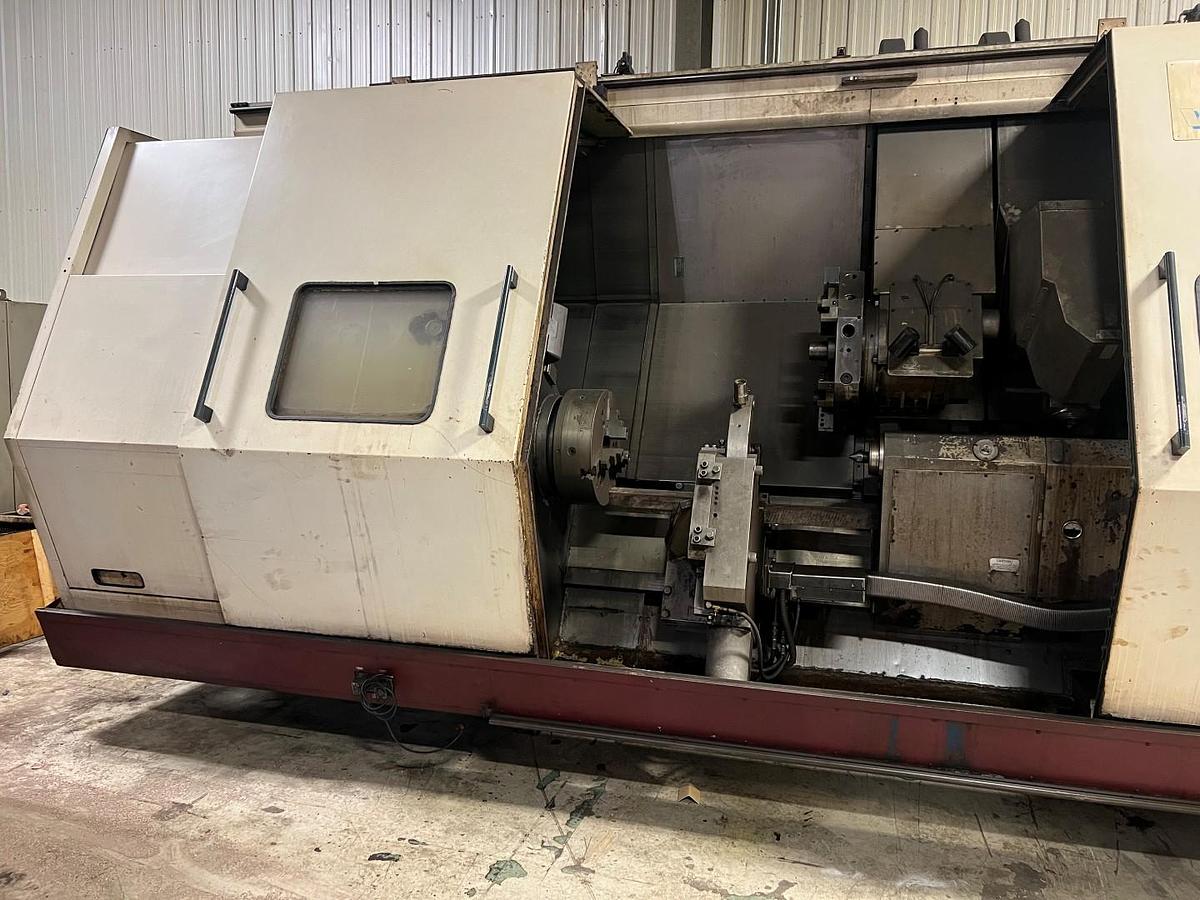

WFL M70 MILLTURN SLANT BED CNC LATHE
No longer available
WFL M70 MILLTURN SLANT BED CNC LATHE
Available quantity:1
Specifications
| Manufacturer | WFL |
| Model | M70 |
| Year | 1999 |
| Condition | Used |
| Stock Number | MAC-LTH-WFL-159 |
| X Axis | 24.4" |
| Y Axis | 11.8" |
| Z-Axis Travel | 145" |
| Max. Swing over bed | 29.5" |
| Max Swing Over Carriage | 26.4" |
| Max Machining Length | 118" |
| Min. Machining Length | 17" |
| C-Axis Increment | .001° |
| B-Axis Travel | -105–+90 Degree |

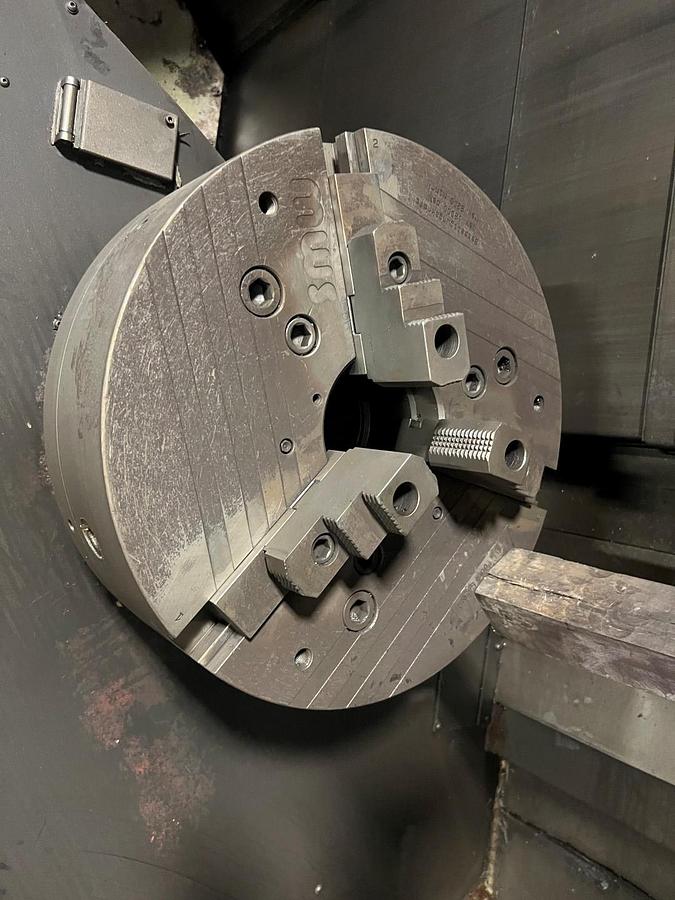

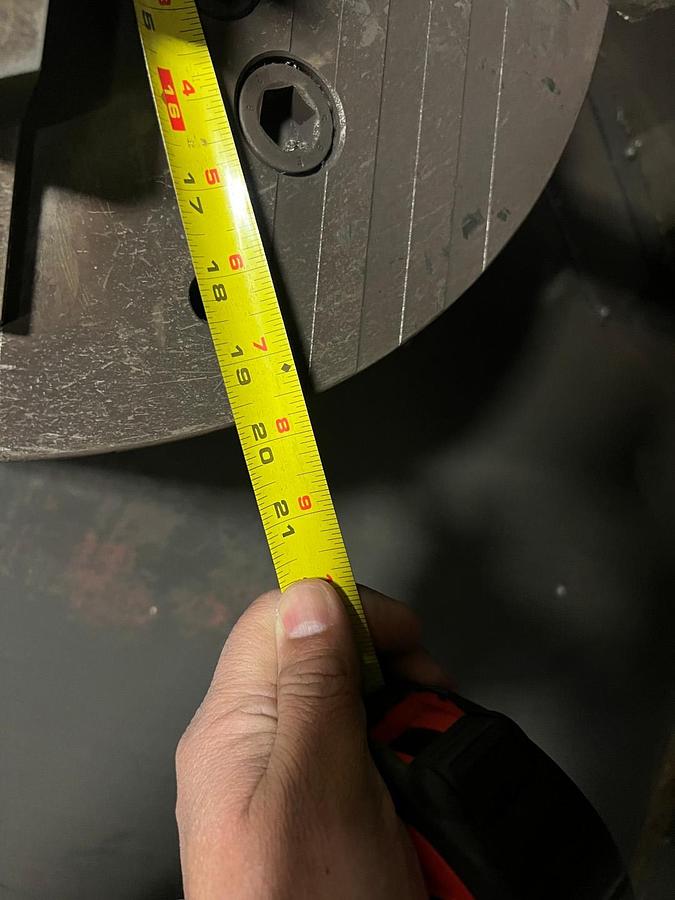

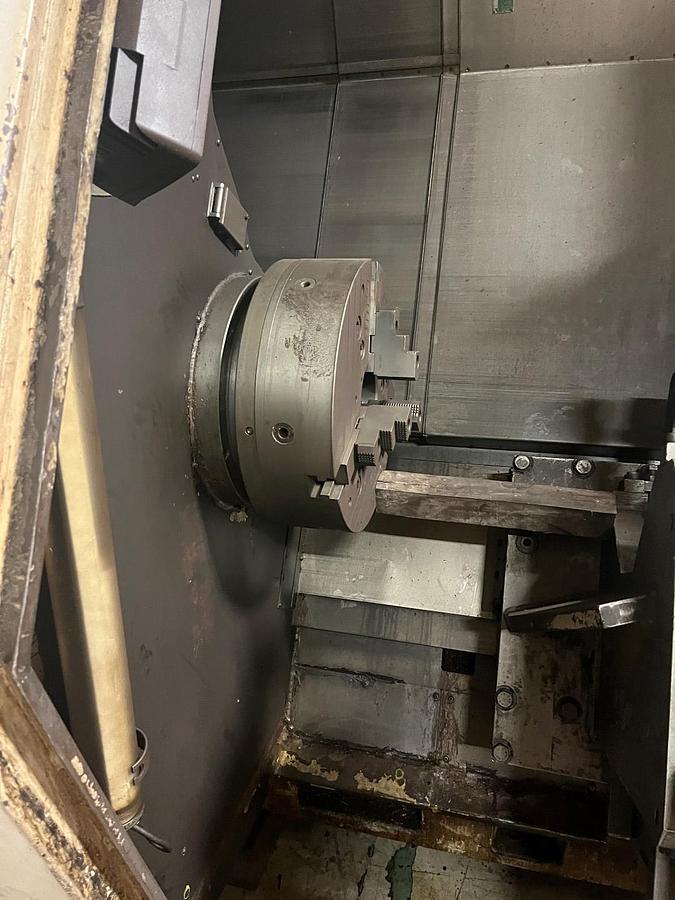

| Chuck Size | 20" |
| Distance Between Centers | 132.3" |
| Spindle Motor | 84 hp |
| Spindle Speeds | 5-400 RPM & 20-1600 RPM |
| Tool Spindle Motor | 20 HP |
| Rotary Tool Speeds | 0 - 3000 RPM |
| Automatic Tool Changer | ISO #40 |
| Tool Capacity | 24 ATC |

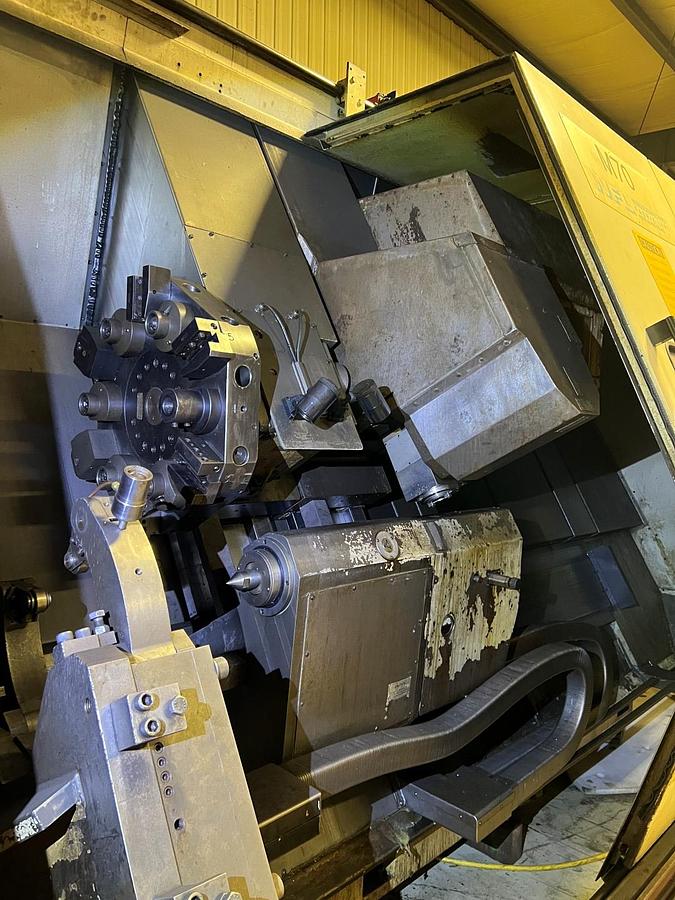

| Turret | VDI Straight Shank |
Equipped With

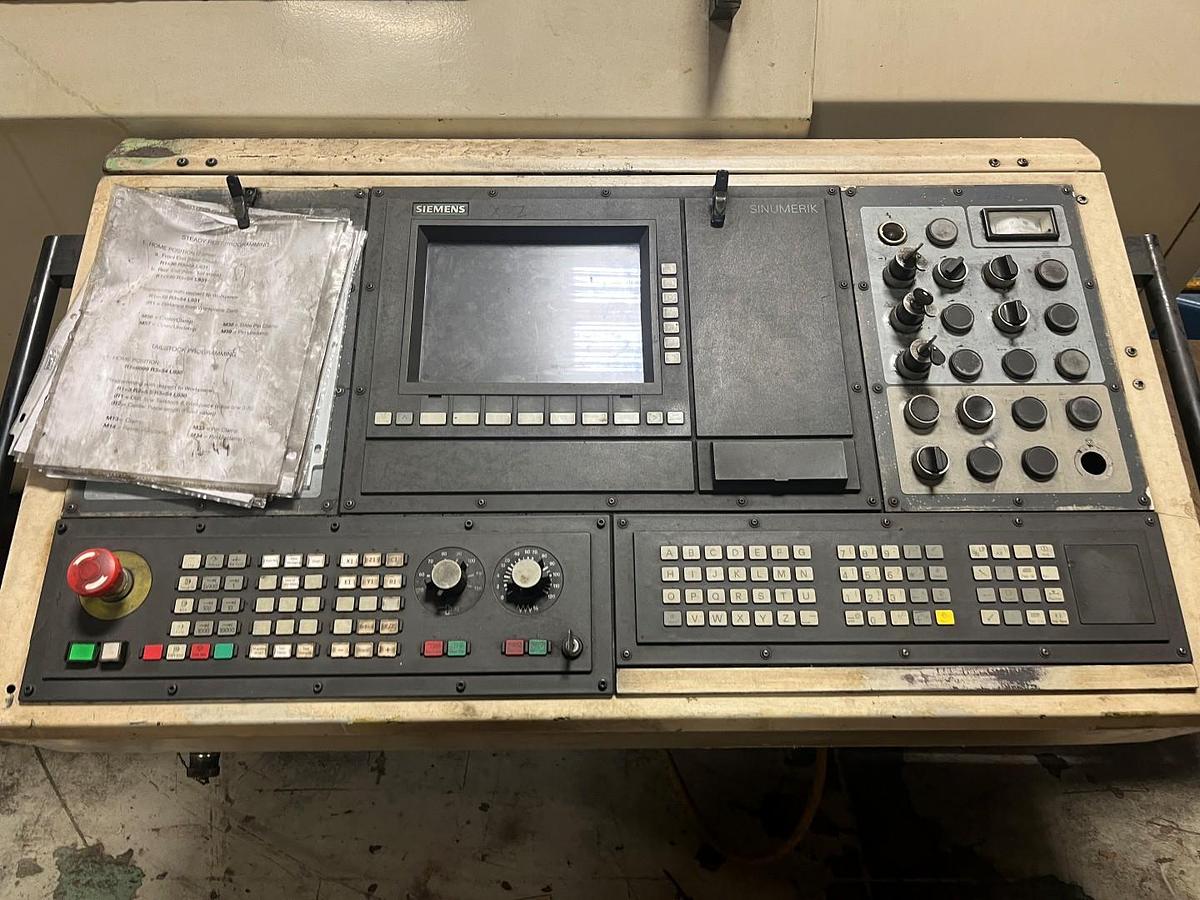

Siemens Sinumerik 840C CNC Control

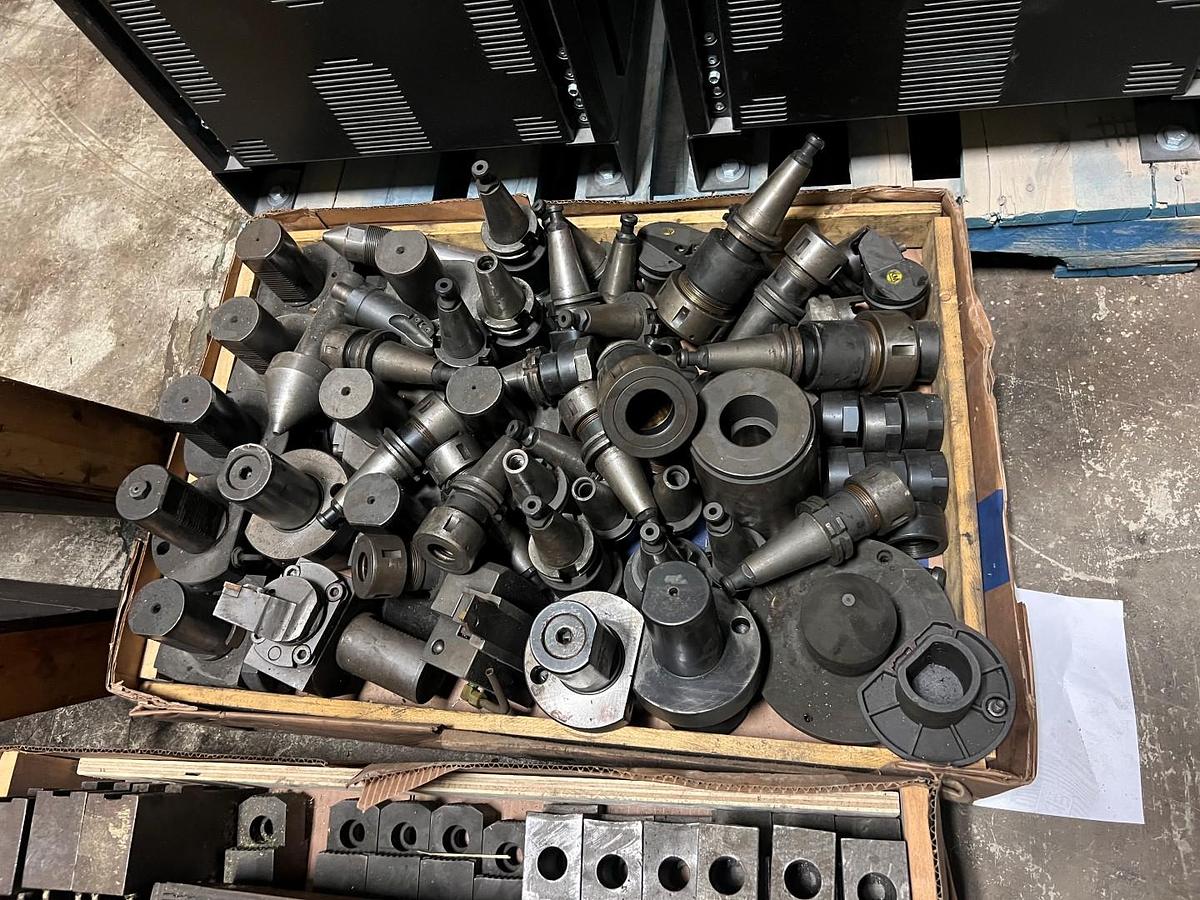

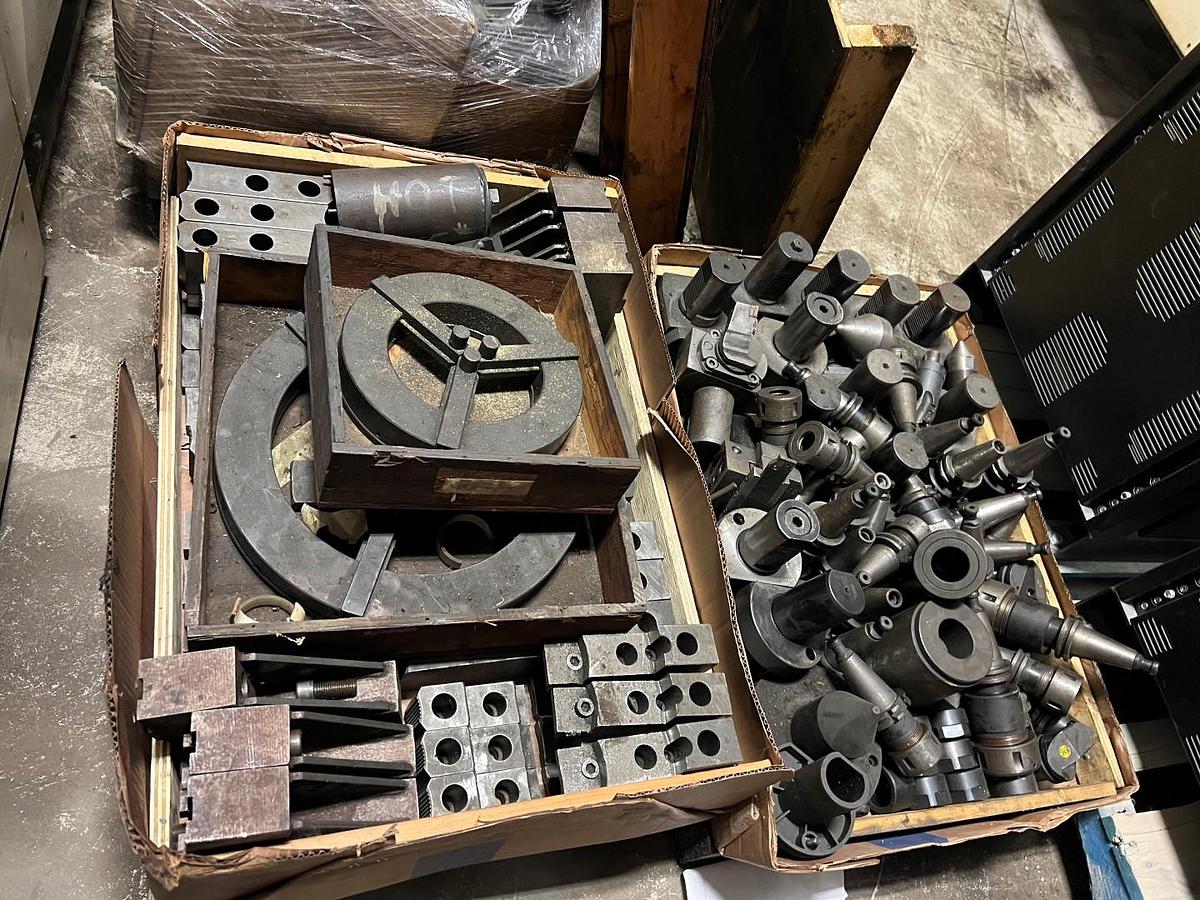

Lots of live tool holders
Lots of regular tool holders

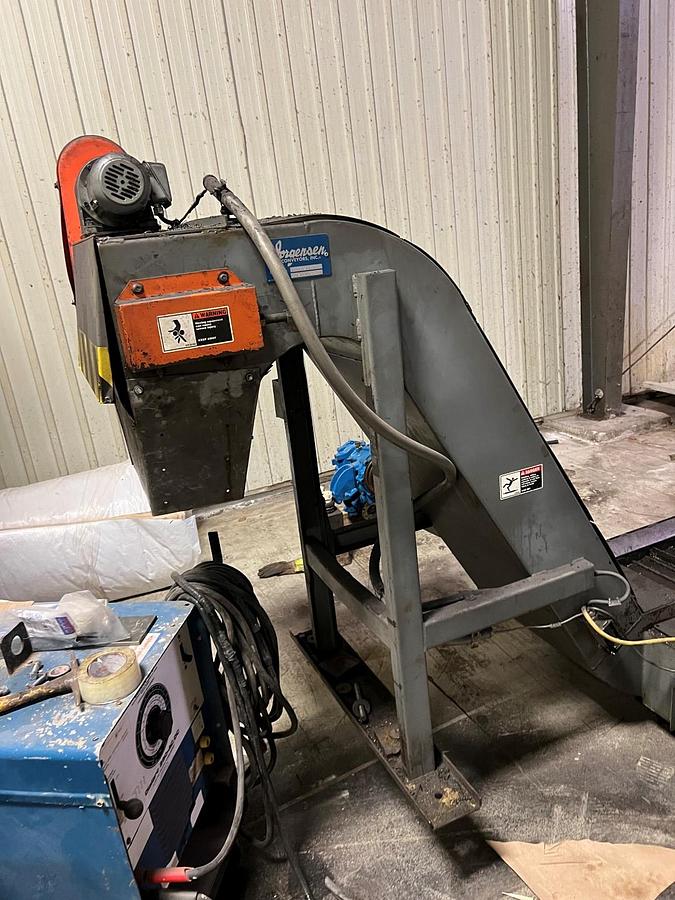

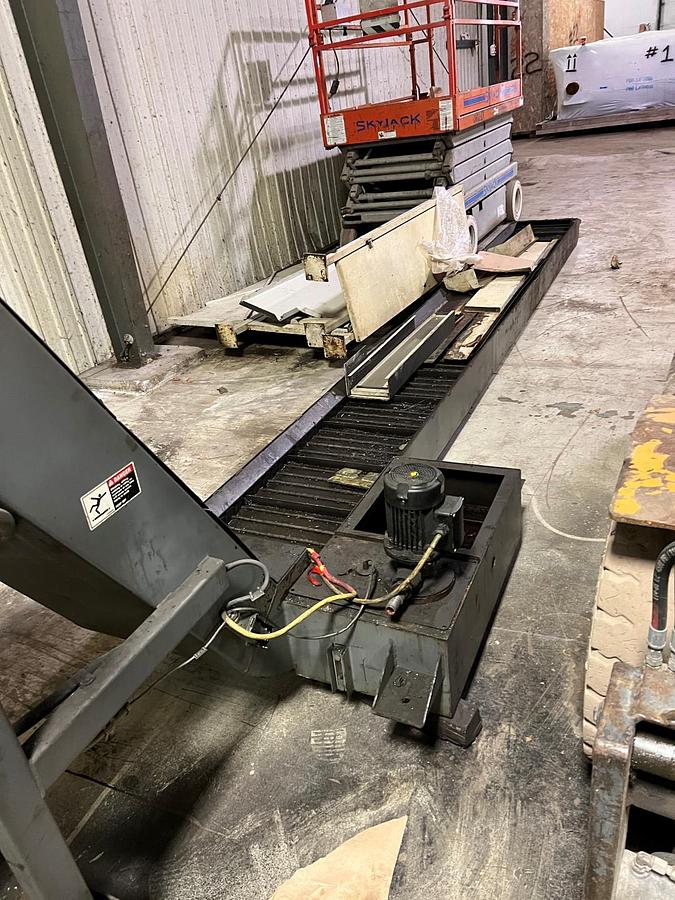

Chip conveyor
Coolant tank
