Apec G3020-5L Vertical Machining Center
Featured
No longer available
Apec G3020-5L Vertical Machining Center
Available quantity:1
Specifications
| Manufacturer | APEC |
| Model | G3020-5L |
| Year | 2017 |
| Condition | Used |
| Stock Number | MAC-APC-2028 |
| X-axis travel | 2000 mm |
| Y-axis travel | 3000 mm |
| Z-axis travel | 1000 mm |
| Table size | 2000 mm x 3000 mm |
| Table load capacity | 3000 kg /sqm |
| Dist. From spindle nose to table | 40 mm – 960 mm |
| Floor Height to Table surface | 450 mm |
| Spindle speed | 15000 rpm |
| Spindle taper | HSK 100A |
| Max Rotation Speed (A and c axis) | 30 rpm |
| X/Y Axis rapids | 60 m/min |
| Z-axis rapids | 40 m/min |
| Tool Capacity | 40 |
| Weight | 40000 kgs |
Equipped With
Heidenhain iTNC530 CNC Controller
Tool Measurement system
Double Axis nose with built in spindle
High Pressure through spindle coolant
Chip Conveyor
Coolant Tank

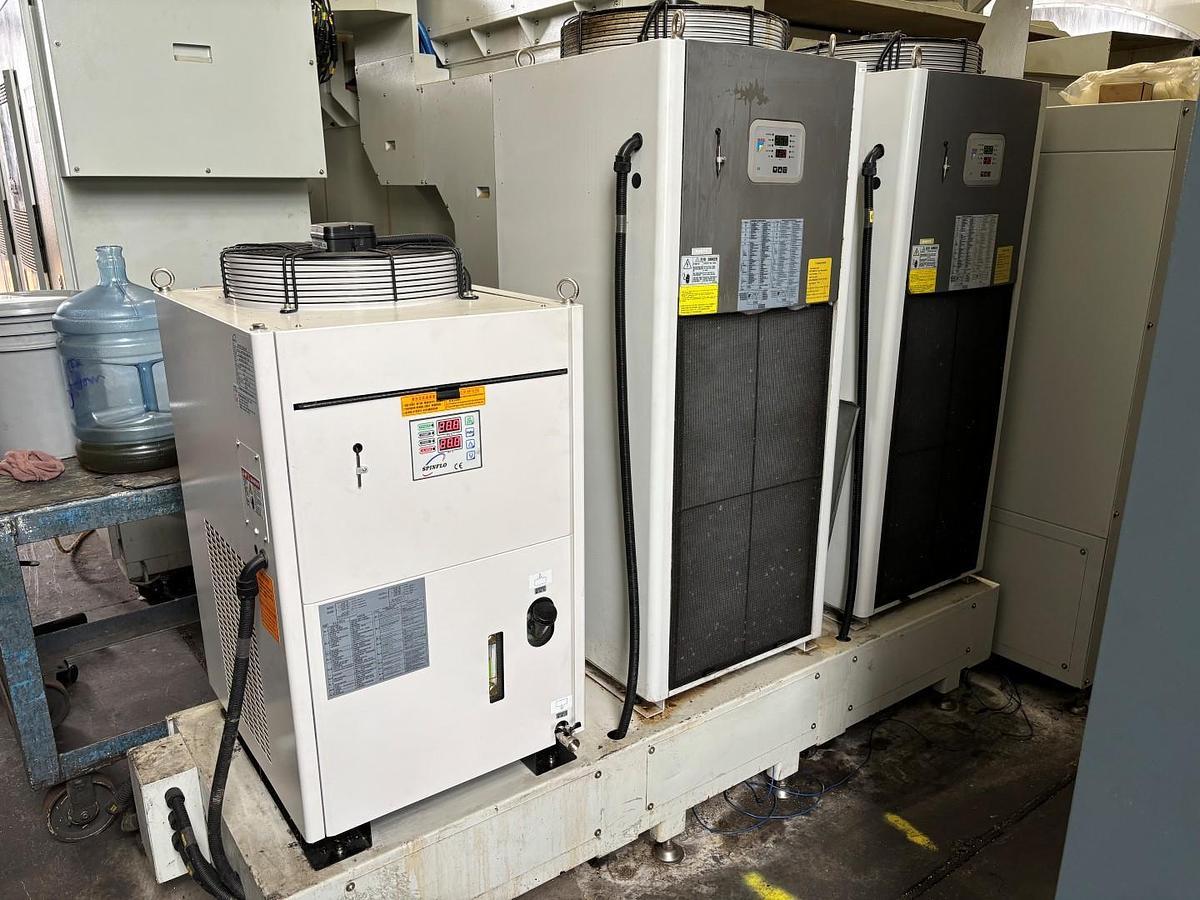

Axis Chiller
Spindle Chiller
