2006 Sigma SDV-3219 Vertical Machining Center
2006 Sigma SDV-3219 Vertical Machining Center
Available quantity:1
Description
2006 Sigma SDV-3219 Vertical Machining Center with Fanuc Series 18i-MB – High-Precision CNC Milling Solution
- Maximize your machining performance with the 2006 Sigma SDV-3219 Vertical Machining Center, equipped with the powerful and reliable Fanuc Series 18i-MB CNC controller. This high-performance vertical machining center is designed for precision, speed, and durability—making it ideal for a wide range of metalworking applications.
The Fanuc Series 18i-MB controller enhances machine performance with robust programming capabilities, high-speed machining functions, and reliable diagnostics, making this machining center a trusted solution for demanding production environments.
Ideal for job shops, tool rooms, and manufacturing facilities, the Sigma SDV-3219 with Fanuc control delivers exceptional value, precision, and uptime.
Invest in performance and reliability with the 2006 Sigma SDV-3219 Vertical Machining Center. Contact us today for a quote, specifications, or to schedule a machine demo.
Specifications
| Manufacturer | Hyundai |
| Model | SDV-3219 |
| Year | 2006 |
| Condition | Used |
| Serial Number | DV-32090 |
| Stock Number | MAC-VMC-SIG-181 |
| X axis travel | 3200 mm |
| Y axis travel | 1900 mm |
| Z axis travel | 760 mm |

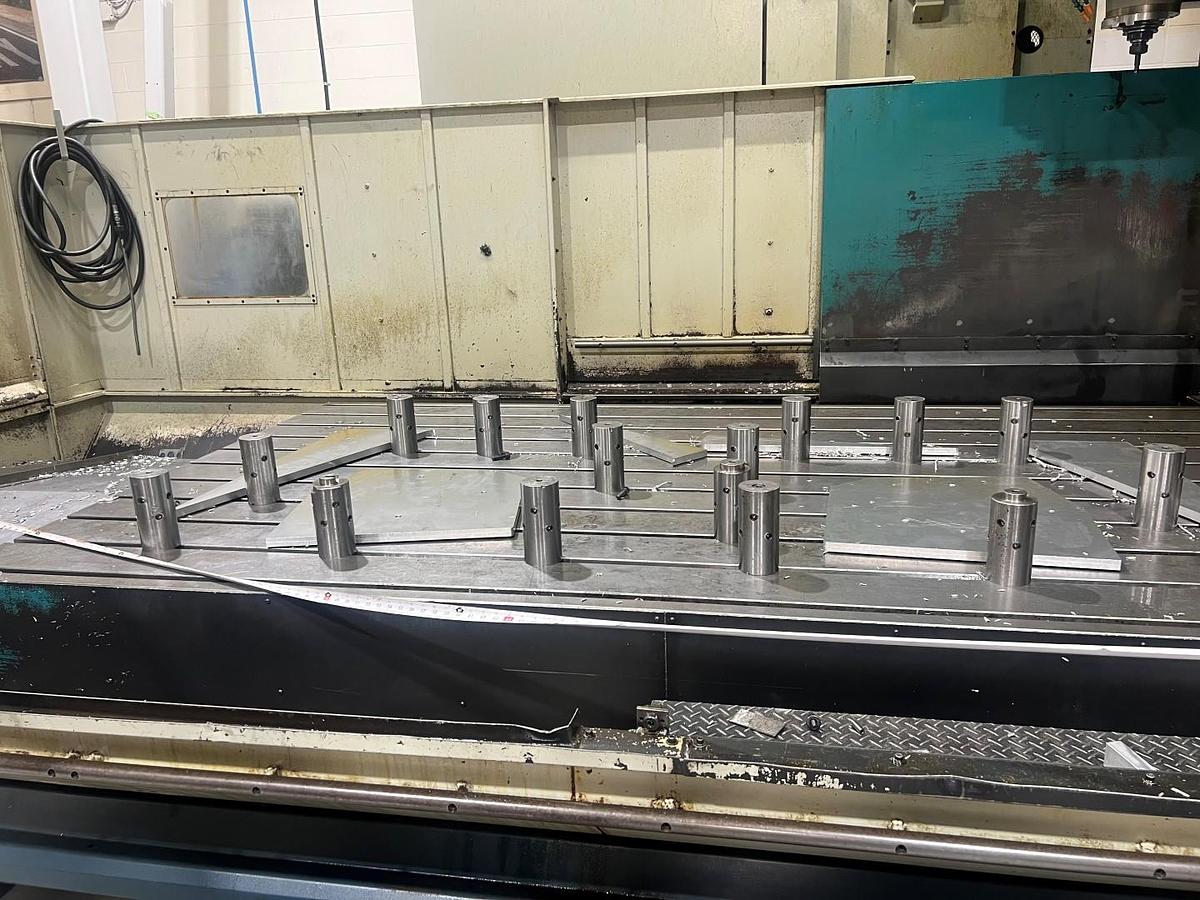

| Table dimension | 3000x1700 mm |
| Maximum table workpiece load capacity | 8000 Kg |
| Spindle Taper | Cat 50 |
| Distance between two columns | 2000 mm |
| Distance between spindle nose to table | 165 ~ 925 mm |
| Spindle speed | 30 ~ 6000 rpm |
| Motor power | 30 / 25 HP |
| X,Y,Z rapid feedrate capacity | 10000 mm/min |
| Z axis rapid feedrate capacity | 12000 mm/min |
| Cutting feedrate | 1 ~ 5000 mm/min |
| Tool capacity | 40 pcs |
| Max tool diameter | Ø125mm |
| Max tool length | 350 mm |
| Max tool weight | 18 Kgs |
| Tool switch duration | 8 sec |
| Power requirement | 40 kVA |
| Required space | 10700x6500 mm |
| Machine height | 4250 mm |
| Machine weight | 30500 Kg |
Equipped With

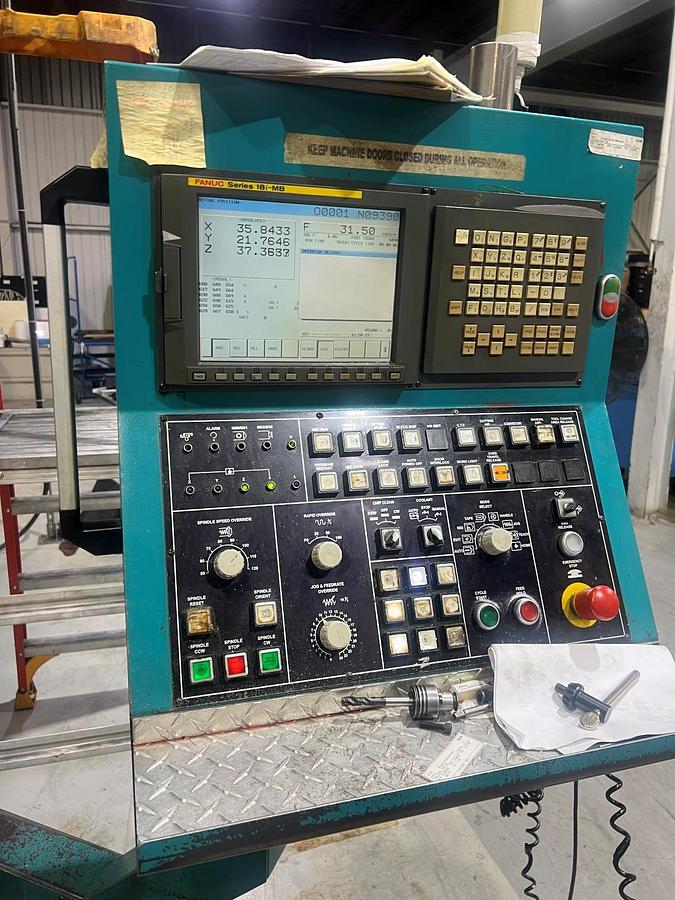

Fanuc Series 18i-MB

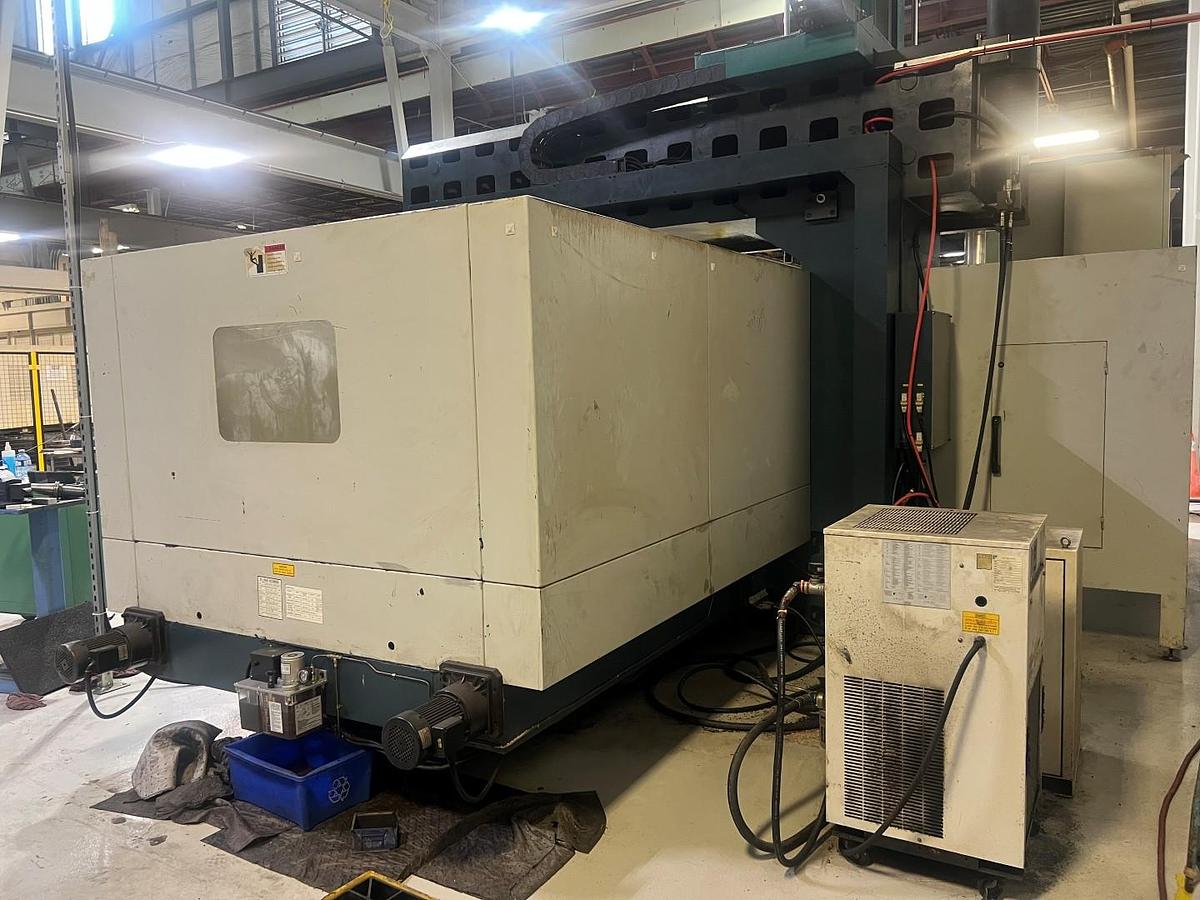

Spindle Chiller
Chip Conveyor
Through Spindle coolant
Chip Auger
Coolant Tank
Hydraulic Pack
