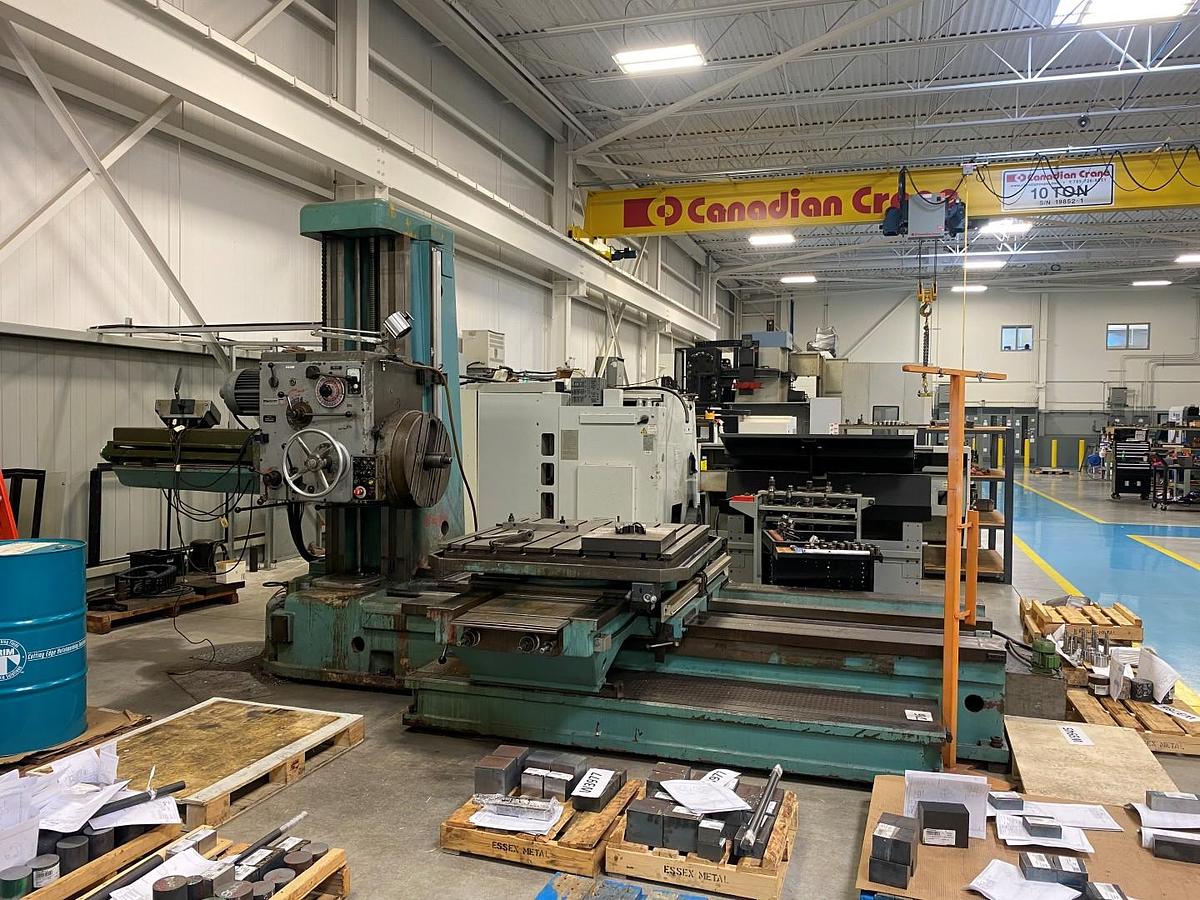

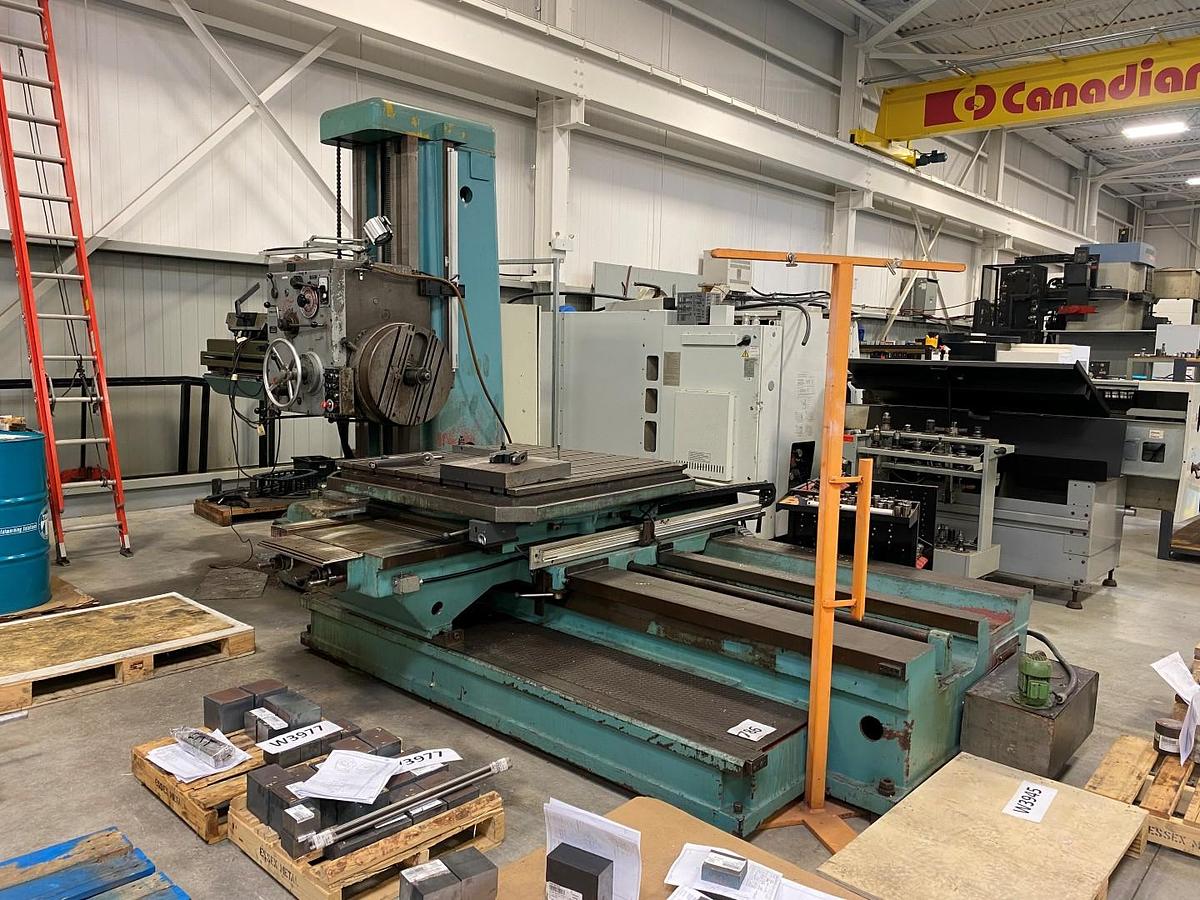

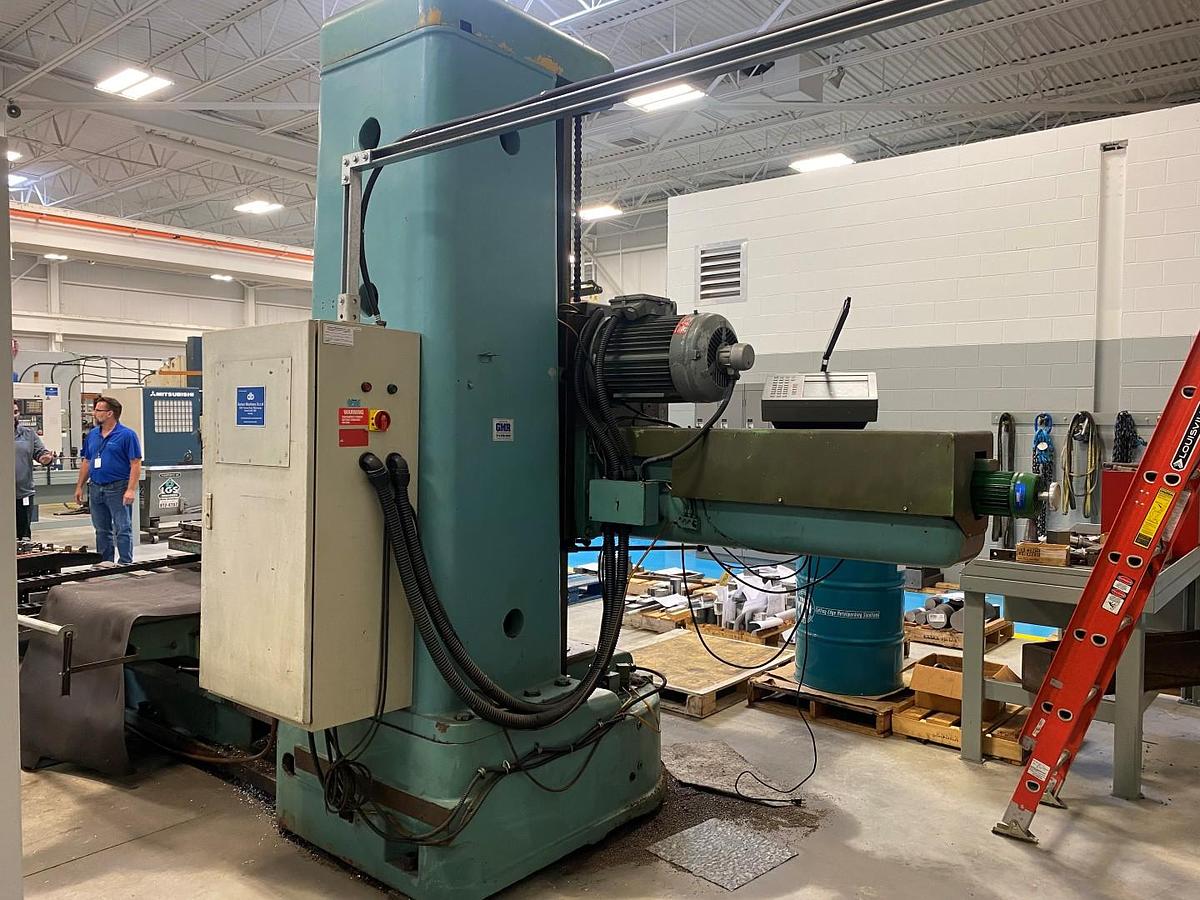

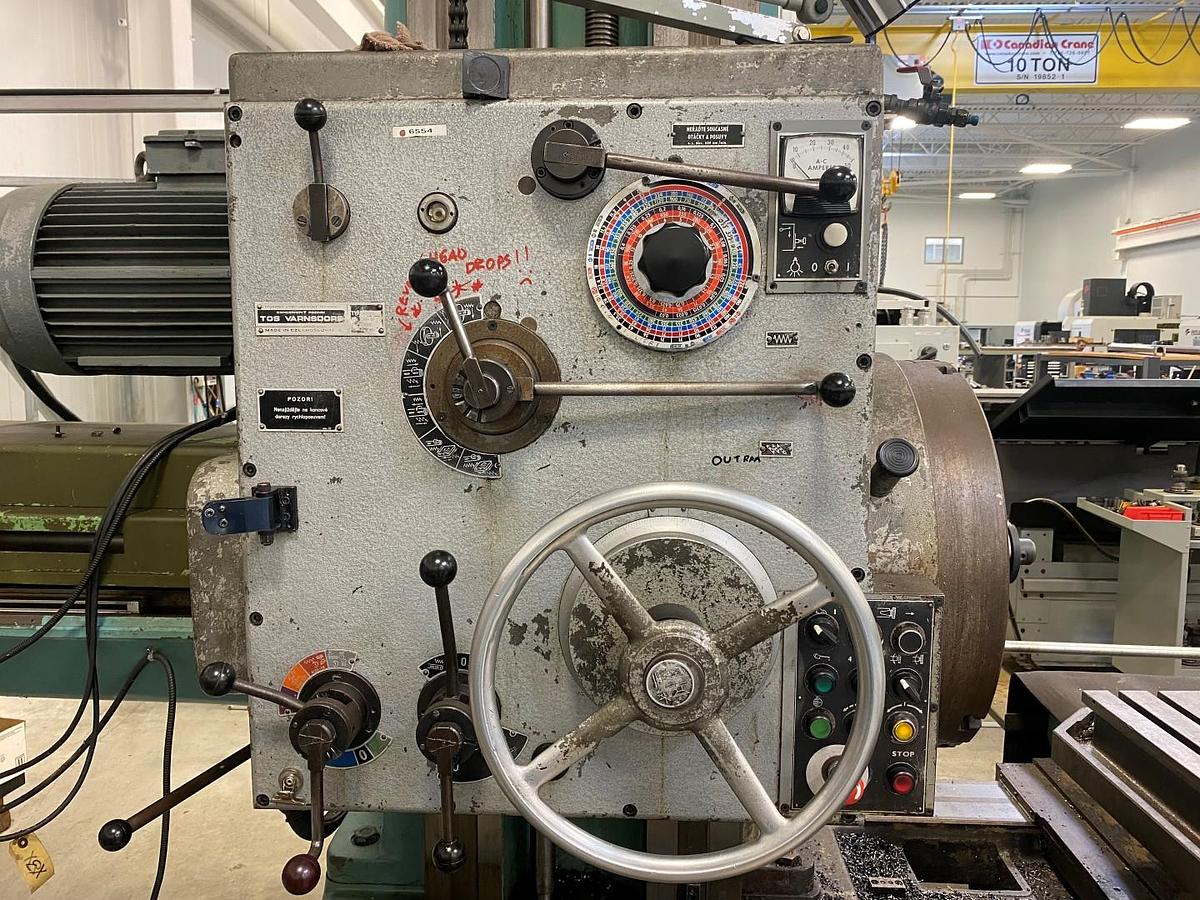

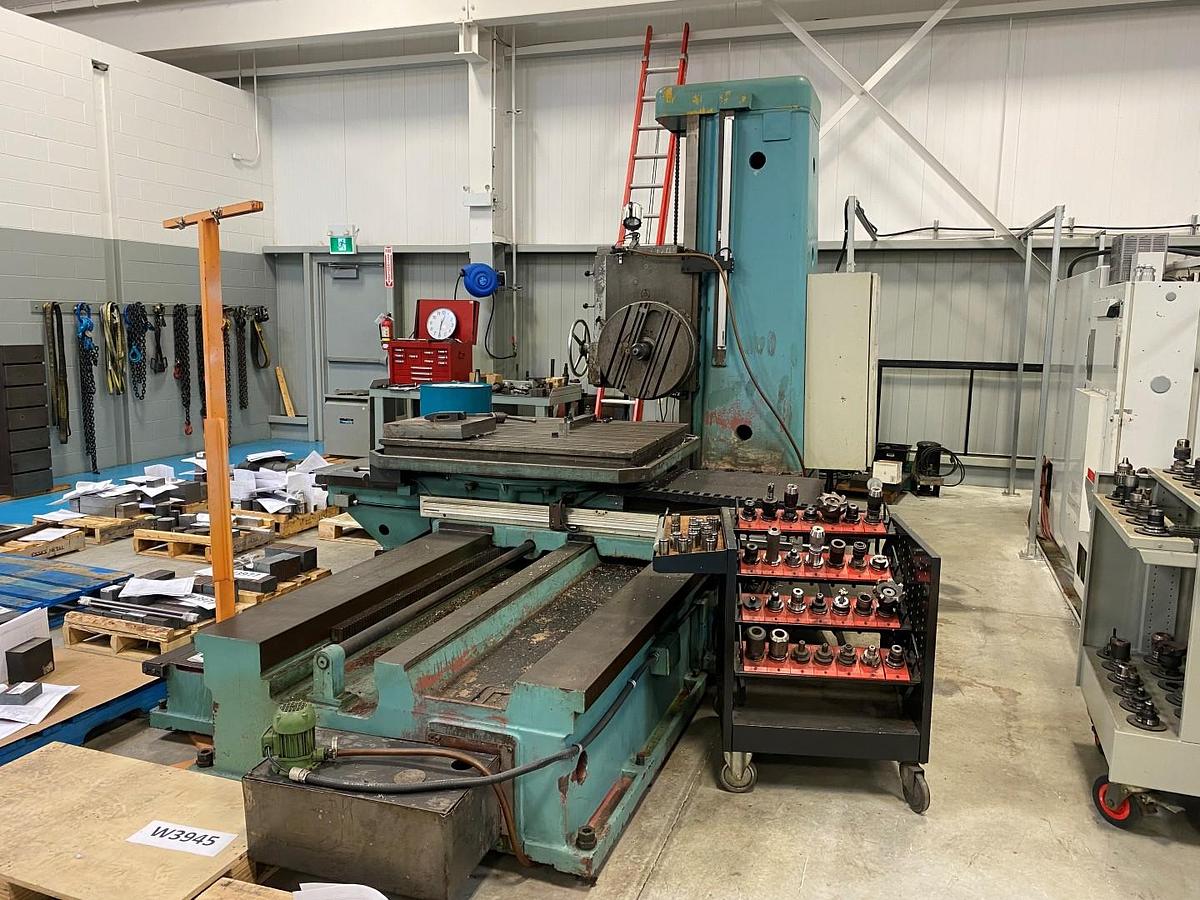

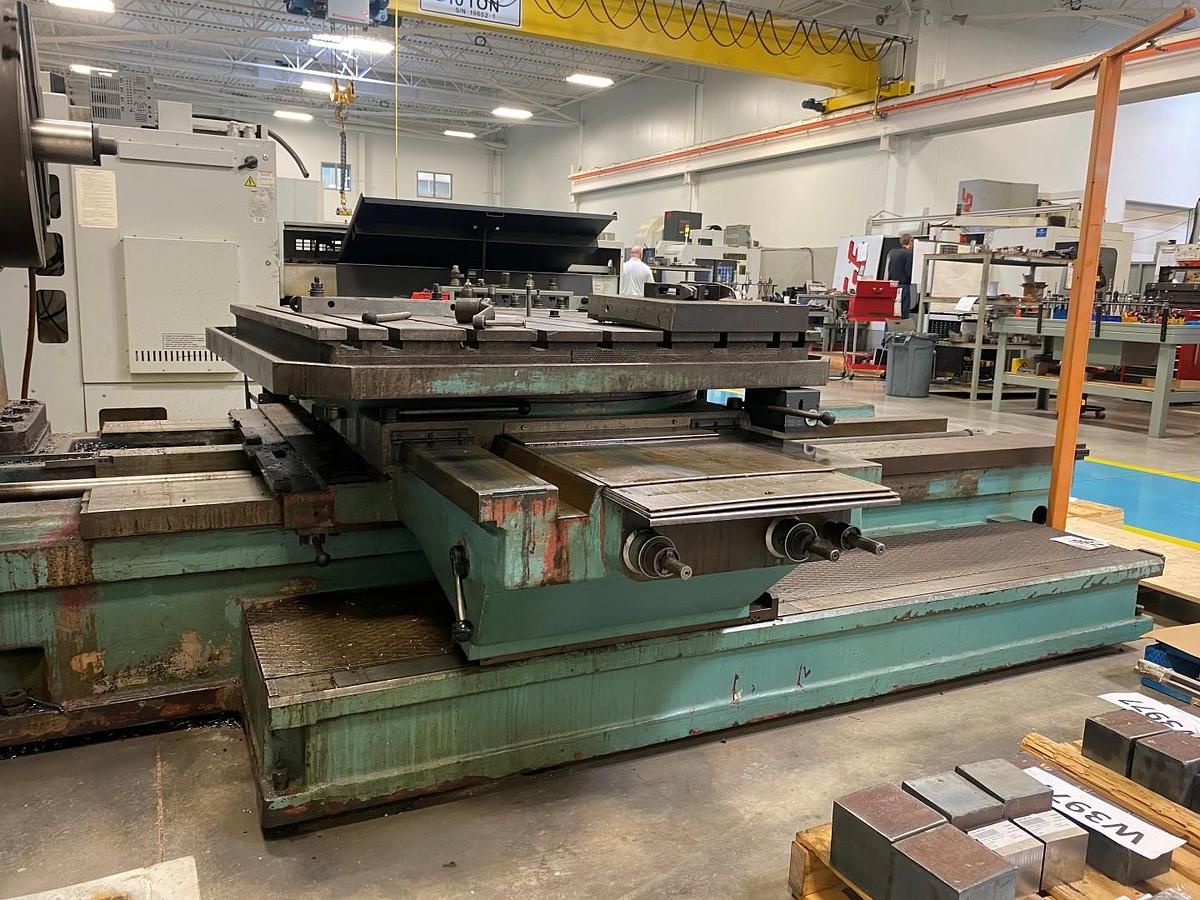

TOS W-100A Horizontal Boring Mill
TOS W-100A Horizontal Boring Mill
Available quantity:1
Specifications
| Manufacturer | TOS |
| Model | W-100A |
| Condition | Used |
| Serial Number | 6554 |
| Stock Number | MNL-TOS-6554 |
| Spindle Diameter | 100 mm (3.94 in) |
| Spindle Taper | Morse 6 |
| Max/Min Spindle to Table Distance | 0 – 1120 mm (0 – 44 3/32 in) |
| Centerline to Top of Table | 0 – 1120 mm (0 – 44 3/32 in) |
| Max Boring Depth per Travel | 900 mm (35 7/16 in) |
| Max Distance Between Faceplate and Back Rest | 2800 mm (110 15/64 in) |
| Faceplate Diameter | 600 mm (23 5/8 in) |
| Centering Diameter of Faceplate | 280 H6 |

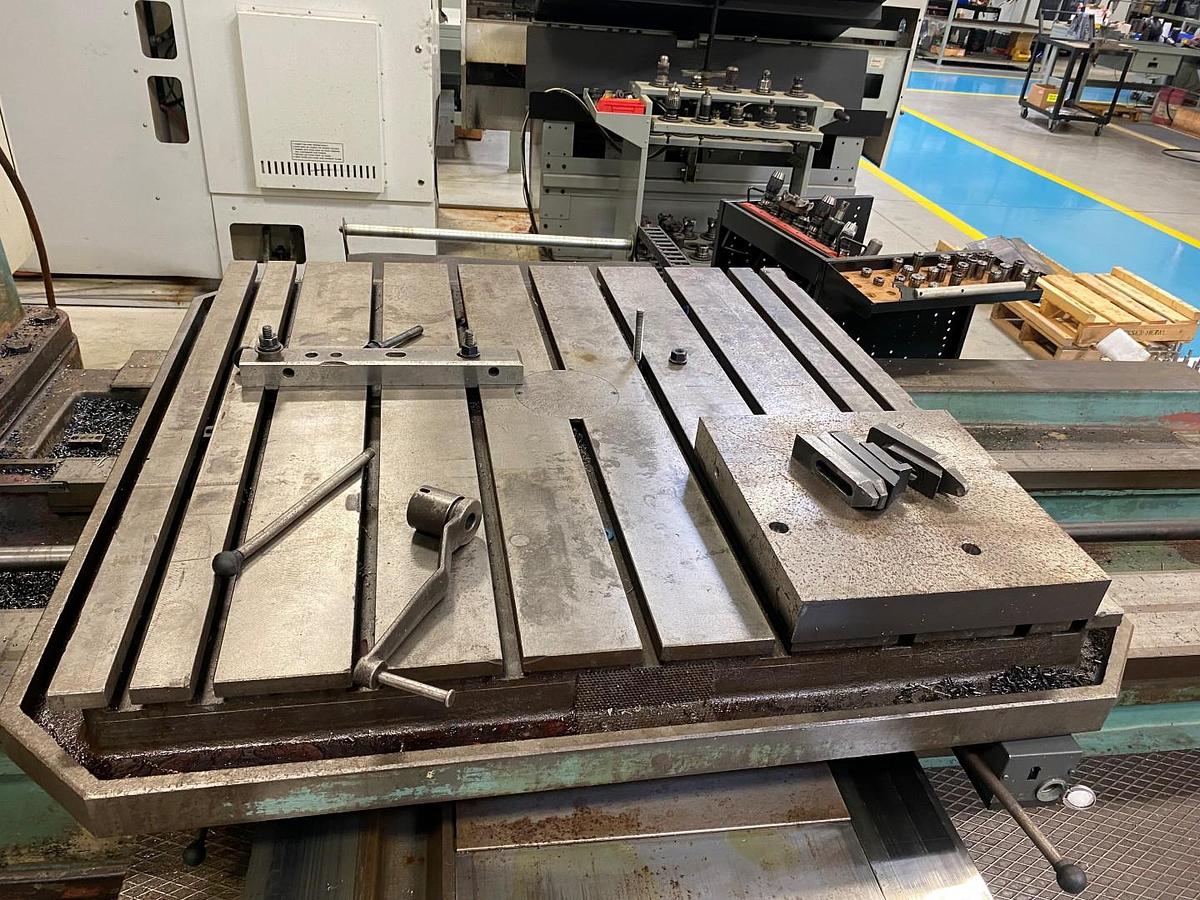

| Clamping Surface of Table | 1250 x 1250 mm (49 7/32 x 49 7/32 in) |
| Max Workpiece Weight | ≈ 3000 kg (6600 lbs) |
| Table Size | 1250 x 1250 mm |
| Max Permissible Loading of Table | 3000 kg (6600 lbs) |
| Longitudinal Travel of Saddle | 1250 mm (49 7/32 in) |
| Cross Travel of Table | 1600 mm (63 in) |
| Vertical Travel of Spindle Head | 1180 mm (46 1/2 in) approx. |
| Spindle Speeds | 23 ranges, 7.1 – 1120 RPM |
| Spindle Torque | Max 110 kgm (796 ft-lb) at 7.1 RPM; 8 kgm (65 ft-lb) at 1120 RPM |
| Feeds | 32 feed rates, 0.000787 – 0.4724 in/rev; multiple power feeds |
| Power Input | 10 kW |
| Approx. Weight | ≈ 17,500 kg (38,500 lbs) |
