1999 Mitsubishi MV5CN Turning Center
1999 Mitsubishi MV5CN Turning Center
Available quantity:1
Description
Mitsubishi MV5-CN Vertical Machining Center – 2001 | High-Precision CNC Milling Machine

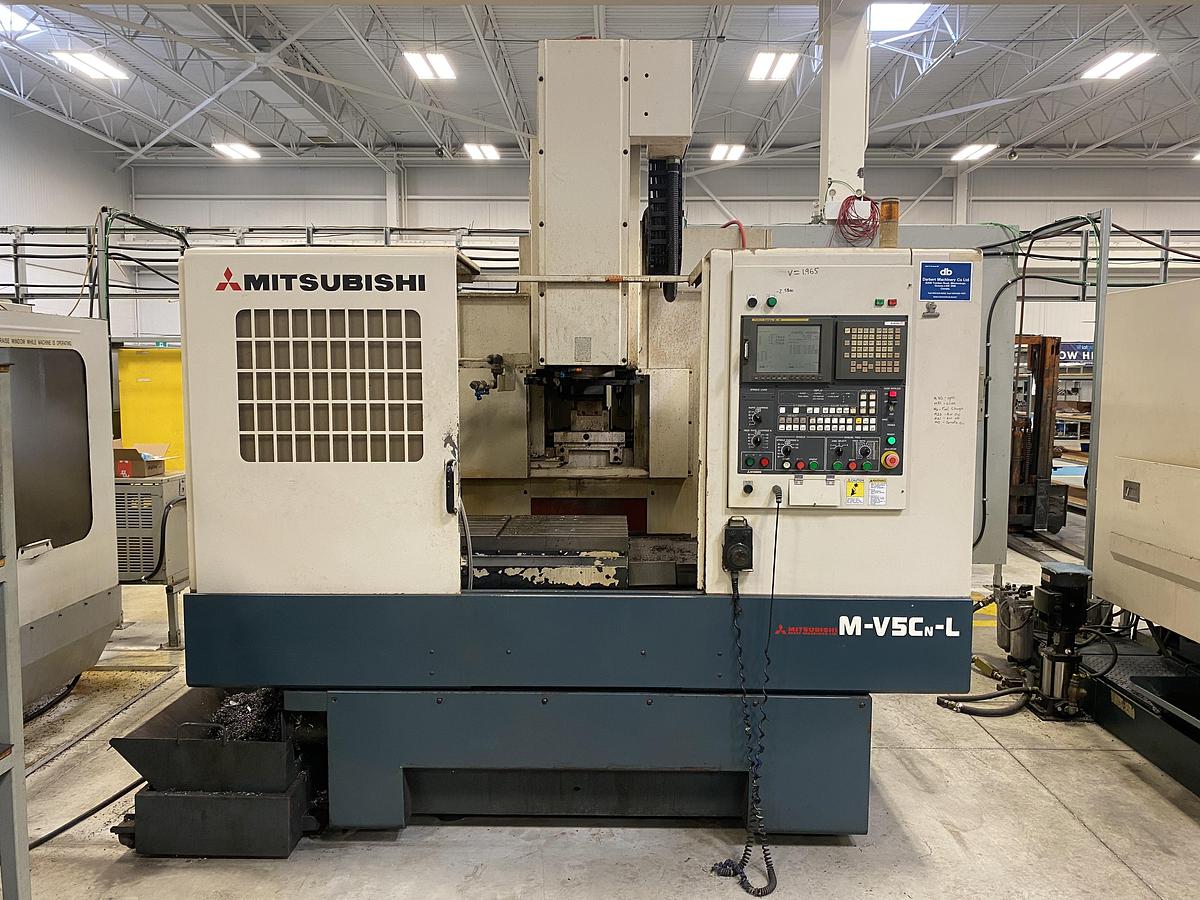

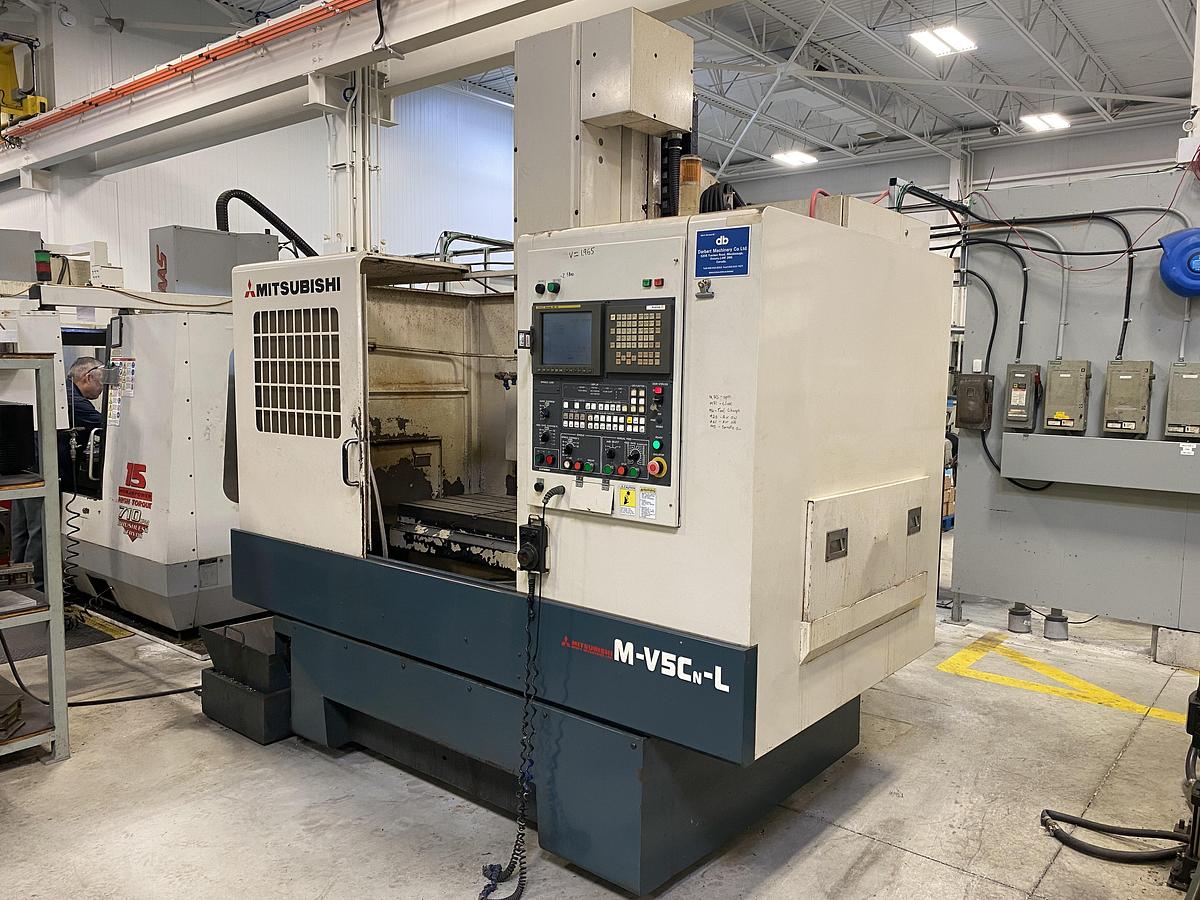

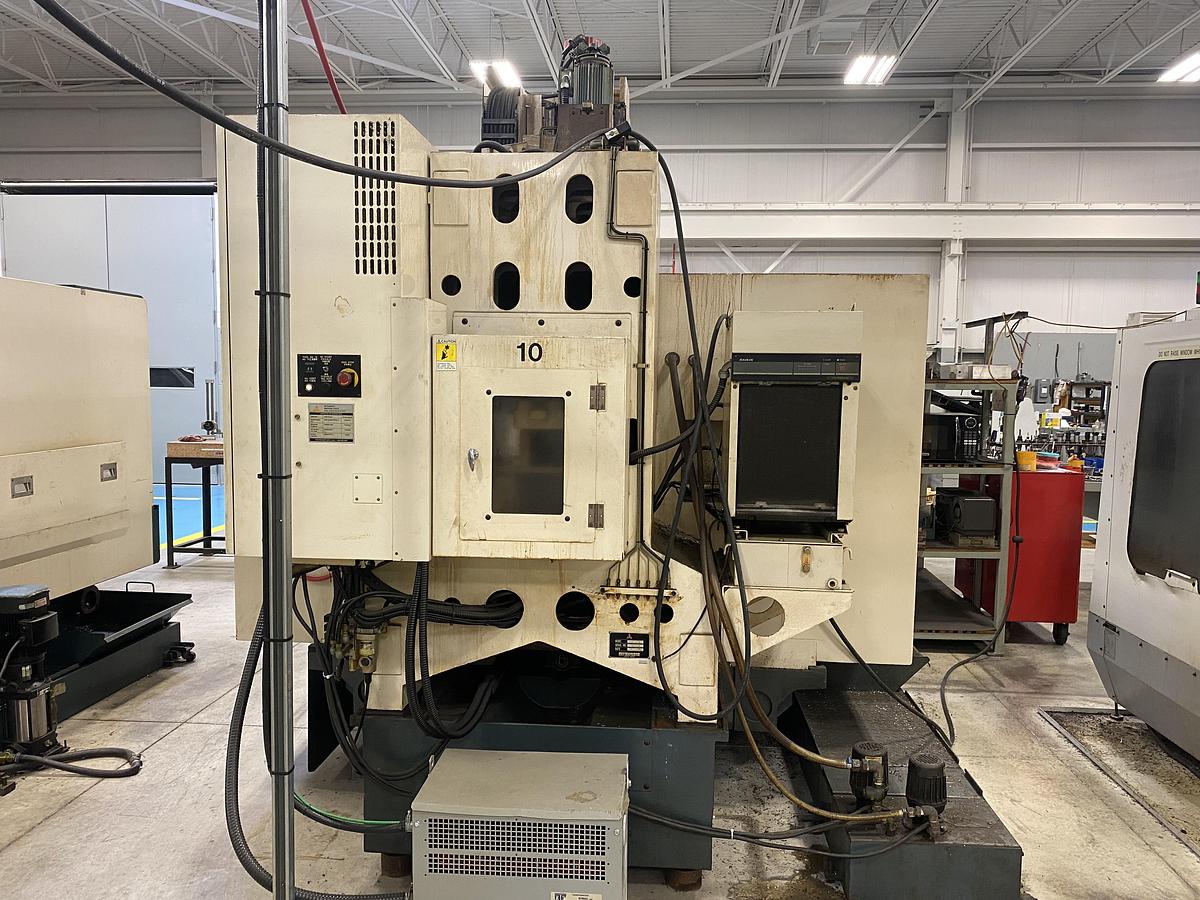

This 1999 Mitsubishi MV5-CN Vertical Machining Center equipped with a Fanuc series 18i-M controller offers reliable 3-axis machining performance for precision manufacturing. With a generous X-axis travel of 31.5”, Y-axis travel of 20.1”, and Z-axis travel of 18.1”, it is designed to handle a wide range of milling applications with accuracy and efficiency.
The 20.1” x 39.4” table supports up to 1,102 lbs, while the 40-taper spindle delivers speeds up to 8,000 RPM powered by a 7.5 kW (30 min) / 5.5 kW motor. An 18-tool automatic tool changer (ATC), rapid traverse rates of 1180.8 IPM (X/Y) and 788.4 IPM (Z), plus a cutting feed rate of 141.7 IPM ensure smooth and productive operations.
Specifications
| Manufacturer | Mitsubishi |
| Model | MV5CN |
| Year | 1999 |
| Condition | Used |

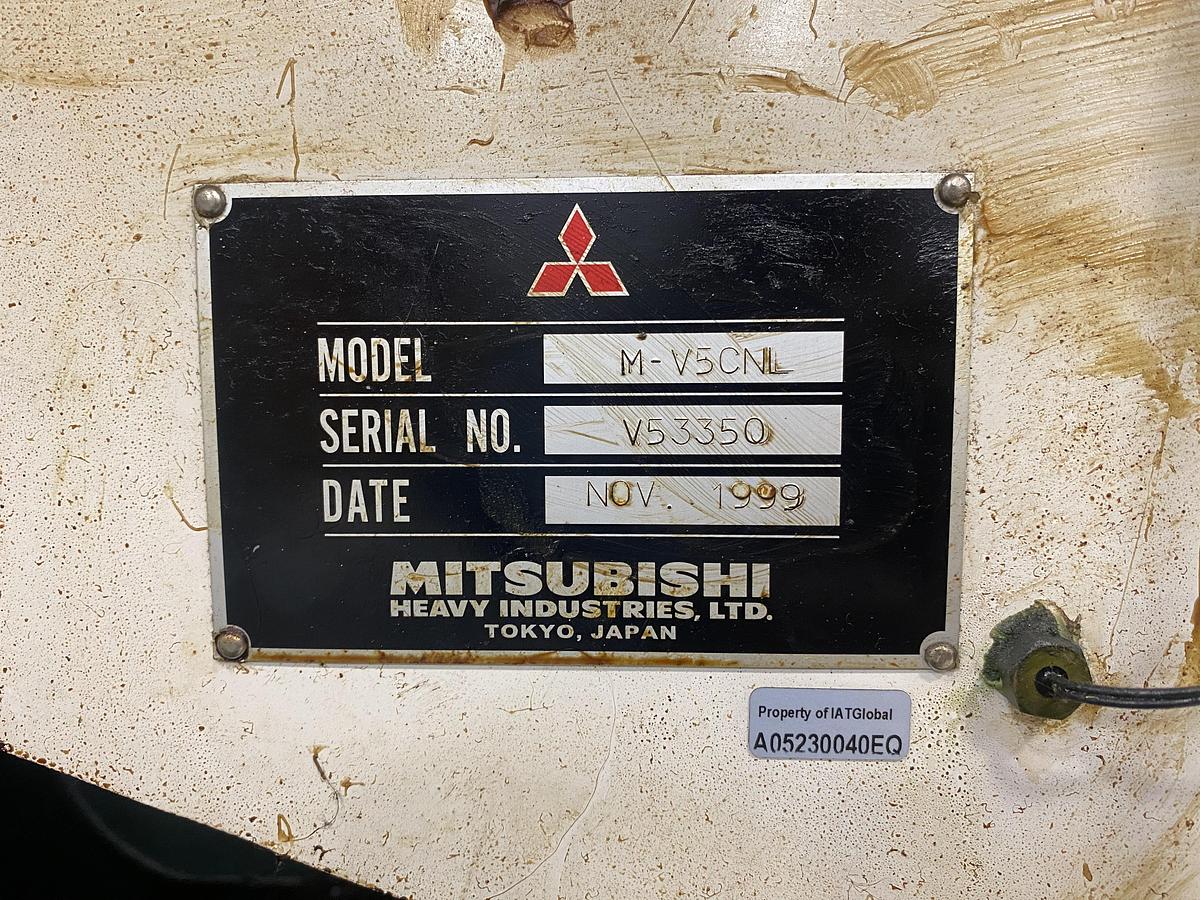

| Serial Number | V53350 |
| Stock Number | VMC-MIT-3350 |
| Axis | 3 |
| X-Axis Travel | 31.5” |
| Y- Axis Travel | 20.1” |
| Z Axis Travel | 18.1” |

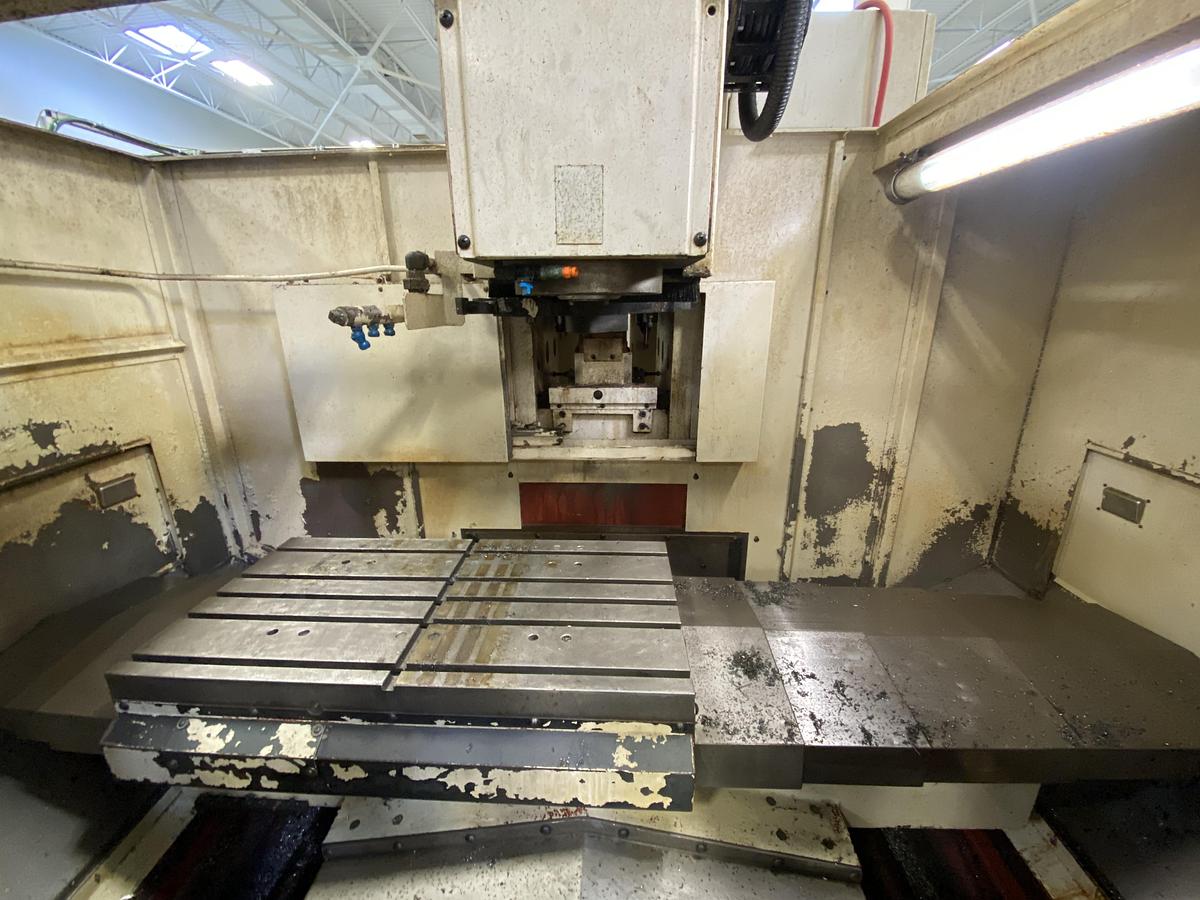

| Table Size | 20.1” x 39.4” |
| Maximum weight on Table | 1102.3 lbs. |
| Spindle Nose to Table Surface | 5.9”-24” |

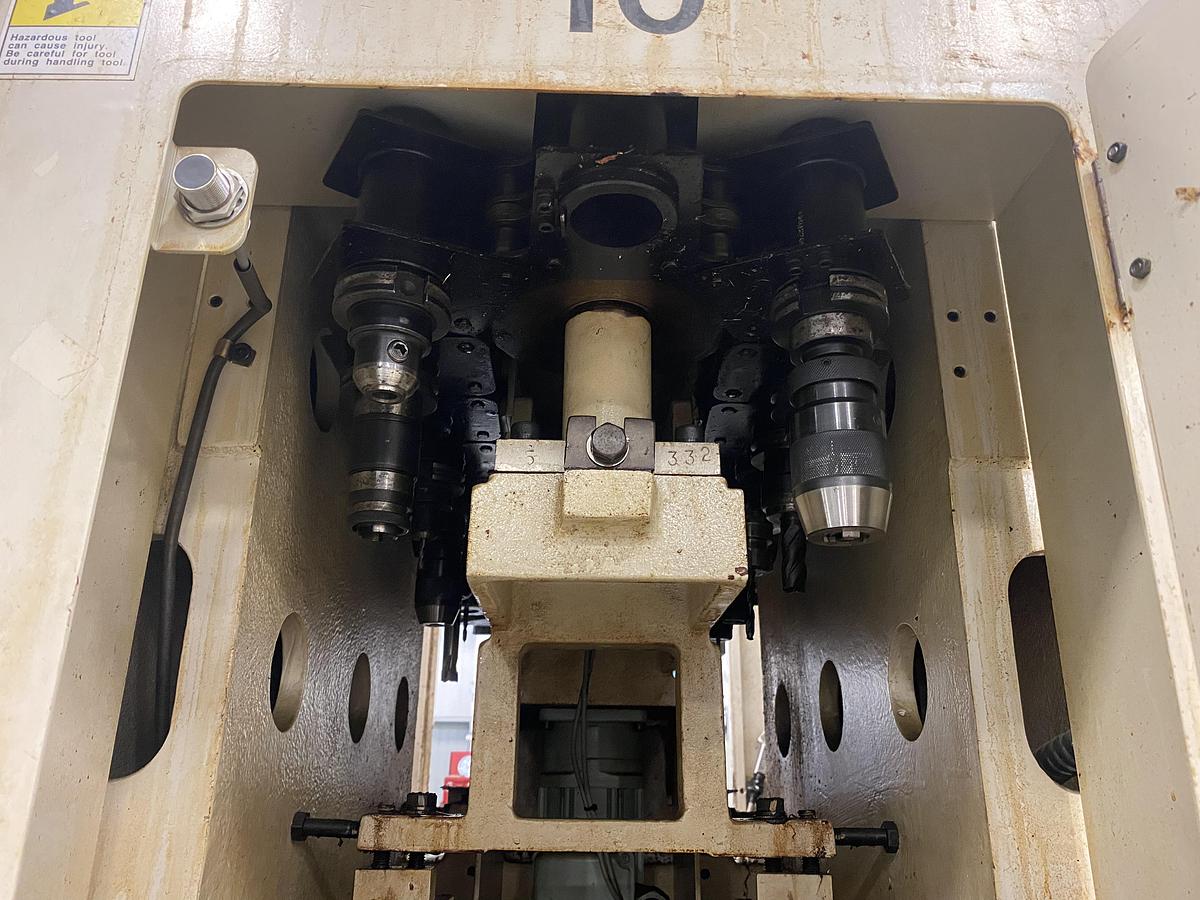

| ATC | 18 |
| Spindle Drive Motor | 7.5 (30 mins) / 5.5 KW |
| Spindle Speed | 8000 RPM |
| Spindle Taper | 40 |
| Rapid Traverse X/Y | 1180.8 IPM |
| Rapid Traverse Z | 788.4 IPM |
| Cutting Feed Rate | 141.7 IPM |
| Machine Weight | 11000 LBS |
Equipped With

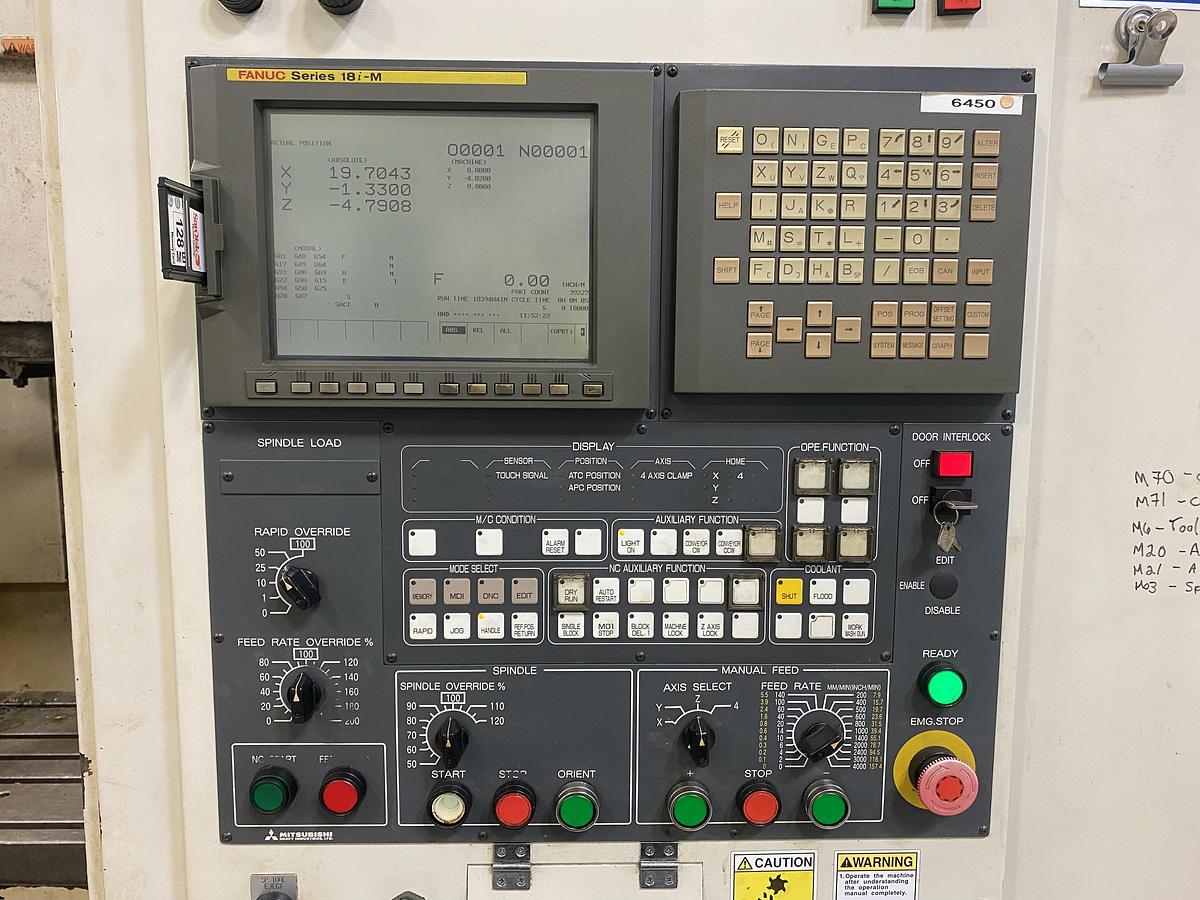

Fanuc series 18i-M
Coolant Tank
Manuals
