Toshiba BF-130A Boring Mill
Toshiba BF-130A Boring Mill
Available quantity:1
Description

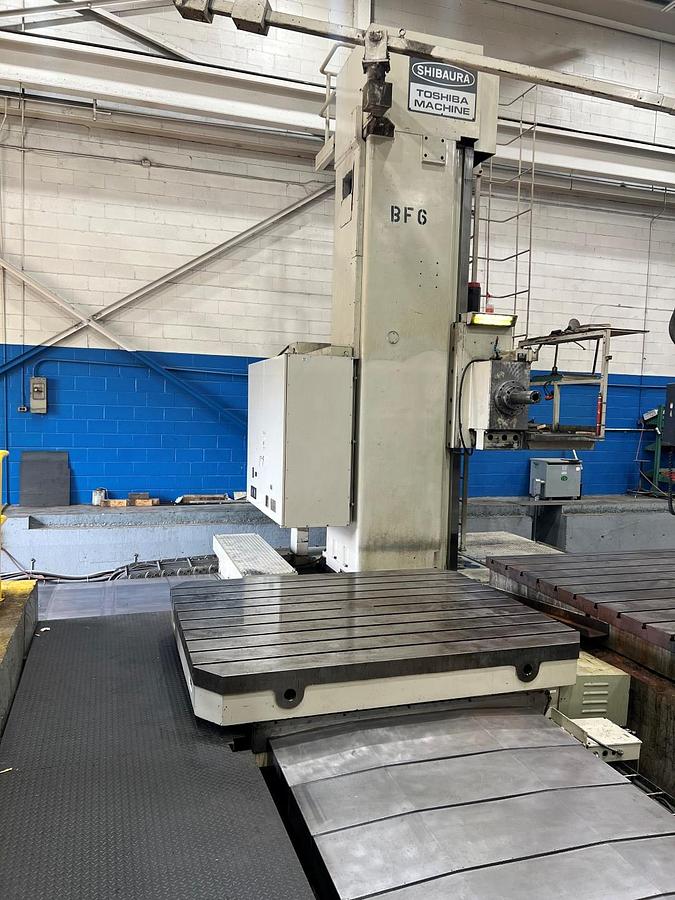

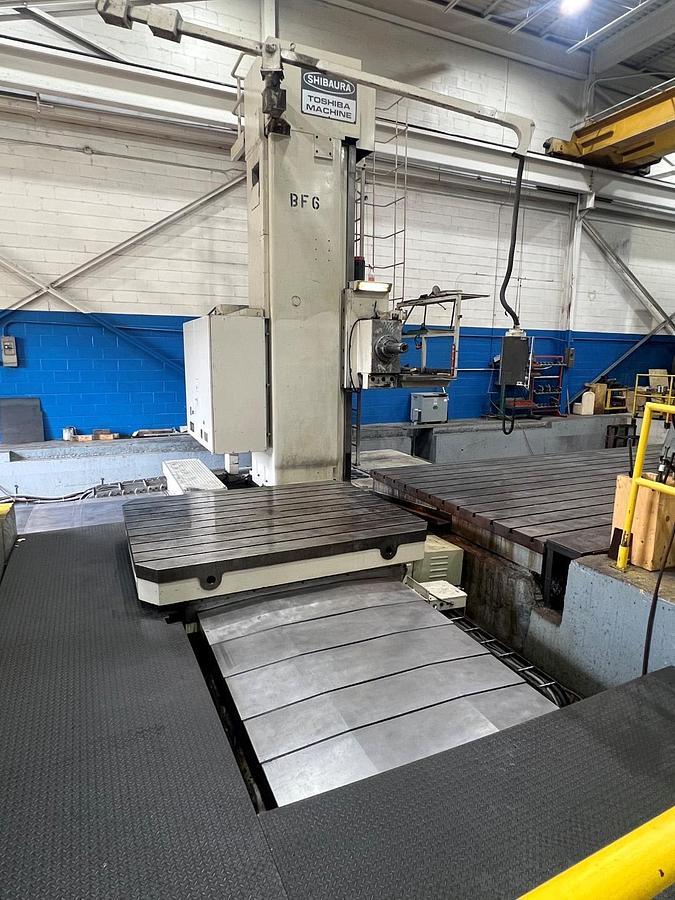

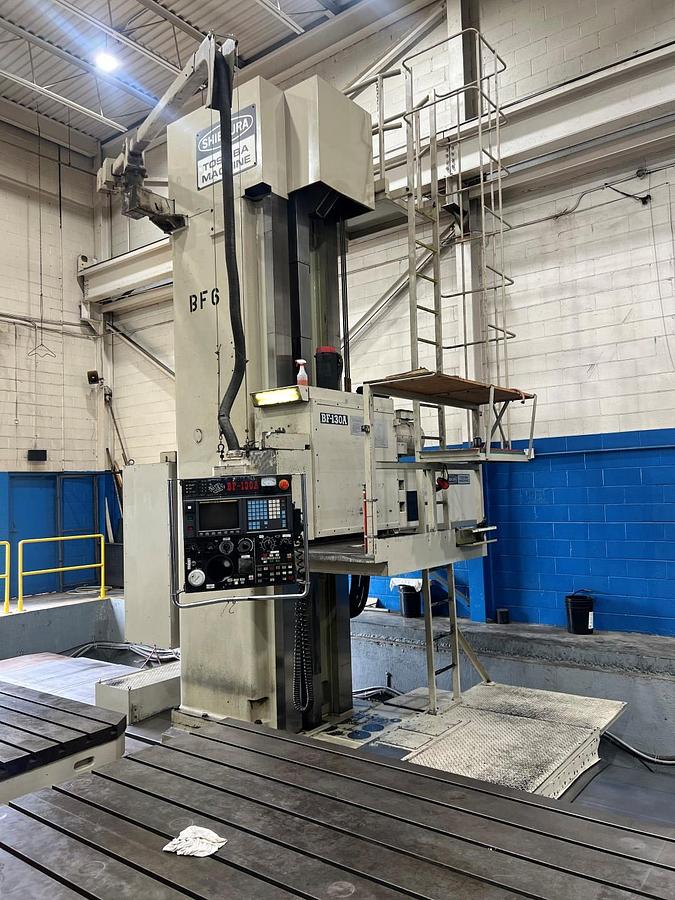

Toshiba BF-130A CNC Horizontal Boring Mill (1991) – Heavy-Duty Precision with Fanuc 15M Control
The Toshiba BF-130A is a premium heavy-duty CNC horizontal boring mill designed for large-scale machining with exceptional accuracy and rigidity. Equipped with a Fanuc 15M CNC control, this machine offers precise operation, smooth motion, and reliable performance ideal for demanding industrial applications.
Key Specifications
- Spindle Diameter: 130 mm
- Quill Diameter: 340 mm
- Milling Sleeve Diameter: 225 mm
- Travel (Y / X / Z): 3000 mm × 9000 mm × 1000 mm
- Table Size: 2000 mm × 2500 mm
- Table Infeed: 2000 mm
- Table Load Capacity: 43,998 kg
- Spindle Taper: CAT 50
- Spindle Speeds: Infinitely variable, 10–1250 RPM (2 ranges)
- Feed Rate: 3989 mm/min
- Rapid Traverse: 3988 mm/min
- Spindle Motor: 22 kW / 30 kW (dual-range power)
- Machine Dimensions: 12,598 mm × 4445 mm × 7341 mm
- Approx. Weight: 31,525 kg
Equipped With

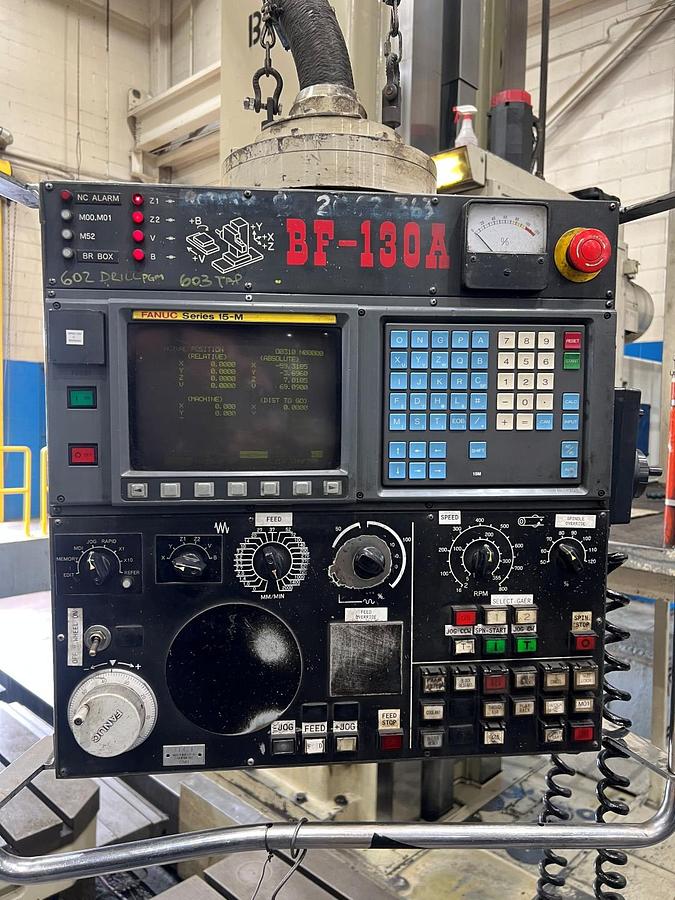

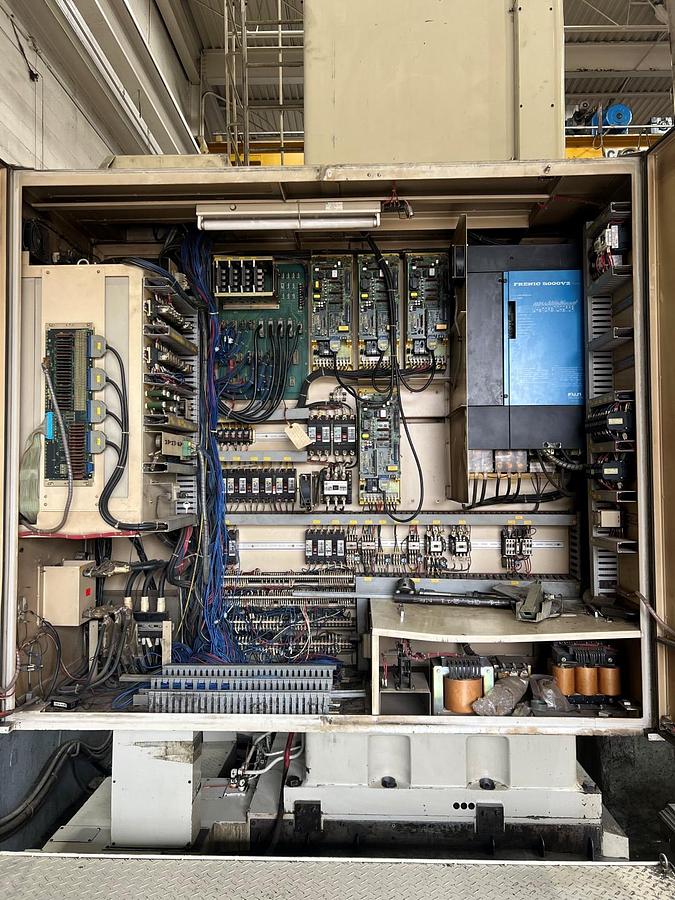

- Fanuc 15M CNC Control

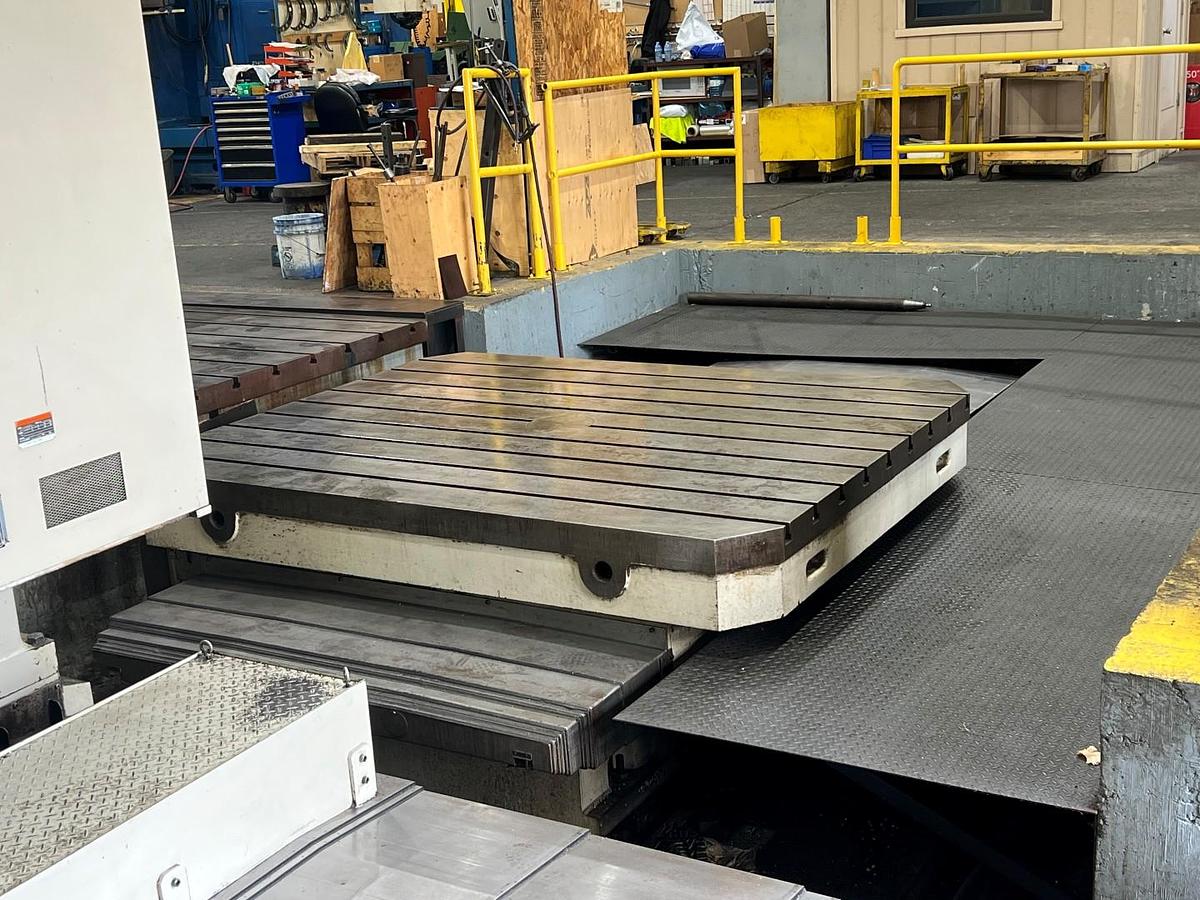

- Rotary Table

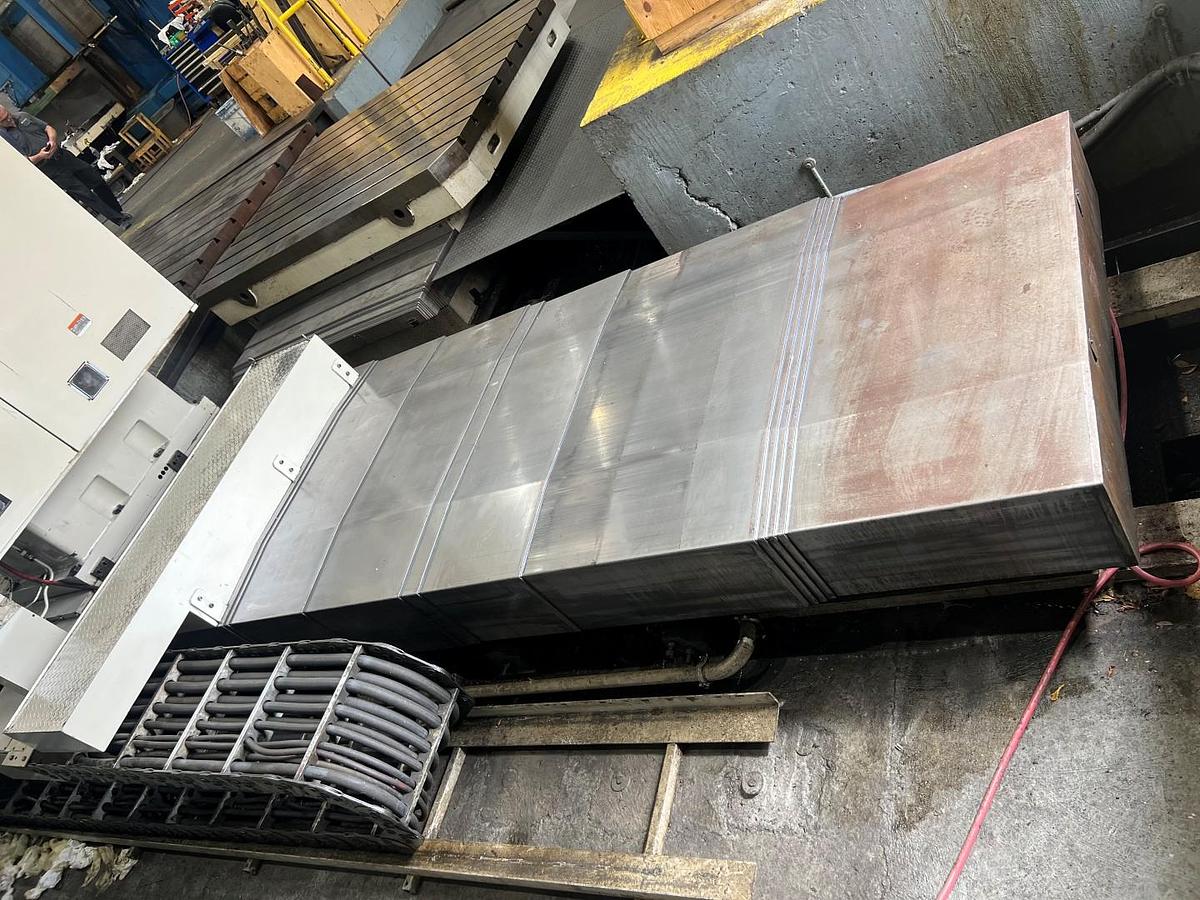

- Telescoping Way Covers on Runway
Specifications
| Manufacturer | Toshiba |
| Model | BF-130A |
| Condition | Used |
| Stock Number | MAC-BOR-TOS-823 |
| Column Travel, X-Axis | 9000 mm |
| Vertical Headstock Travel, Y-Axis | 3000 mm |
| Boring Spindle Travel, Z-Axis | 1000 mm |
| Table Size | 2000 mm x 2500 mm |
| Total Axial Travel, Spindle & Quill | 1000 mm |
| Rapid Traverse | 3988 mm/min |
| Spindle Diameter | 130 mm |
| Spindle Speeds, Infinitely Variable | 10-1250 RPM |
| Spindle Speed Ranges | 2 |
| Spindle Motor | 22 KW / 30 kw |
| Feeds, Variable | 3989 mm/min |
| Quill Travel, Z-2 Axis | 450 mm |
| Table Weight Capacity | 43998 kg |
| Table Infeed | 2000 mm |
| Milling Sleeve Diameter | 225 mm |
| Quill Diameter | 340 mm |
| Spindle Taper | #50 |
| Approx. Machine Dimensions | 12598 mm x 4445 mm x 7341 mm |
| Machine Only Weight | 31525 KG |
Equipped With
• Fanuc 15M CNC Control
• Rotary Table
• Telescoping Way Covers on Runway
