2007 Daewoo MV-3016L
Featured
2007 Daewoo MV-3016L
Available quantity:1
Description

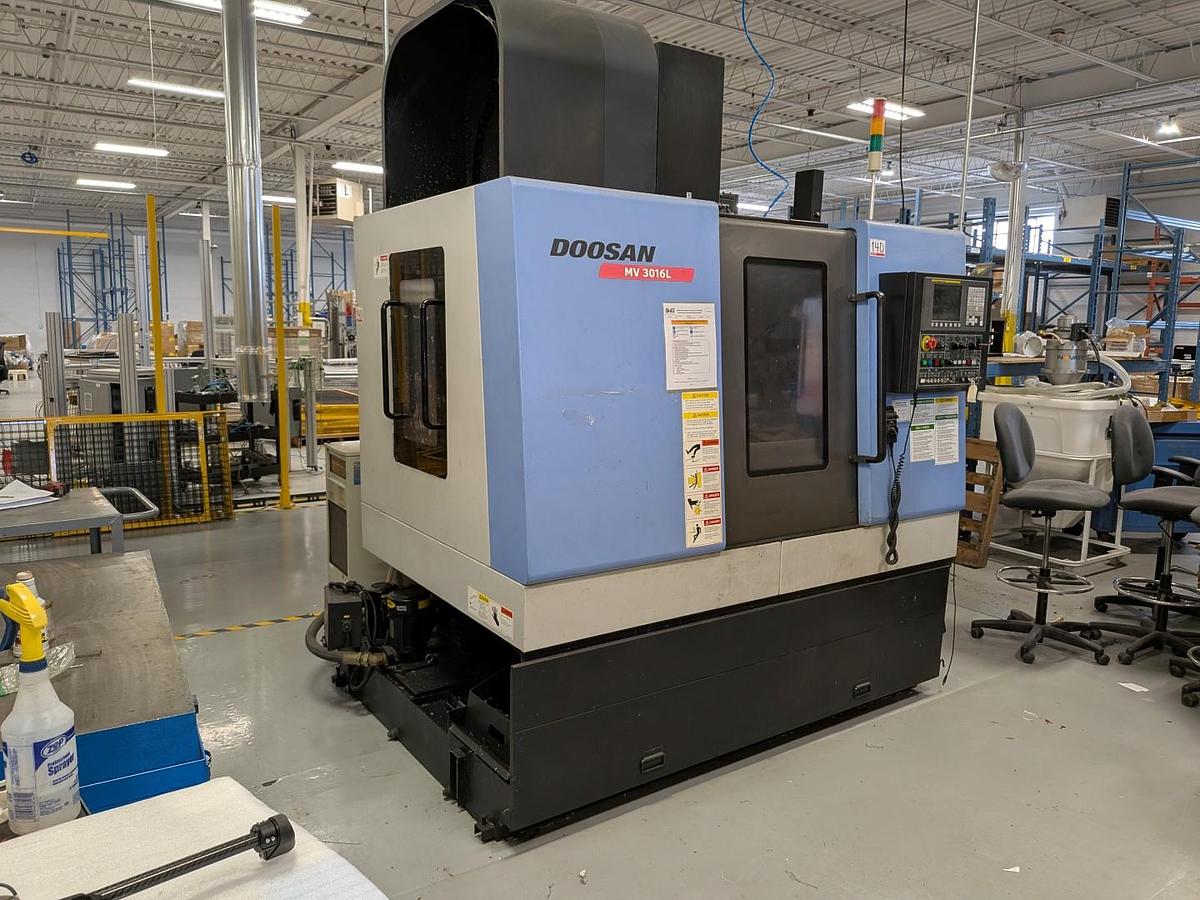

The Doosan MV3016L is a reliable, high-precision vertical machining center featuring a robust 7.5/15 HP spindle, 8,000 RPM BT/CAT40 taper, and 30" × 16.1" × 20.1" travels. Equipped with a Fanuc 0i-MC controller, 24-tool ATC, rigid tapping, Renishaw probe, chip conveyor, and coolant system, this VMC delivers excellent accuracy and performance for production machining. With fast rapids, a 1,320 lb table capacity, and Doosan’s proven build quality, the MV3016L is ideal for shops needing dependable, efficient CNC milling capability.
Specifications
| Manufacturer | Daewoo |
| Model | MV-3016L |
| Year | 2007 |
| Condition | Used |

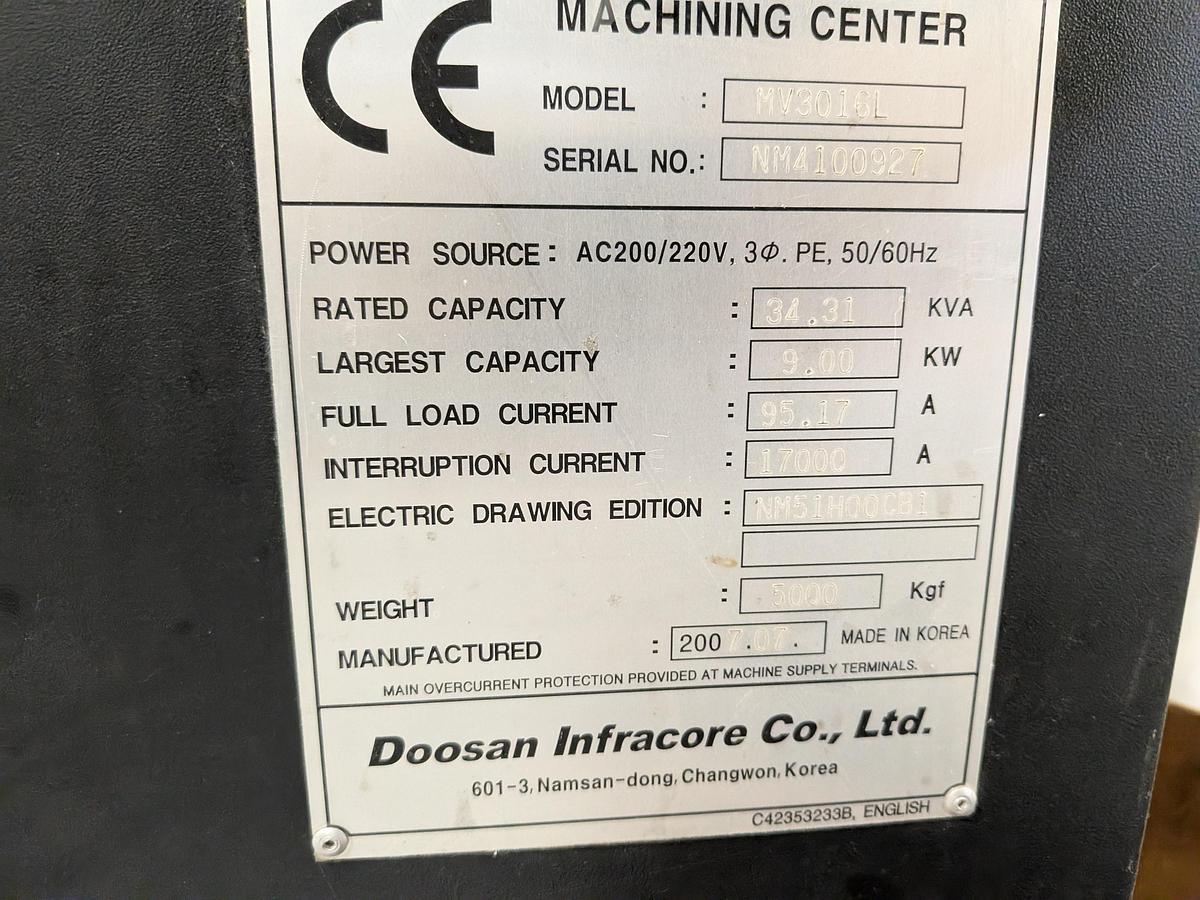

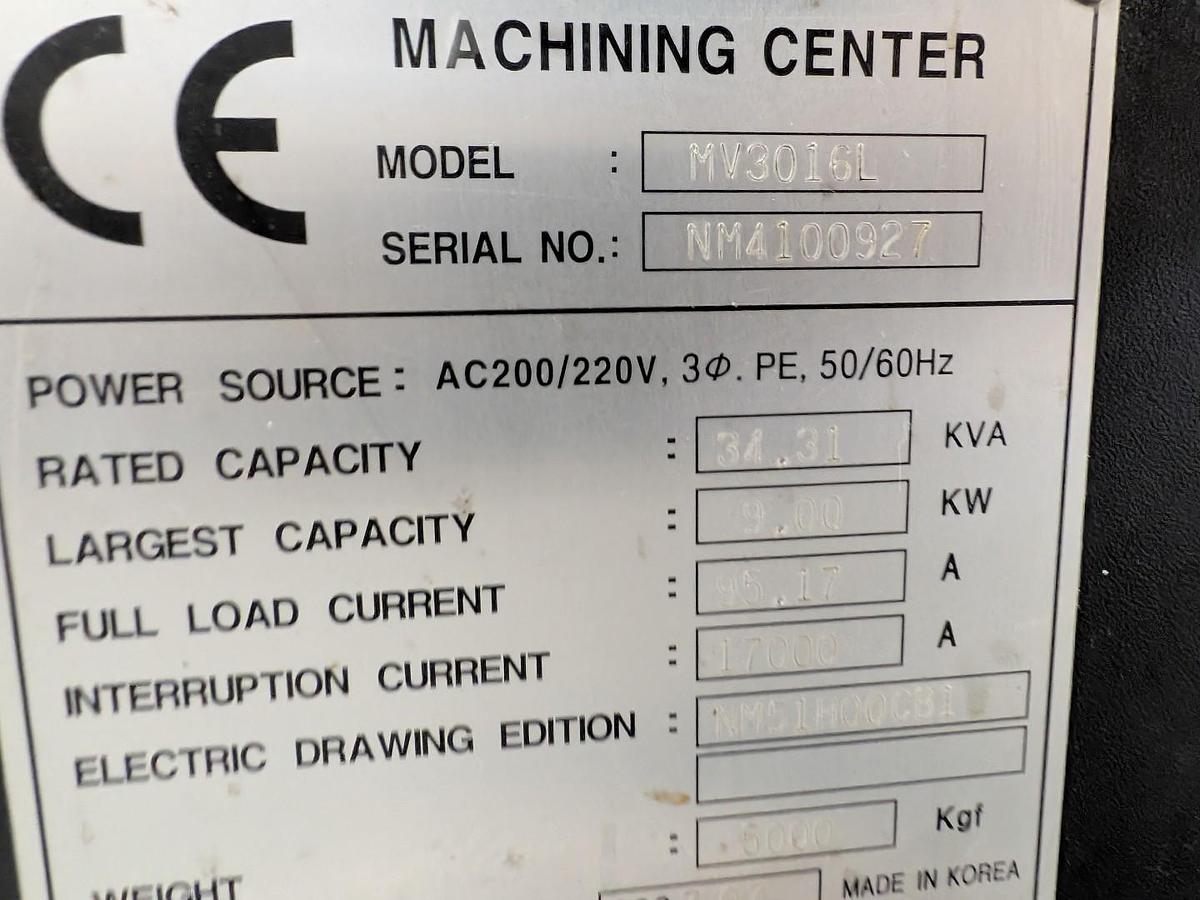

| Serial Number | NM4100927 |
| Stock Number | VMC-DOO-0927 |

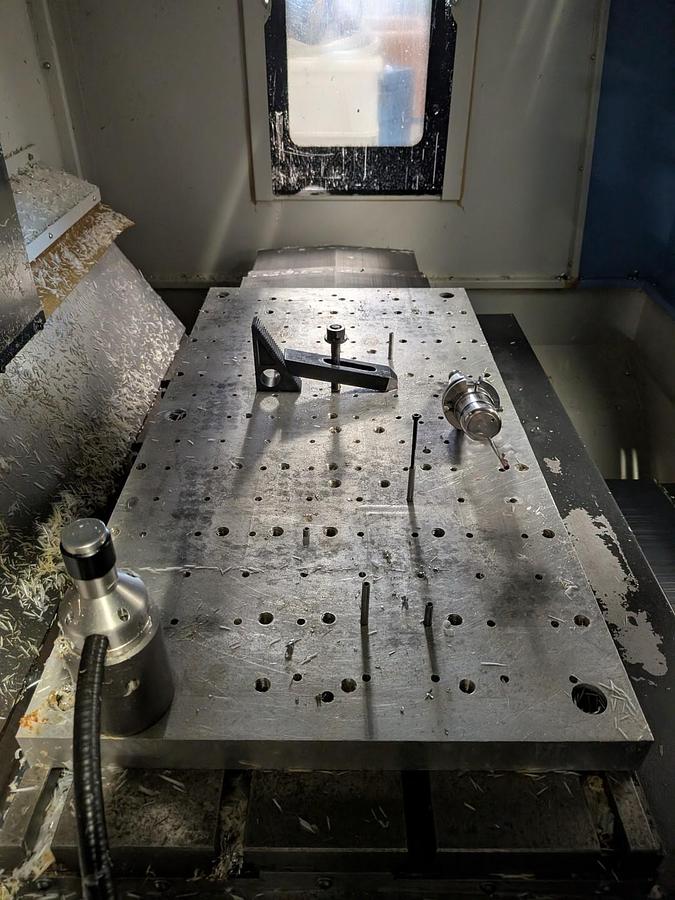

| Table Size | 36.22" x 17.7" |
| X Axis Travel | 30" |
| Y Axis Travel | 16.1" |
| Z Axis Travel | 20.1" |
| Rapid Rate X Axis | 1,417 IPM |
| Rapid Rate Y Axis | 1,417 IPM |
| Rapid Rate Z Axis | 1,260 IPM |
| Max Table Load | 1,320 LBS |
| Spindle Motor | 7.5/15 HP |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | BT/CAT 40 |

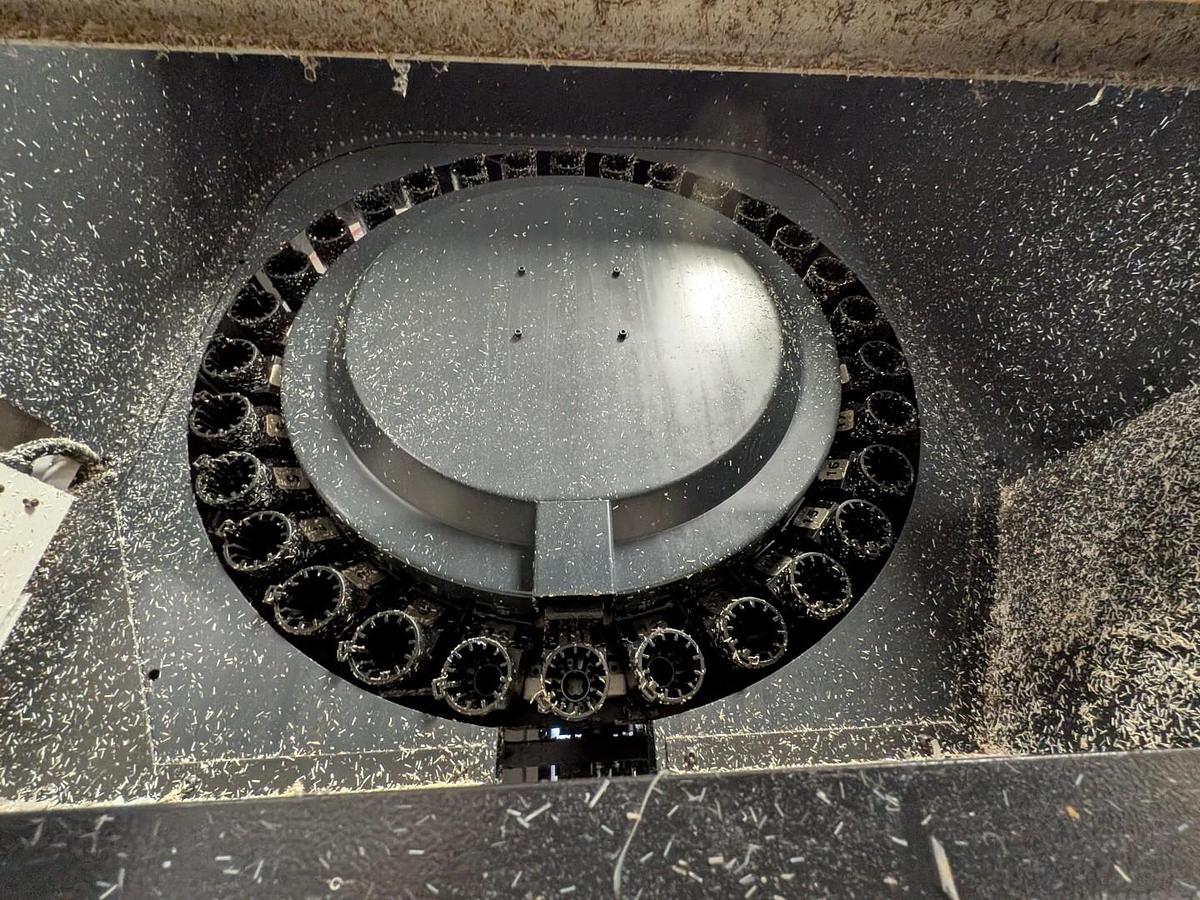

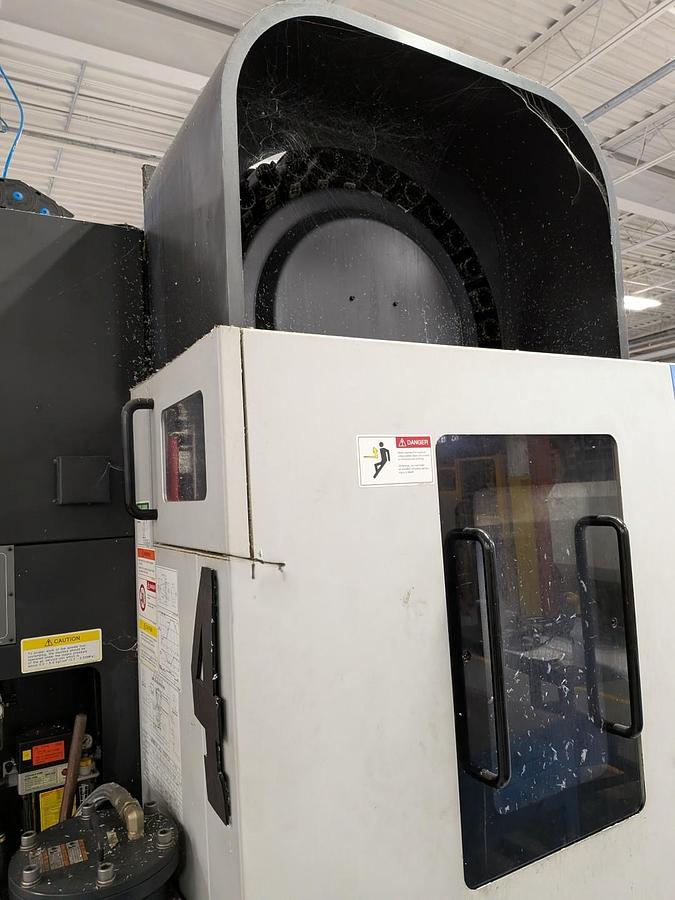

| Tool Changer | 24 ATC |
| Spindle Nose to Table (Min.- Max.) | 5.9” – 26 “ |
| Spindle Center to Column | 17.7” |
| Dimensions | 89" x 96.5" x 104" |
| Weight | 12,000 LBS |
Equipped With

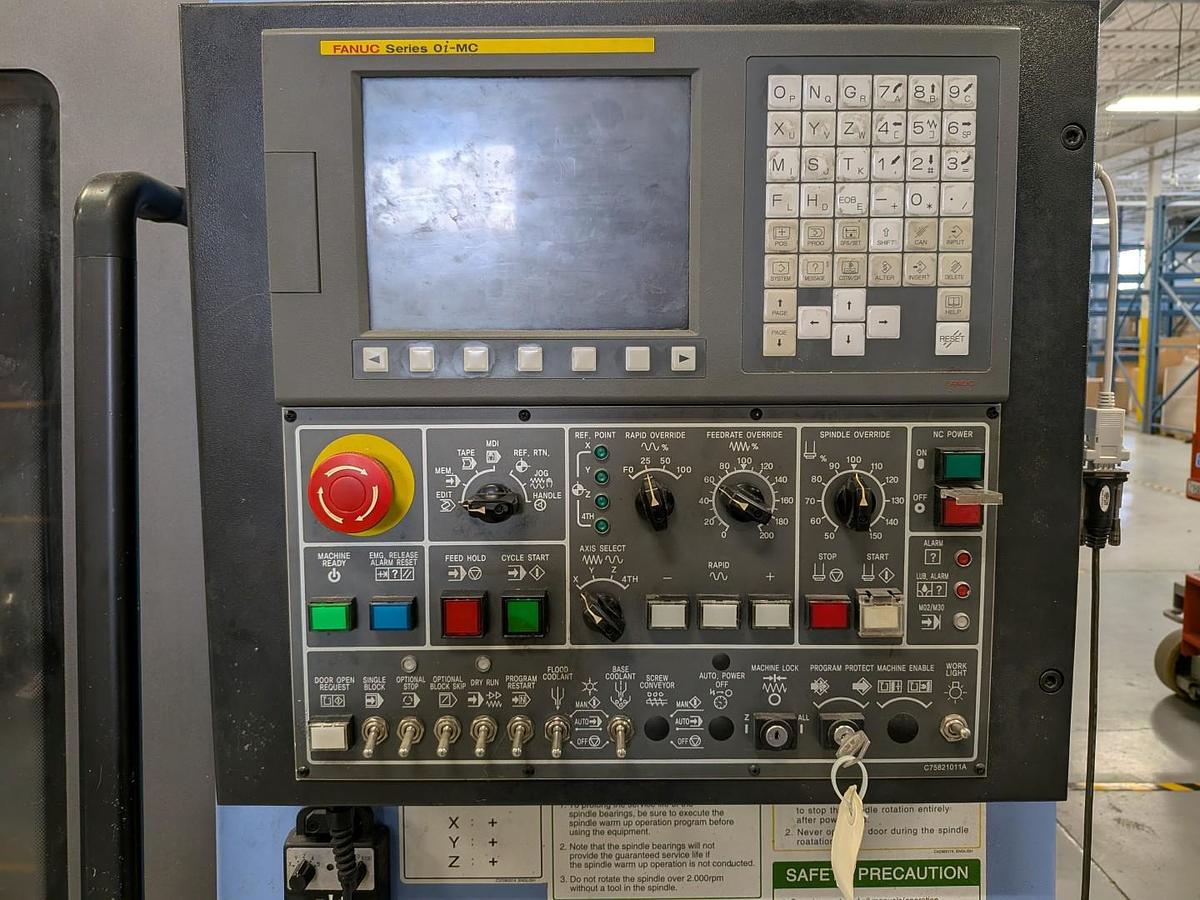

Controller: Fanuc 0i-MC Controller

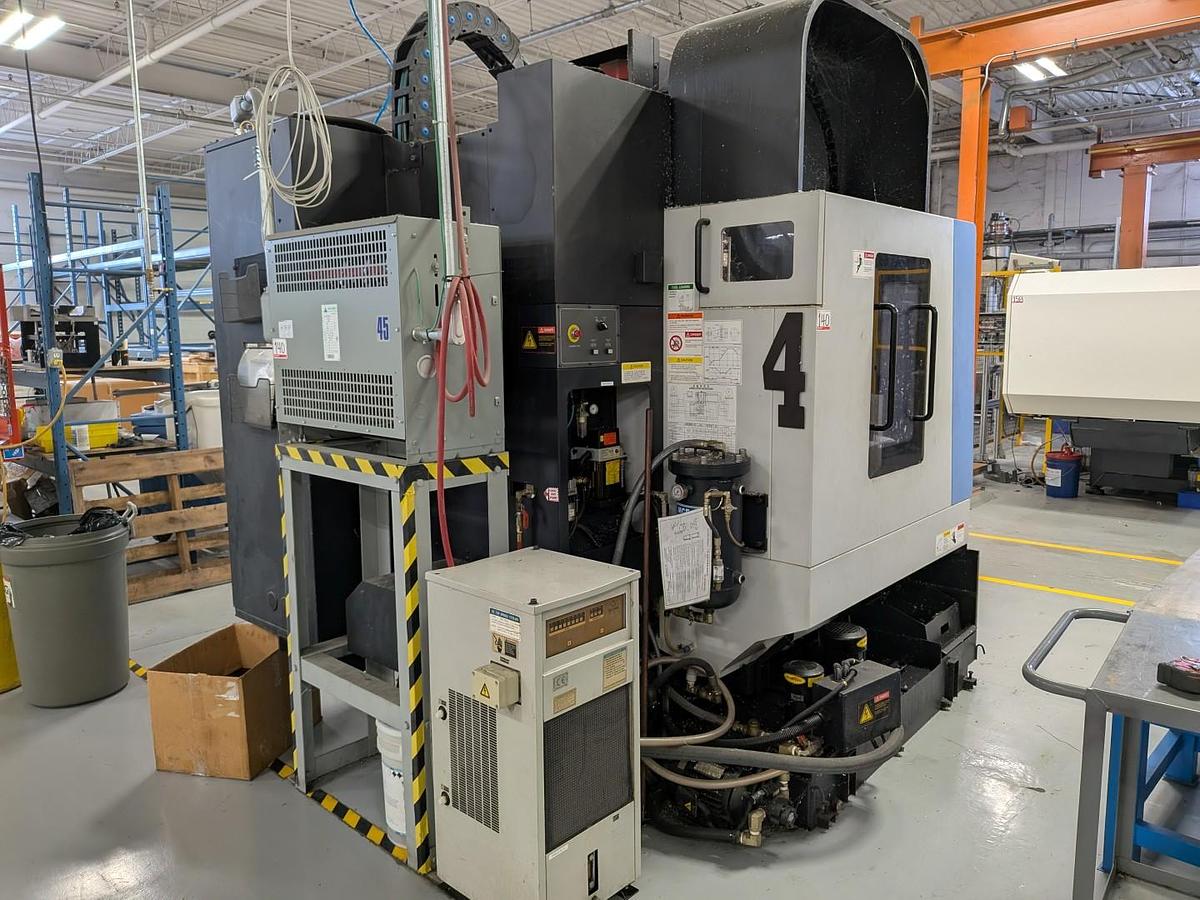

Coolant Tank
Chip Conveyor

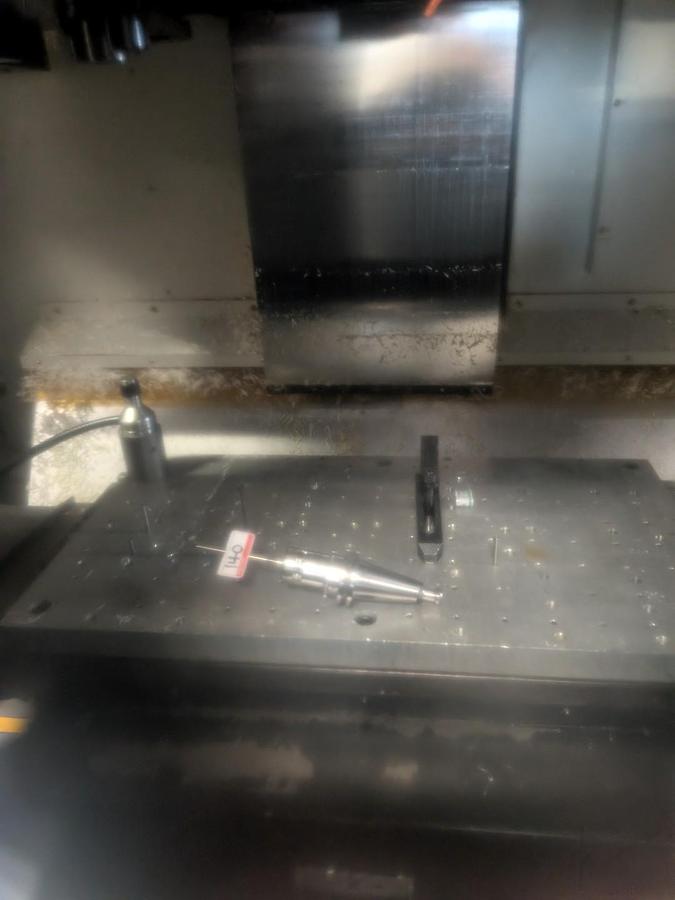

Renishaw Probe
Rigid Tapping
