2014 Doosan LYNX 220LC Turning Center (Only 3,050 Cutting Hours)
2014 Doosan LYNX 220LC Turning Center (Only 3,050 Cutting Hours)
Available quantity:1
Description
Doosan Lynx 220LC Turning Center – 2014 – Low Hours (Only 3,050 Cutting Hours)
The Doosan Lynx 220LC is a compact, high-precision CNC turning center built for reliable production and tight-tolerance machining. With only 3,050 cutting hours, this 2014 unit is in excellent condition and equipped with a Fanuc 0iD / 32iA controller. Featuring a 320 mm max turning diameter, 305 mm turning length, 65 mm bar capacity, and a smooth 4,000 RPM A2-6 spindle, the Lynx 220LC delivers strong performance in a small footprint. A 12-station turret, fast rapids, and robust tailstock make it ideal for job shops and production environments. Includes chip conveyor, coolant tank, chiller, and complete manuals.
Specifications
| Manufacturer | Doosan |
| Model | LYNX 220LC |
| Year | 2014 |
| Condition | Used |

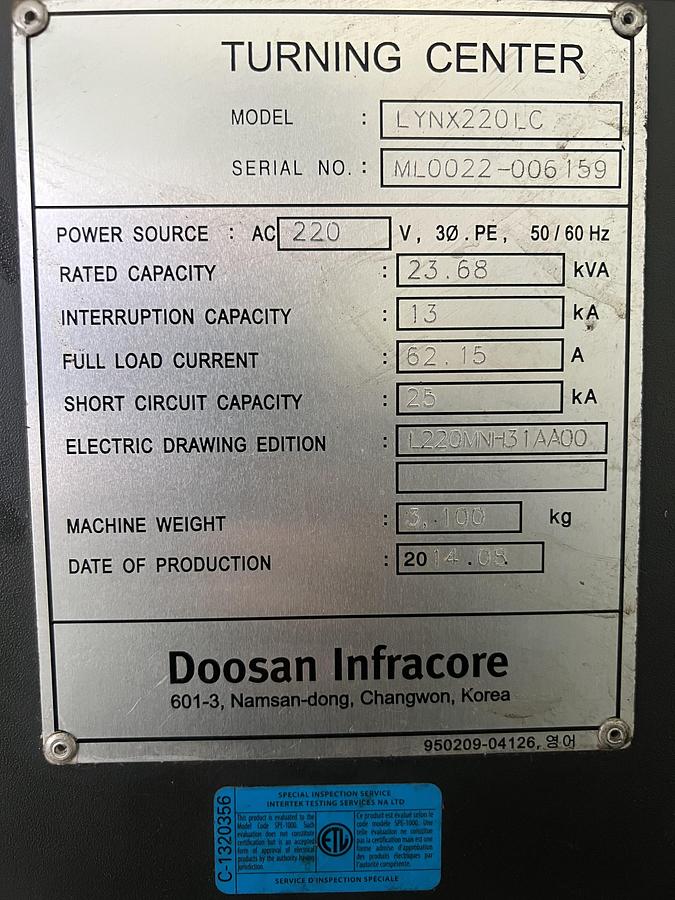

| Serial Number | ML0022-006159 |
| Stock Number | LTH-DOO-6159 |
| Swing Over Bed | 510 mm |
| Swing Over Saddle | 290 mm |
| Recommended Turning Diameter | 210 mm |
| Maximum Turning Diameter | 320 mm |
| Maximum Turning Length | 305 mm |
| Bar Capacity | 65 mm |
| X-Axis Travel | 175 mm (160+15) |
| Z-Axis Travel | 330 mm |
| Main Spindle Speed | 4000 RPM |
| Spindle Nose | A2-6 |
| Spindle Bearing Diameter | 110 mm |
| Spindle Through Hole Diameter | 76 mm |

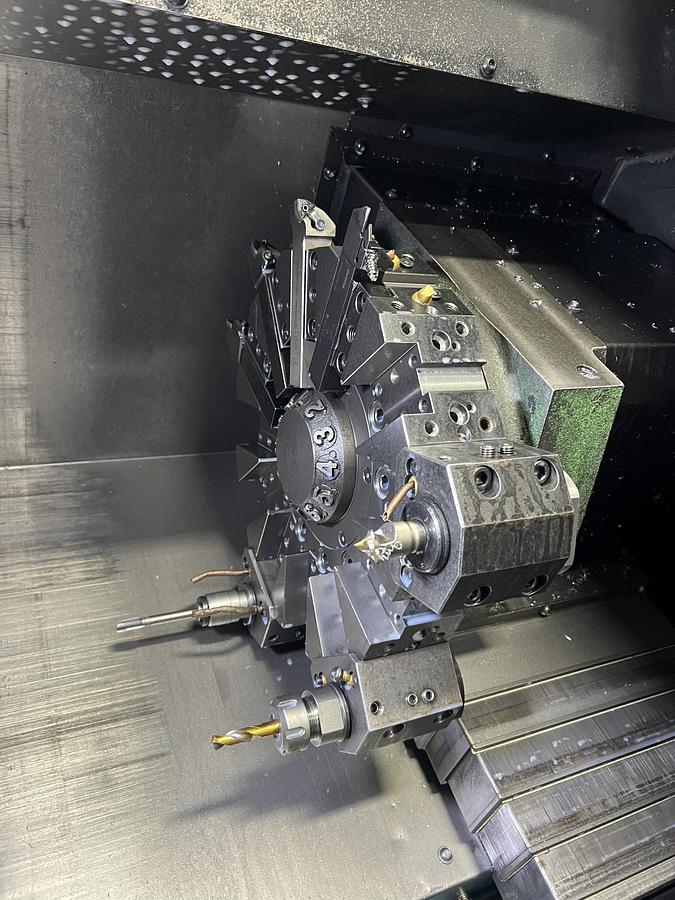

| Turret Tool Stations | 12 |
| OD Tool Size | 25 mm |
| Boring Bar Diameter | 40 mm |
| Tailstock Quill Diameter | 65 mm |
| Tailstock Taper | MT#4 |
| Tailstock Quill Travel | 80 mm |
| Rapid Traverse (X/Z) | 30 / 36 m/min |
Equipped With

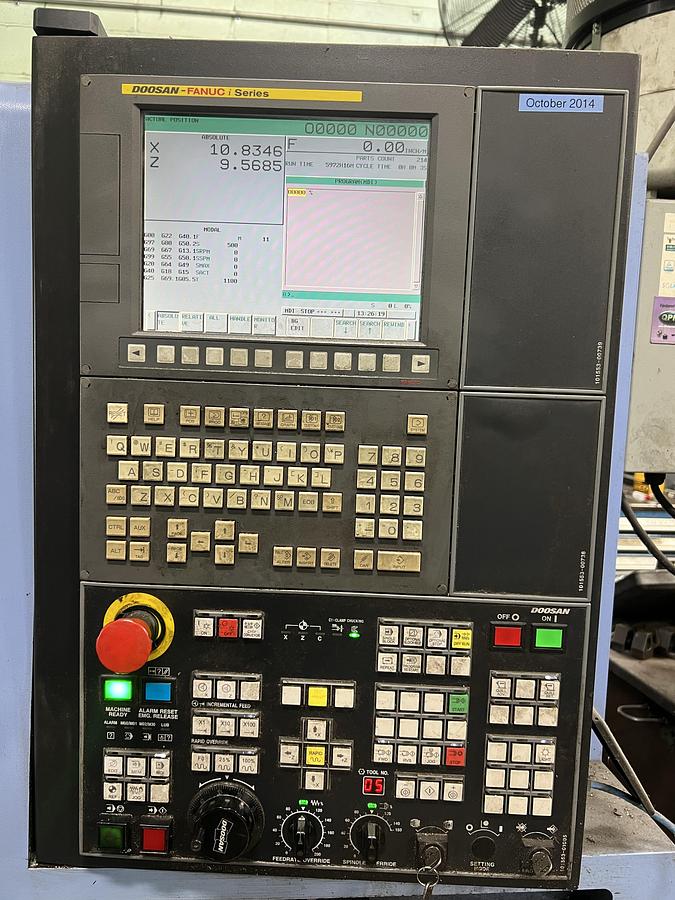

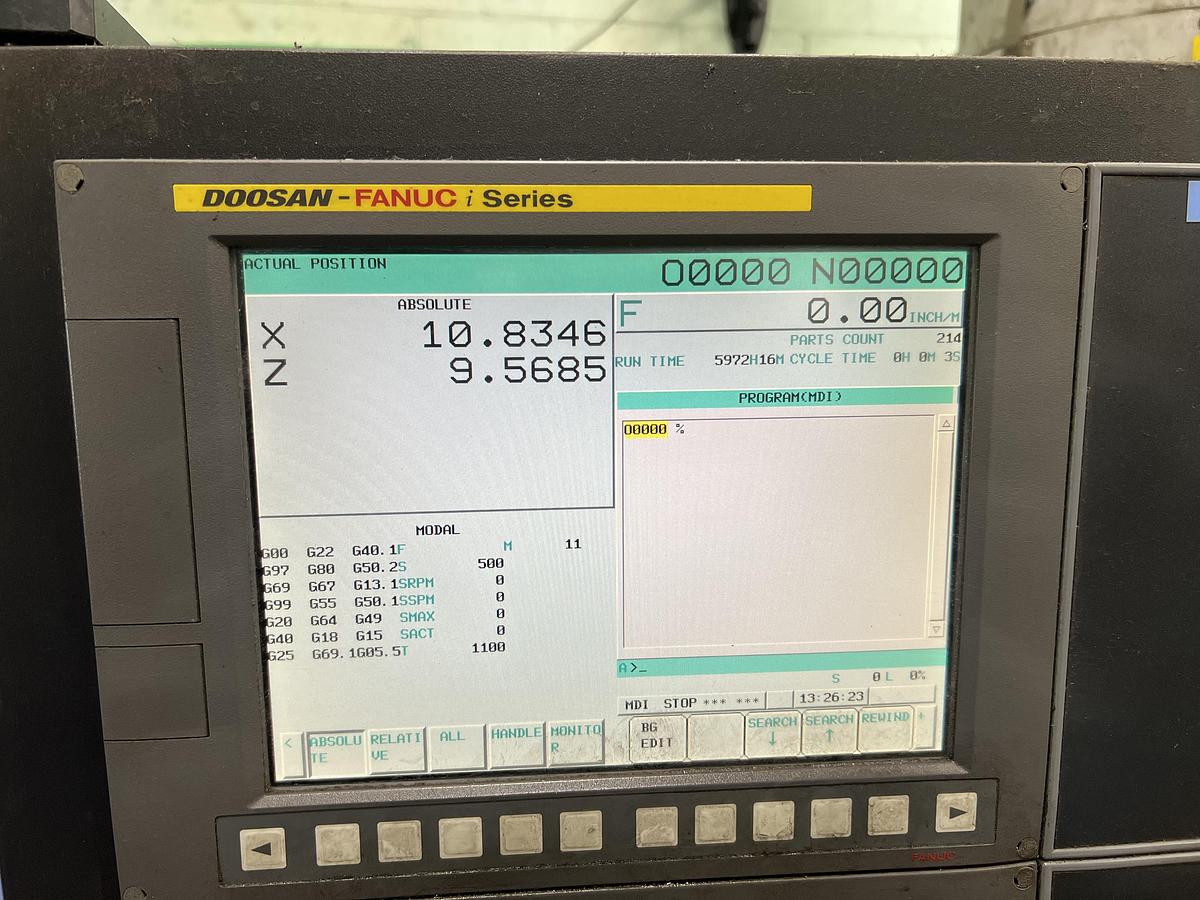

Controller: Fanuc 0iD / 32iA
Chip Conveyor
Coolant Tank
Chiller
Complete Manuals
