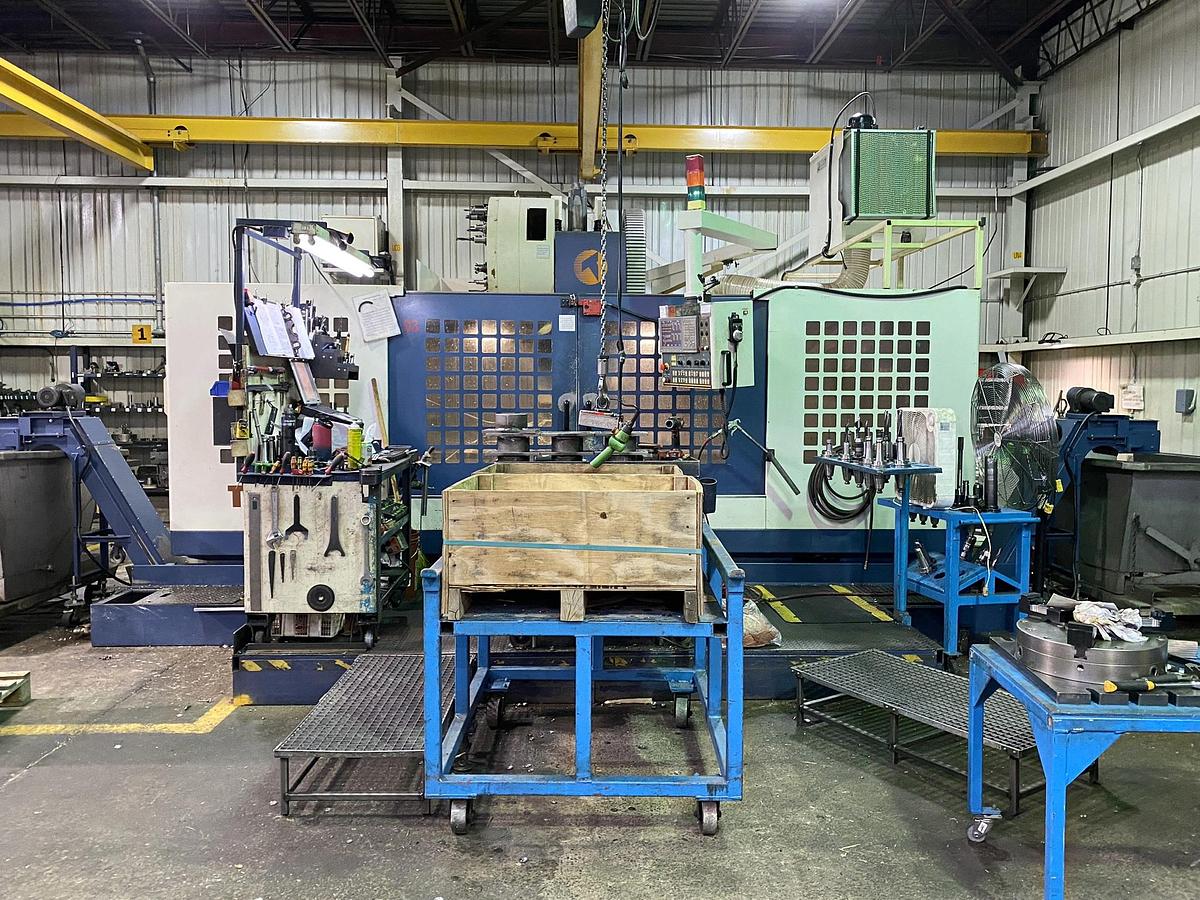

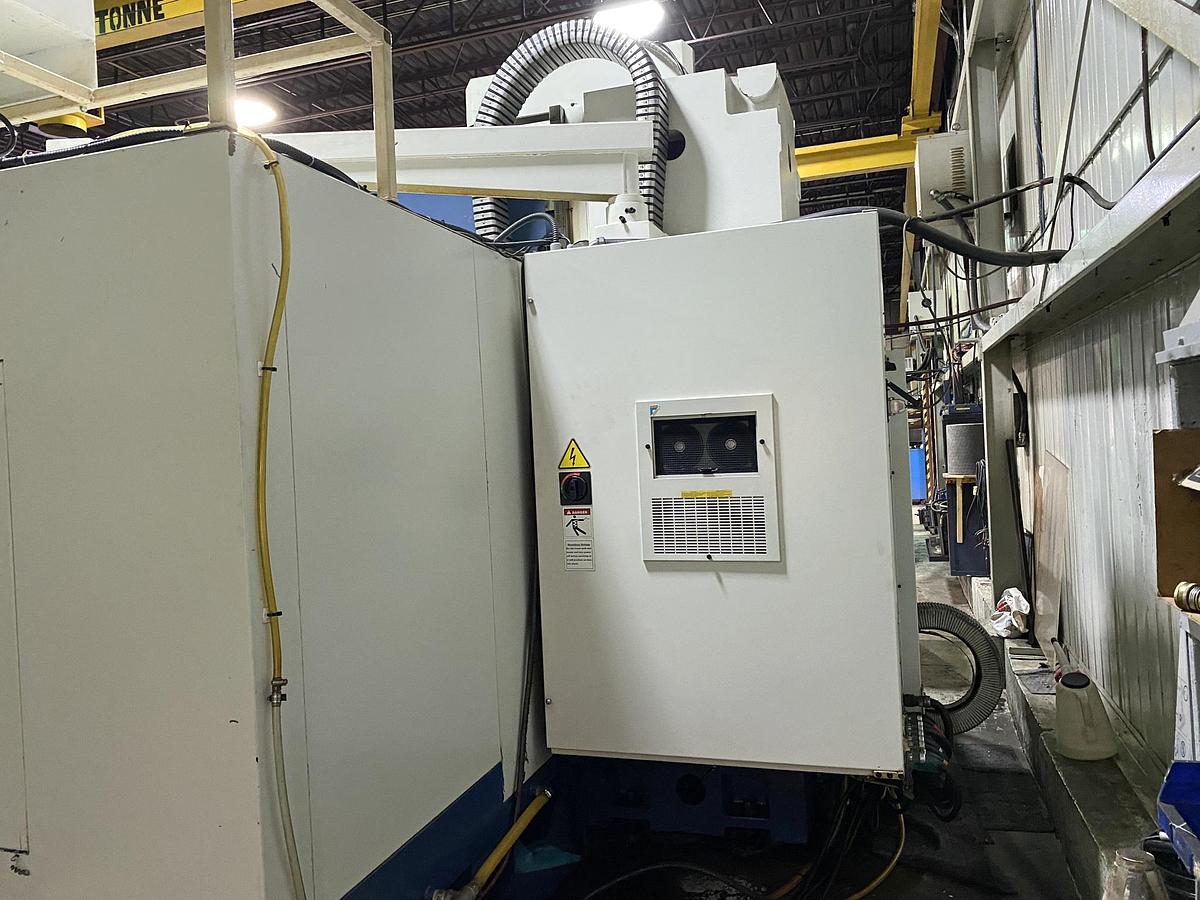

TAKUMI V22 VERTICAL MACHINING CENTER
TAKUMI V22 VERTICAL MACHINING CENTER
Available quantity:1
Description
Upgrade your machining capabilities with the Takumi V22, a heavy-duty Taiwan-built vertical machining center engineered for precision, stability, and high-productivity milling. Known for its rigid construction and powerful cutting performance, the V22 is ideal for mold making, die work, aerospace components, and general high-tolerance machining.

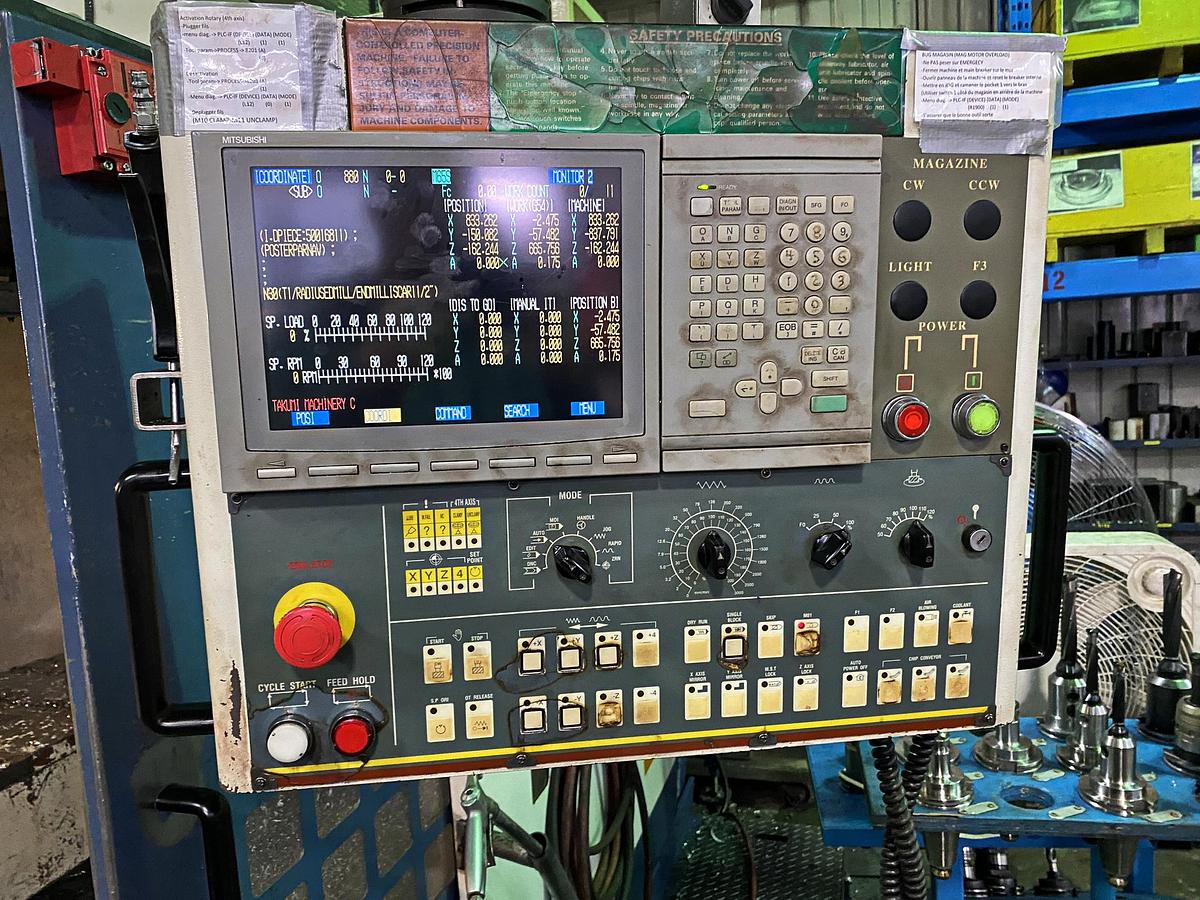

This model features a large 2200 × 1025 mm table, a robust ISO 50 spindle, and a dependable Mitsubishi CNC control, offering fast processing, accurate motion control, and excellent reliability. Equipped with a 24-tool arm-type ATC, 6000 RPM geared spindle, and 12 m/min rapid traverse, the V22 delivers consistent performance in demanding applications.
Takumi’s proven box-way design ensures maximum rigidity and vibration dampening, making the V22 an excellent solution for heavy cuts, long cycle times, and precision surface finishing. With a large working envelope and 3000 kg table capacity, this machine handles oversized workpieces with ease.
Specifications
| Manufacturer | Takumi |
| Model | V22 |
| Year | 2005 |
| Condition | Used |

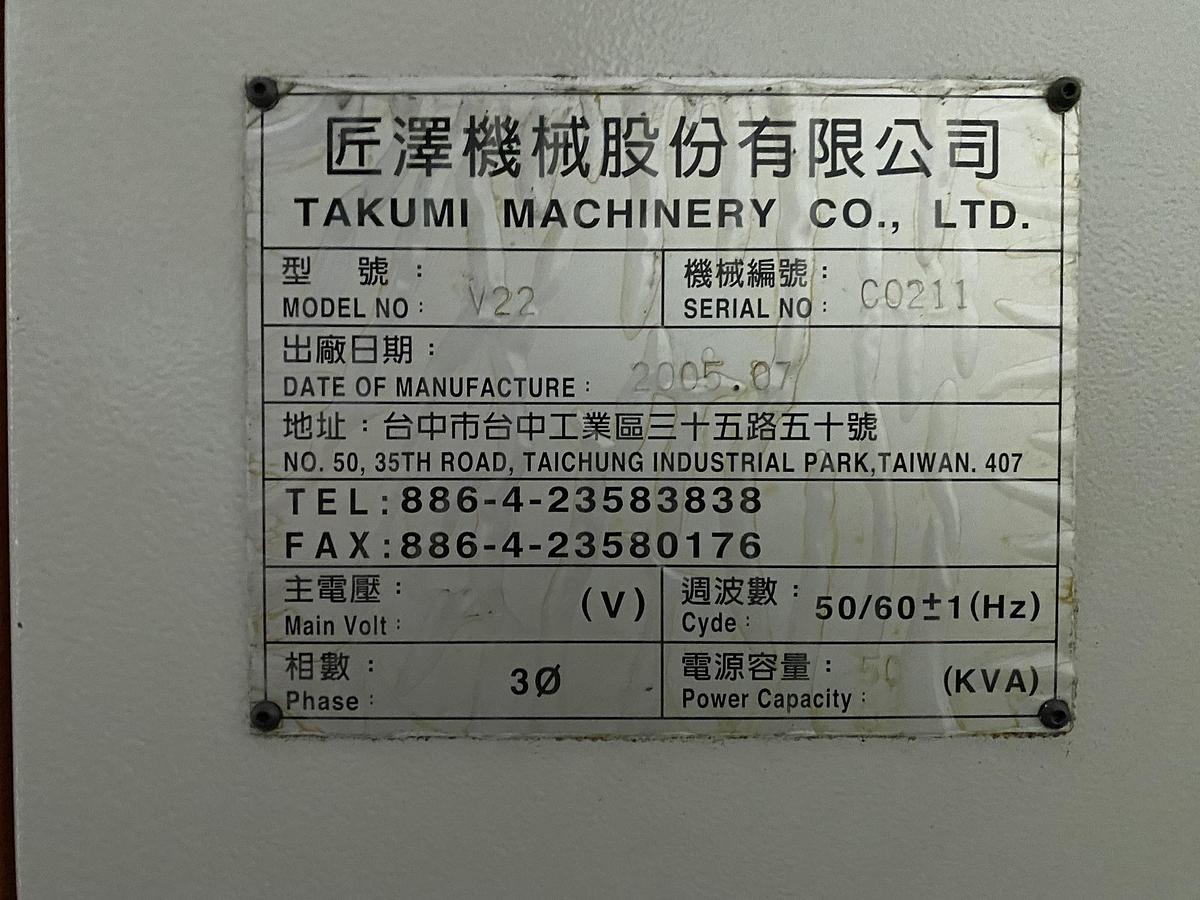

| Serial Number | C0211 |
| Stock Number | VMC-TKM-0211 |
| X-Axis Travel | 2200 mm |
| Y-Axis Travel | 1020 mm |
| Z-Axis Travel | 750 mm |
| Distance Spindle Nose to Table | 200 – 950 mm |
| Distance Spindle Center to Column | 1120 mm |

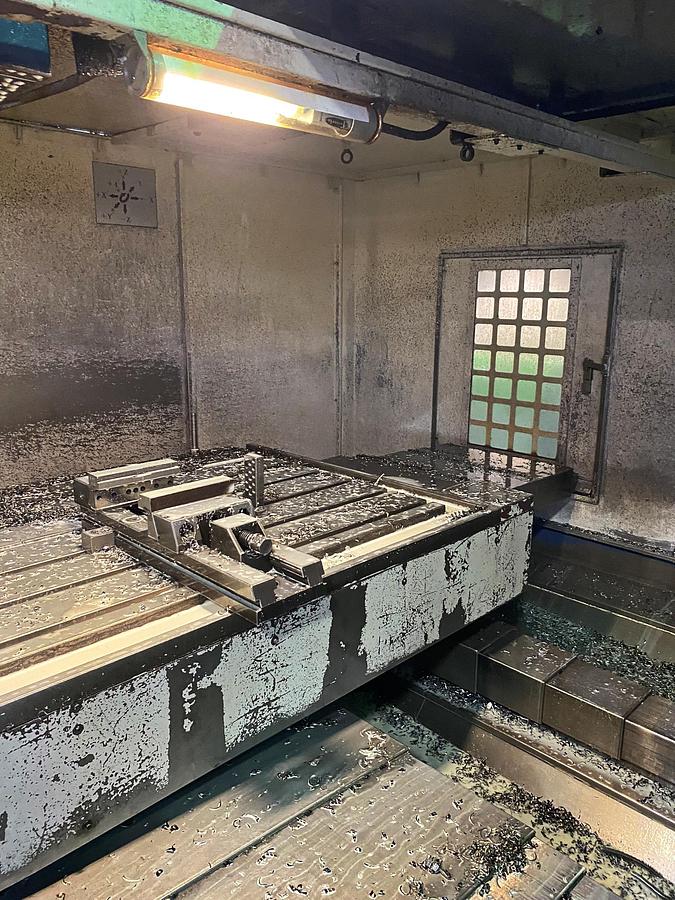

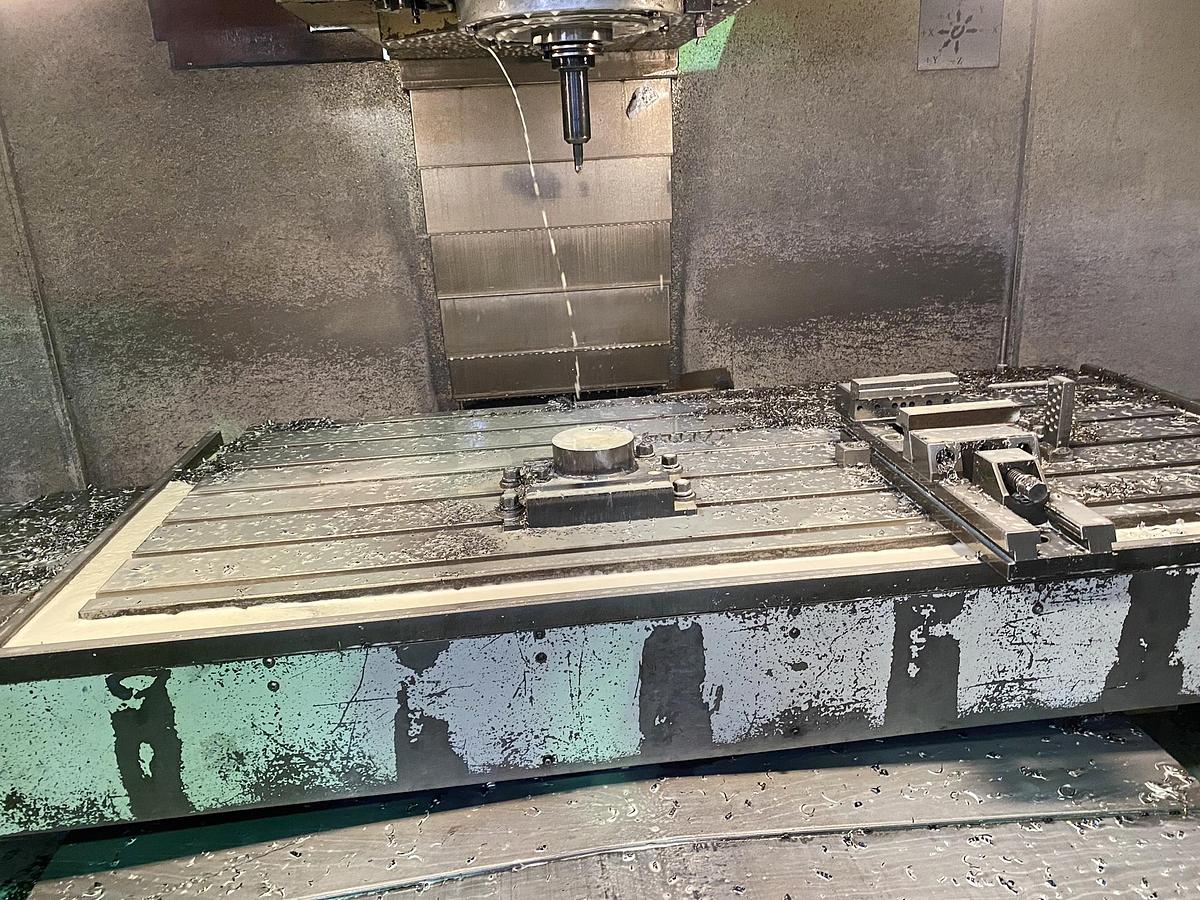

| Table Size | 2200 × 1025 mm |
| Table Load Capacity | 3000 kg |
| T‑Slot Size | 22 mm × 7 |
| Spindle Speed | 6000 RPM (Gear) |
| Spindle Motor | 26 HP |
| Spindle Taper | ISO 50 |
| ATC Magazine Capacity | 24T Arm Type |
| Max Tool Diameter (Adjacent Empty) | 200 mm |
| Max Tool Diameter (Adjacent Installed) | 110 mm |
| Max Tool Length | 300 mm |
| Max Tool Weight | 15 kg |
| Rapid Feedrate (X/Y/Z) | 12 / 12 / 12 m/min |
| Cutting Feed Rate | 5000 mm/min |
| Machine Weight | 19,700 kg |
Equipped With

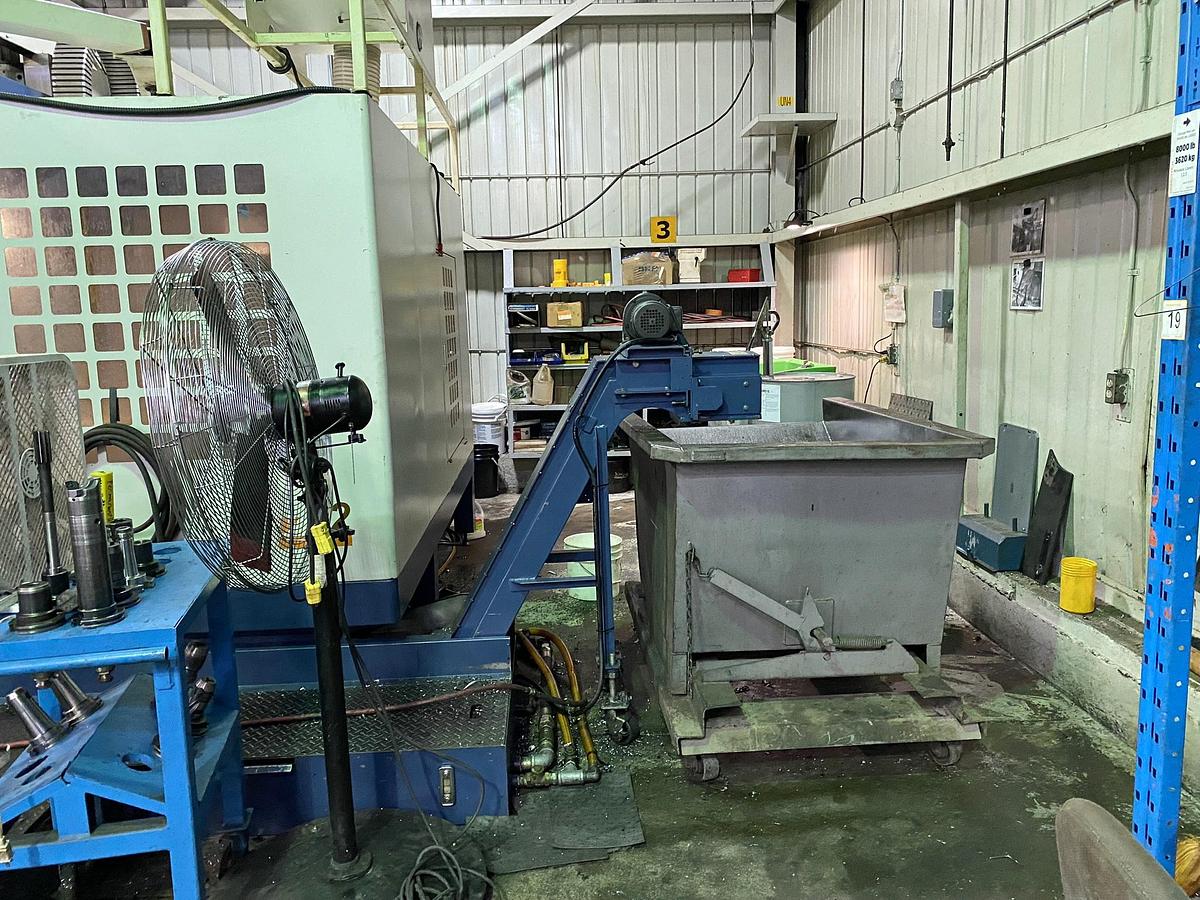

Chip Conveyor
Coolant Tank
Chiller
