1997 Sanco V-3025
Featured
1997 Sanco V-3025
Available quantity:1
Description

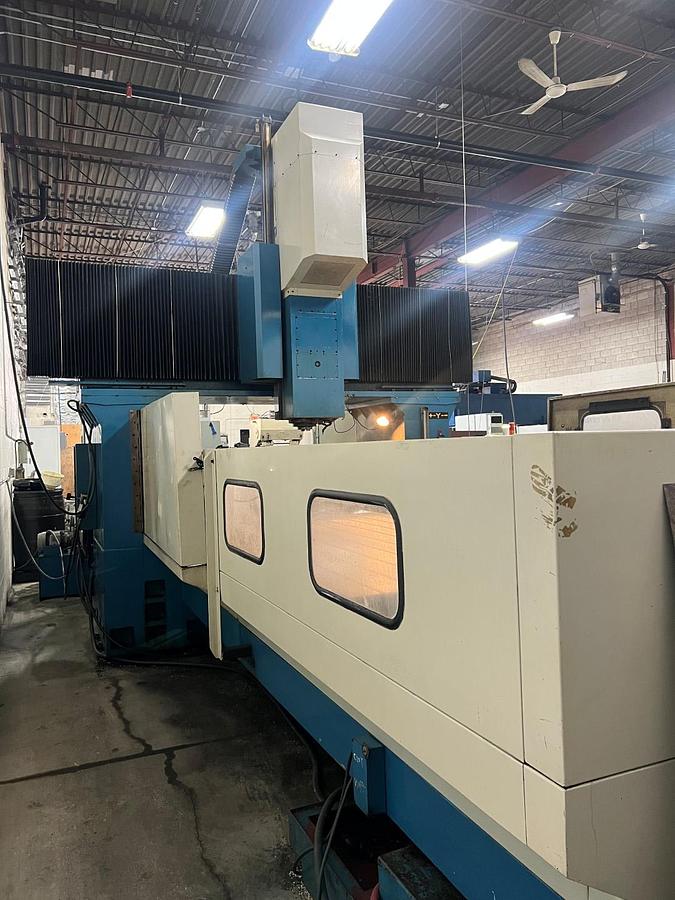

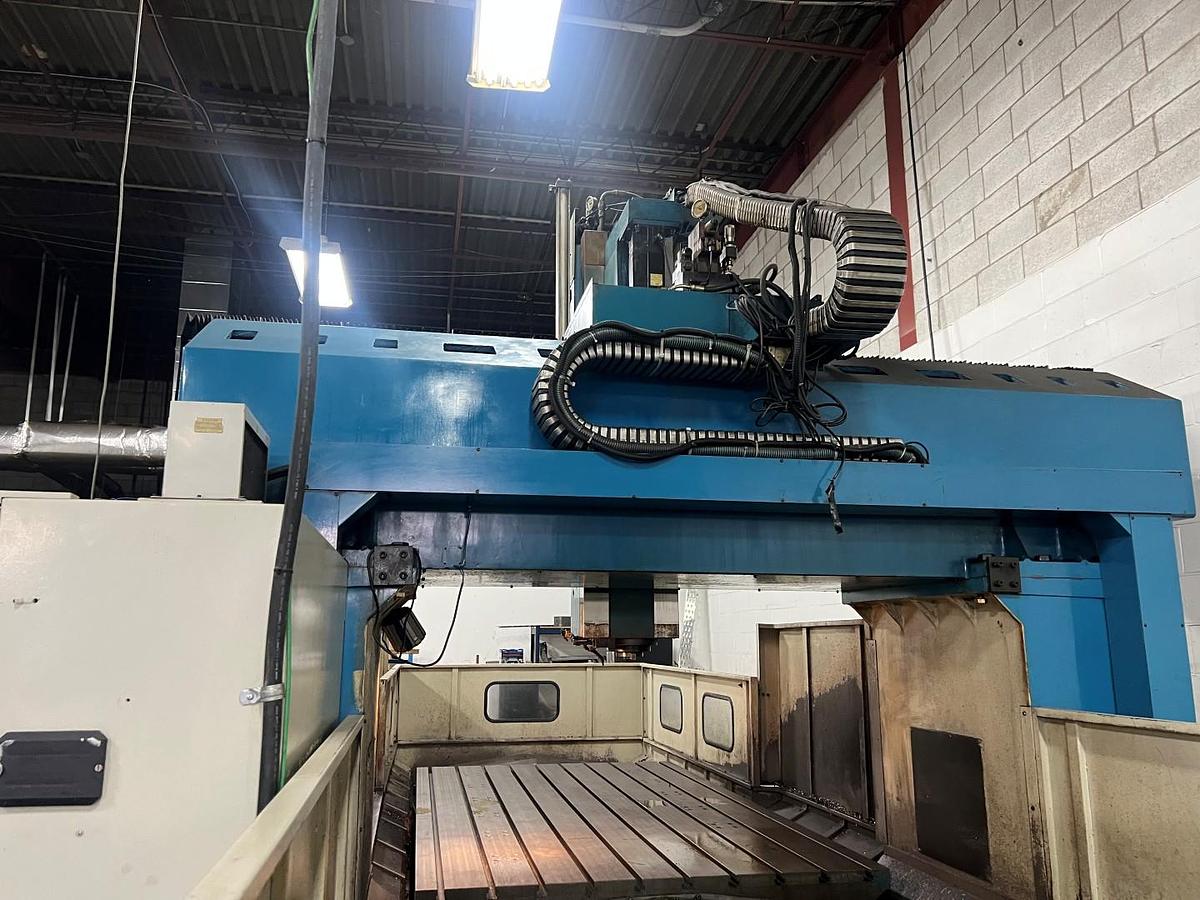

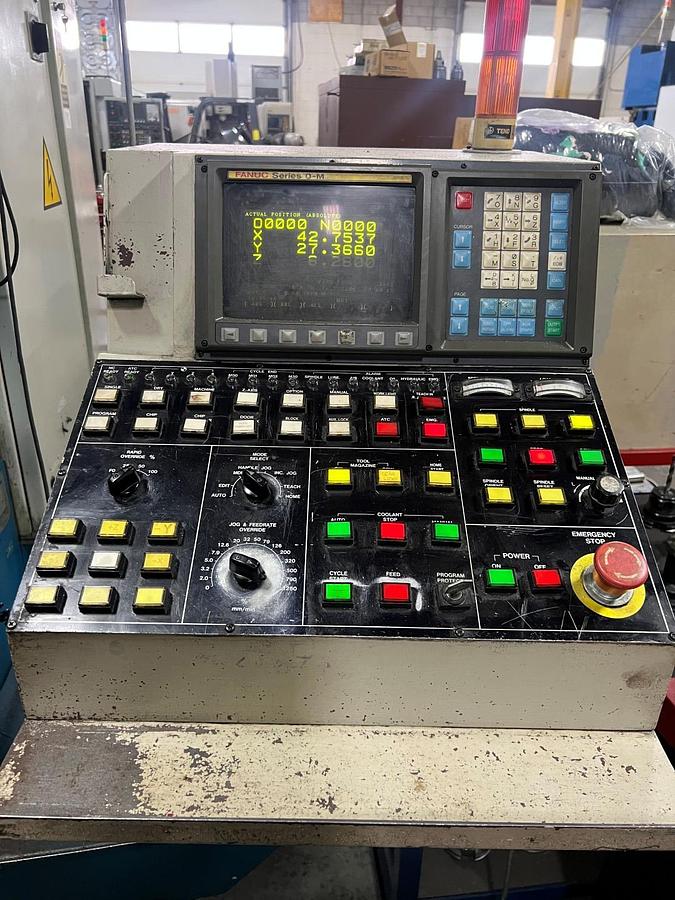

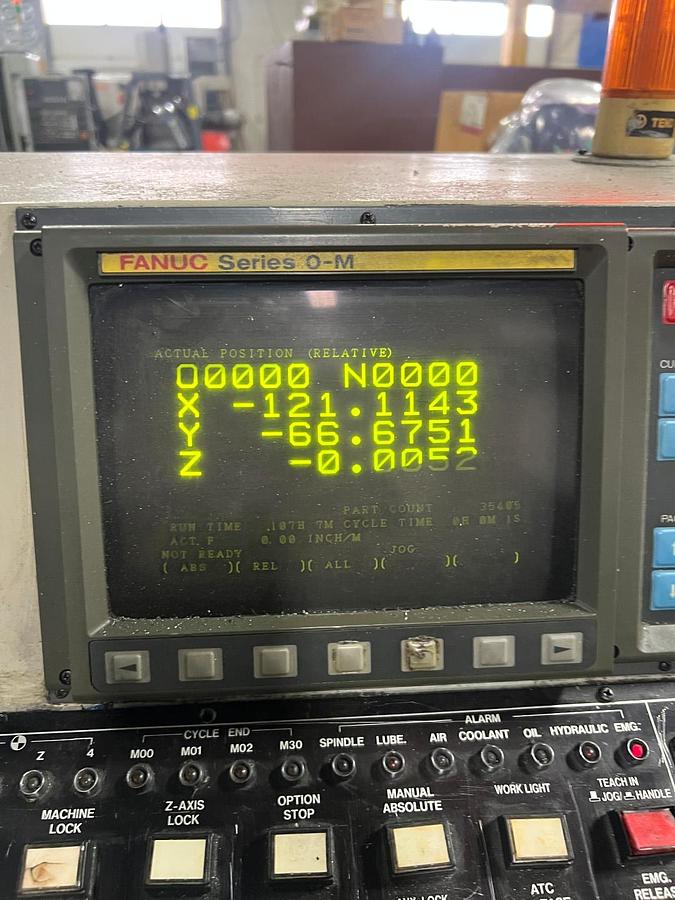

The Sanco SP-3000G is a robust double column vertical machining center built for large-scale, high-rigidity machining. Equipped with a 3000 × 1200 mm table, 8000 kg load capacity, and long travels of 3200 mm (X), 1400 mm (Y), and 900 mm (Z), this machine is ideal for mold work, tooling, and large component manufacturing. Powered by a BT50, 6000 RPM spindle and a Fanuc O-M controller, the SP-3000G delivers strong cutting performance with excellent stability. Includes coolant system, chip conveyor, hydraulic pack, and manuals.
Specifications
| Manufacturer | Sanco |
| Model | V-3025 |
| Year | 1997 |
| Condition | Used |
| Serial Number | VMC-SCO-3025 |
| Stock Number | VMC-SCO-3025 |

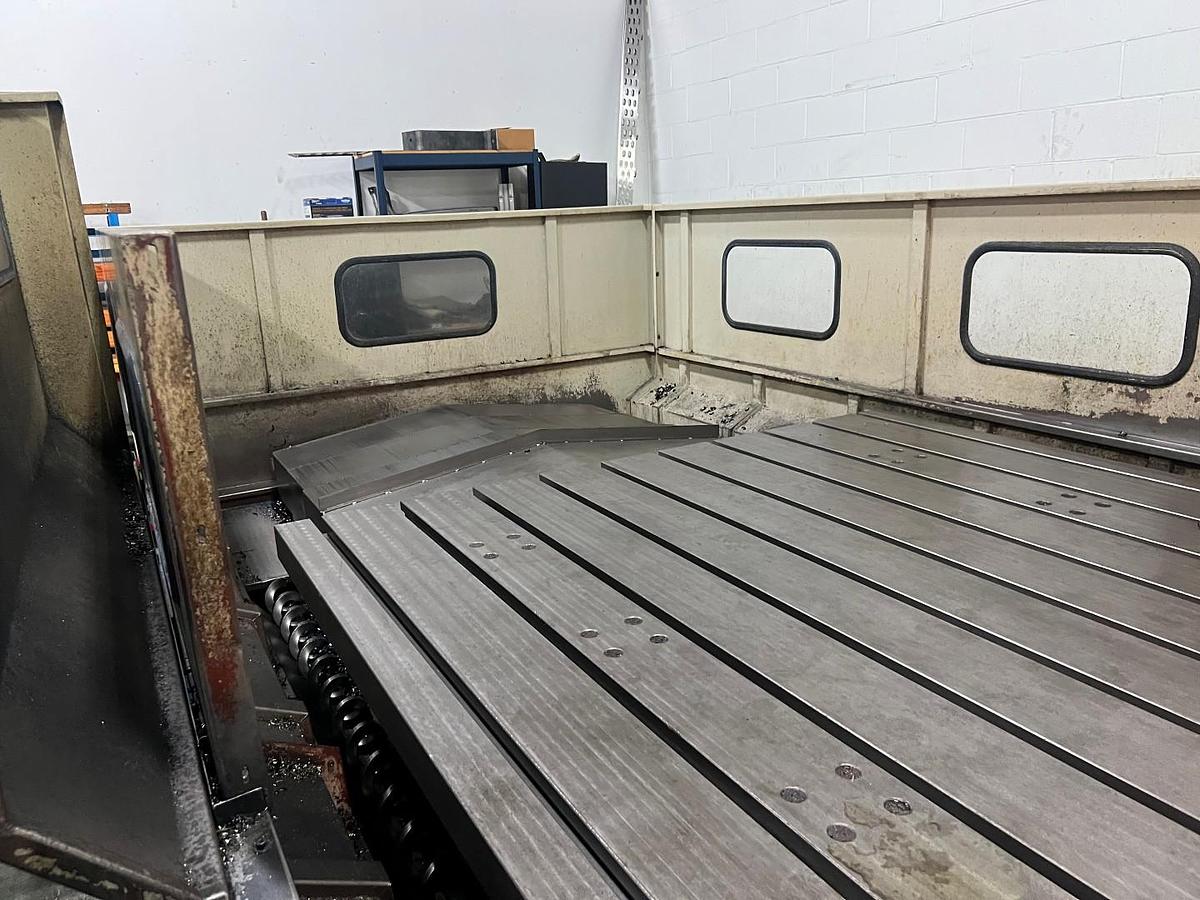

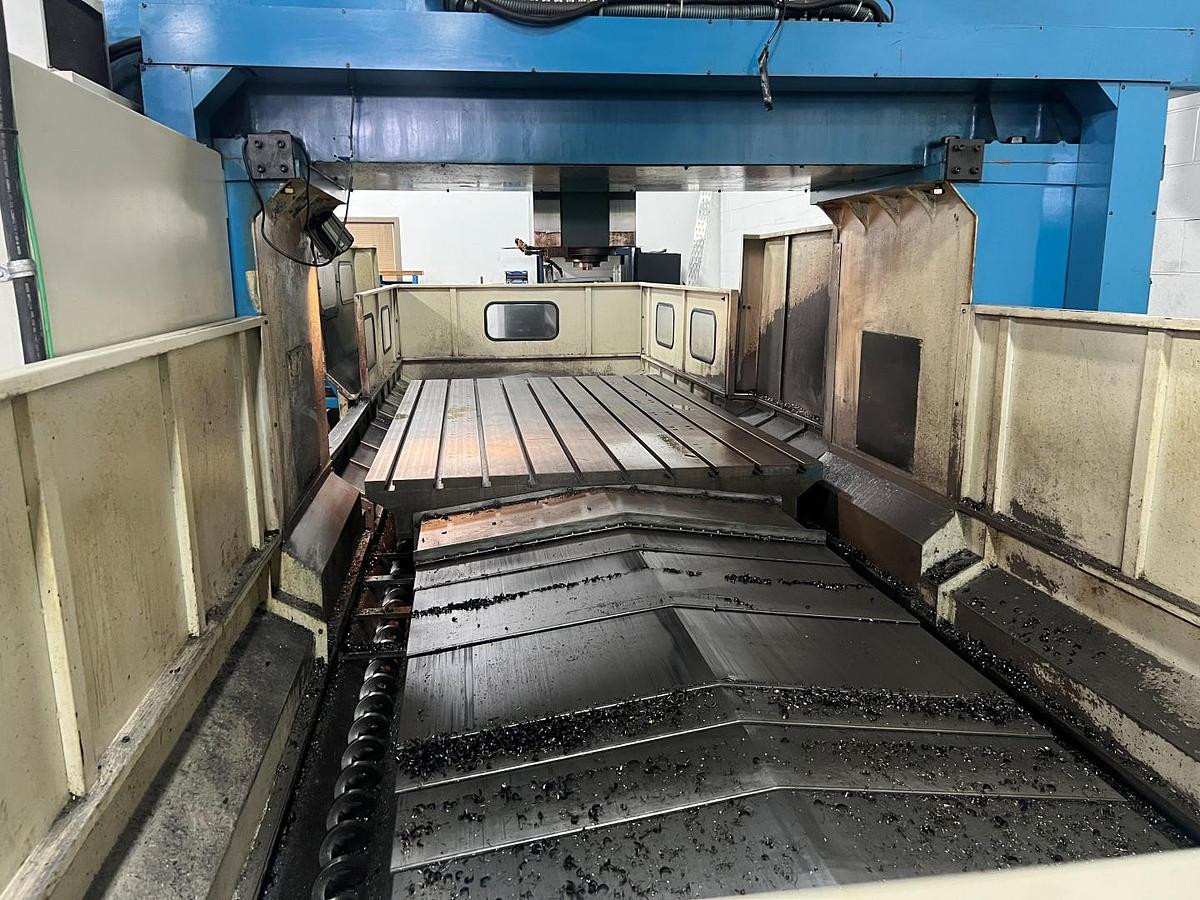

| Table Size | 3000 × 1200 mm |
| Maximum Table Load | 8000 kg |
| X-Axis Travel | 3200 mm |
| Y-Axis Travel | 1400 mm |
| Z-Axis Travel | 900 mm |
| Distance Between Columns | 1600 mm |
| Distance Table-Top to Spindle Nose | 870 mm |

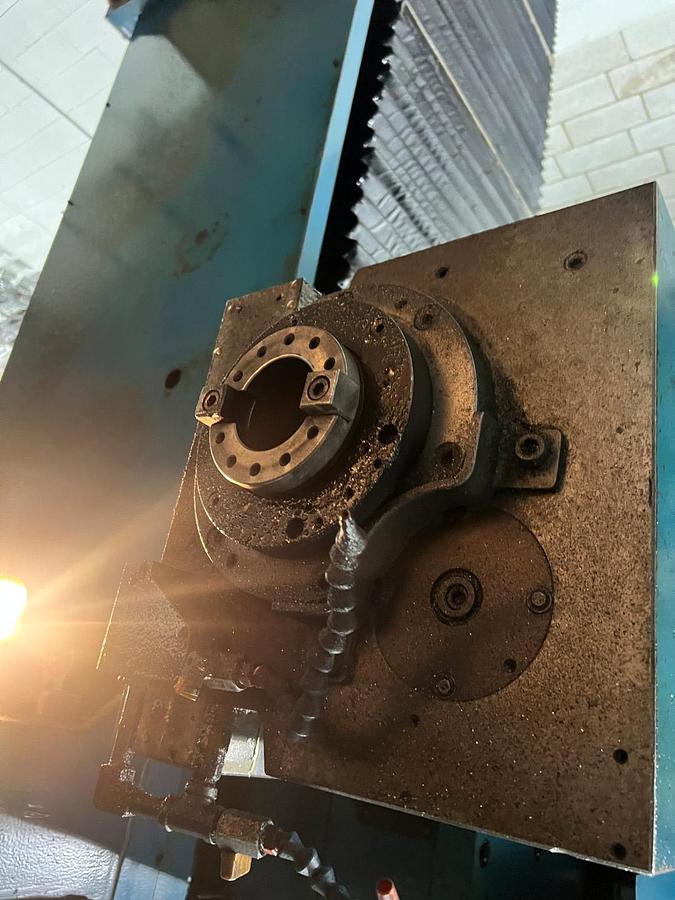

| Spindle Speed | 6000 rpm |
| Spindle Taper | BT50 |
| Machine Dimensions (L×W×H) | 197" × 127" × 130" |
| Machine Weight | 29,000 kg |
Equipped With
- Coolant System

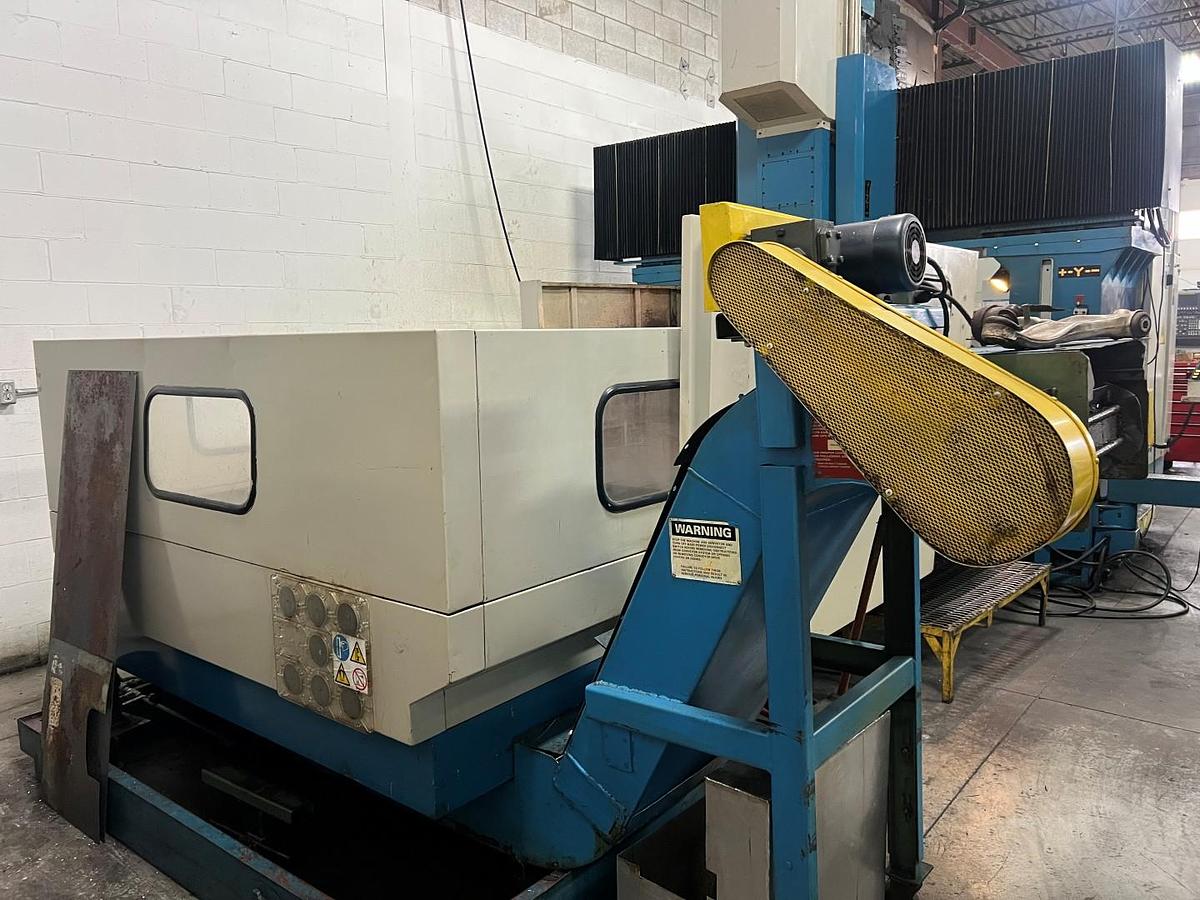

- Chip Conveyor

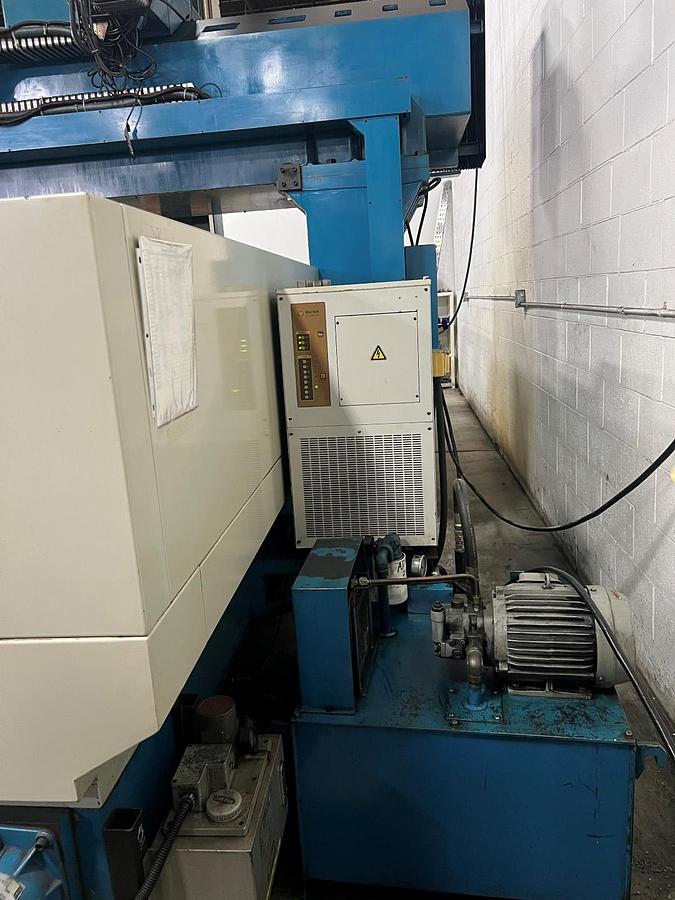

- Hydraulic Pack
- Manuals
