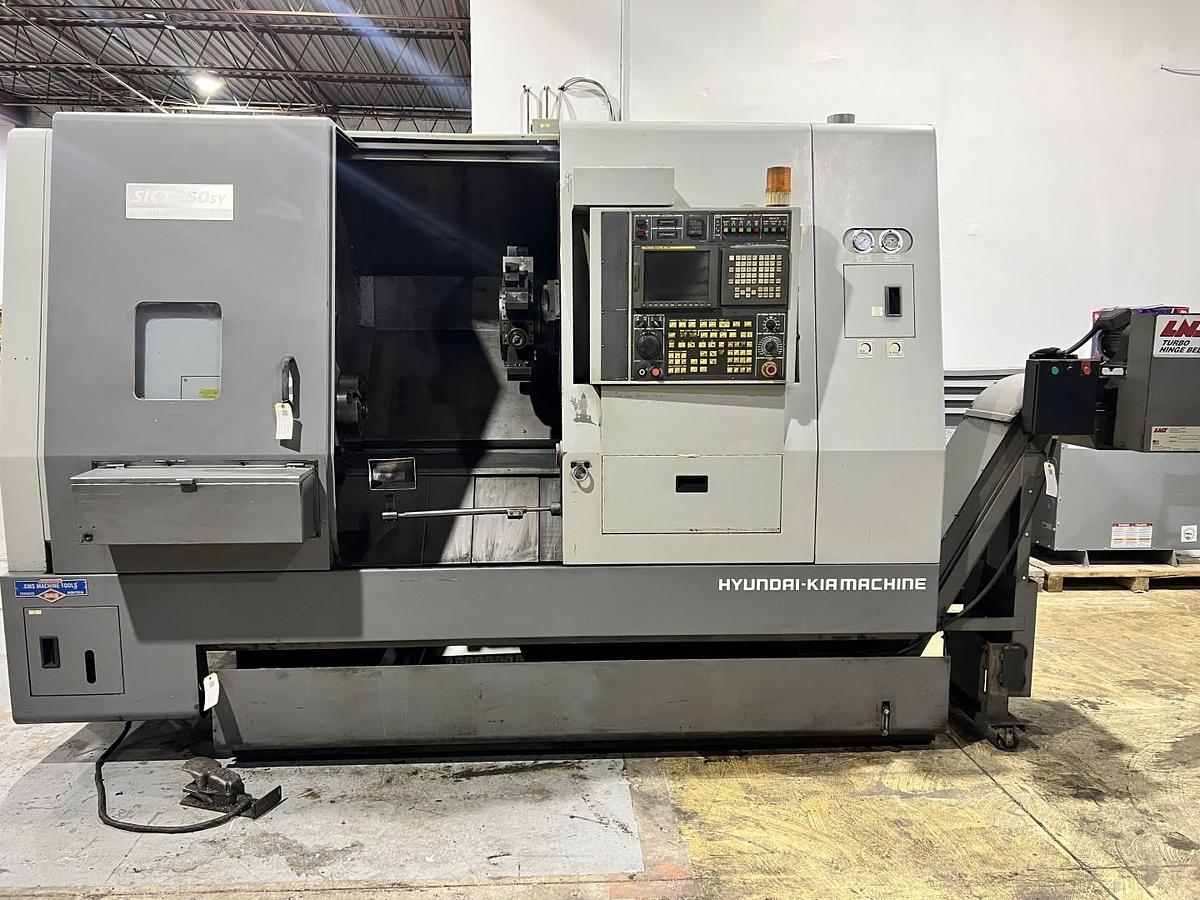

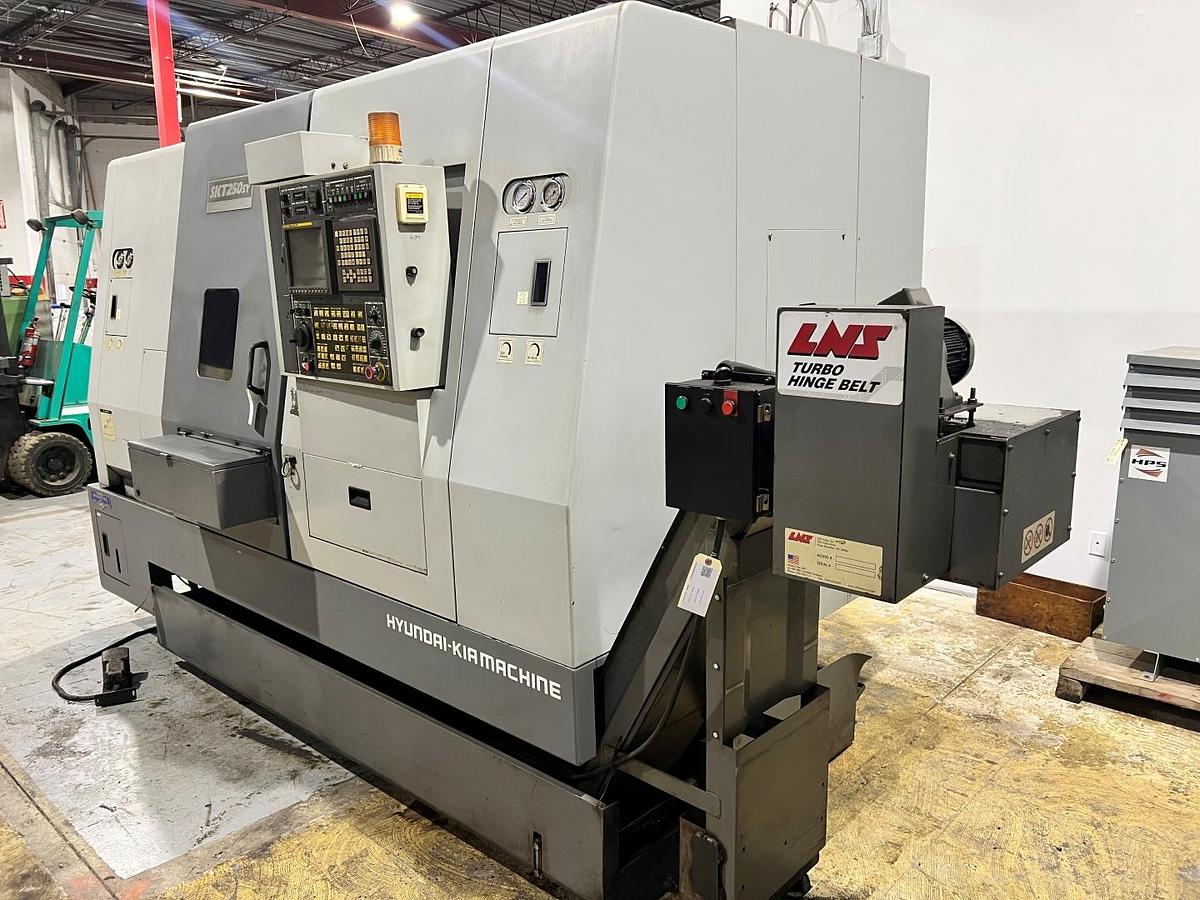

HYUNDAI KIA – SKT250SY TURNING CENTER
HYUNDAI KIA – SKT250SY TURNING CENTER
Available quantity:1
Description

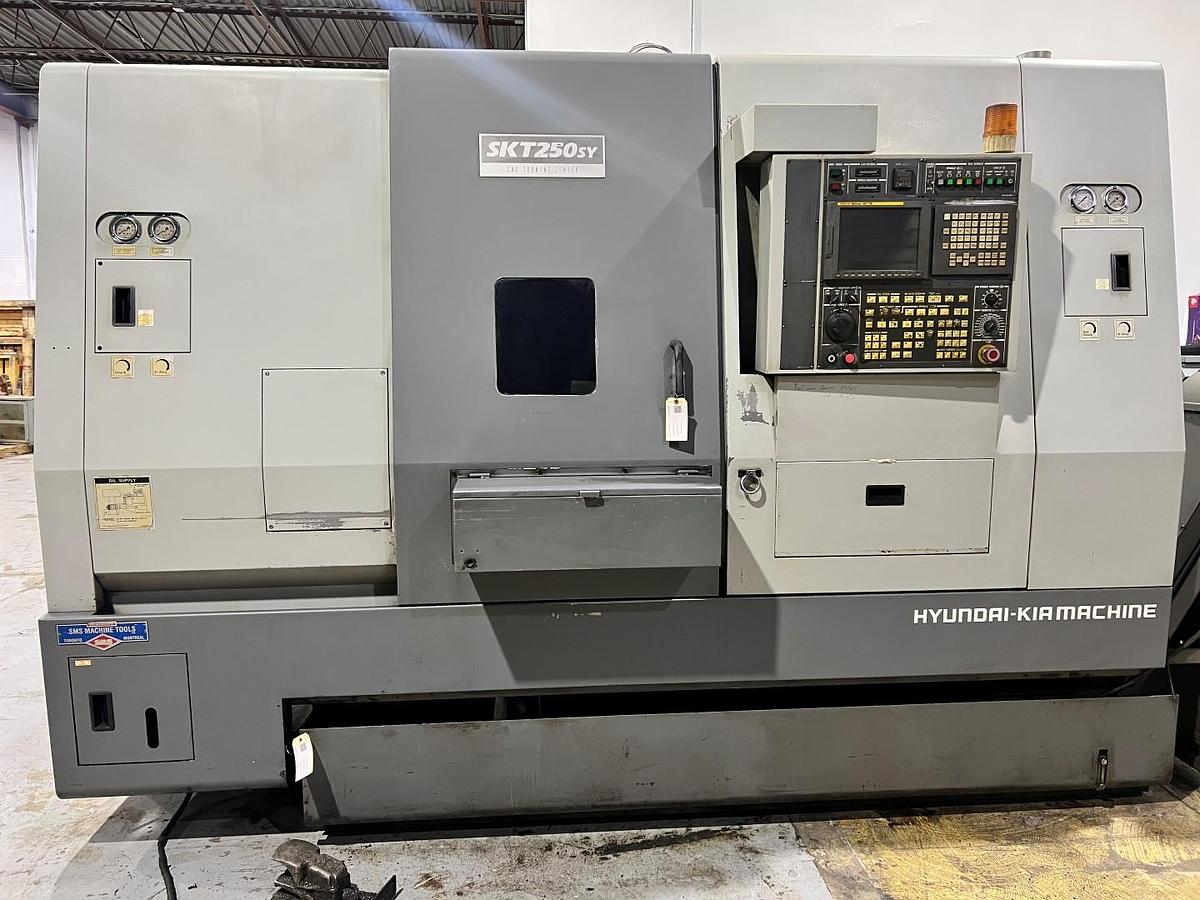

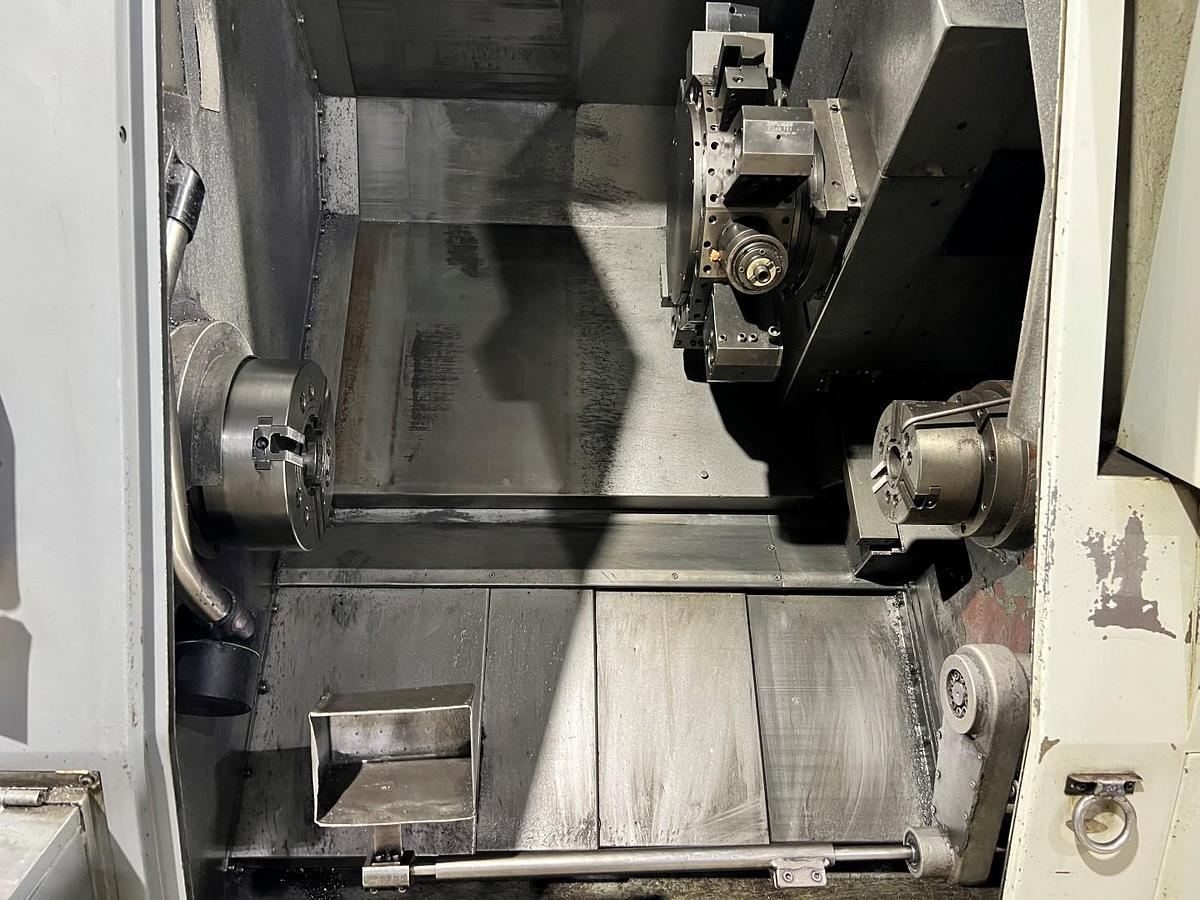

The Hyundai KIA SKT250SY is a high-performance C-axis, Y-axis CNC turning center designed for multi-tasking and precision machining. With a 410 mm max machining diameter, 700 mm machining length, and 76 mm bar capacity, this machine is built to handle complex parts in a single setup. Featuring a 3500 RPM A2-8 main spindle, 6000 RPM sub-spindle, 12-station turret with live tooling (up to 4000 RPM), and rigid box-way construction, the SKT250SY delivers excellent stability and cutting power. Fast axis feeds, 0.001° C-axis control, and strong turret clamping make it ideal for production of high-accuracy components.
Includes chip conveyor, manuals, parts catcher, and a set of live tools (2 radial + 2 axial).
Specifications
| Model | SKT250SY |
| Condition | Used |

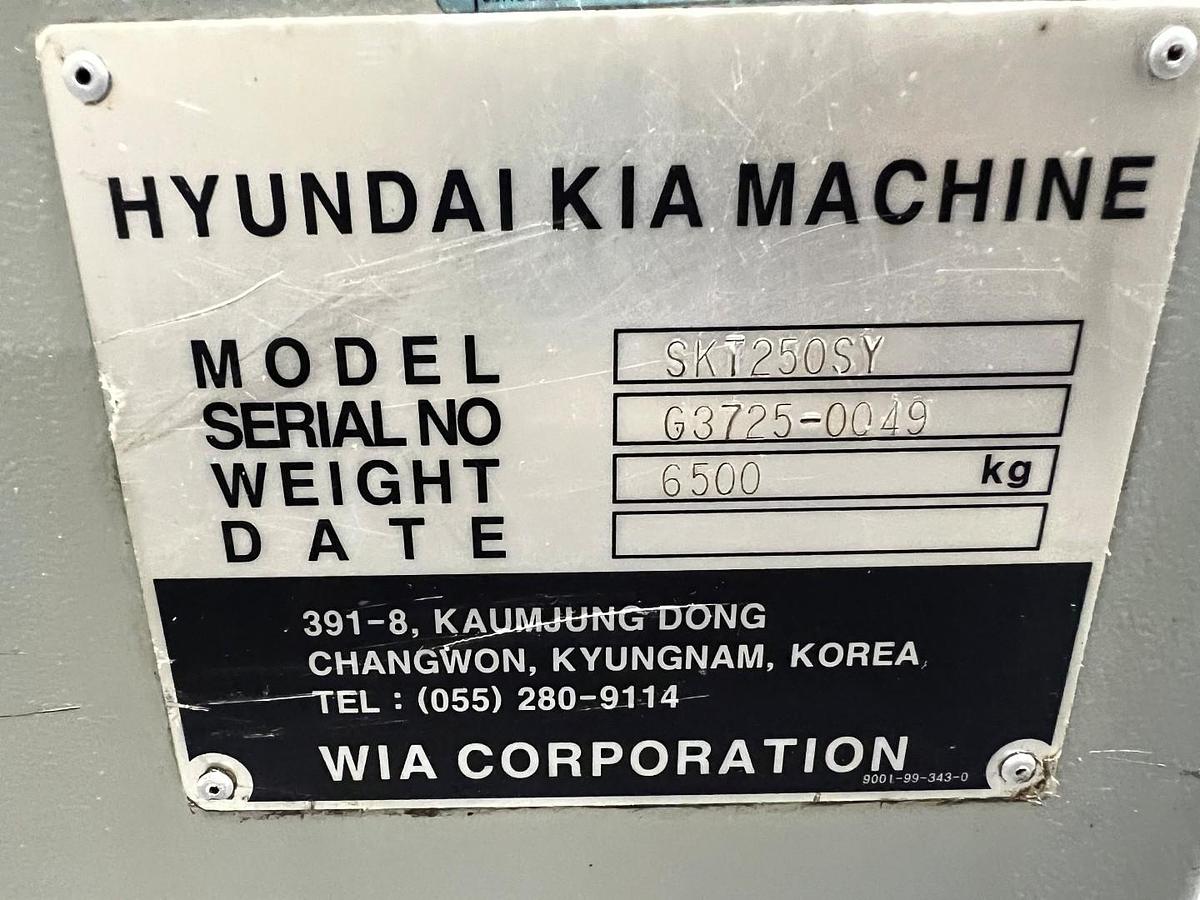

| Serial Number | G3725-0049 |
| Stock Number | LTH-HYN-0049 |
| Max Swing | 620 mm |
| Max Machining Diameter | 410 mm |
| Max Machining Length | 700 mm |
| Cylindrical Rod Machining Capacity | 76 mm |
| Feed Length (X/Z/B/Y) | 230 / 675 / 700 / 110 (+55) mm |
| Quick Feed Speed (X/Z/B/Y) | 20 / 24 / 20 / 10 m/min |
| Guide Structure | Box Type |

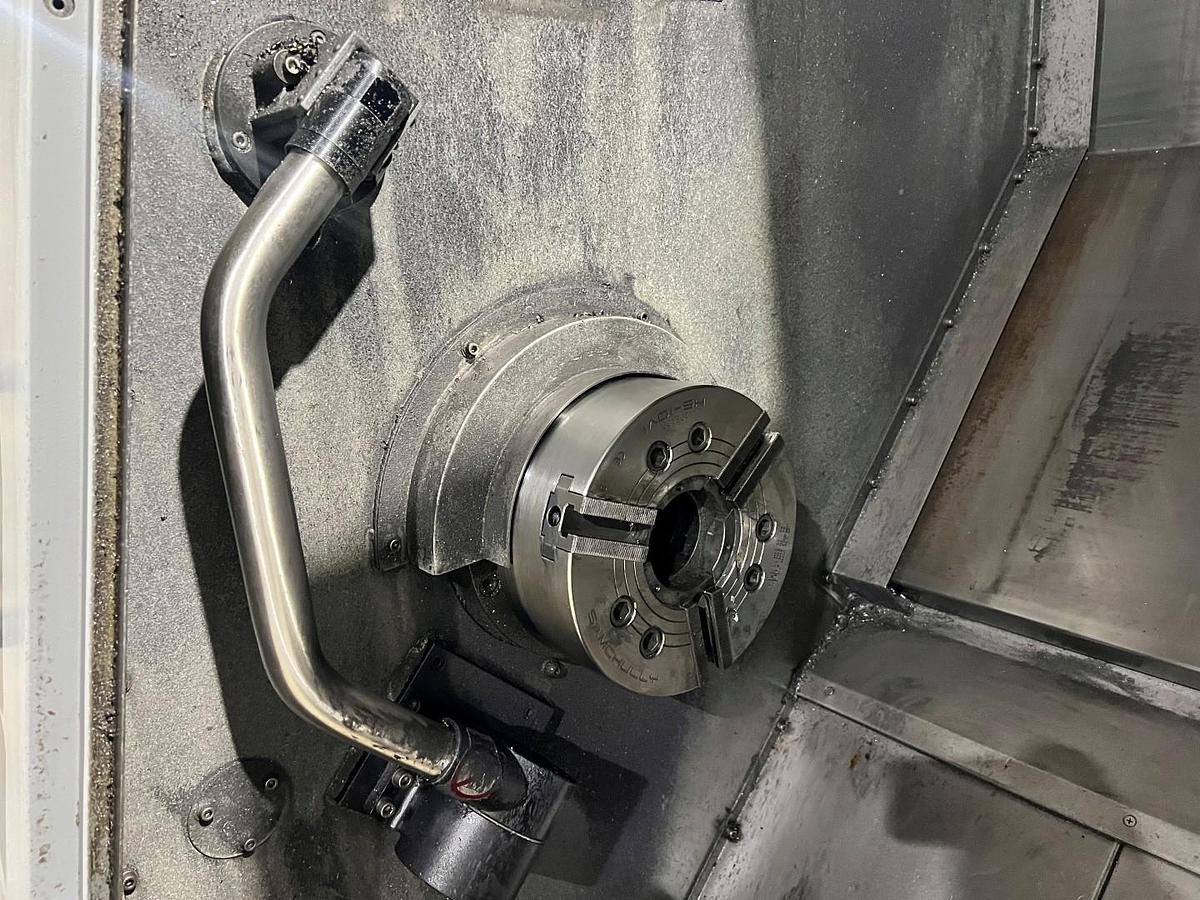

| Main Spindle Speed | 3500 RPM |
| Main Spindle Nose | A2-8 |
| Through Hole Diameter | 95 mm |
| Max Spindle Torque | 24 kgf/m |
| Drive Type | Belt |
| C-Axis Split Capacity | 0.001° |
| Sub-Spindle Chuck Size | 152.4 mm |
| Sub-Spindle Max RPM | 6000 RPM |
| Sub-Spindle Motor Power | 5.5 / 7.5 kW |

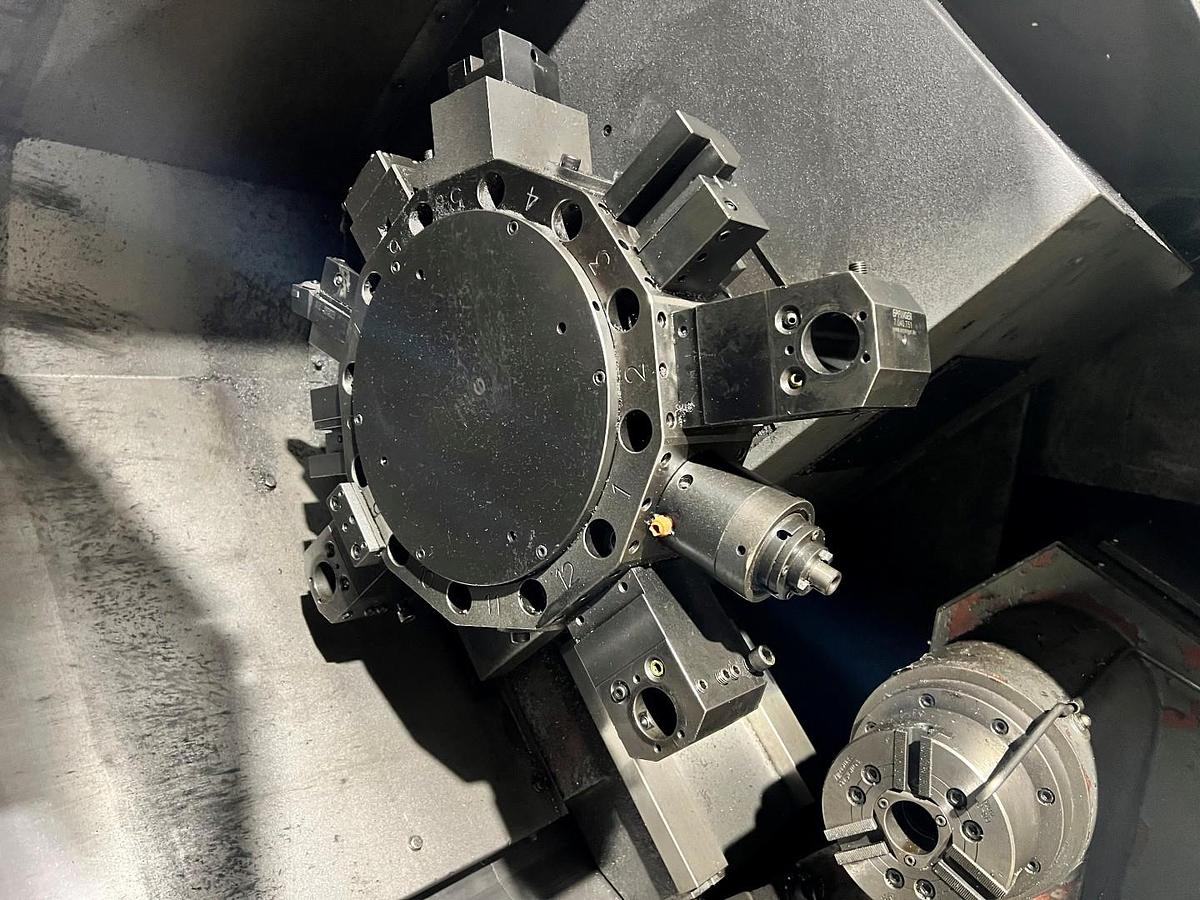

| Tools Attached | 12 |
| Tool Size OD/ID | 25 / 40 mm |
| Turret Clamp Force | 4120 kgf |
| Max RPM (Live Tooling) | 4000 RPM |
| Cutting Capability (E/M, DR) | 20 mm |
| Tapping Capacity | 16 mm |
Equipped With

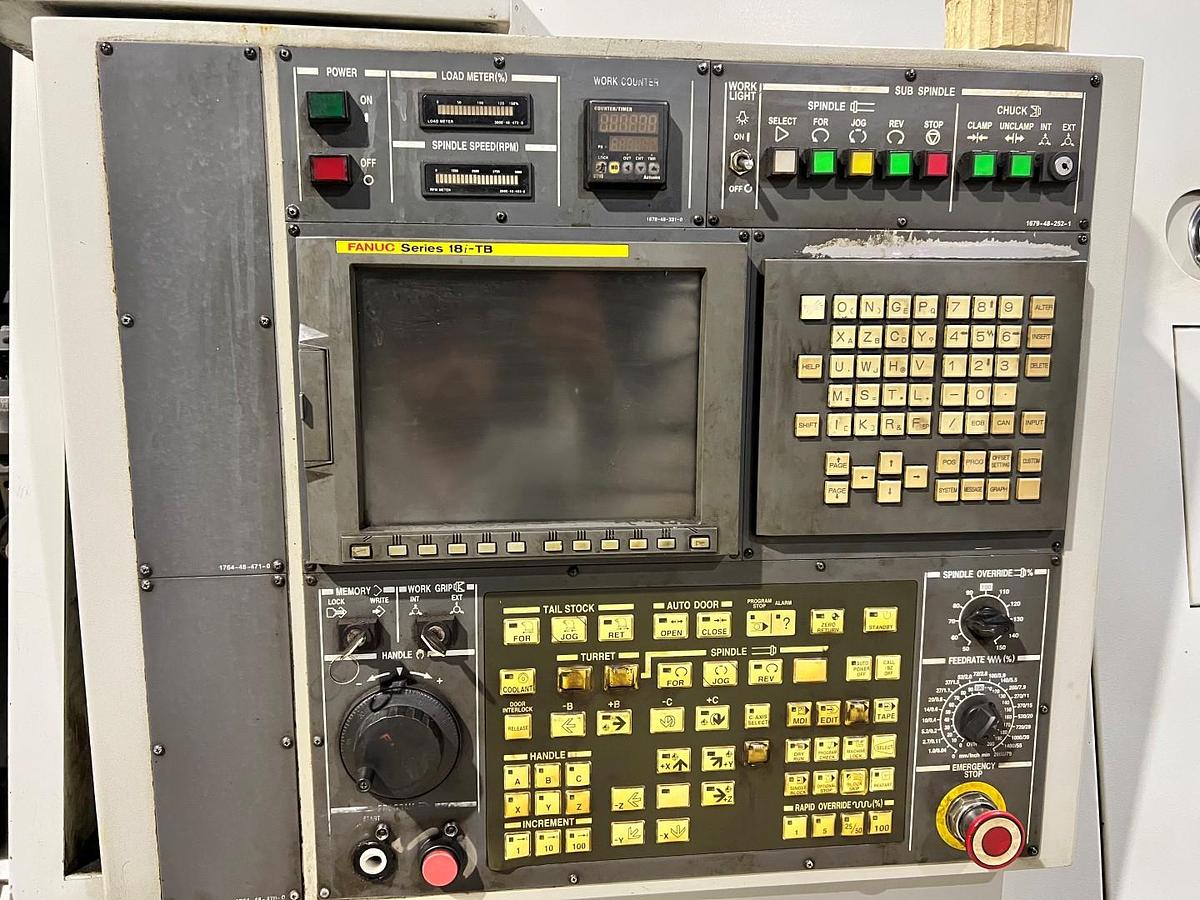

Fanuc 18i-TB CNC controller

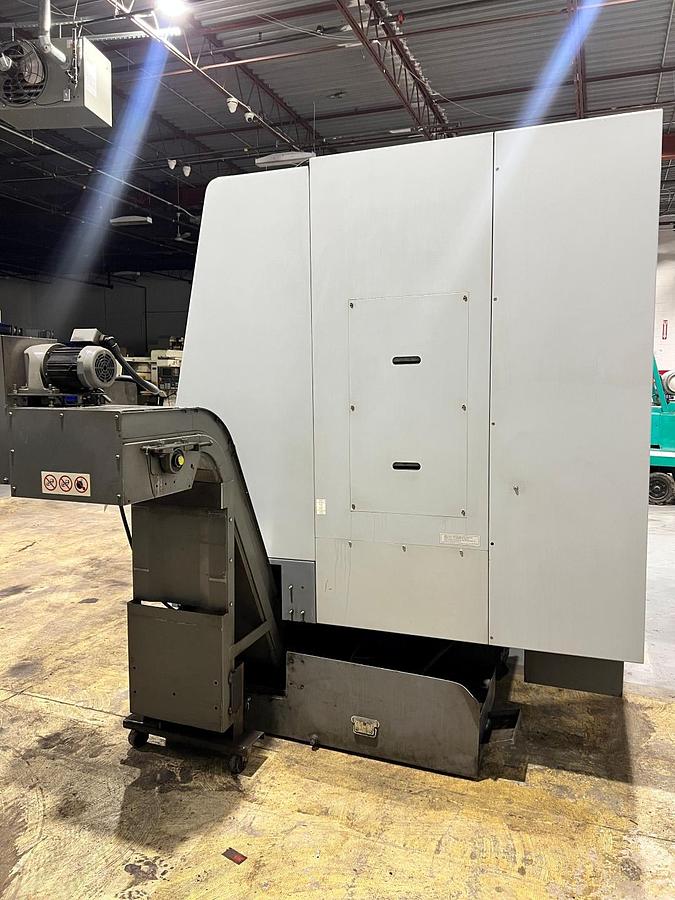

Chip Conveyor
Manuals

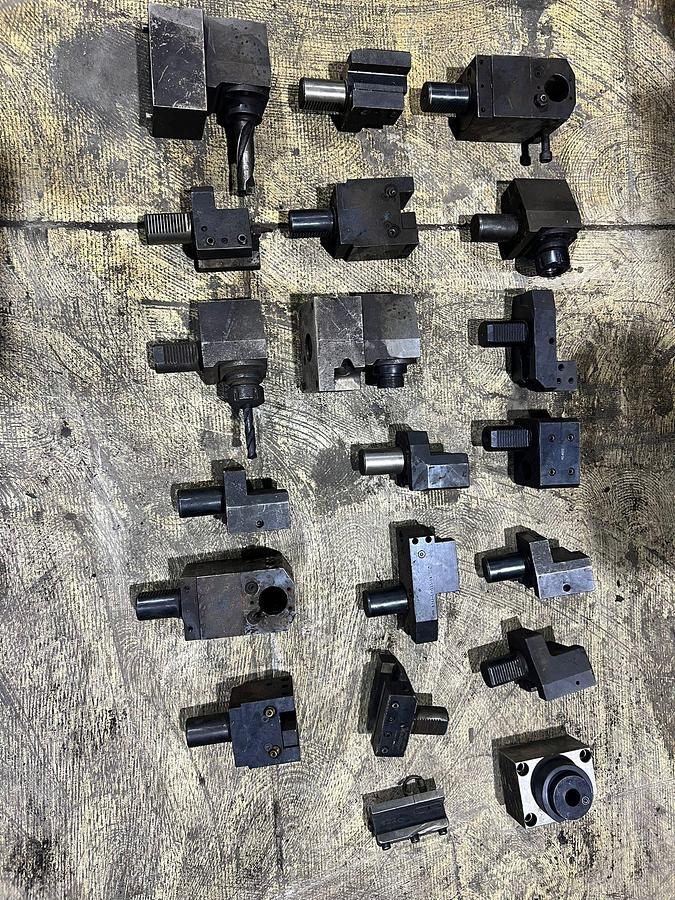

Misc Standard tools

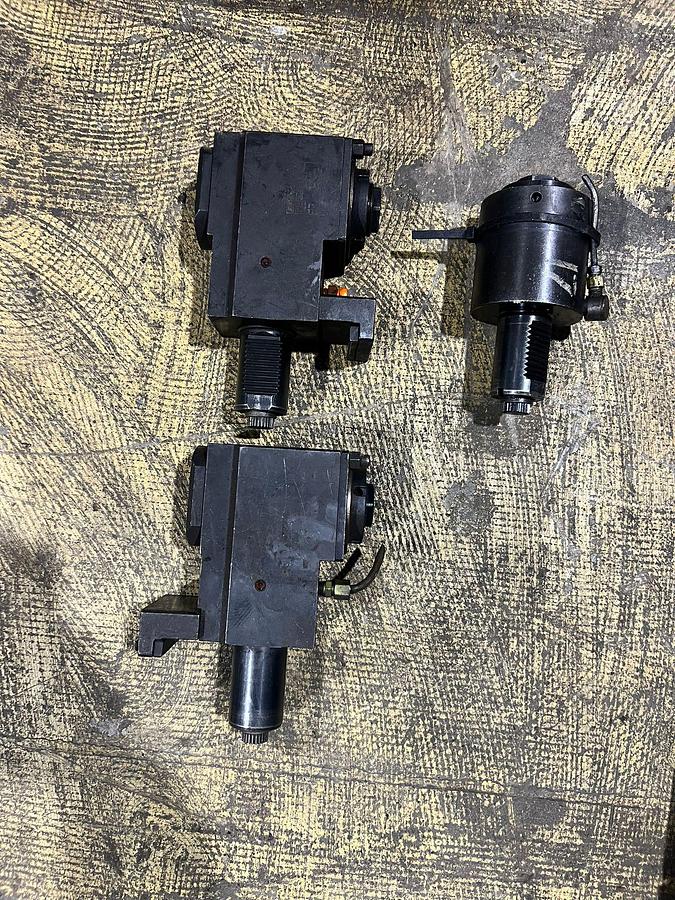

2 Raidal Live tools
2 Axial Live tools

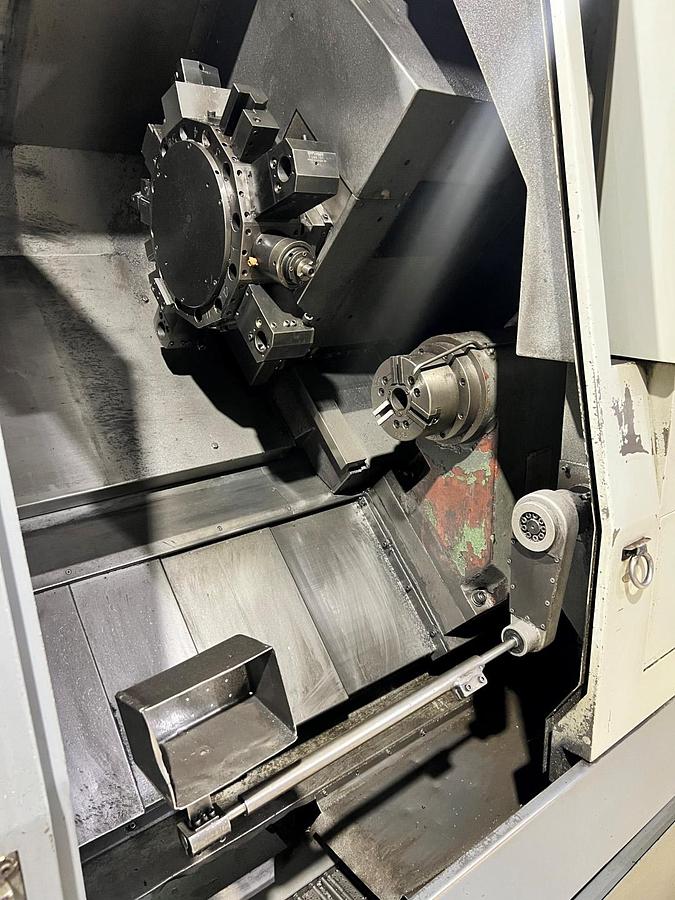

Parts Catcher
