Novisa RTP 100 Radial Drill
Novisa RTP 100 Radial Drill
Available quantity:1
Description

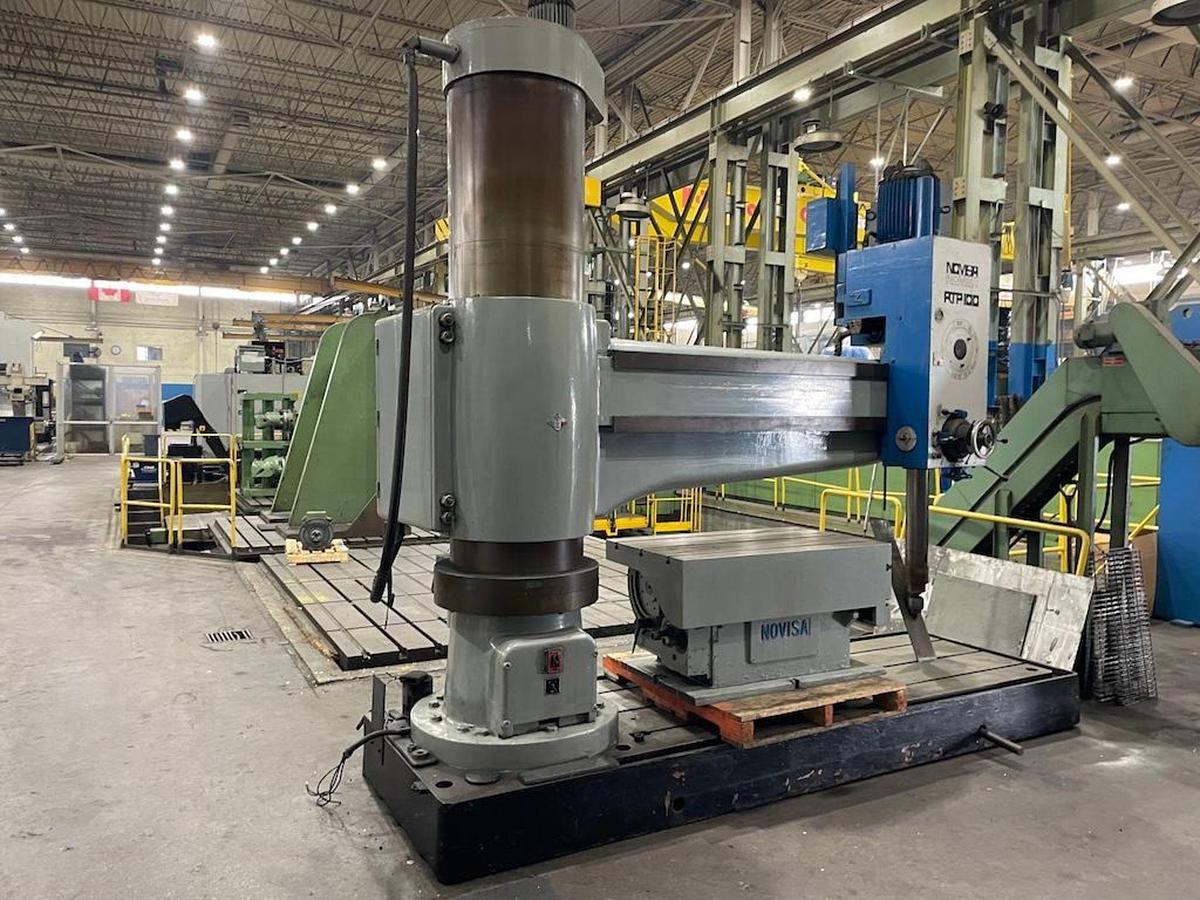

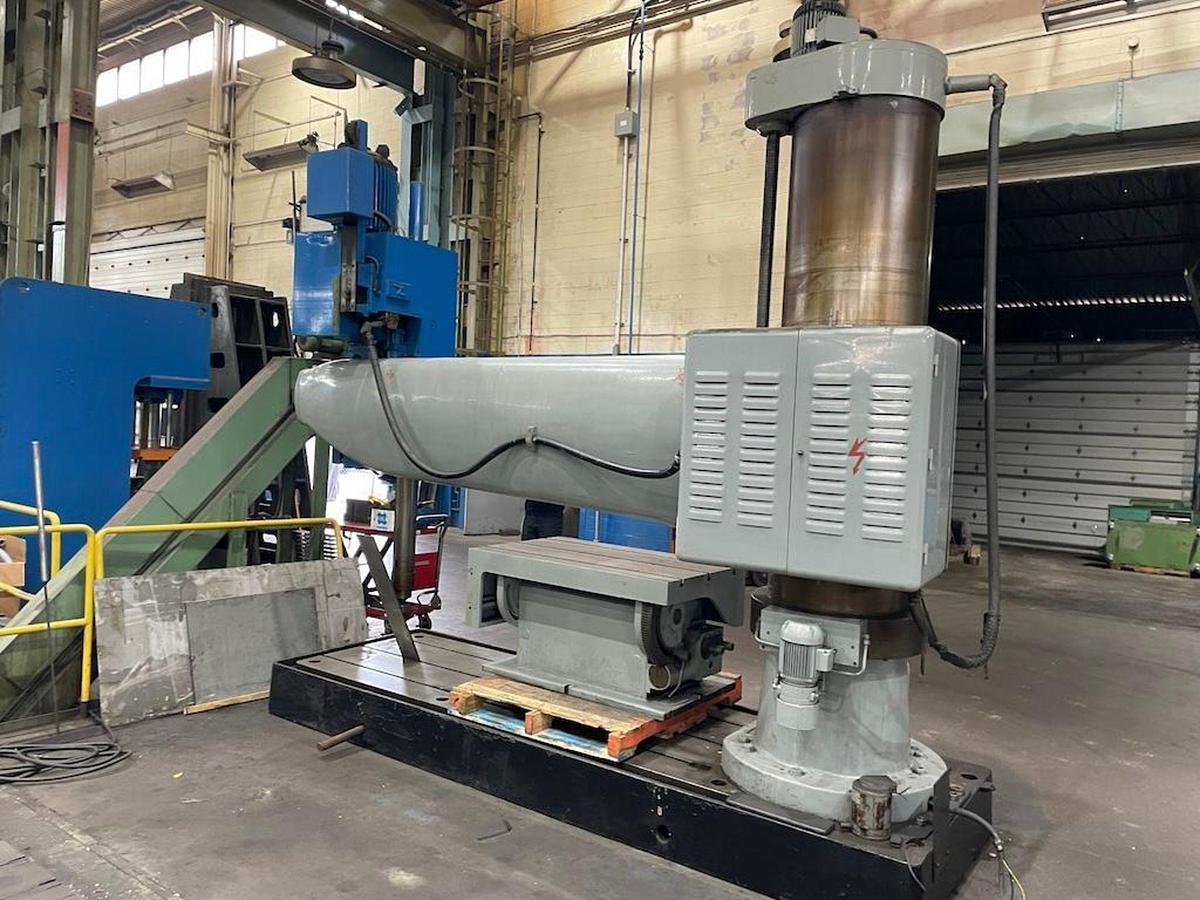

The Novisa RTP 100 is a robust radial drilling machine designed for large and heavy workpieces. Featuring a heavy-duty round column, and a large 39" × 105" T-slot cast base,along with Adjustable angle T-Slot Box table (30" x 49") this drill offers excellent reach, rigidity, and versatility for fabrication and maintenance shops. With power arm elevation, an adjustable headstock, and standard drill controls, the RTP 100 delivers reliable performance for drilling, tapping, and reaming operations. Ideal for shops needing a dependable, long-arm radial drill for oversized components.
Specifications
| Manufacturer | Novisa |
| Model | RTP 100 |
| Condition | Used |

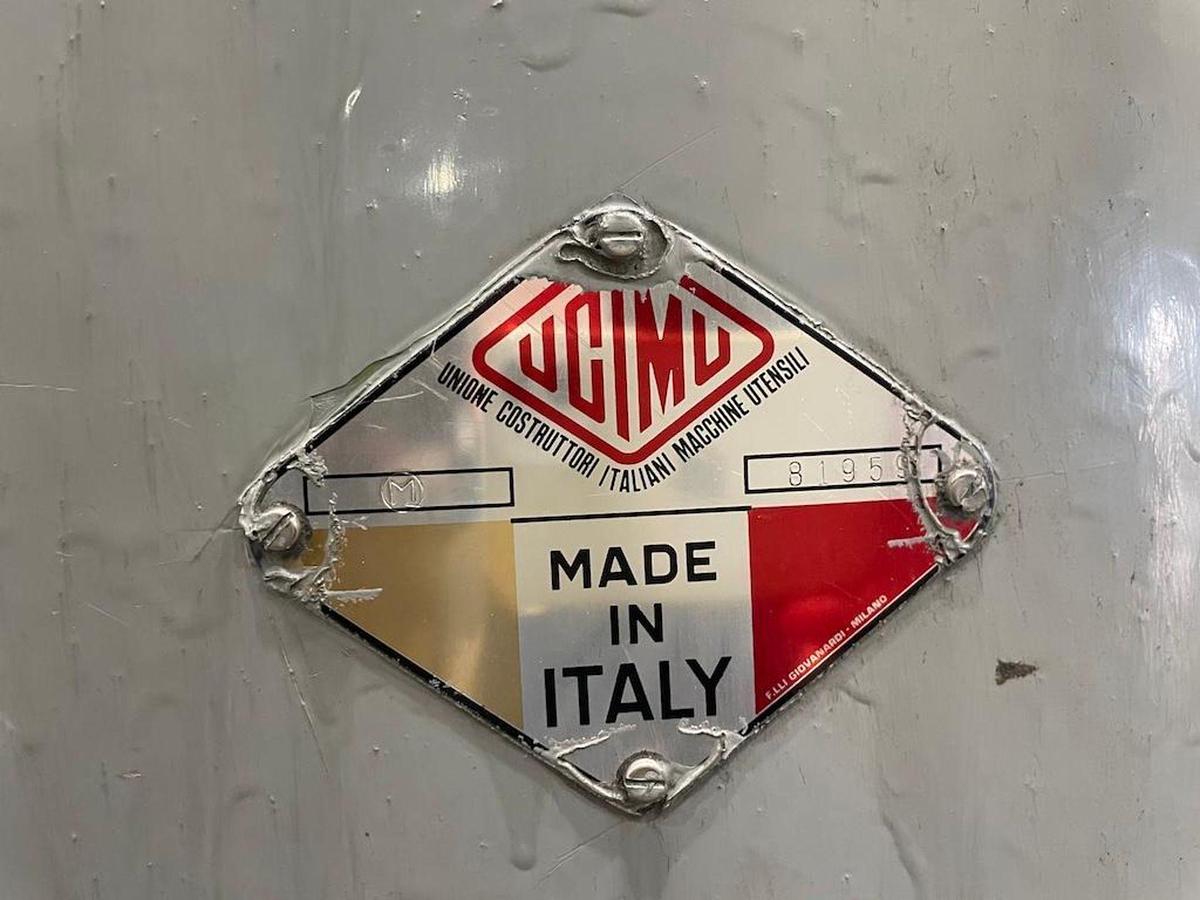

| Serial Number | 81959 |
| Stock Number | MNL-NOV-1959 |
| Column Diameter | 24" |
| Max. Distance between Spindle Center and Column Center | 111.75" |
| Min. Distance between Spindle Center and Column Center | 27.5" |
| Max Distance between Spindle center and column face | 100" |
| Min Distance between Spindle center and column face | 15.75" |
| Column Height | 144" |
| Max. Height from spindle head to base | 136" |
| Base Floor Space | 147" x 46.75" |
| Base Height | 11" |
| Spindle head longitudinal travel | 84" |
| Vertical Arm Travel | 37" |
| Table Top | 49" x 29.5" |
| Table Side | 16.25" x 29.5" |

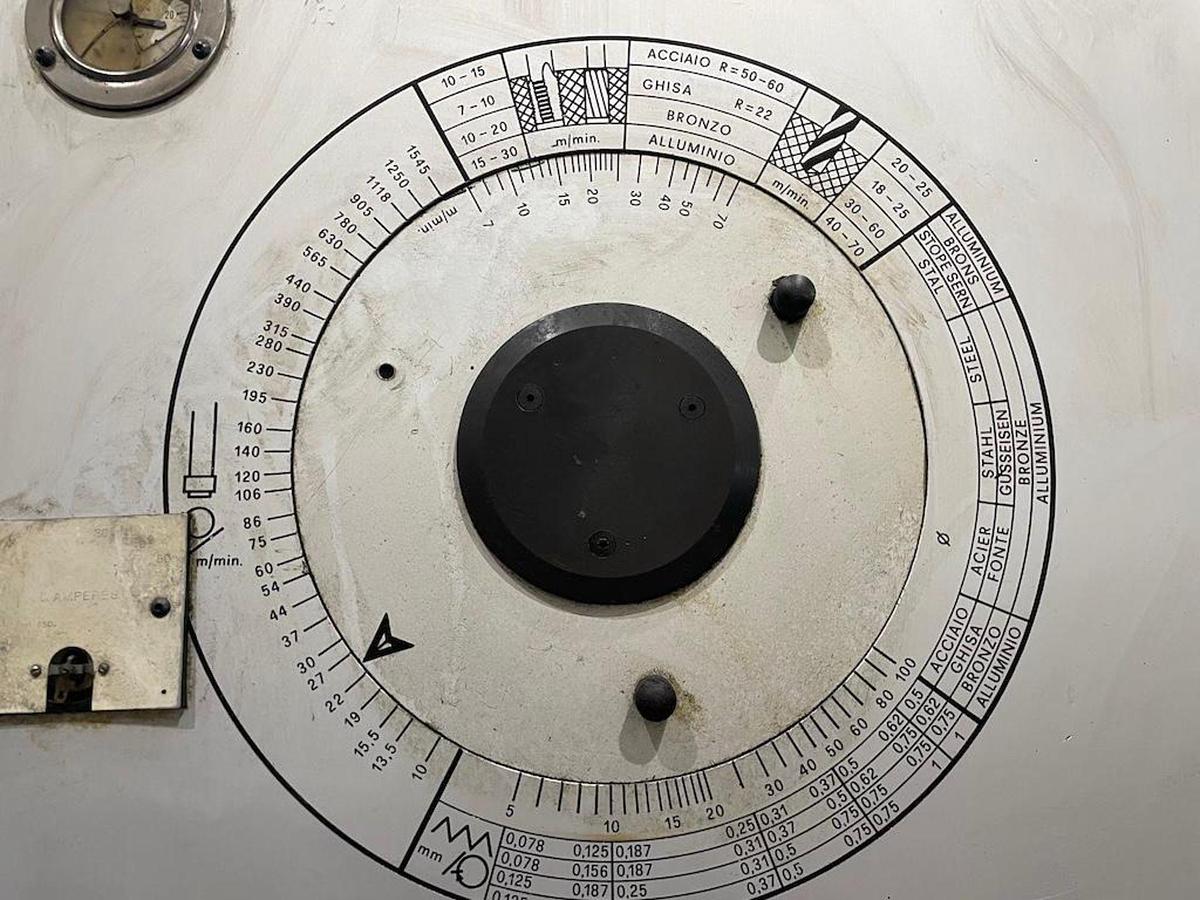

| Spindle Feed Range | .0078 - 1 mm |
| Spindle Speed Range | 10-1545 RPM |
| Main Motor | 25 HP |
| Arm Elevating Motor | 5.5 HP |
| Input Voltage | 575 V |
| Overall Dimensions | 147" (L) x 46.75" (W) x 144" (H) |
Equipped With

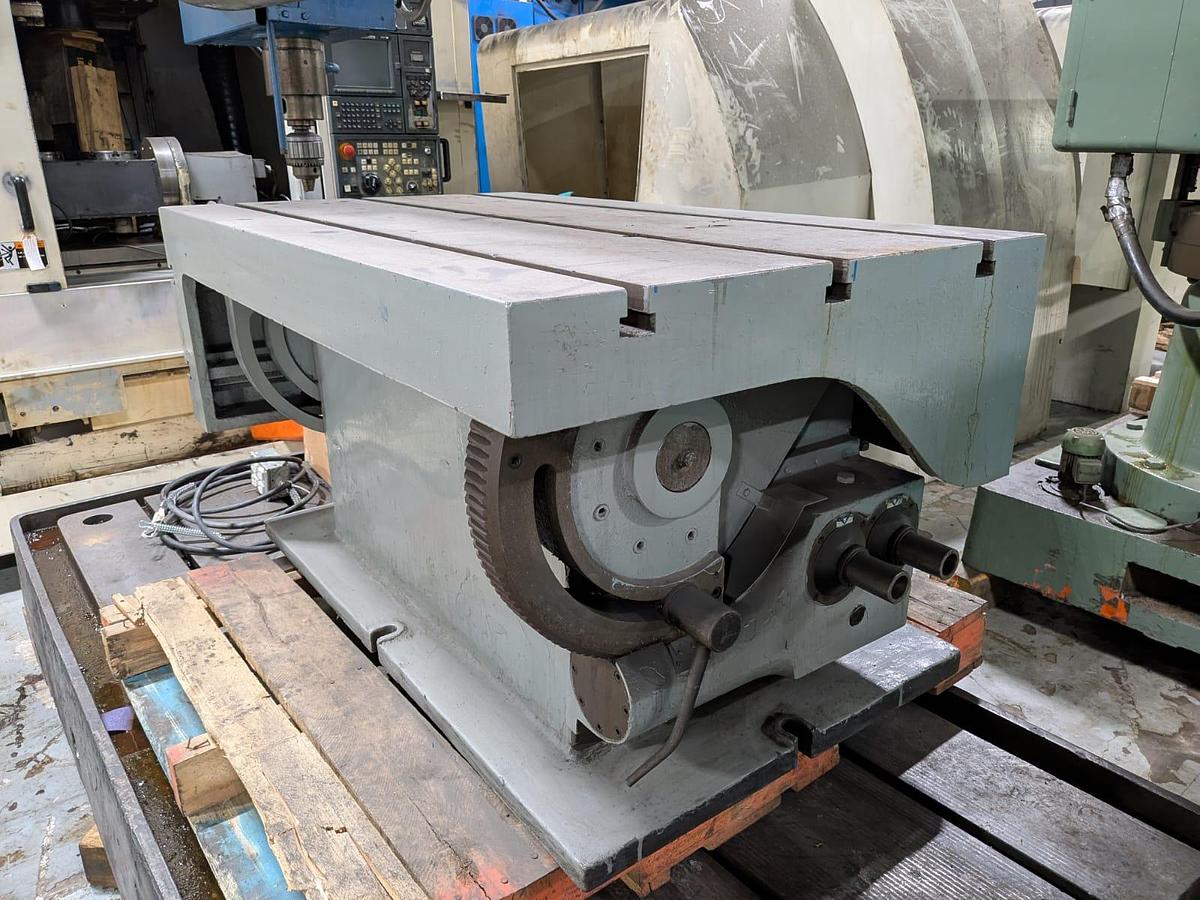

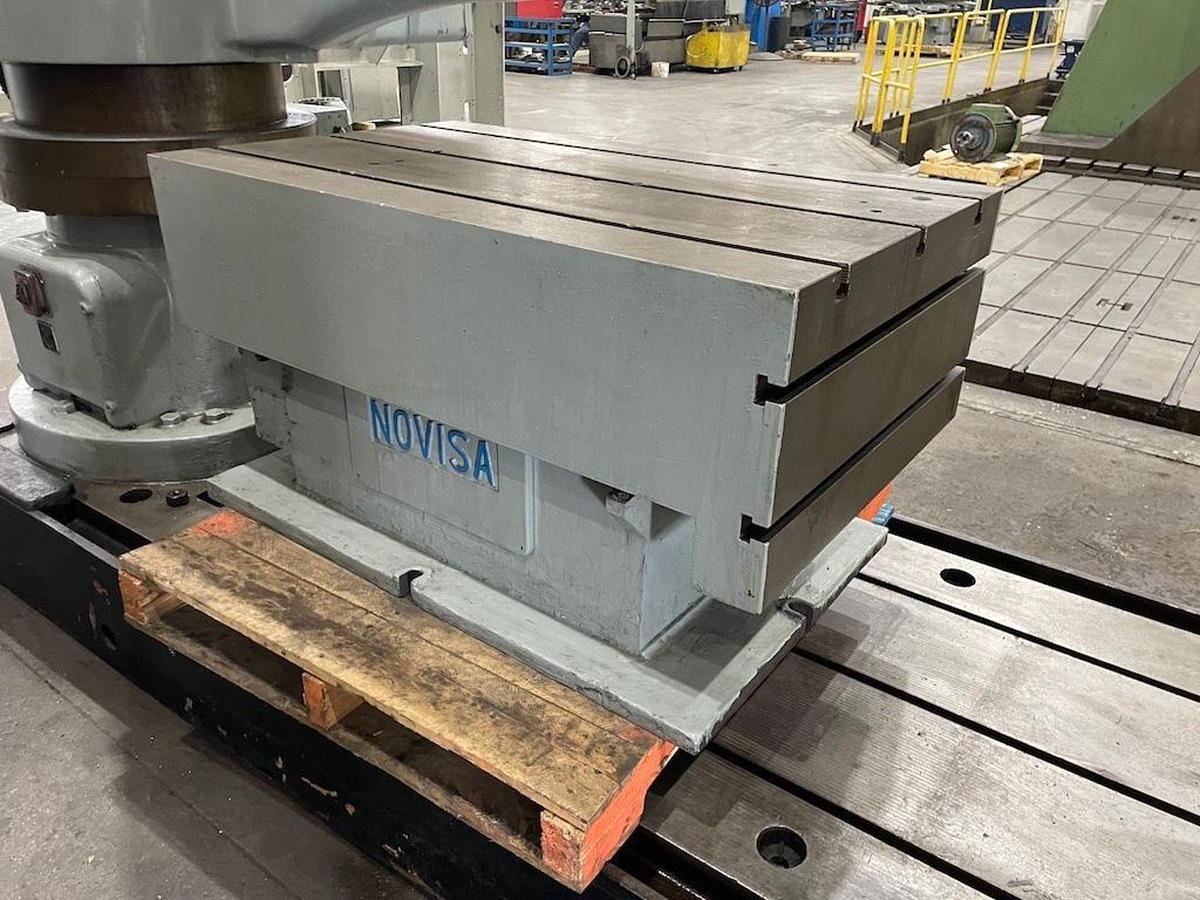

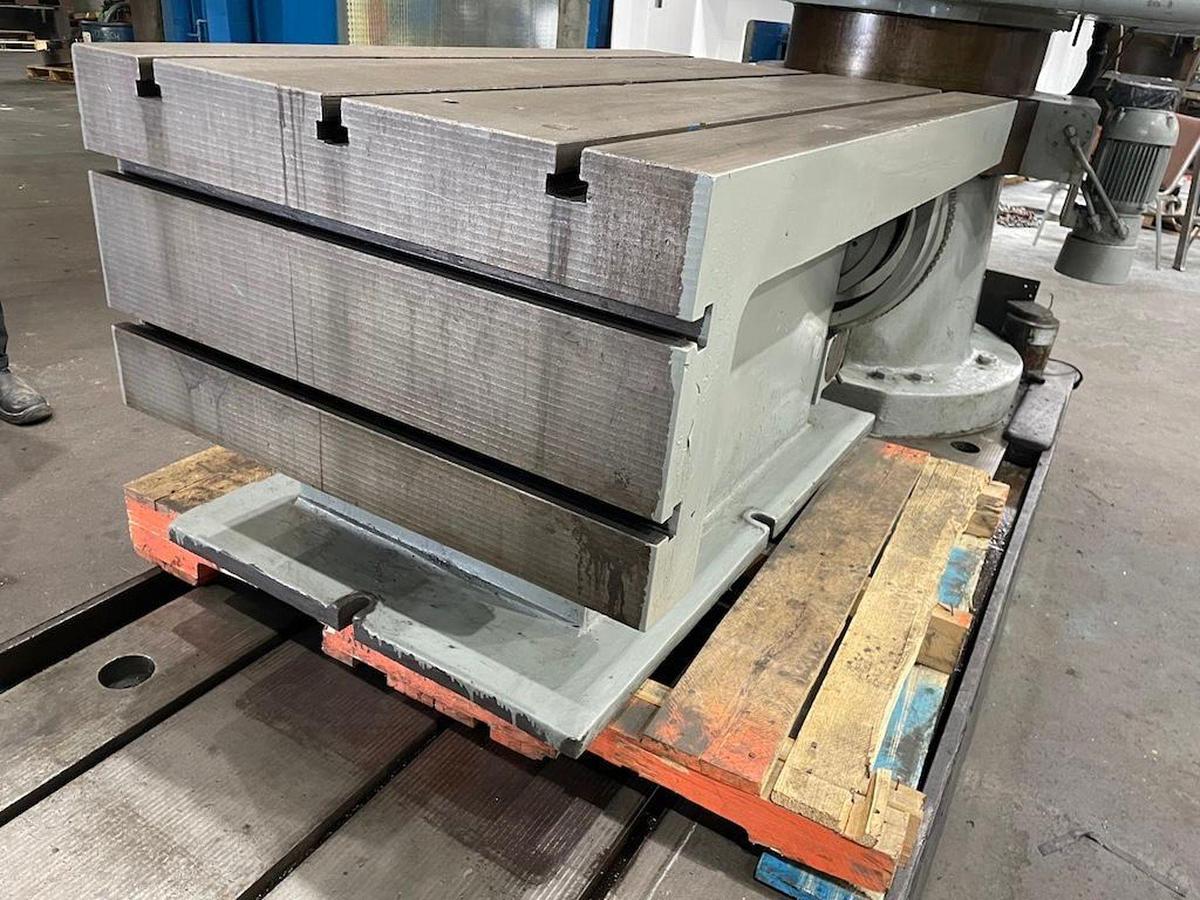

-Adjustable 90 Degree T-Slot Box table (29.5" x 49")
- T-slot base (39" × 105")
- Power elevation arm

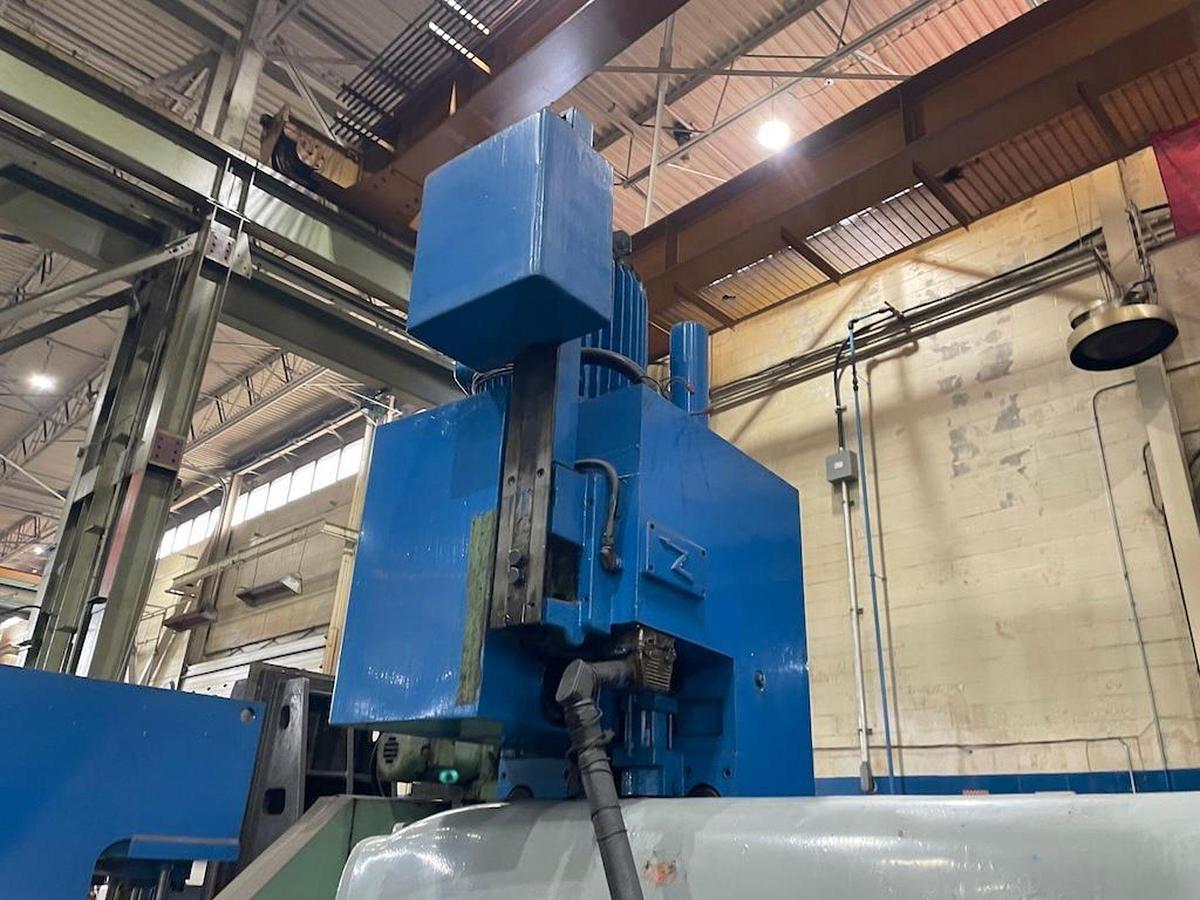

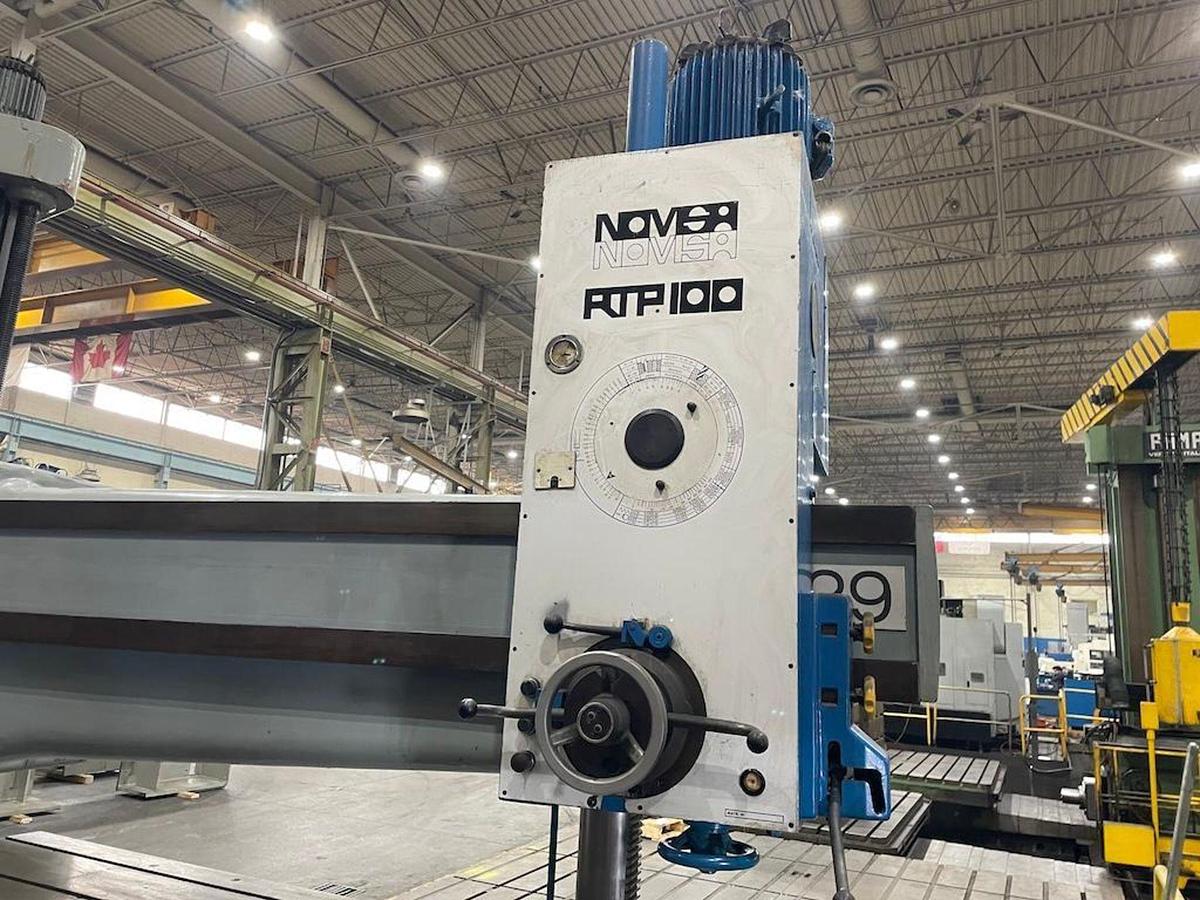

- Adjustable headstock
- Standard drill controls
- Hydraulic head clamping
