PIETRO CARNAGHI AC 25 CNC VERTICAL BORING MILL
PIETRO CARNAGHI AC 25 CNC VERTICAL BORING MILL
Available quantity:1
Description

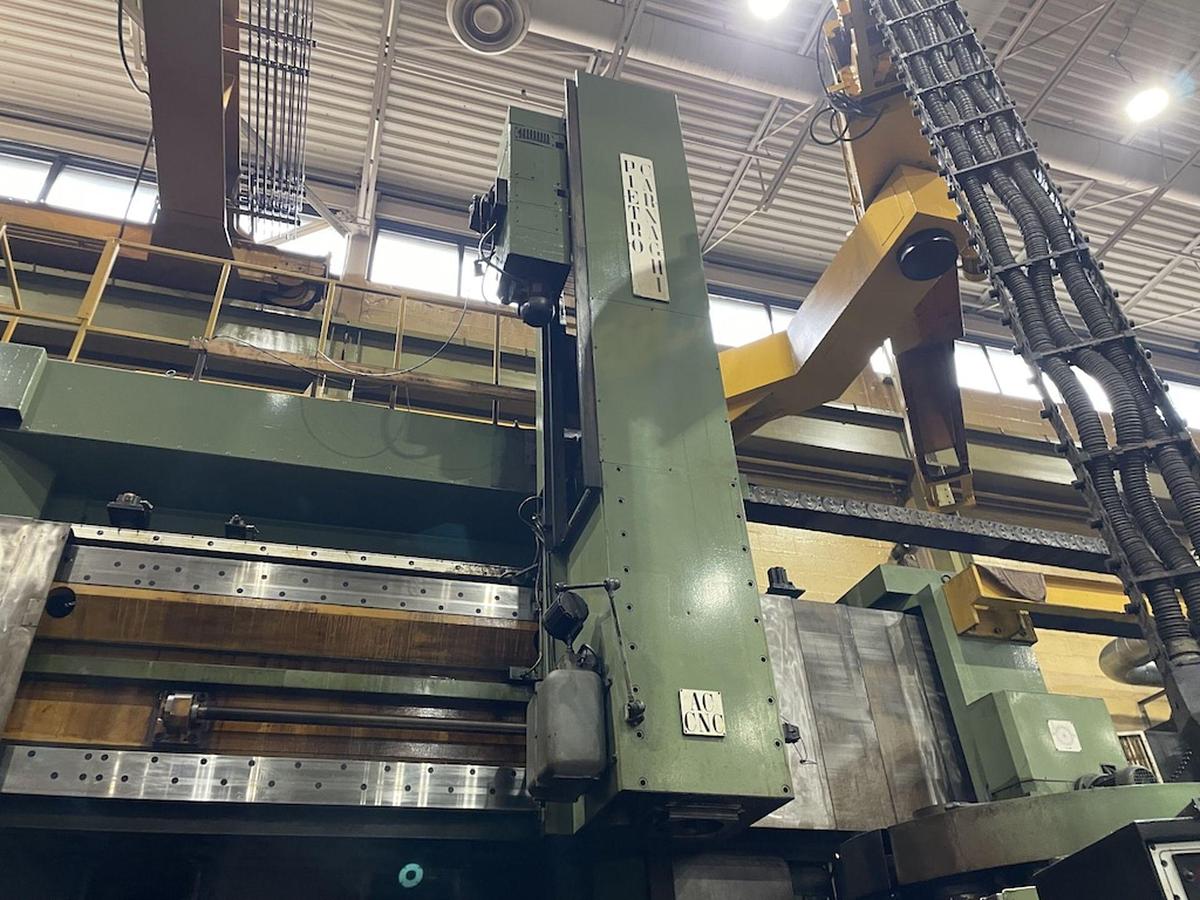

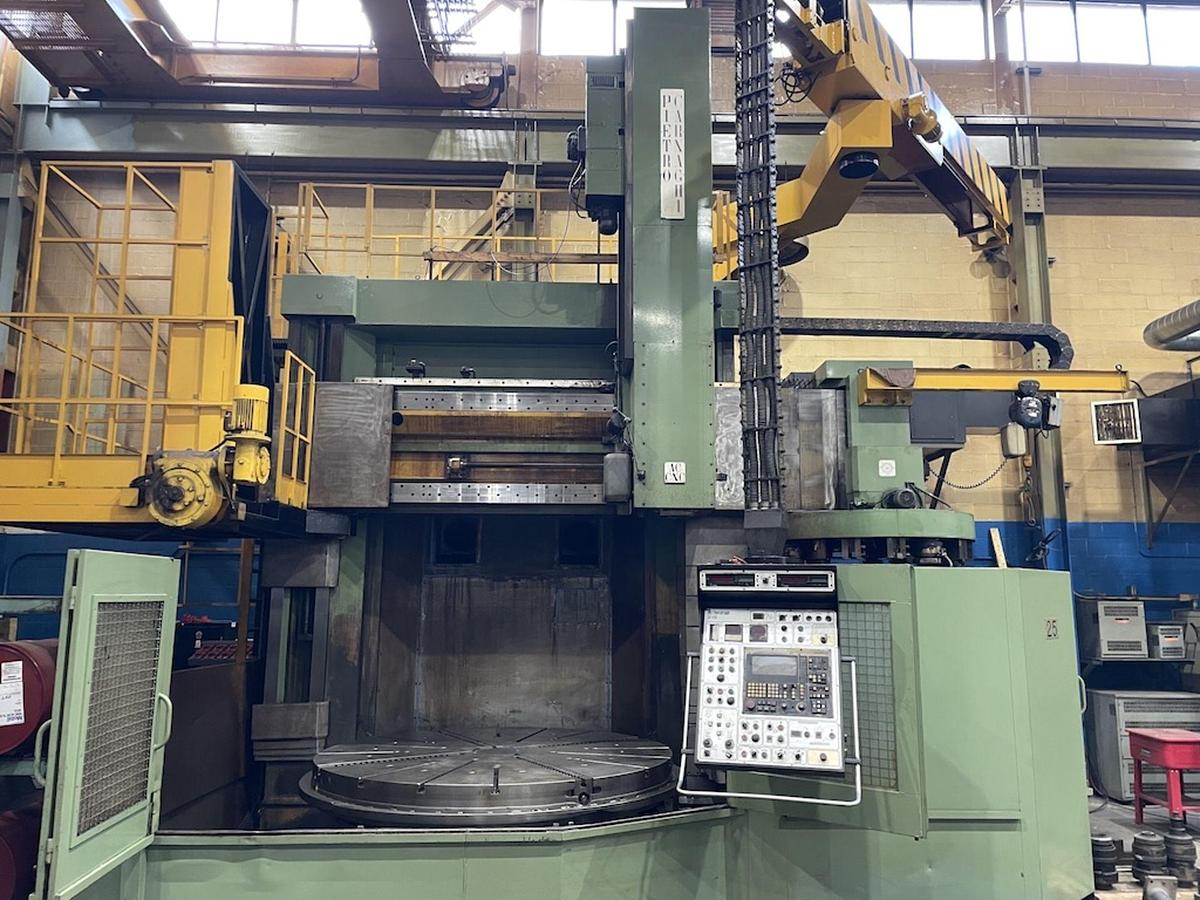

The Pietro Carnaghi AC 25 is a powerful CNC vertical boring mill (VTL) built for large-diameter, heavy-duty machining. Featuring a 98" table with 4-jaw chuck, 118" max turning diameter, and nearly 79" turning height, this machine is ideal for energy, heavy equipment, and large component manufacturing. Equipped with C-axis indexing (0.001°), ISO 50 milling spindle, 16-station ATC, and a right-angle head, the AC 25 offers full turning and milling capability in one setup. Driven by a 100 kW table motor and controlled by Siemens System 8, it delivers exceptional torque, accuracy, and versatility.
Specifications
| Manufacturer | Siemens System 8 |
| Model | AC 25 |
| Condition | Used |
| Stock Number | MAC-VTL-CAR-1 |

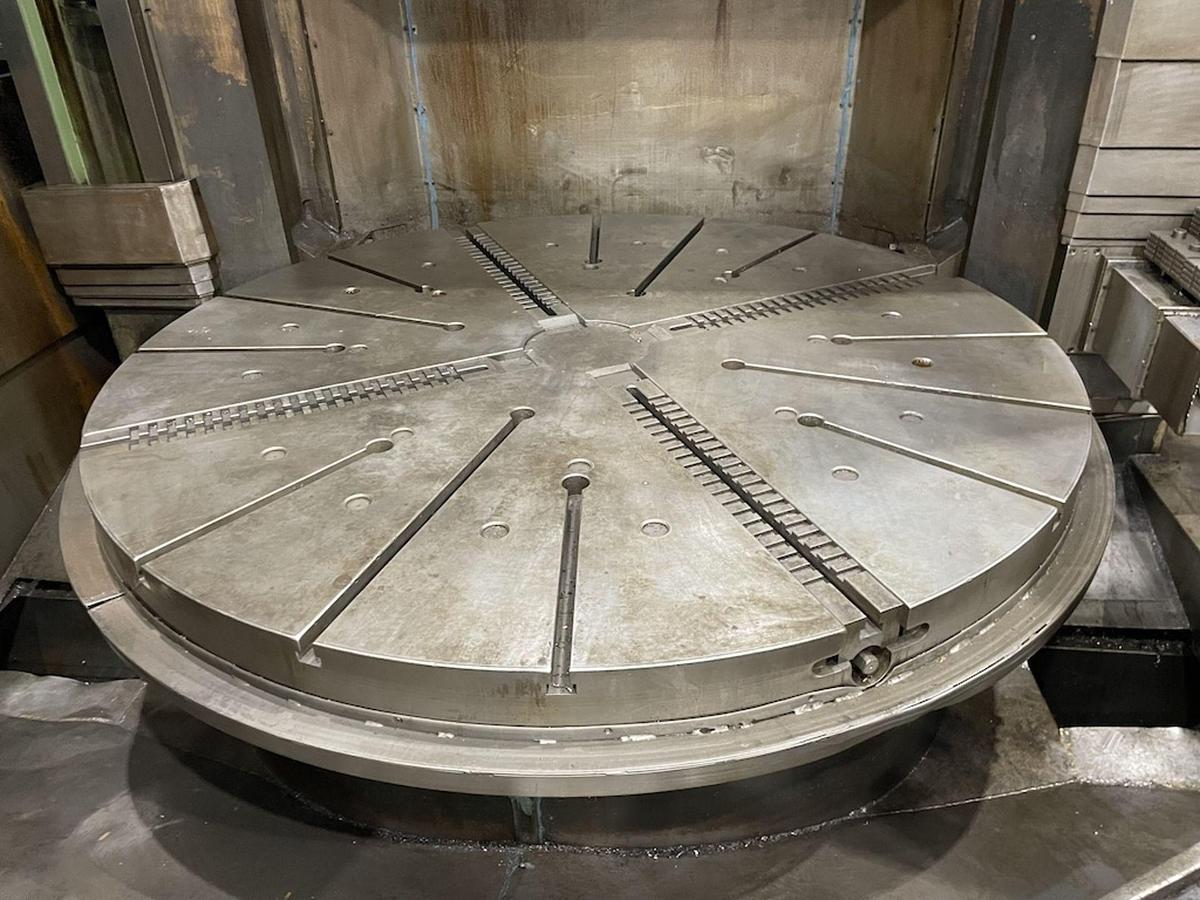

| Table Diameter ( IN ) | 98 |
| Chuck | 98" 4-Jaw |
| Max Turning Diameter ( IN ) | 118.11 |
| Max Height Under Rail ( IN ) | 88.58 |
| Max Turning Height ( IN ) | 78.74 |
| Ram Stroke ( IN ) | 49.21 |
| Ram Cross Section ( IN ) | 9.44 × 9.44 |
| Table Speed ( RPM ) | 2 – 123 (2 Ranges) |
| Table Motor Power | 100 kW |
| C-Axis Indexing | 0.001° |
| Milling Spindle Taper | ISO #50 |
| Milling Spindle Speed ( RPM ) | 0 – 1000 |
| Milling Spindle Motor | 24 HP |
| ATC Capacity | 16 Stations |
Equipped With

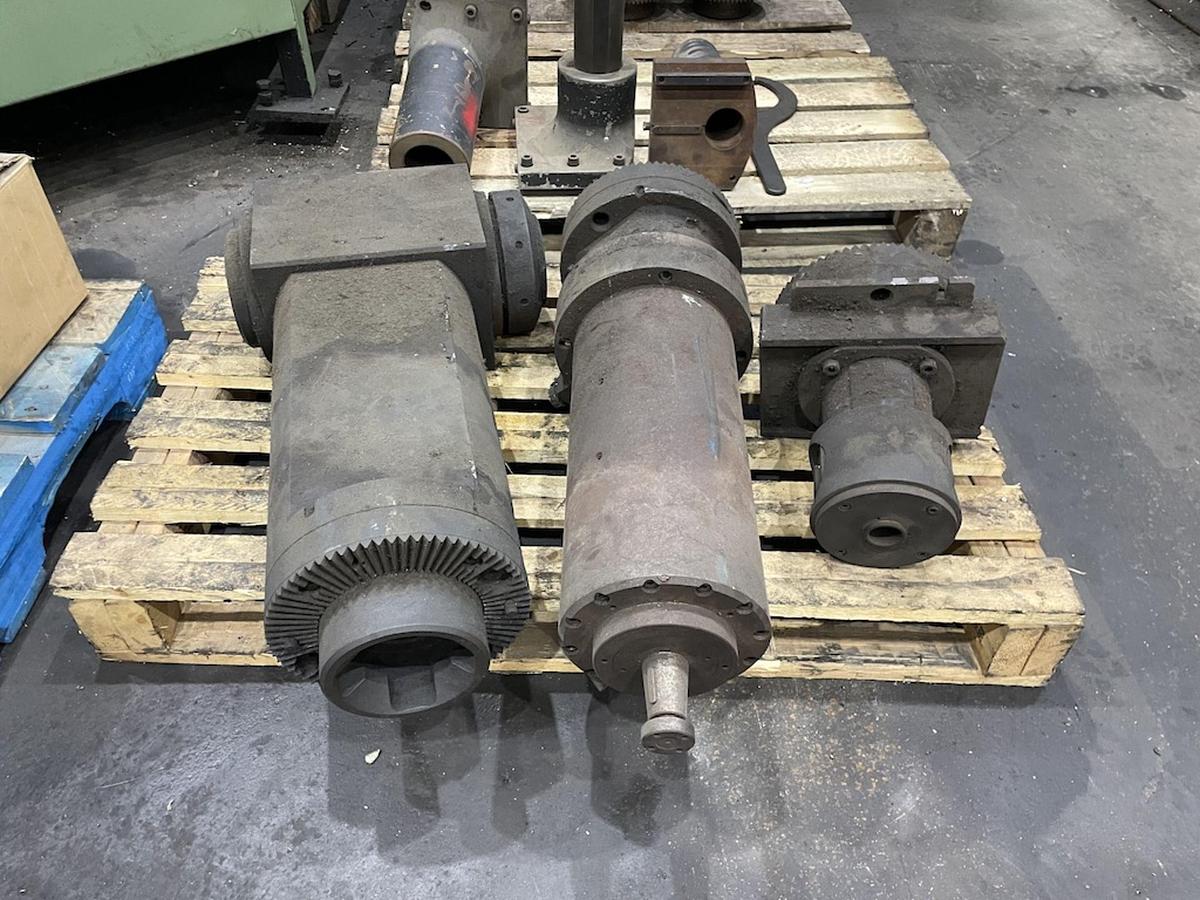

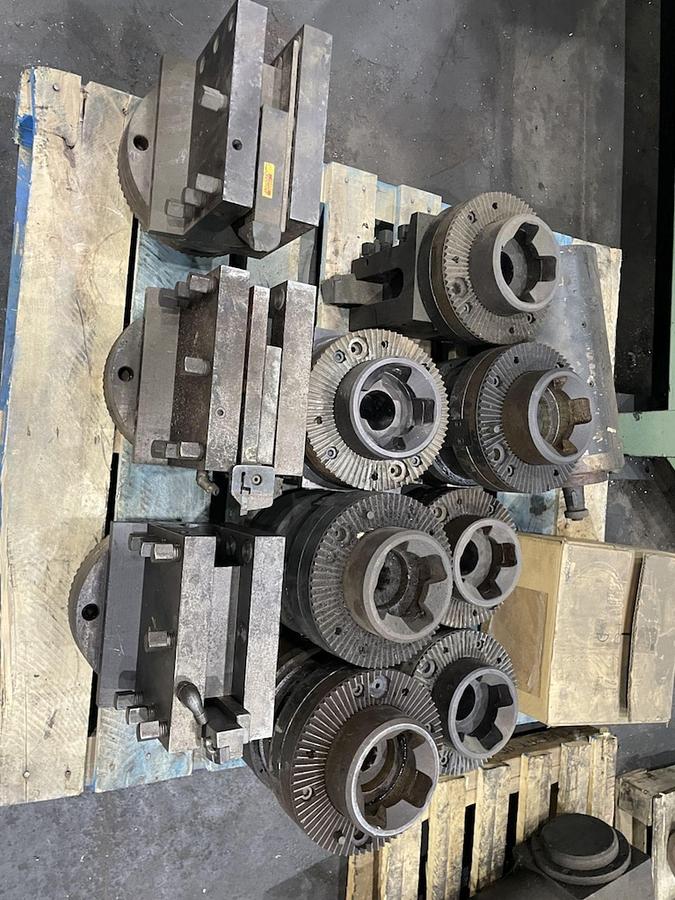

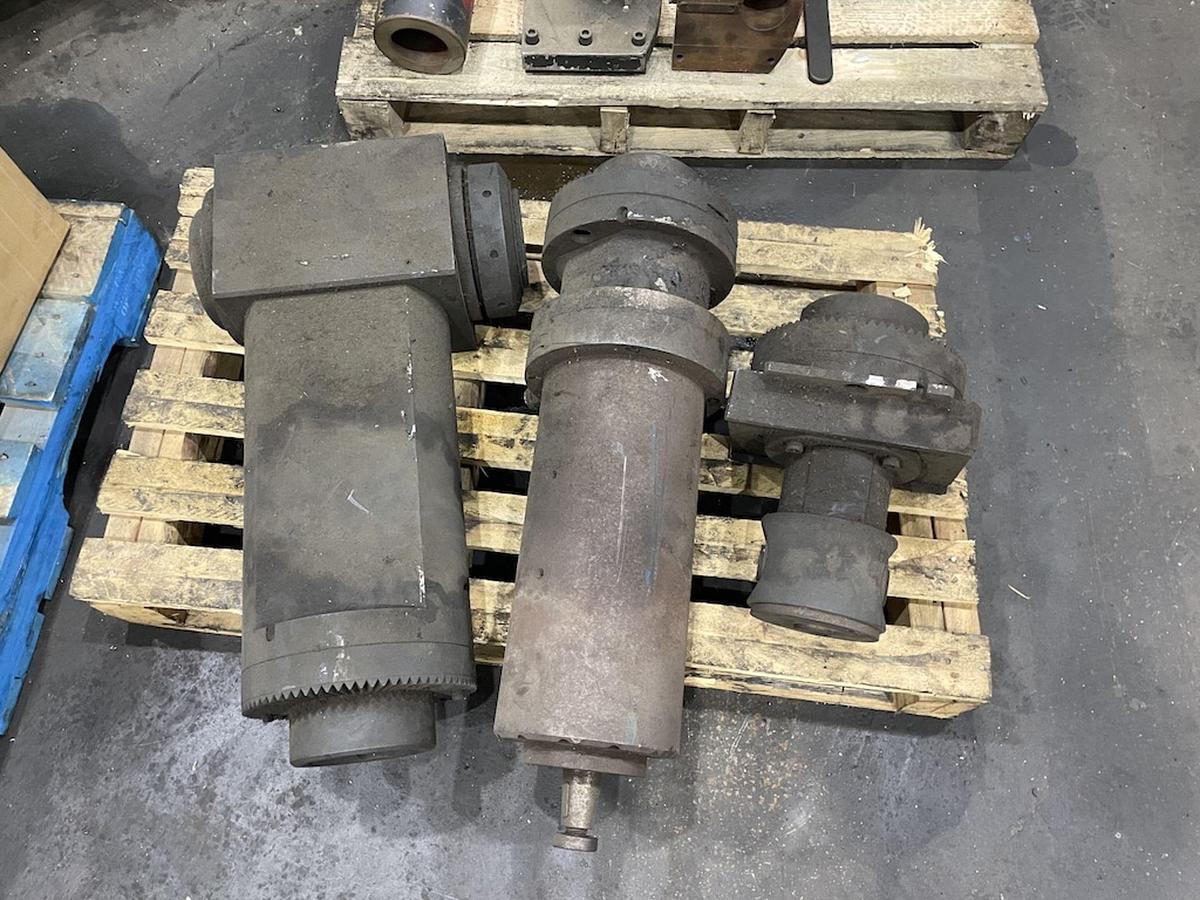

• Right angle head

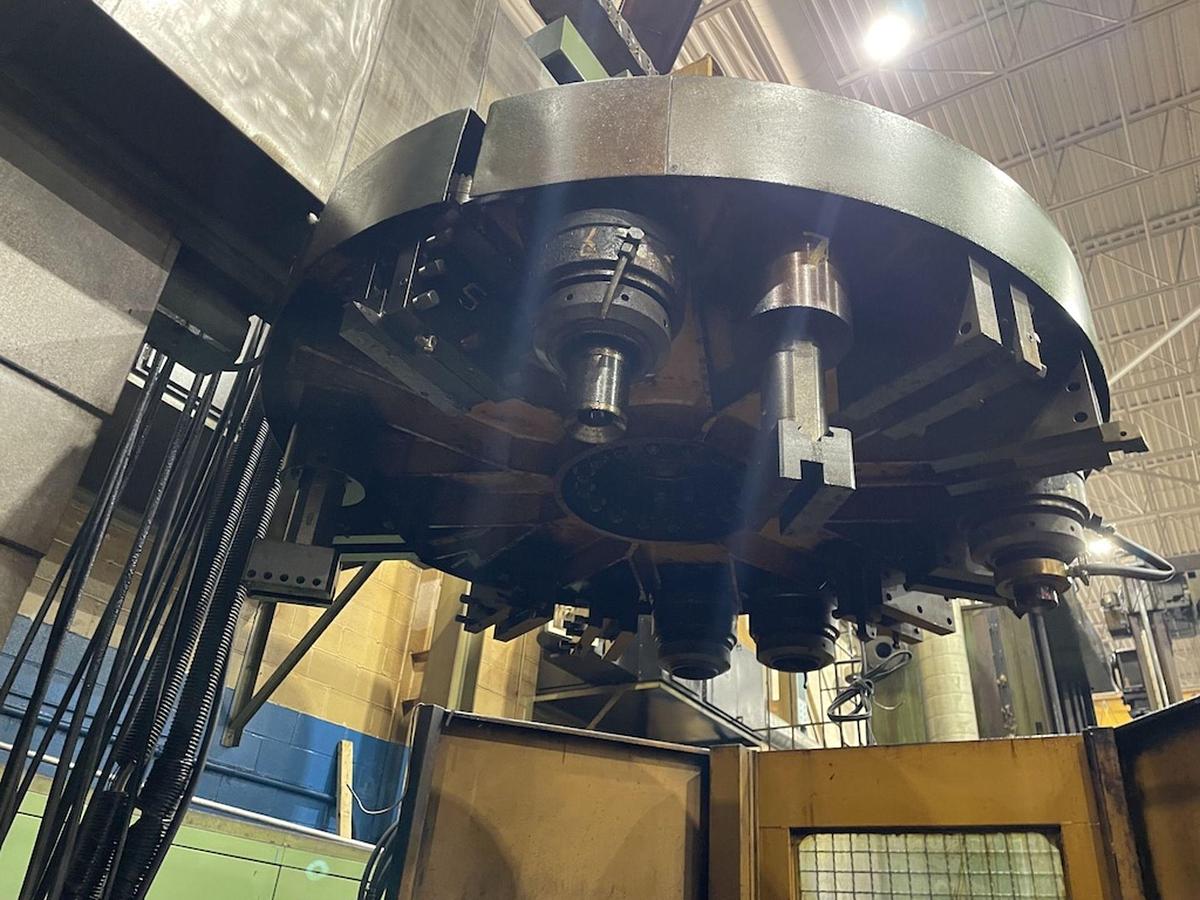

• 16-station automatic tool changer
• Heidenhain DRO

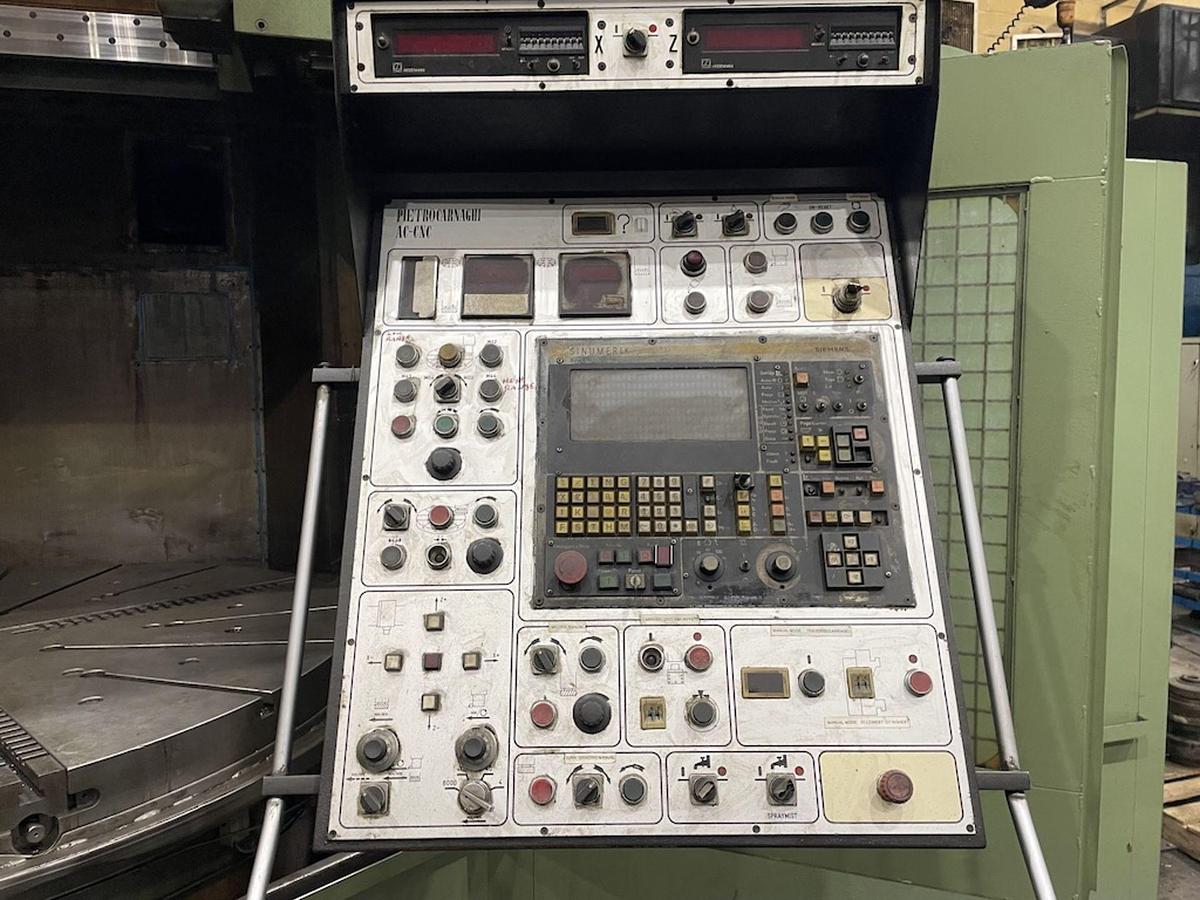

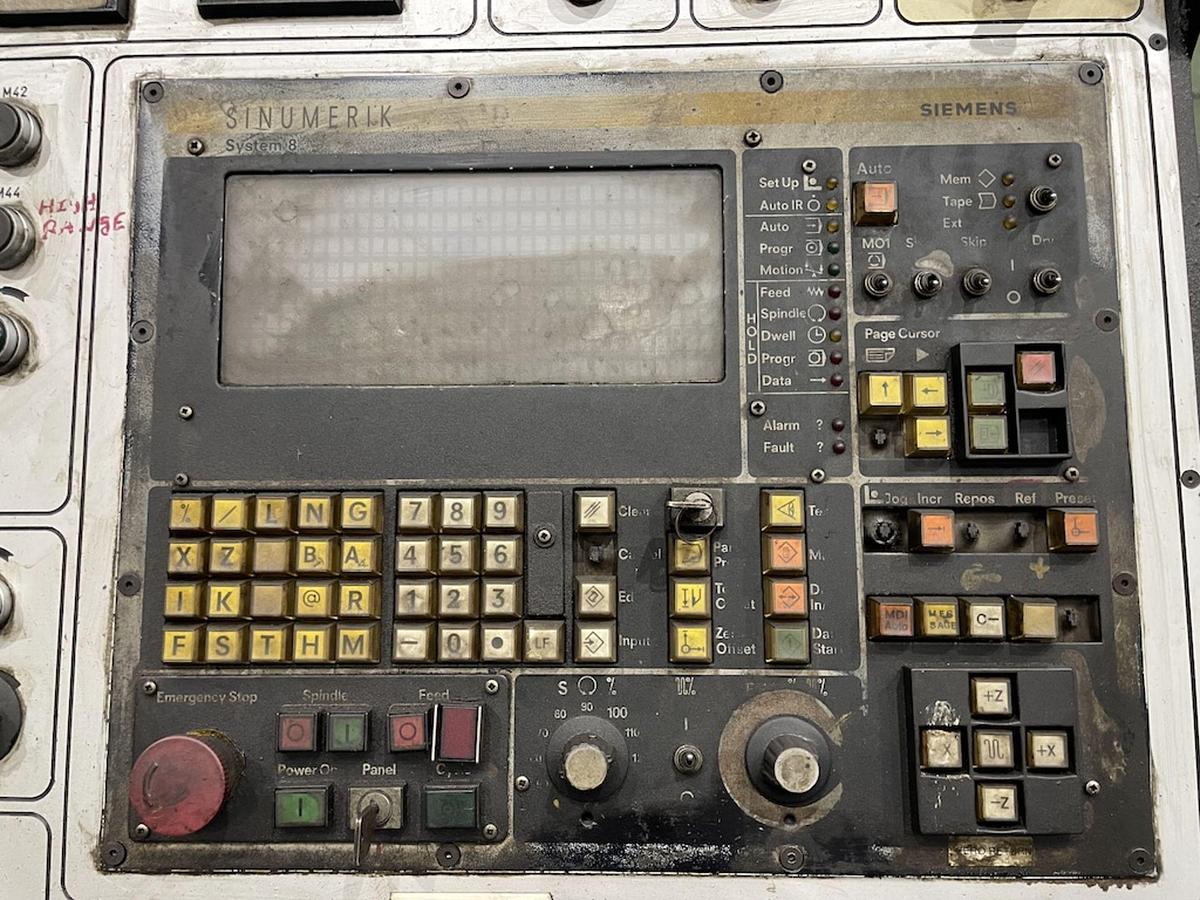

• Siemens System 8 CNC controls
