Novisa FRP-80
Novisa FRP-80
Available quantity:1
Description
The Novisa FRP-80 is a robust radial drilling machine designed for large and heavy workpieces. Featuring a heavy-duty round column, and a large T-slot cast base,along with T-Slot Box table (25" x 39") this drill offers excellent reach, rigidity, and versatility for fabrication and maintenance shops. With power arm elevation, an adjustable headstock, and standard drill controls.
Specifications
| Manufacturer | Novisa |
| Model | FRP-80 |
| Condition | Used |

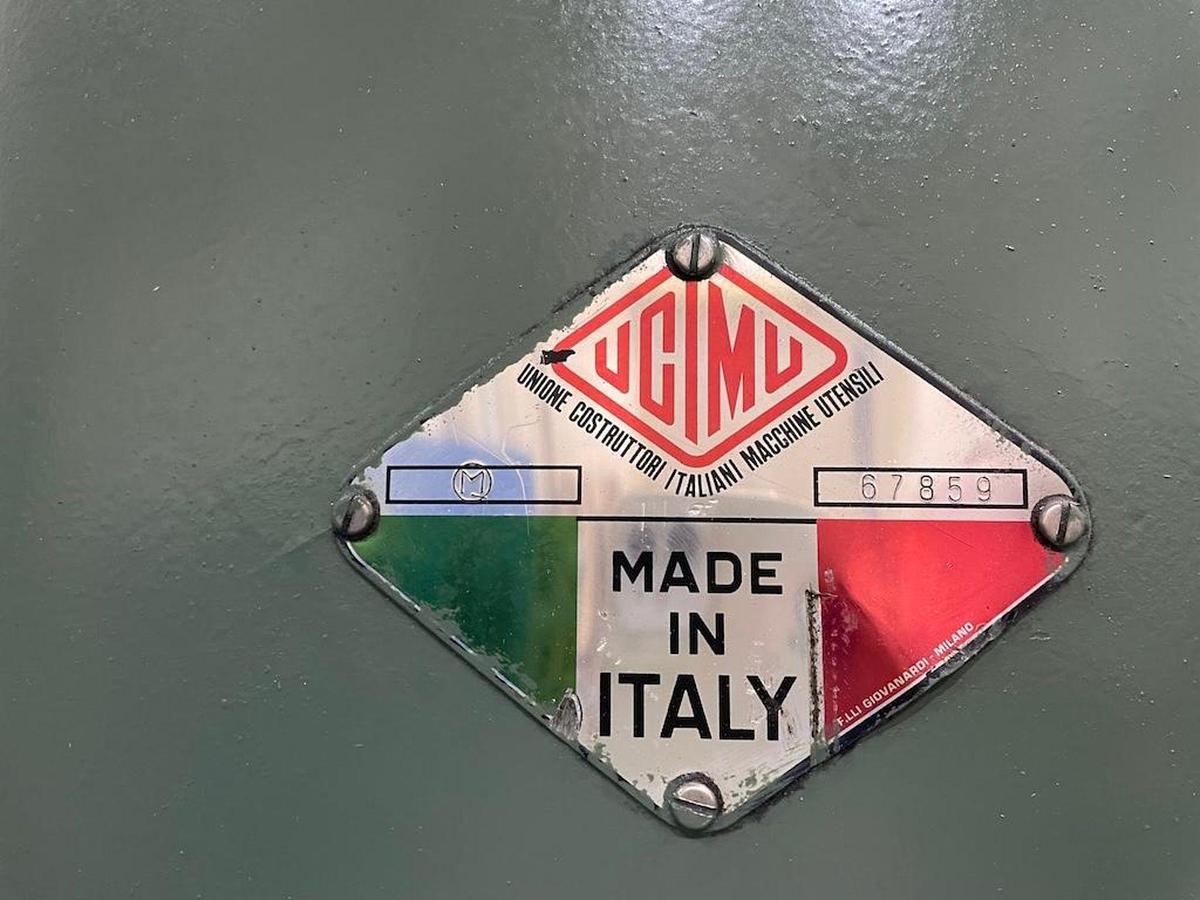

| Serial Number | 67859 |
| Stock Number | MNL-NOV-7859 |
| Column Diameter | 19.5" |
| Max. Distance between Spindle Center and Column Center | 86.75" |
| Min. Distance between Spindle Center and Column Center | 23.75" |
| Max Distance between Spindle center and column face | 77" |
| Min Distance between Spindle center and column face | 14" |
| Column Height | 19.5" |
| Max. Height from spindle head to base | 143.25" |
| Base Floor Space | 123"x43.5" |
| Base Height | 10" |
| Spindle head longitudinal travel | 61.5" |
| Vertical Arm Travel | 46" |
| Table Top | 39.25" x 31.5" |
| Table Side | 39.25" x 24.75" |

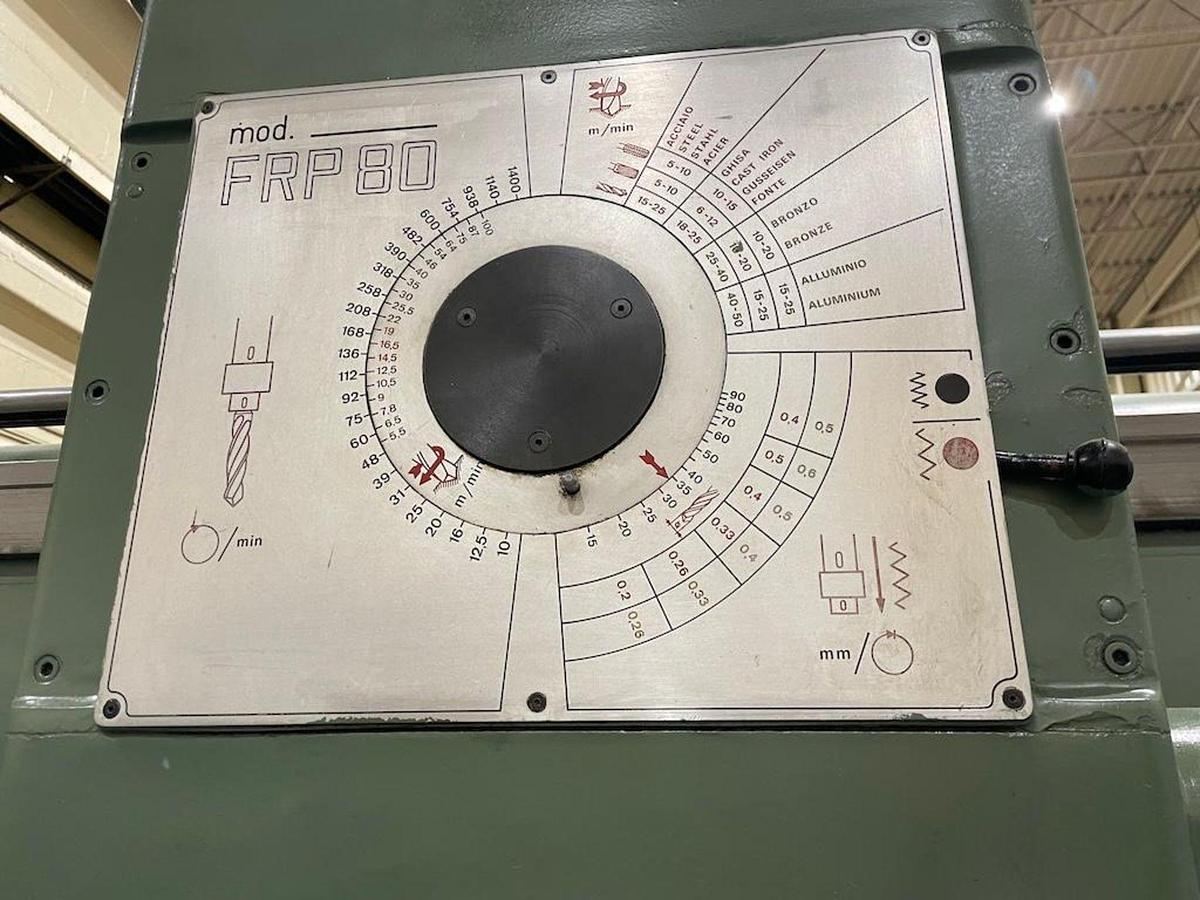

| Spindle Feed Range | 0.2 to 0.5 mm |
| Spindle Speed Range | 10-1400 RPM |
| Main Motor | 10 HP |
| Arm Elevating Motor | 5.5 HP |
| Input Voltage | 220/380V |
| Overall Dimensions | 123" x 43.5" x 143.25" |
Equipped With
-Adjustable Headstock

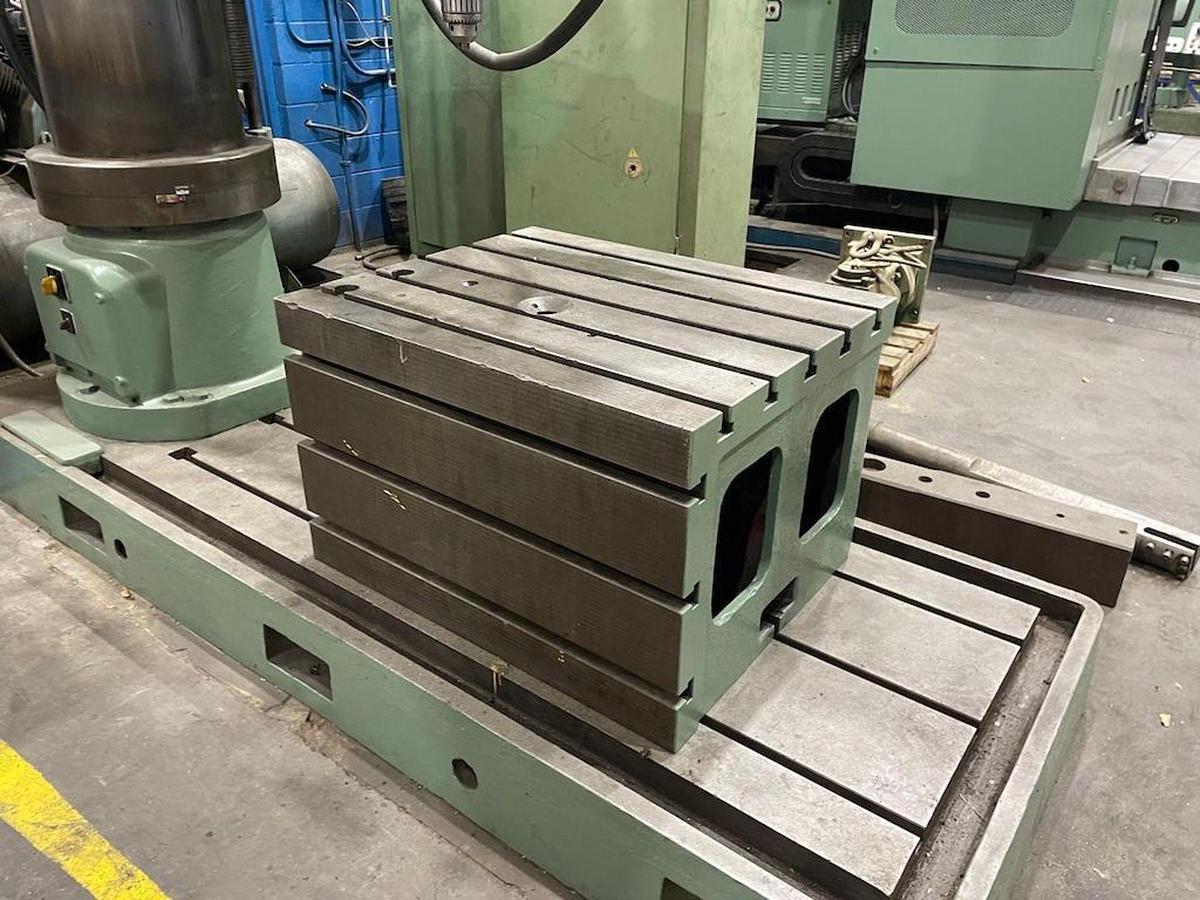

-34.5" x 84" T-Slot Base

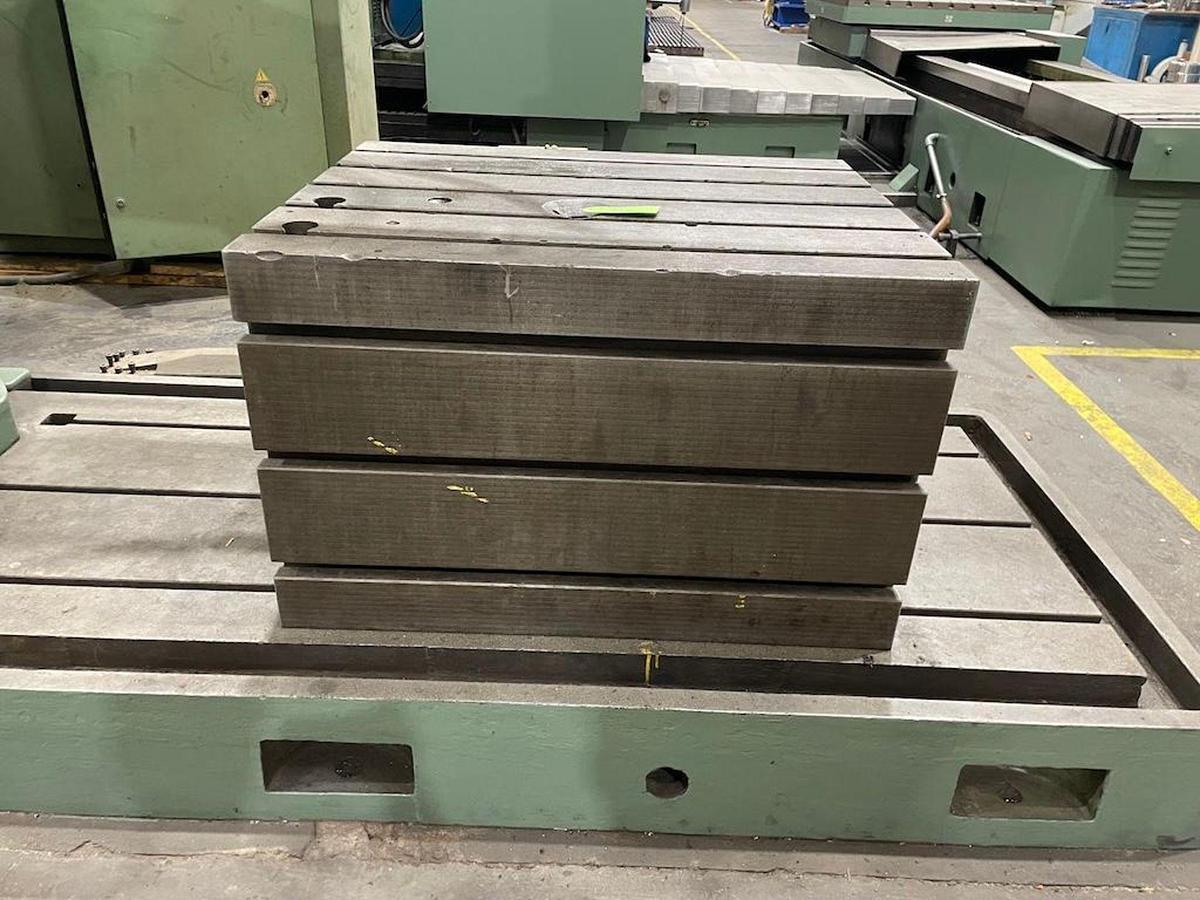

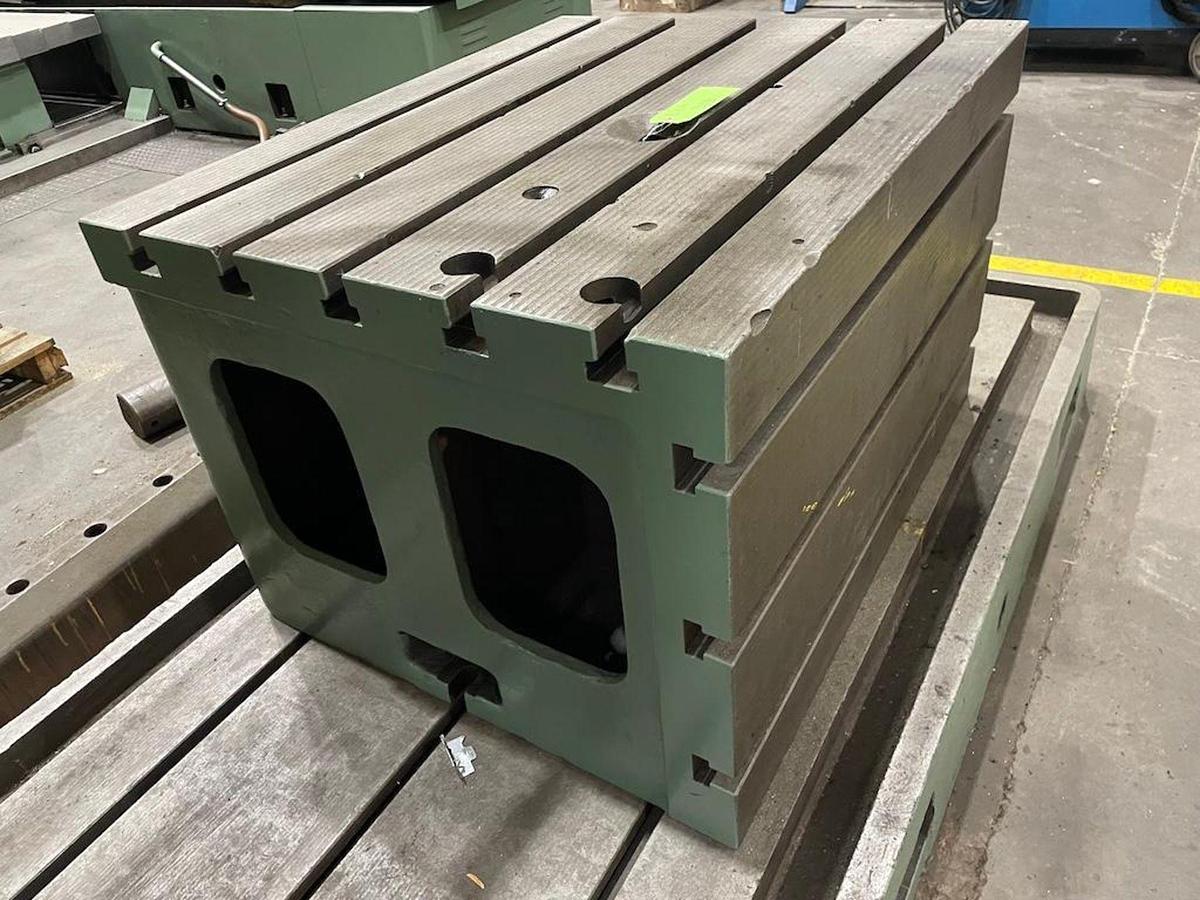

-Dual Face T-Slot table
-Hydraulic Head Clamping
