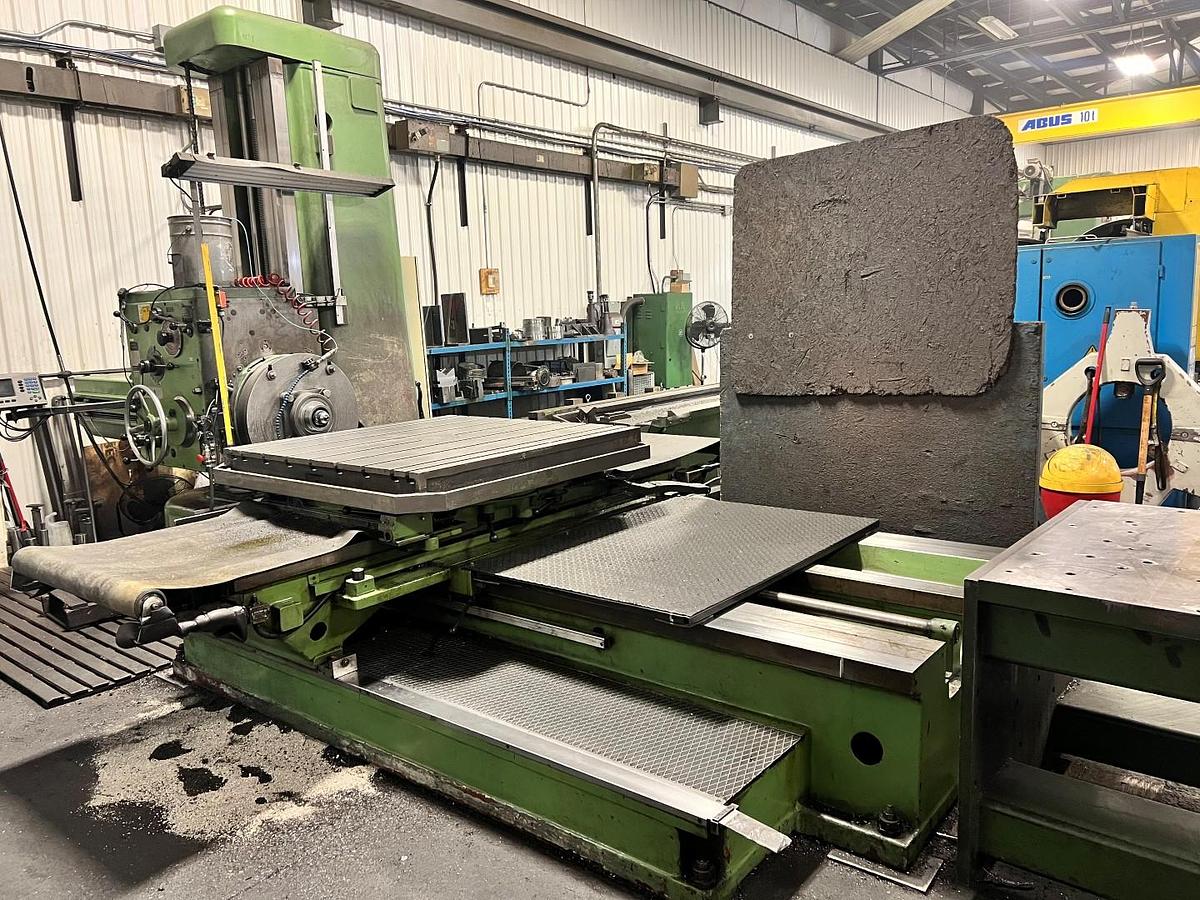

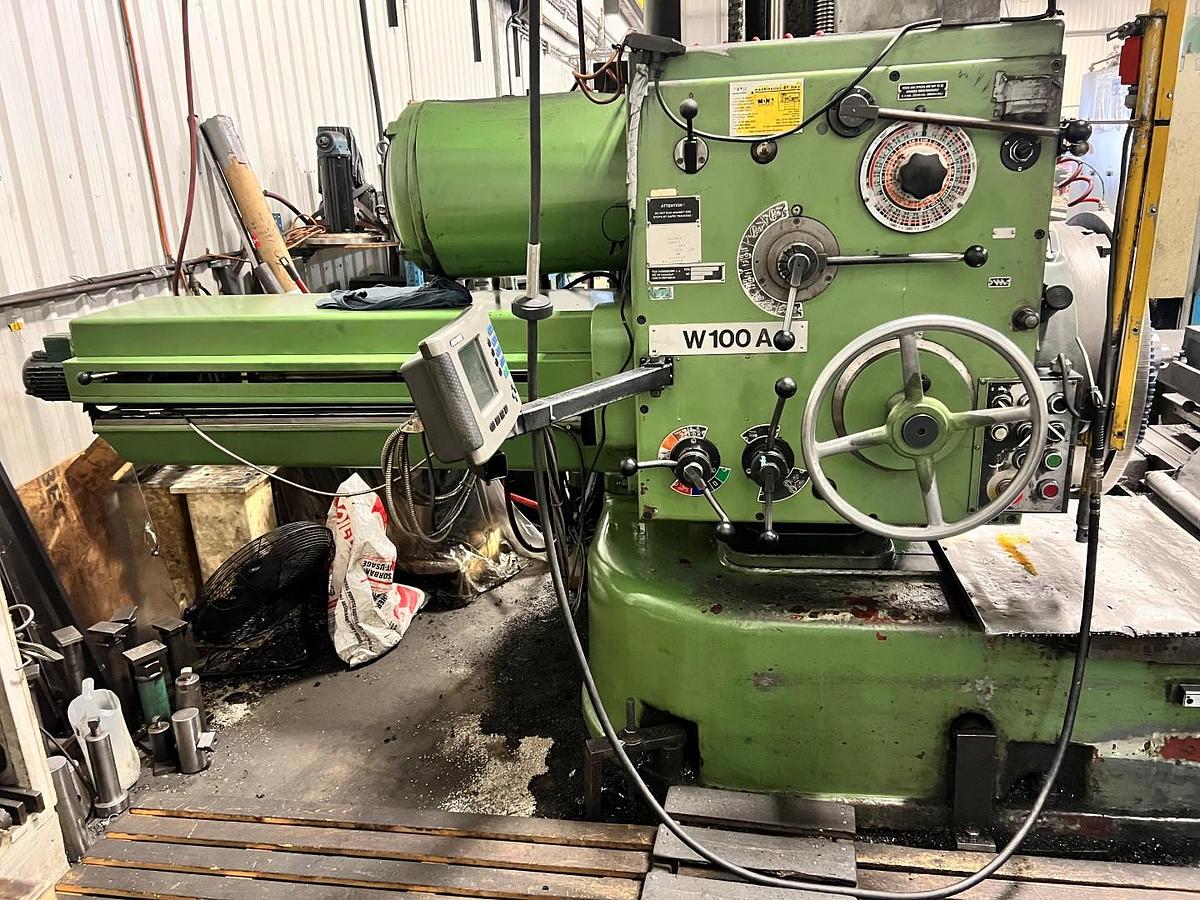

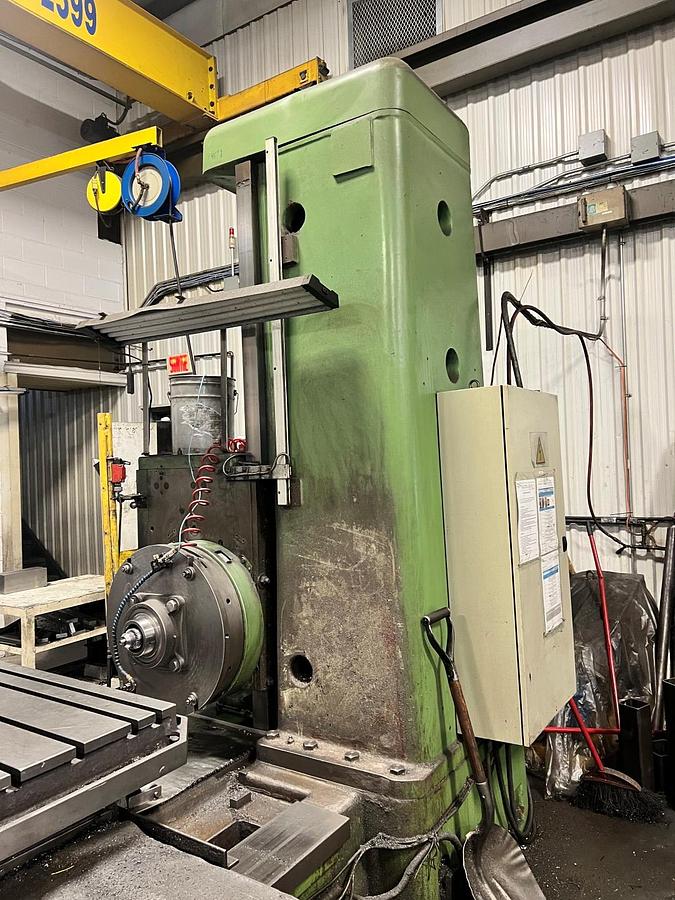

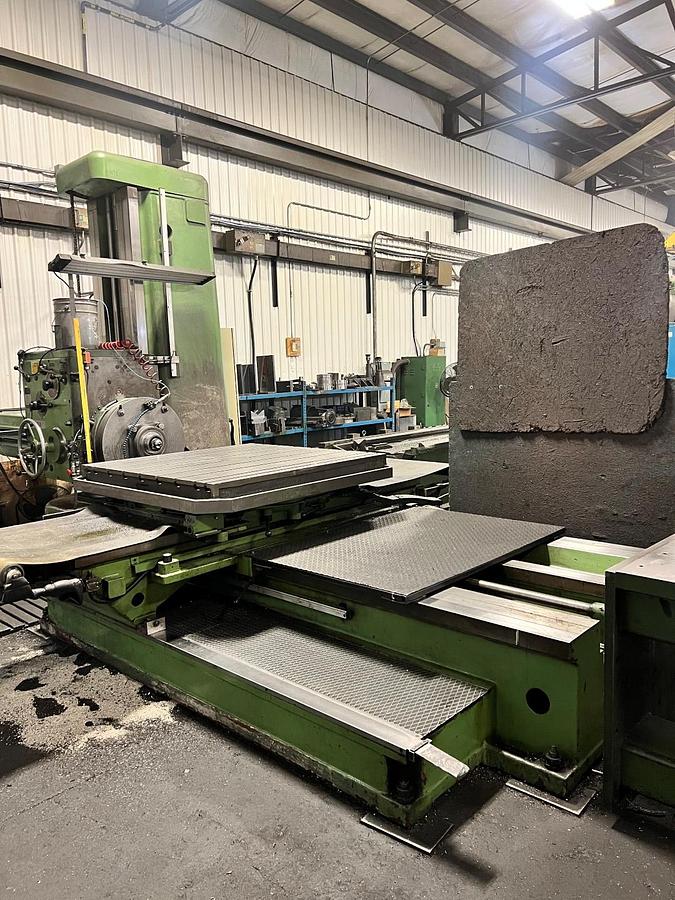

TOS W-100A Horizontal Boring Mill
TOS W-100A Horizontal Boring Mill
Available quantity:1
Description
The TOS W100A Horizontal Boring and Milling Machine is a heavy-duty, precision-engineered solution for large-scale machining. Equipped with a 100 mm spindle diameter and Morse 6 taper, this machine delivers reliable performance for demanding industrial applications. Featuring a 1250 x 1250 mm table with a 3000 kg load capacity, it offers generous travel distances (X: 1250 mm, Y: 1600 mm, Z: 1180 mm) to handle oversized components with accuracy. With 23 spindle speed ranges (7.1 – 1120 RPM) and 32 feed rates, plus a Acu-Rite DRO, the TOS W100A ensures versatility, control, and efficiency. Built to last with a net weight of approx. 17,500 kg, this horizontal boring mill is ideal for shops seeking durability, precision, and productivity in one machine.
Specifications
| Manufacturer | TOS |
| Model | W-100A |
| Condition | Used |
| Stock Number | MAC-MNL-TOS-1111 |
| Spindle Diameter | 100 mm (3.94 in) |
| Spindle Taper | ISO 50 |
| Spindle to Table Distance | 1120 mm (44.09 in) |
| Max Distance Between Faceplate and Back Rest | 2800 mm (110.23 in) |

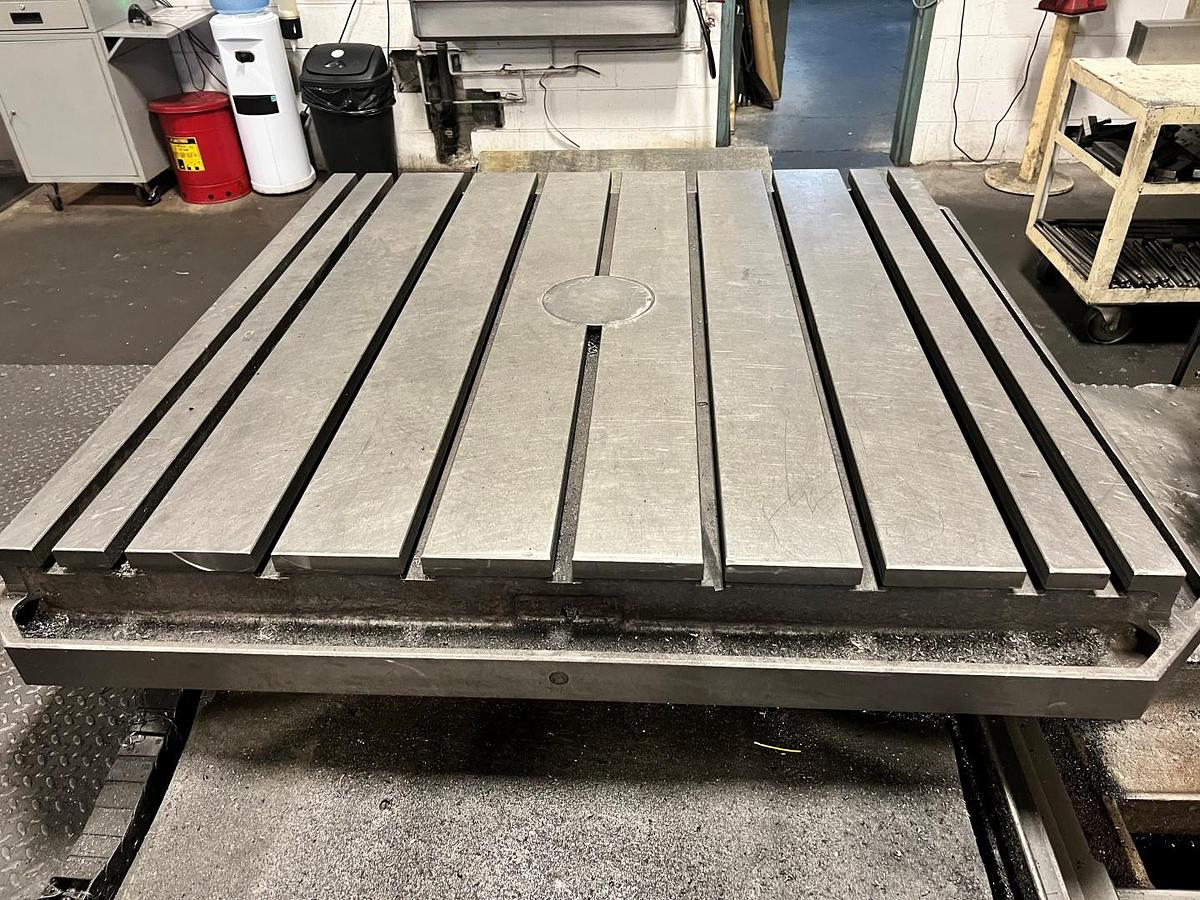

| Table Size | 1250 x 1250 mm |
| Max Permissible Loading of Table | 3000 kg (6600 lbs) |
| X- Longitudinal Travel of Saddle | 1250 mm (49.21 in) |
| Y- Vertical Travel of Spindle Head | 1180 mm (46.5 in) approx |
| Z- Cross Travel of Table | 1600 mm (63 in) |
| Spindle Speeds | 23 ranges, 7.1 – 1120 RPM |
| Feeds | 32 feed rates, 0.000787 – 0.4724 in/rev; multiple power feeds |
| Approx. Weight | ≈ 17,500 kg (38,500 lbs) |
Equipped With

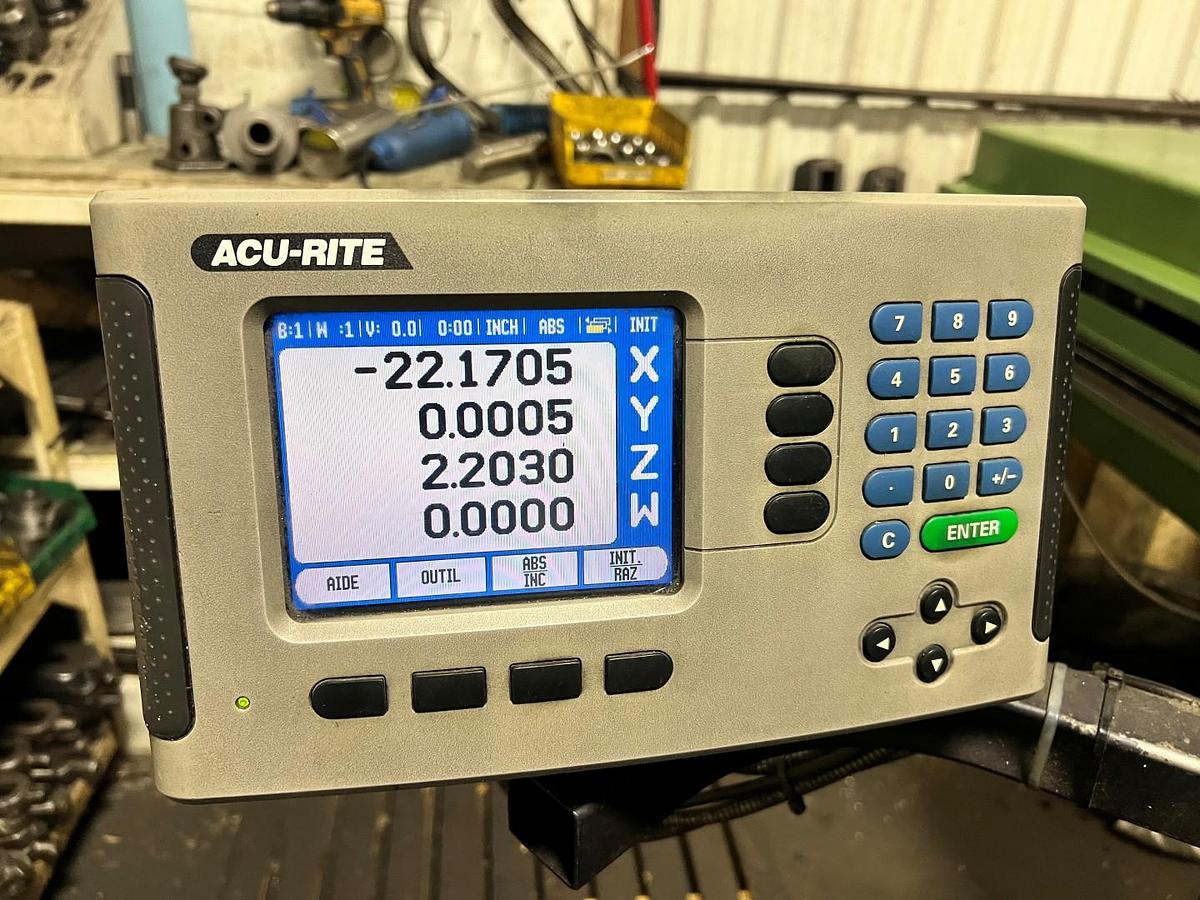

4 Axis Acu-Rite DRO

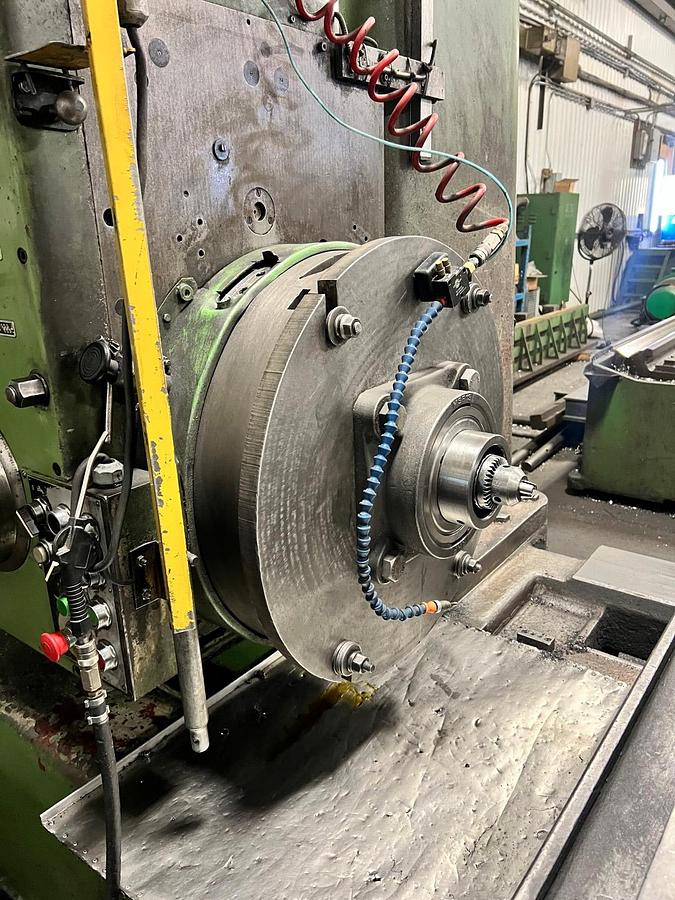

Built-in Facing head
Built-in Rotary table
