2012 Hyundai HIT-180
2012 Hyundai HIT-180
Available quantity:1
Description

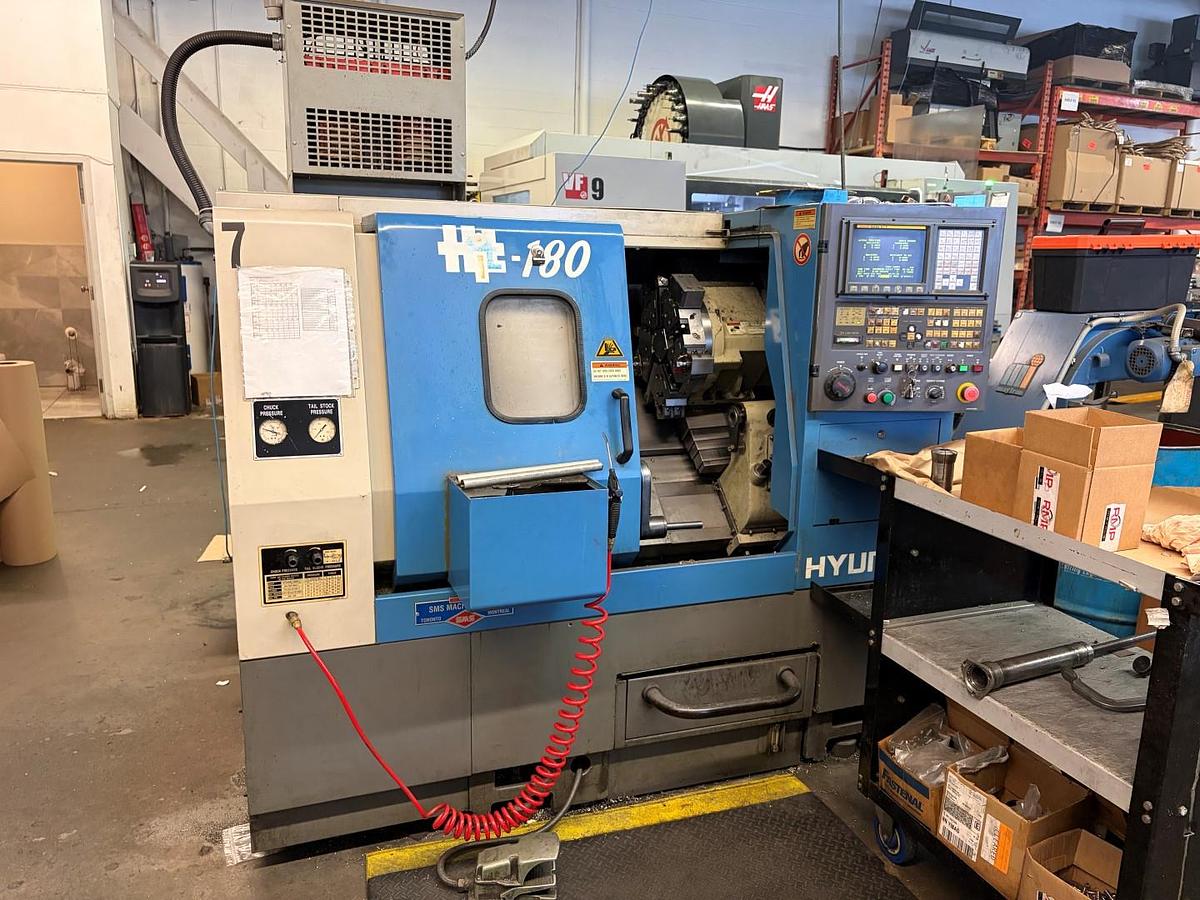

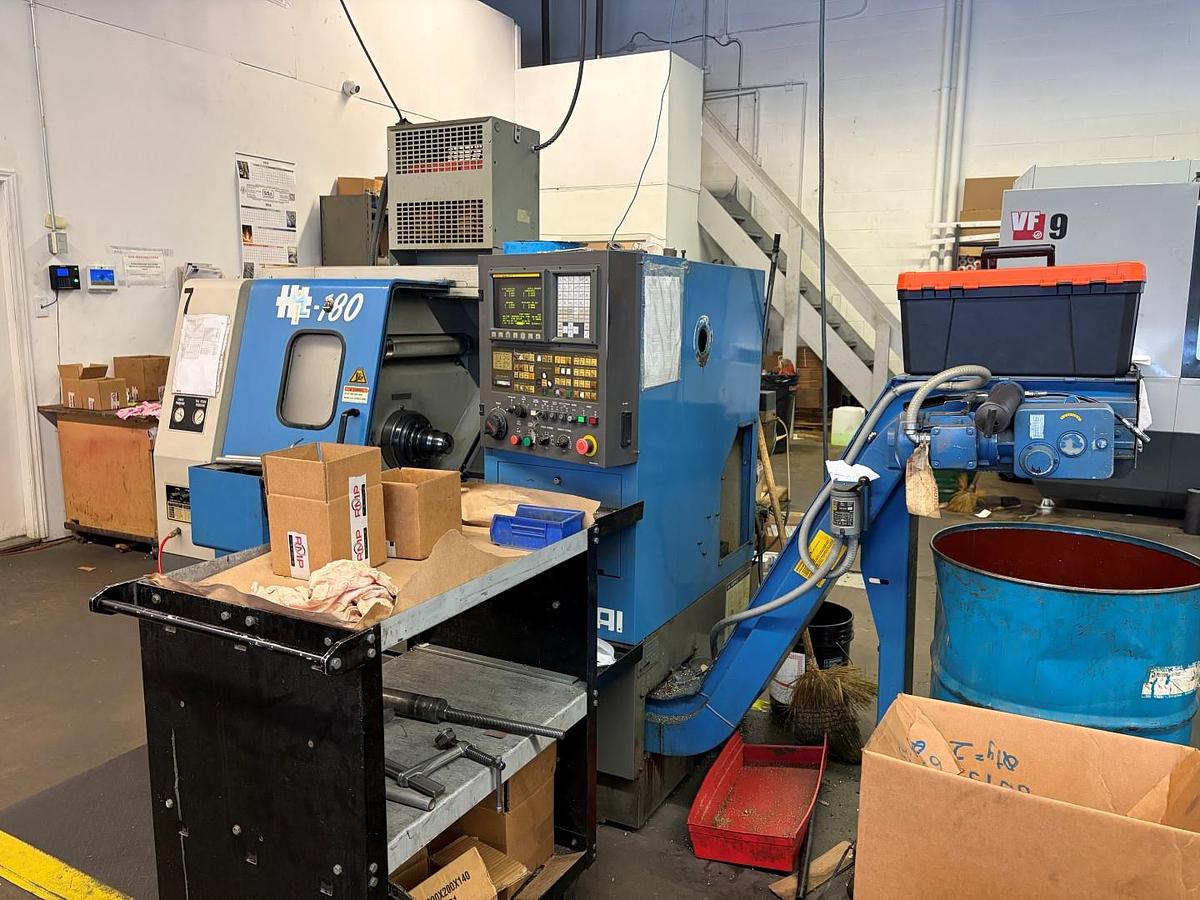

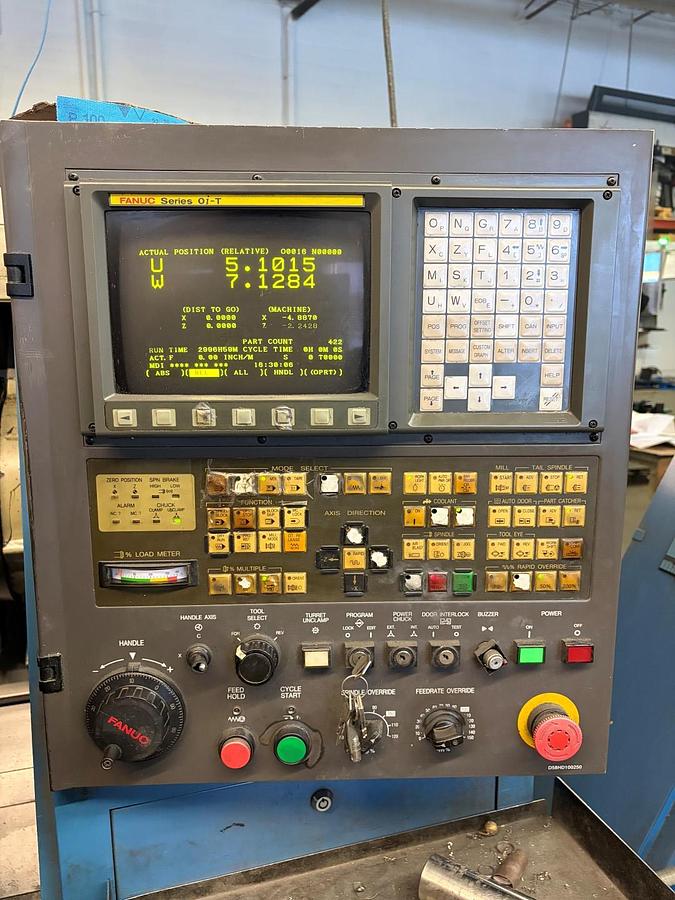

The Hyundai HIT-180 is a compact and reliable CNC turning center built for precision machining and production work. Equipped with a Fanuc Series Oi-T control, this machine features an 11" maximum turning diameter and length, 2" bar capacity, and a high-speed 5,000 RPM A2-6 spindle. Fast rapids up to 1181 IPM, a 12-position turret, and solid construction make it ideal for job shops and small-part manufacturing. Includes chip conveyor, coolant tank, splash guard, hydraulic pressure interlock, and complete manuals.
Specifications
| Manufacturer | Hyundai |
| Model | HIT-180 |
| Year | 2012 |
| Condition | Used |

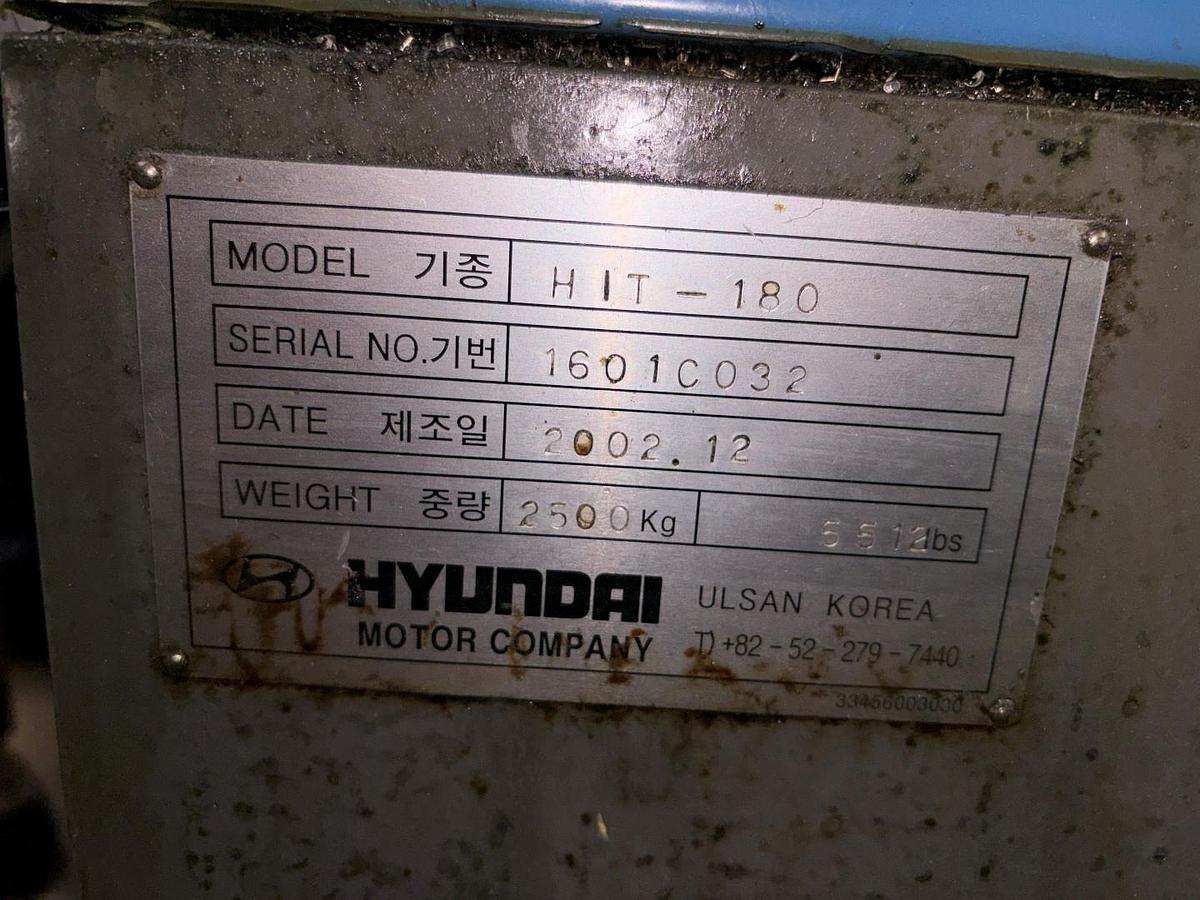

| Serial Number | 1601C032 |
| Stock Number | MAC-LTH-HYN-C032 |
| Swing Over Bed | 18.9 IN |
| Maximum Turning Diameter | 11.02 IN |
| Maximum Turning Length | 11.02 IN |
| Bar Capacity | 2 IN |
| X-Axis Travel | 6.5 IN |
| Z-Axis Travel | 13 IN |
| Max Spindle Speed | 5000 RPM |
| Rapid Traverse Rate, X, Z | 1181 IPM |

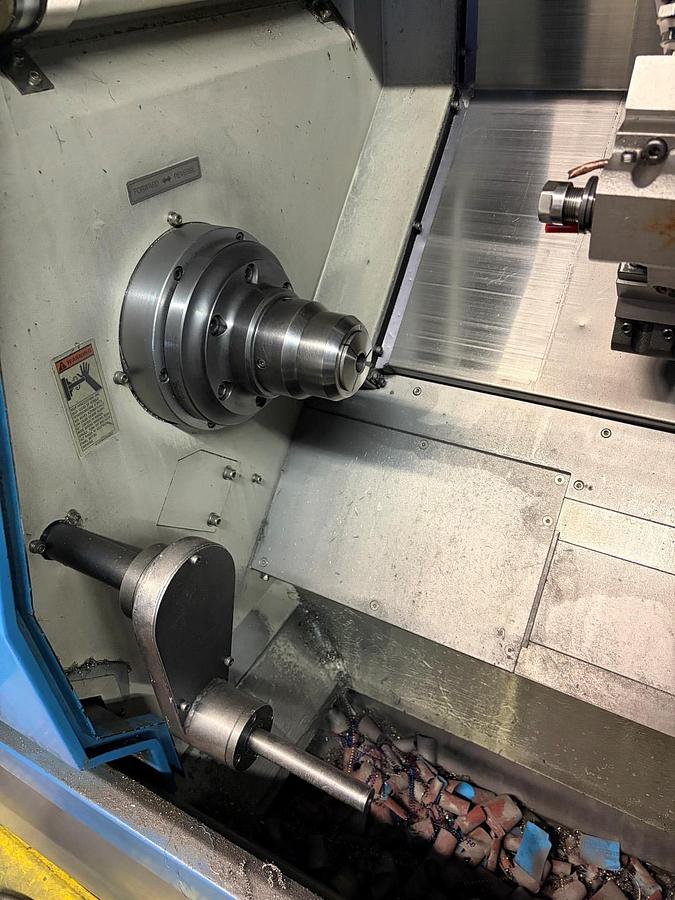

| Spindle Nose Taper | A2-6 |
| No Of tools | 10 |

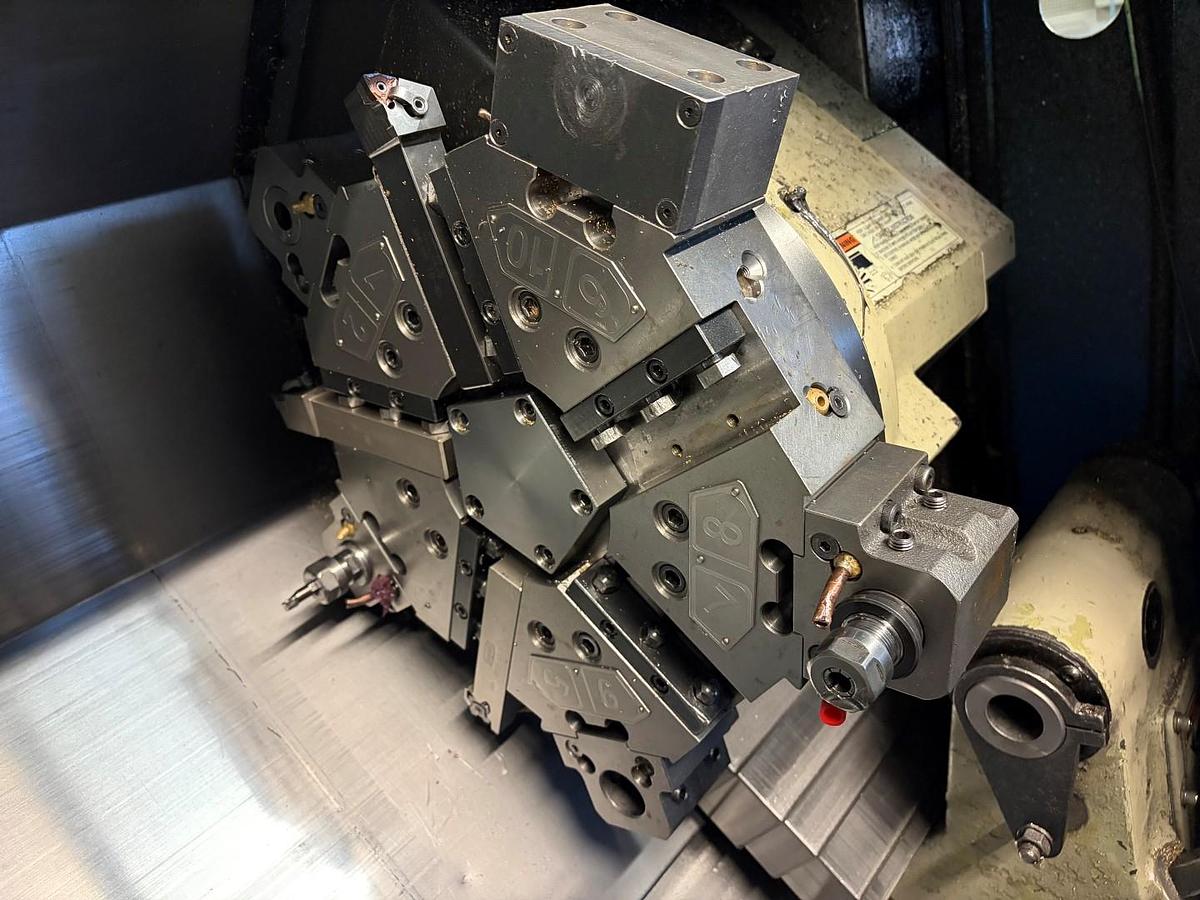

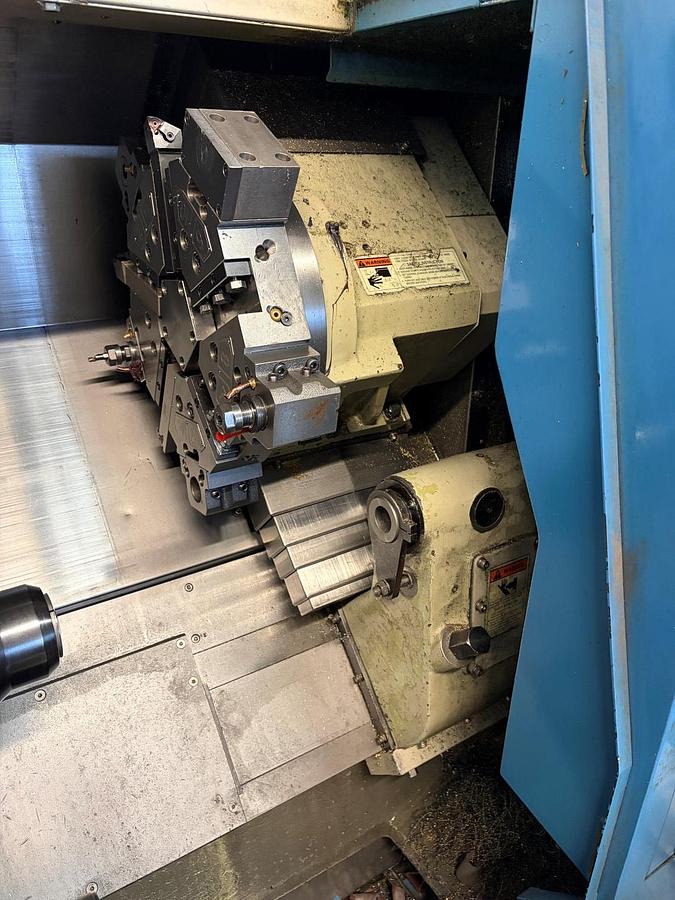

| Number of Positions on Turret | 12 |
| Machine Dimensions | 74.02 IN x 61.69 IN x 63.58 IN |
| Machine Weight, Approx | 5500 lbs |
Equipped With
Complete Manuals
Coolant Tank
Splash Guard
Hydraulic Pressure Interlock
Chip Conveyor
