2006 Mazak SQR-200
2006 Mazak SQR-200
Available quantity:1
Description
The Mazak SQR-200 is a high-performance dual-turret CNC turning center built for productivity and precision. Equipped with the Mazatrol 640T control, this 2006 model features an 8" chuck, 585 mm swing, and up to 613 mm turning length. With 12 upper and 8 lower turret stations, 5,000 RPM spindle, and fast rapid feed rates, the SQR-200 is ideal for high-volume production and reduced cycle times. Includes chip conveyor, coolant tank, and tailstock for complete machining capability.
Specifications
| Manufacturer | Mazak |
| Model | SQR-200 |
| Year | 2006 |
| Condition | Used |
| Stock Number | LTH-MZK-5058 |
| Chuck Size (IN) | 8 |
| Maximum Swing (MM) | 585 |
| Standard Machining Diameter (MM) | 264 |
| Maximum Machining Dia Upper Turret (MM) | 350 |
| Maximum Turning Length (MM) | 613 (Solid) / 610 (Hollow) |
| Bar Capacity (MM) | 51 |
| Maximum Spindle Speed (RPM) | 5000 |
| Spindle Bore (MM) | 61 |
| Maximum Torque (Nm) | 412 |
| Upper Turret Stations | 12 |
| Lower Turret Stations | 8 |
| Rapid Feed Rate (Upper X/Z) m/min | 30 / 30 |
| Rapid Feed Rate (Lower X/Z) m/min | 30 / 20 |
| Rapid Feed Rate (C Axis) mm/min | 400 |
| X Axis Stroke (Upper) (MM) | 190 |
| Z Axis Stroke (Upper) (MM) | 645 |
| X Axis Stroke (Lower) (MM) | 150 |
| Z Axis Stroke (Lower) (MM) | 630 |
| Tailstock Spindle Bore | MT No. 4 |
| Tailstock Stroke (MM) | 520 |
| Machine Weight (KG) | 6830 |
Equipped With
Mazatrol 640T CNC Control

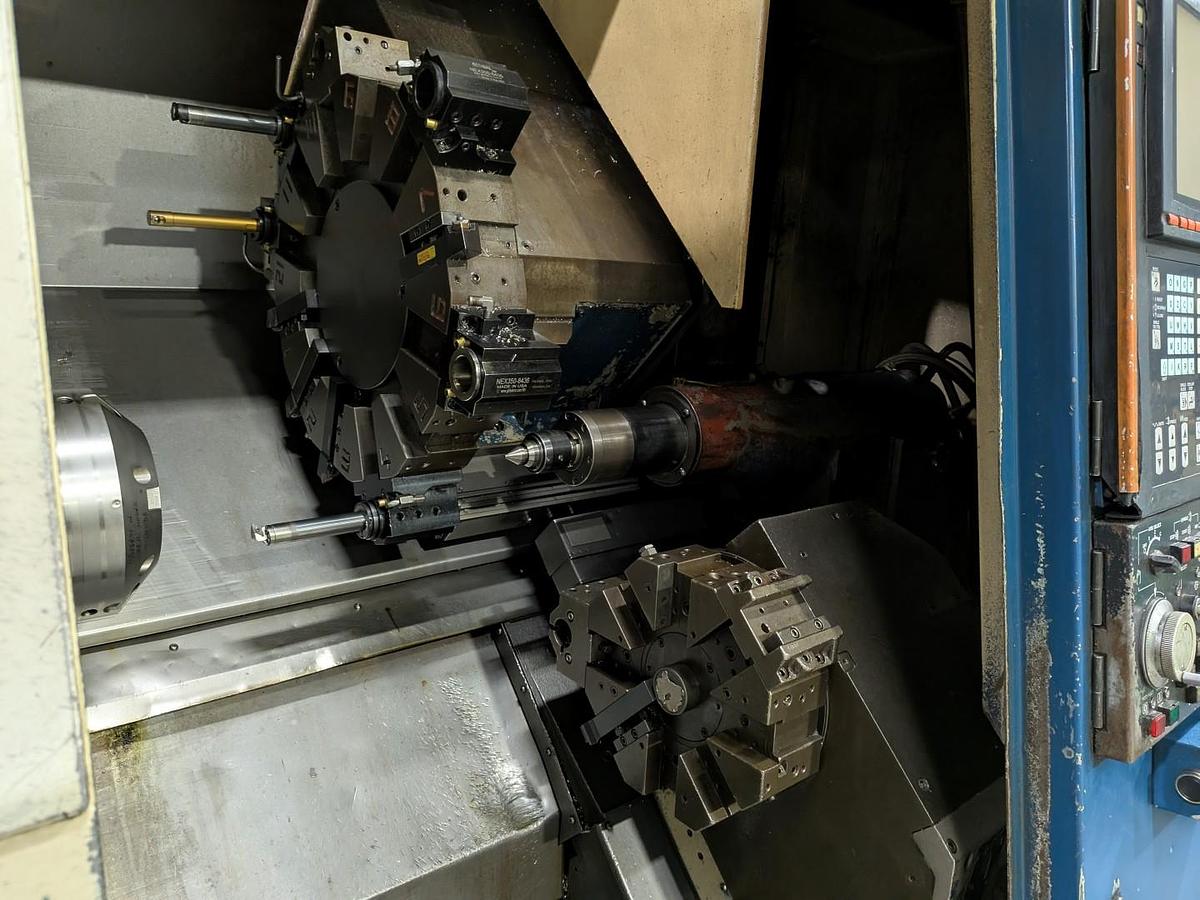

Upper 12-Station Turret
Lower 8-Station Turret

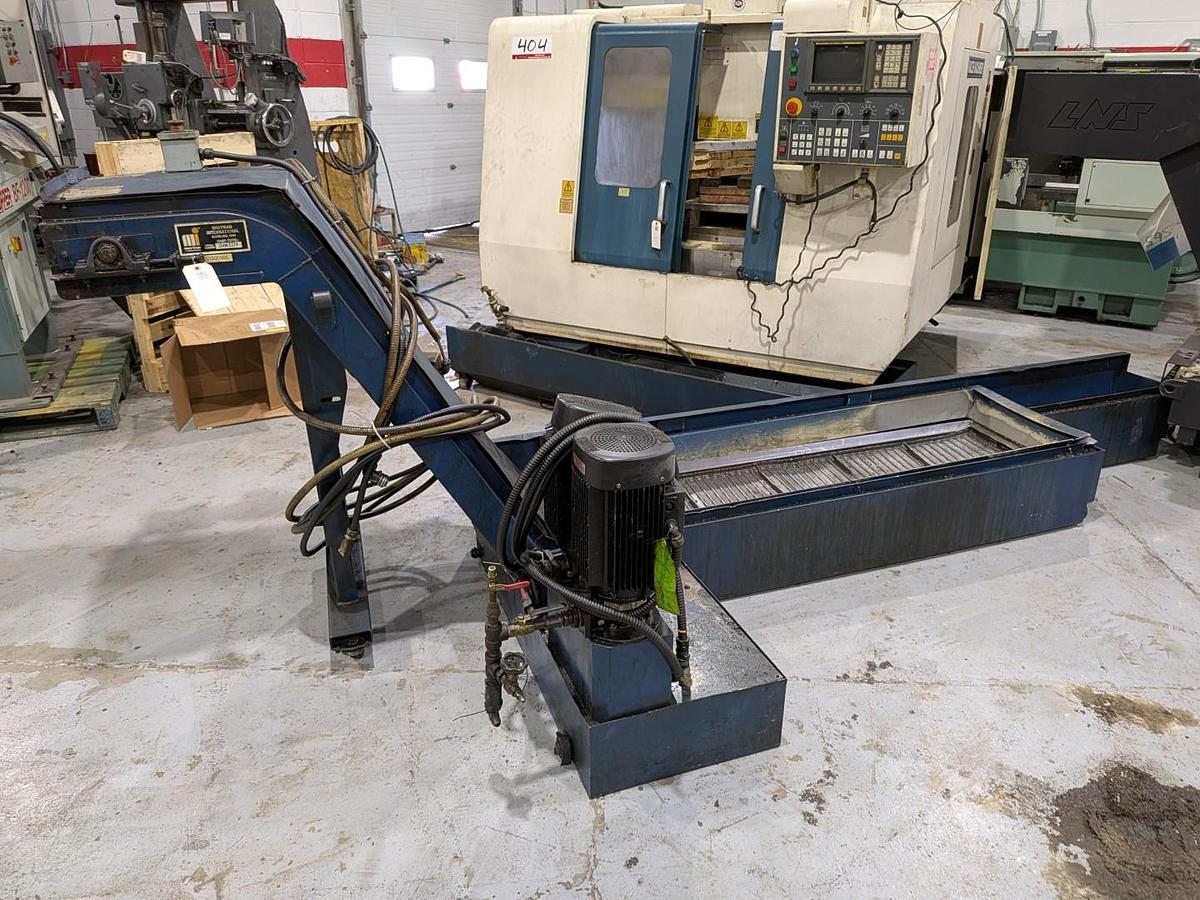

Chip Conveyor
Coolant Tank
Tailstock
