1999 Kuraki KBT-13A
1999 Kuraki KBT-13A
Available quantity:1
Description

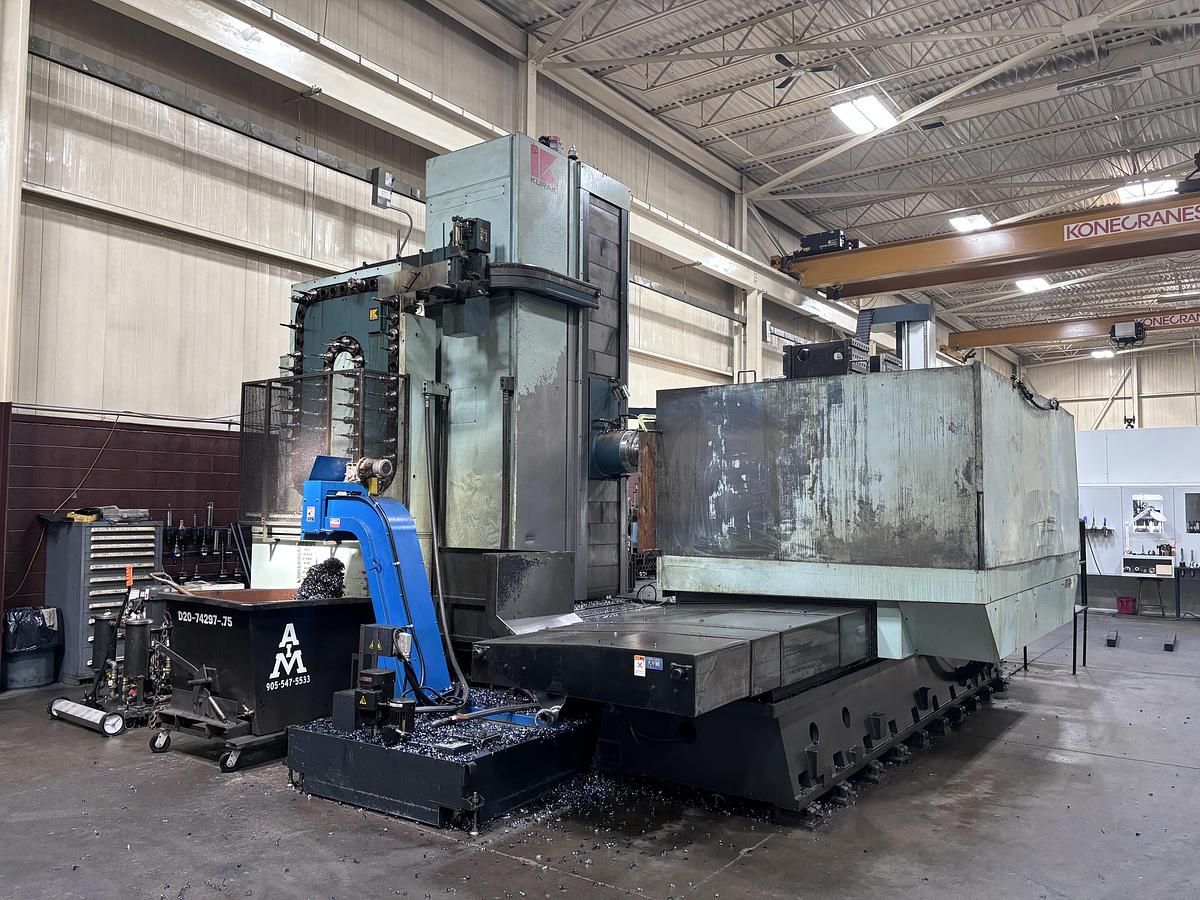

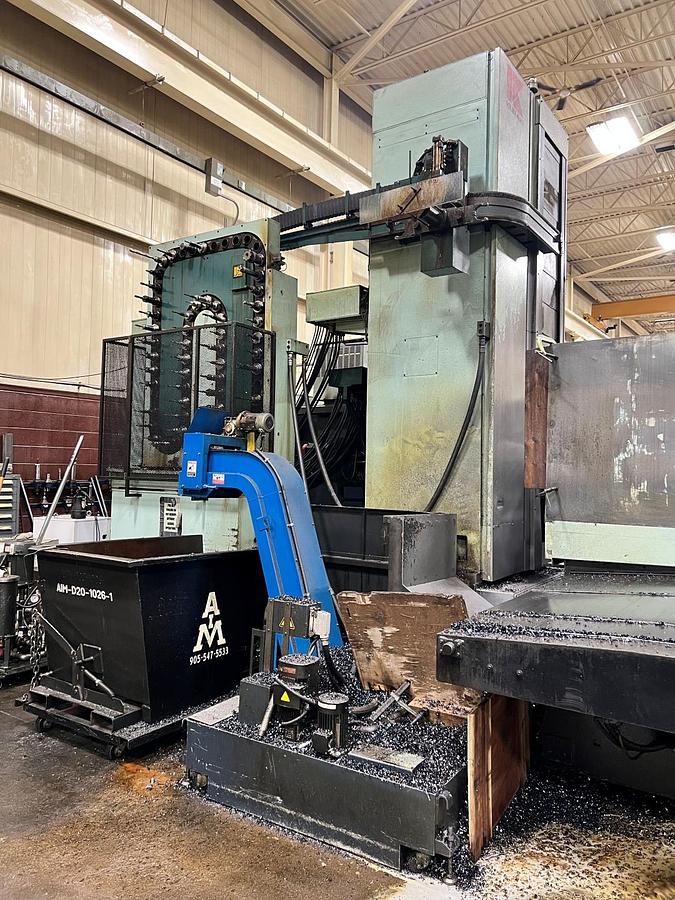

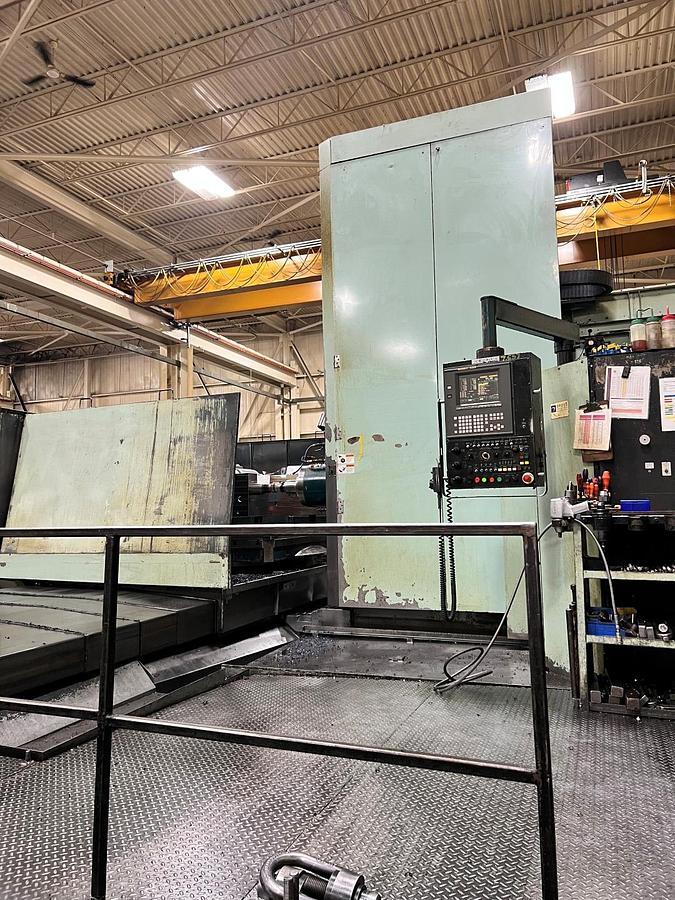

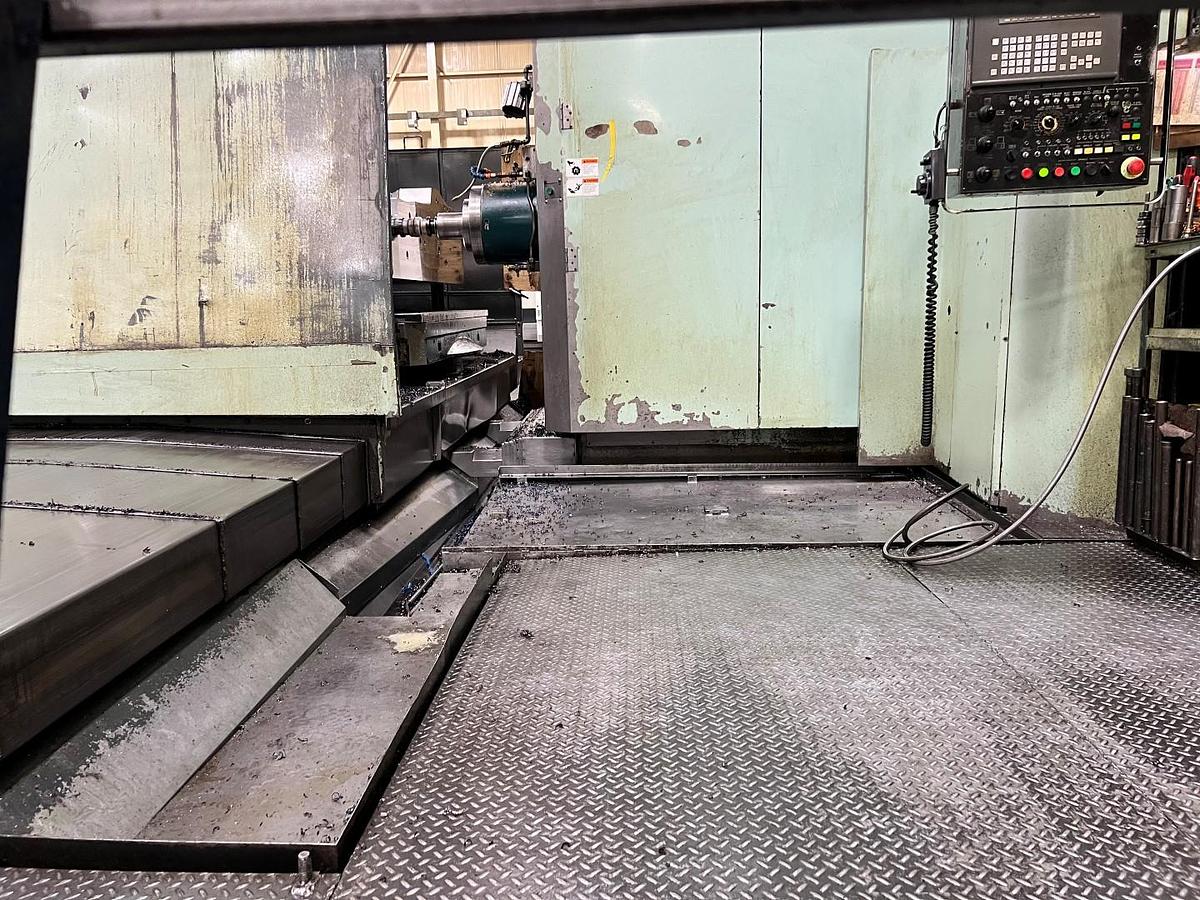

The Kuraki KBT-13A is a powerful CNC horizontal boring mill designed for heavy-duty machining of large components. This 1999 machine features a 5.12" spindle, CAT50 taper, and large travels of 118" (X), 90" (Y), and 63" (Z) with an additional 27" W-axis, providing excellent reach and rigidity. Equipped with a 70.87" × 86.61" table with 44,000 lb capacity, 60-tool ATC, and 0.001° automatic table indexing, the KBT-13A is ideal for precision machining of large molds, energy components, and heavy fabrication parts. Powered by a 40 HP spindle motor and controlled by Fanuc Series 16-M, it delivers strong torque, accuracy, and reliable performance for demanding applications.
Specifications
| Manufacturer | Kuraki |
| Model | KBT-13A |
| Year | 1999 |
| Condition | Used |

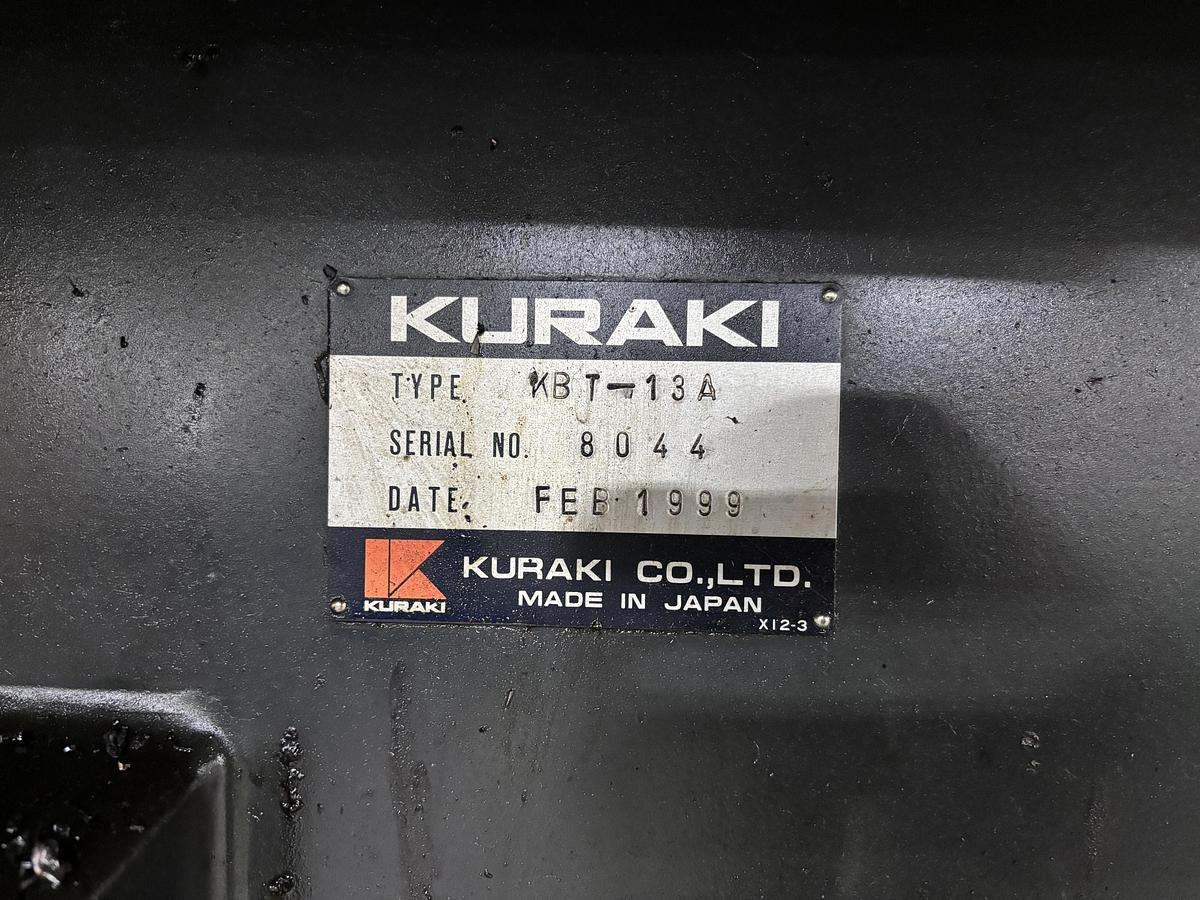

| Serial Number | 8044 |
| Stock Number | MAC-BOR-KUR-8044 |
| X-Axis Travel (IN) | 118.11 |
| Y-Axis Travel (IN) | 90.55 |
| Z-Axis Travel (IN) | 62.99 |
| W-Axis Travel (IN) | 27.56 |

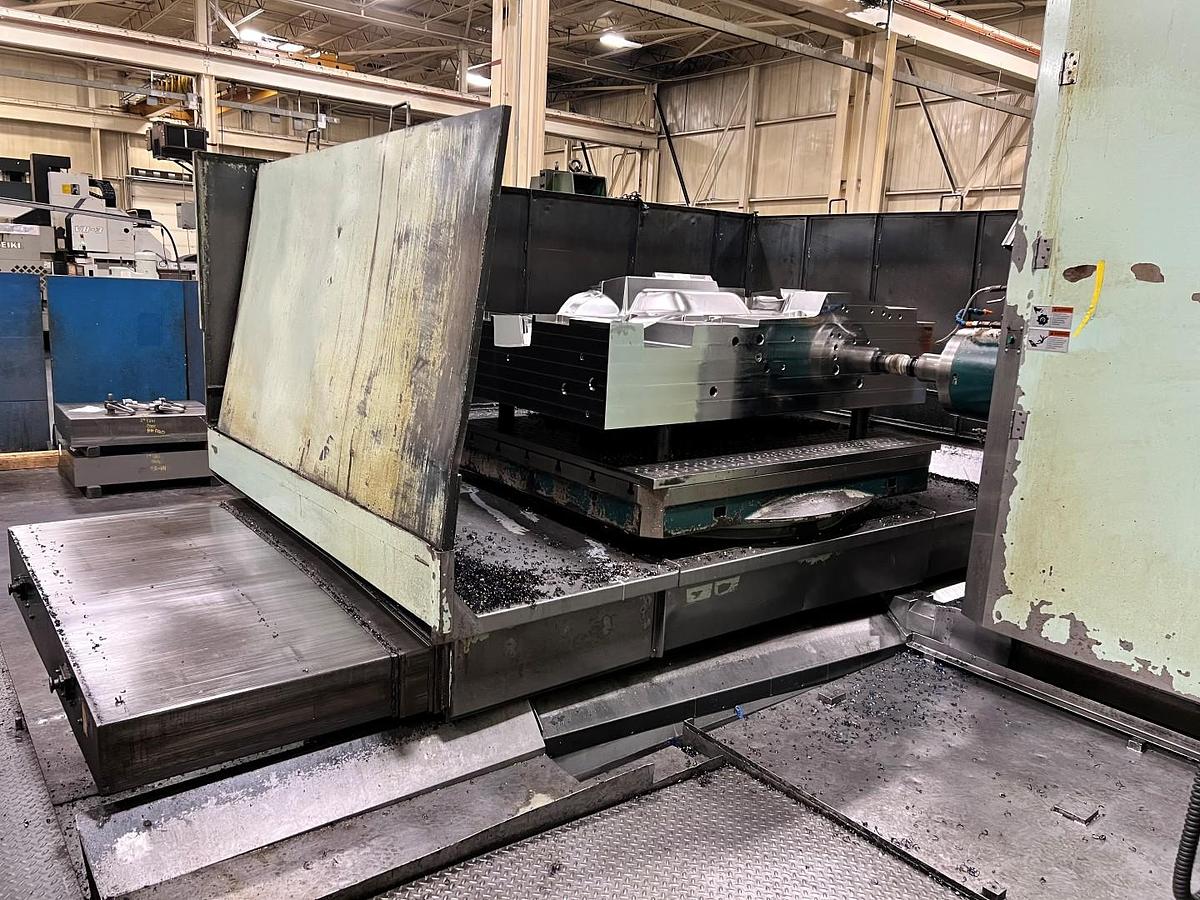

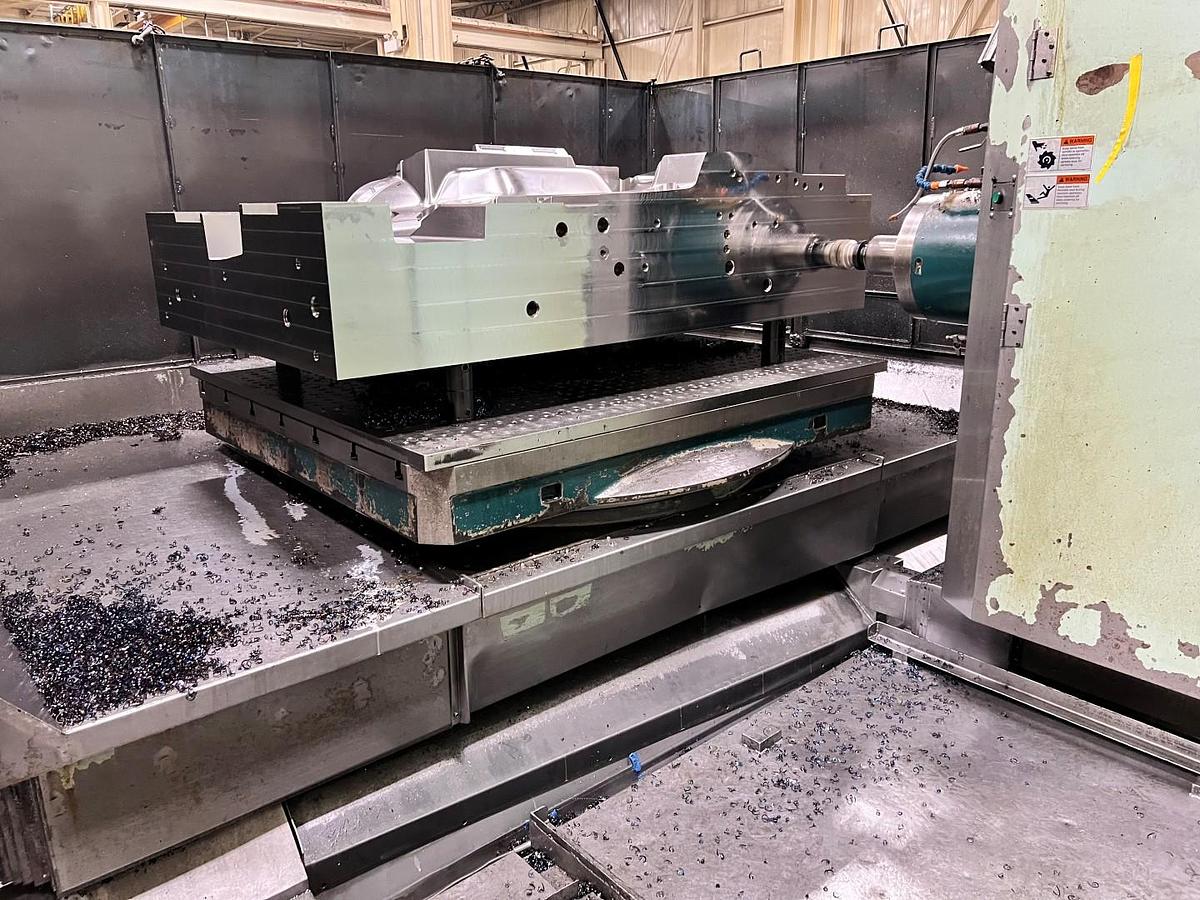

| Table Size (IN) | 70.87 x 86.61 |
| Table Load Capacity (LBS) | 44,000 |

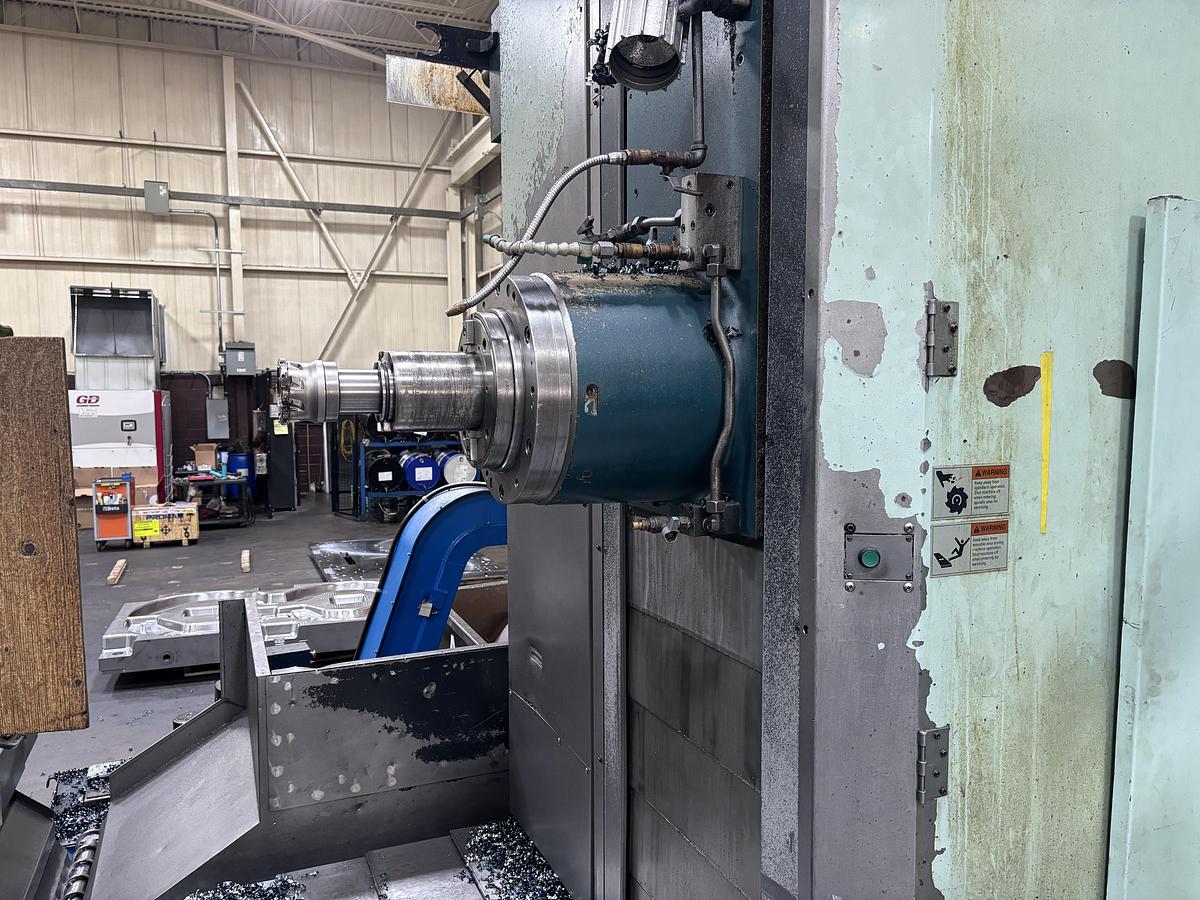

| Boring Spindle Diameter (IN) | 5.12 |
| Spindle Speed (RPM) | 5 – 3,000 |
| Spindle Taper | No. 50 |
| Rapid Traverse X (IPM) | 236.22 |
| Rapid Traverse Y/Z/W (IPM) | 393.70 |
| Feed Rate X (IPM) | 0.04 – 141.73 |
| Feed Rate Y/Z/W (IPM) | 0.04 – 157.48 |

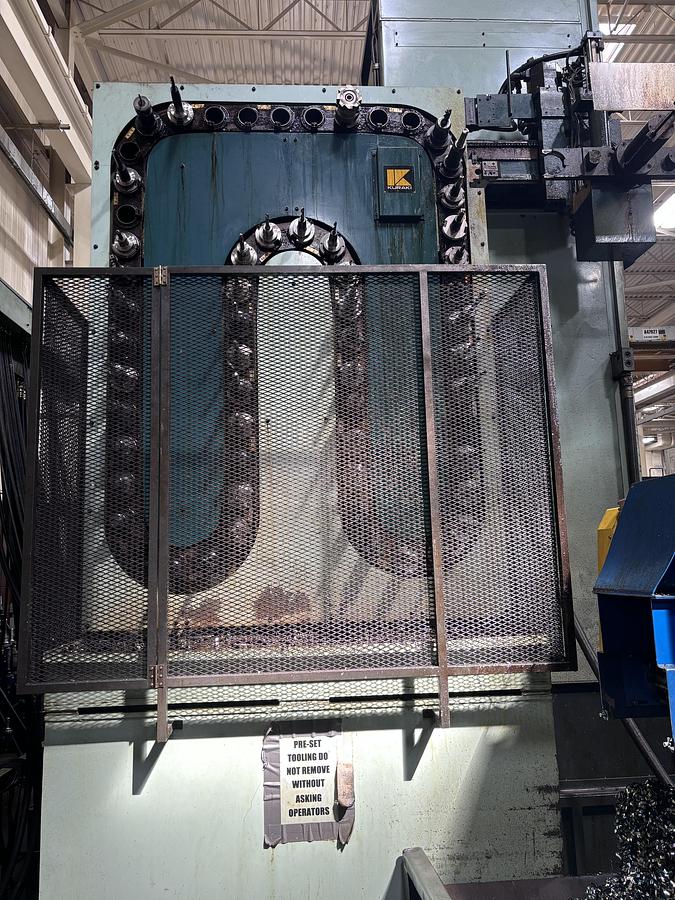

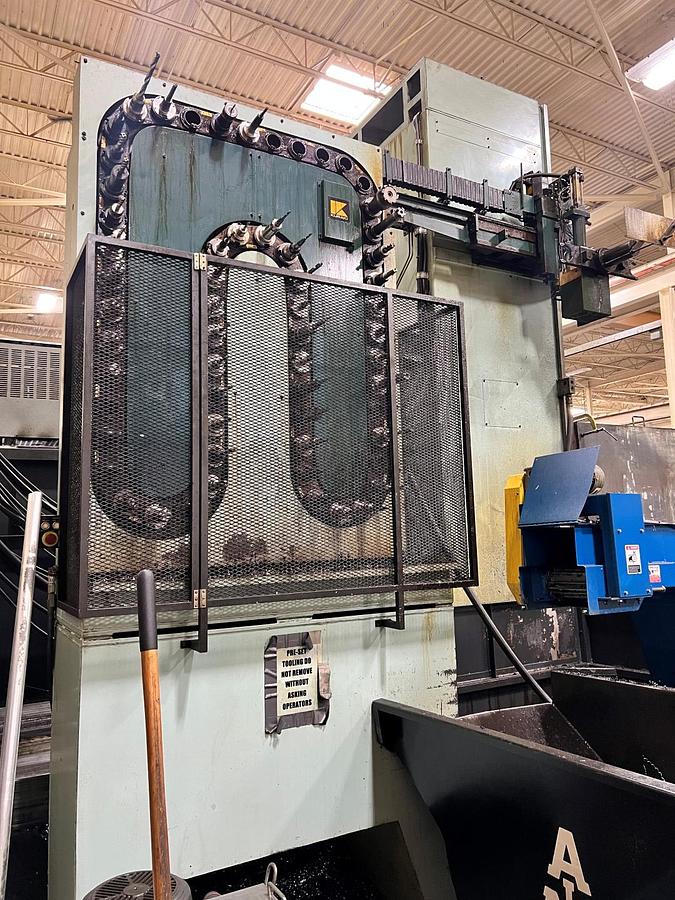

| Tool Capacity | 60 ATC |
| Max Tool Length (IN) | 23.62 |
| Max Tool Weight (LBS) | 66 |
| Spindle Motor (30 Min / Cont.) | 40 / 32 HP |
| Machine Height (IN) | 201 |
| Floor Space (IN) | 270 x 270 |
| Machine Weight (LBS) | 79,200 |
Equipped With

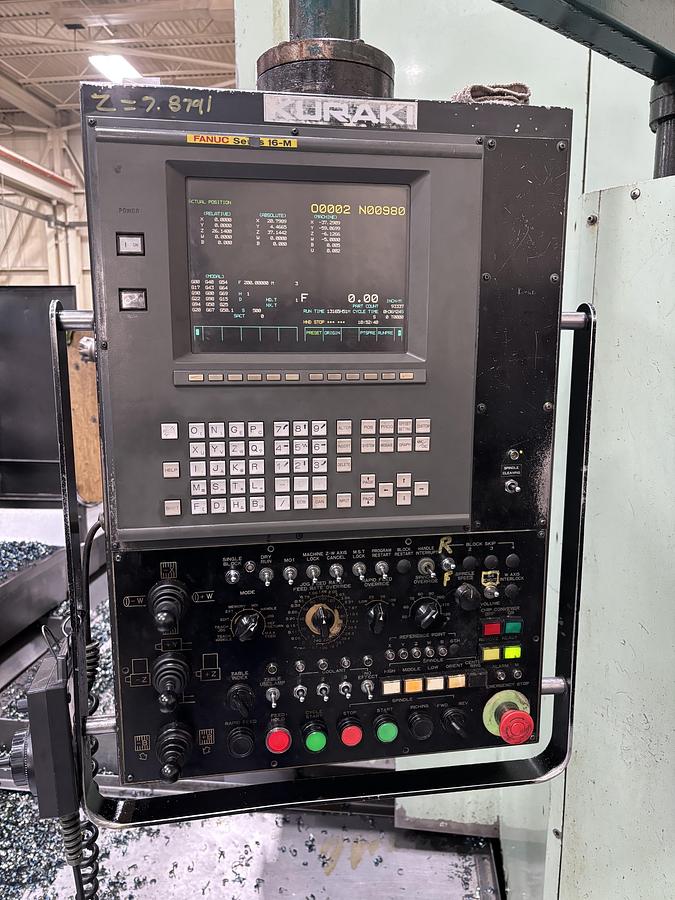

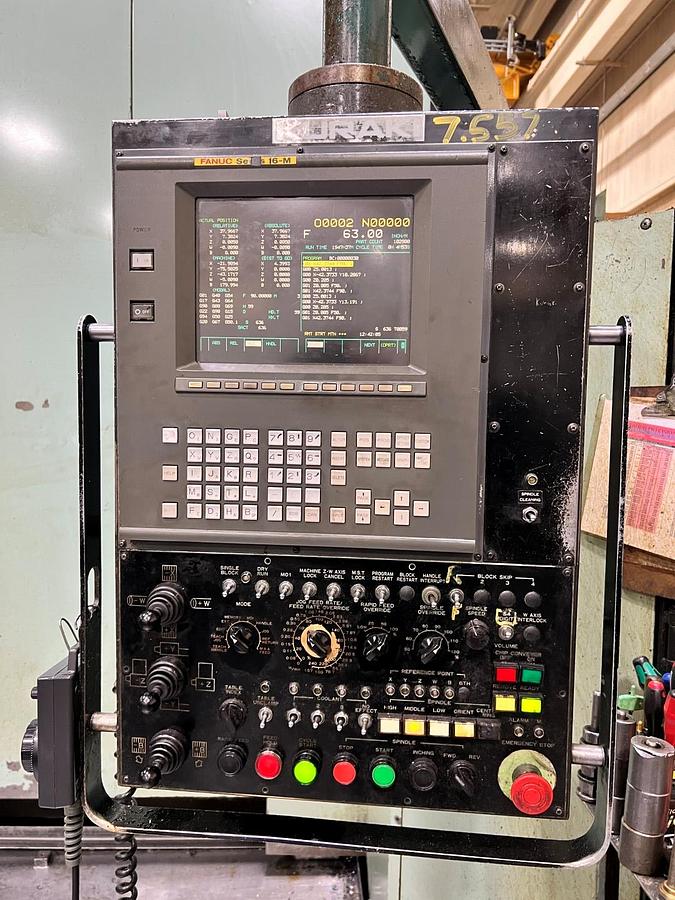

Fanuc Series 16-M Controller
MAS CAT50 Tooling System
MAS P50T-1 Pull Stud (45°)
0.001° Automatic Table Indexing
7 T-Slot Table (22mm Slots)
