2005 Awea BM-1600 Vertical Machining Center
2005 Awea BM-1600 Vertical Machining Center
Available quantity:1
Description

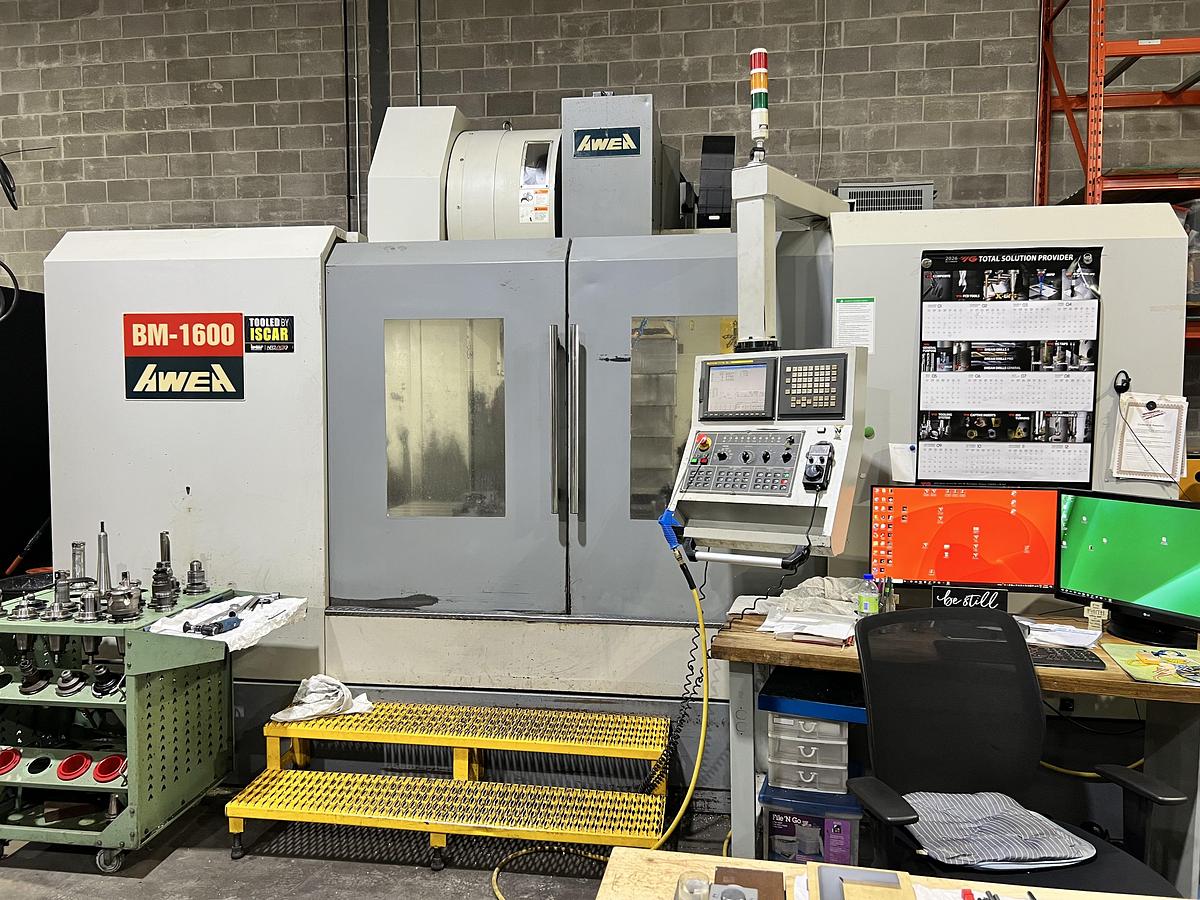

The AWEA BM-1600 is a heavy-duty CNC vertical machining center designed for large-part milling and high-rigidity cutting. Featuring generous travels of 63" (X), 31.5" (Y), and 31.5" (Z) with a 67" × 31.5" table, this machine is ideal for machining large components. Equipped with a powerful CAT50 gear-head spindle, 6,000 RPM, and 24-station automatic tool changer, the BM-1600 delivers strong torque and reliable performance for demanding applications. Controlled by Fanuc 18i-MB, and complete with chip conveyor and coolant system, it is well suited for production machining and heavy milling operations.
Specifications
| Manufacturer | Awea |

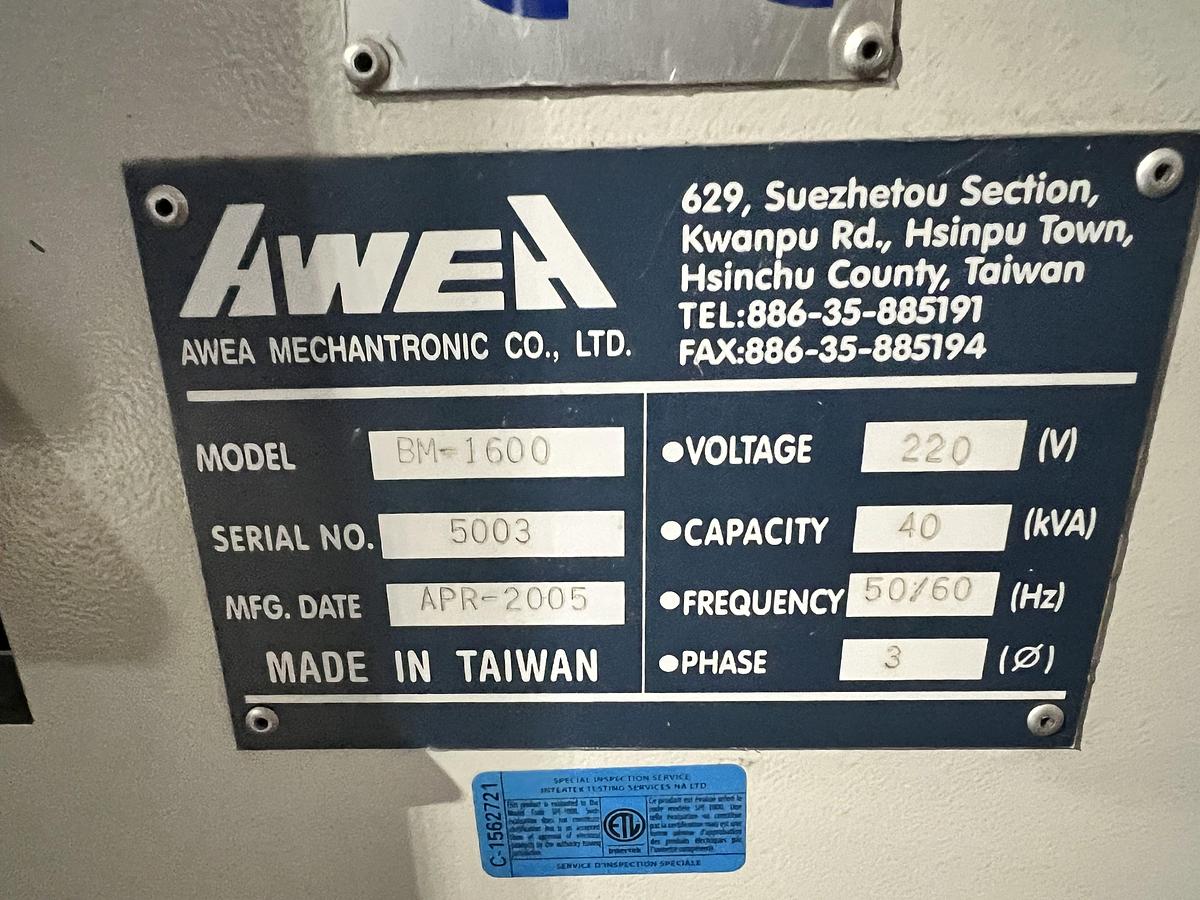

| Model | BM-1600 |
| Year | 2005 |
| Condition | Used |
| Serial Number | 5003 |
| Stock Number | VMC-AWE-5003 |
| X-Axis Travel (IN) | 63 |
| Y-Axis Travel (IN) | 31.5 |
| Z-Axis Travel (IN) | 31.5 |

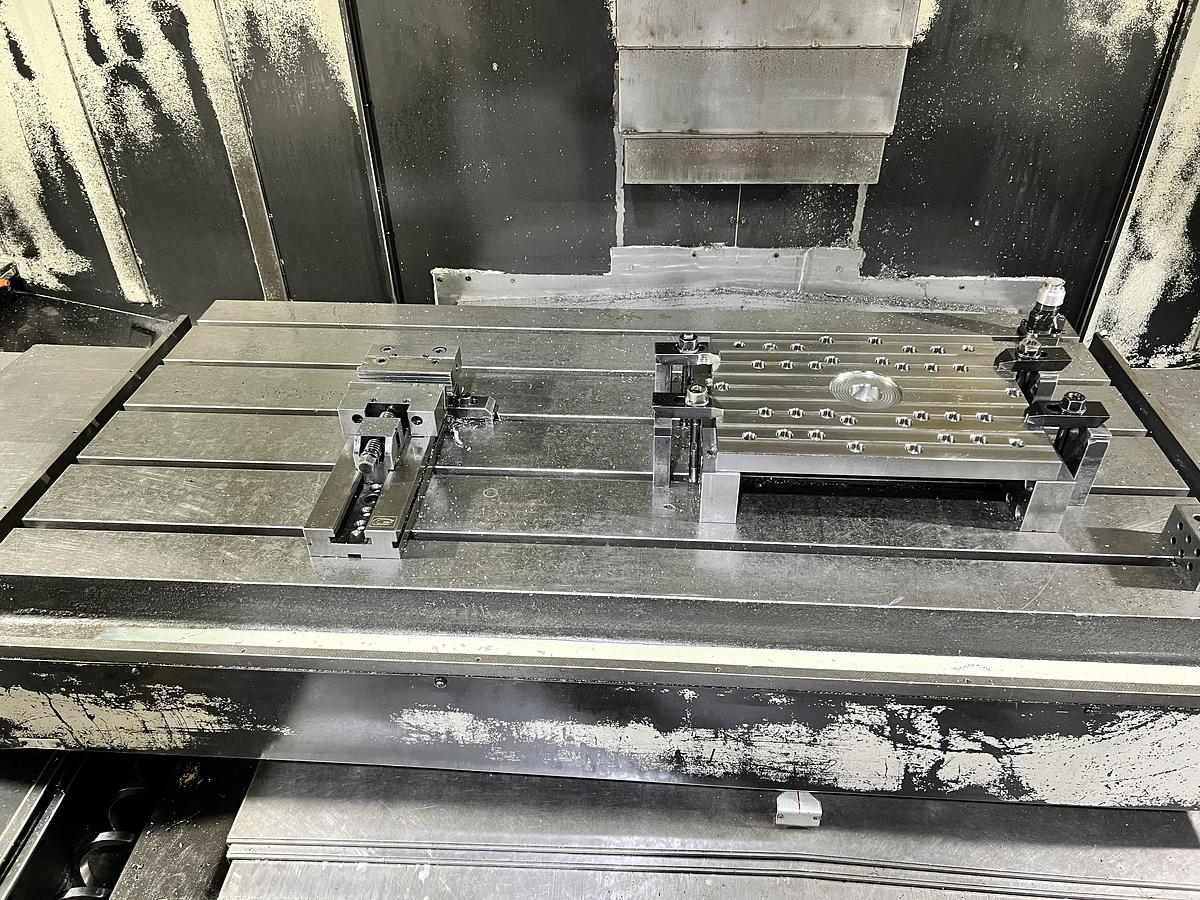

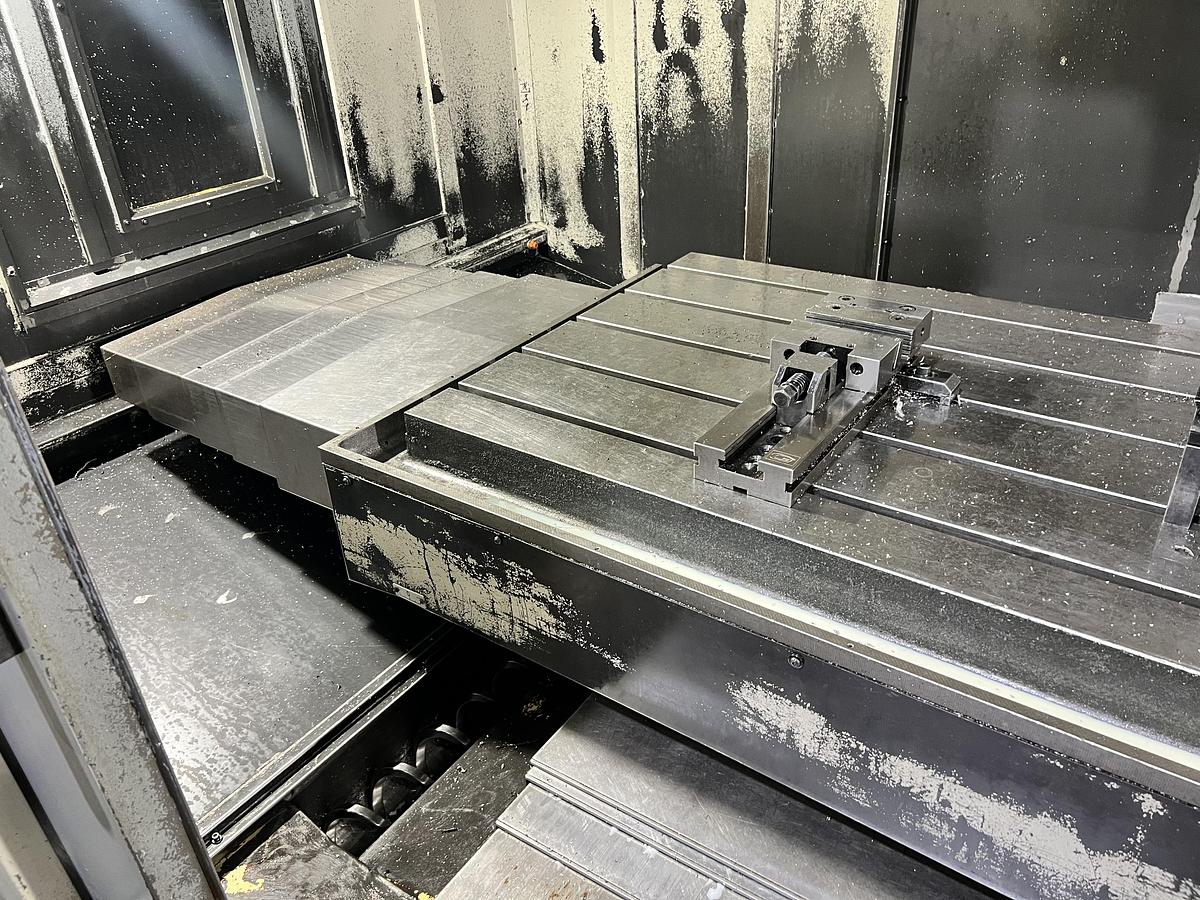

| Table Size (X) (IN) | 67 |
| Table Size (Y) (IN) | 31.5 |
| Table Load Capacity (LBS) | 4,409 |
| Spindle Center to Column (IN) | 35.5 |
| Max Spindle Nose to Table (IN) | 39.37 |
| Spindle Speed (RPM) | 6,000 |
| Spindle Taper | CAT50 |
| X/Y Rapid Feed Rate (IPM) | 787.4 |
| Z Rapid Feed Rate (IPM) | 708.7 |
| Cutting Feed Rate (IPM) | 472.4 |
| Automatic Tool Changer | 24 ATC |
| Maximum Tool Length (IN) | 9.8 |
| Maximum Tool Weight (LBS) | 33.1 |
Equipped With

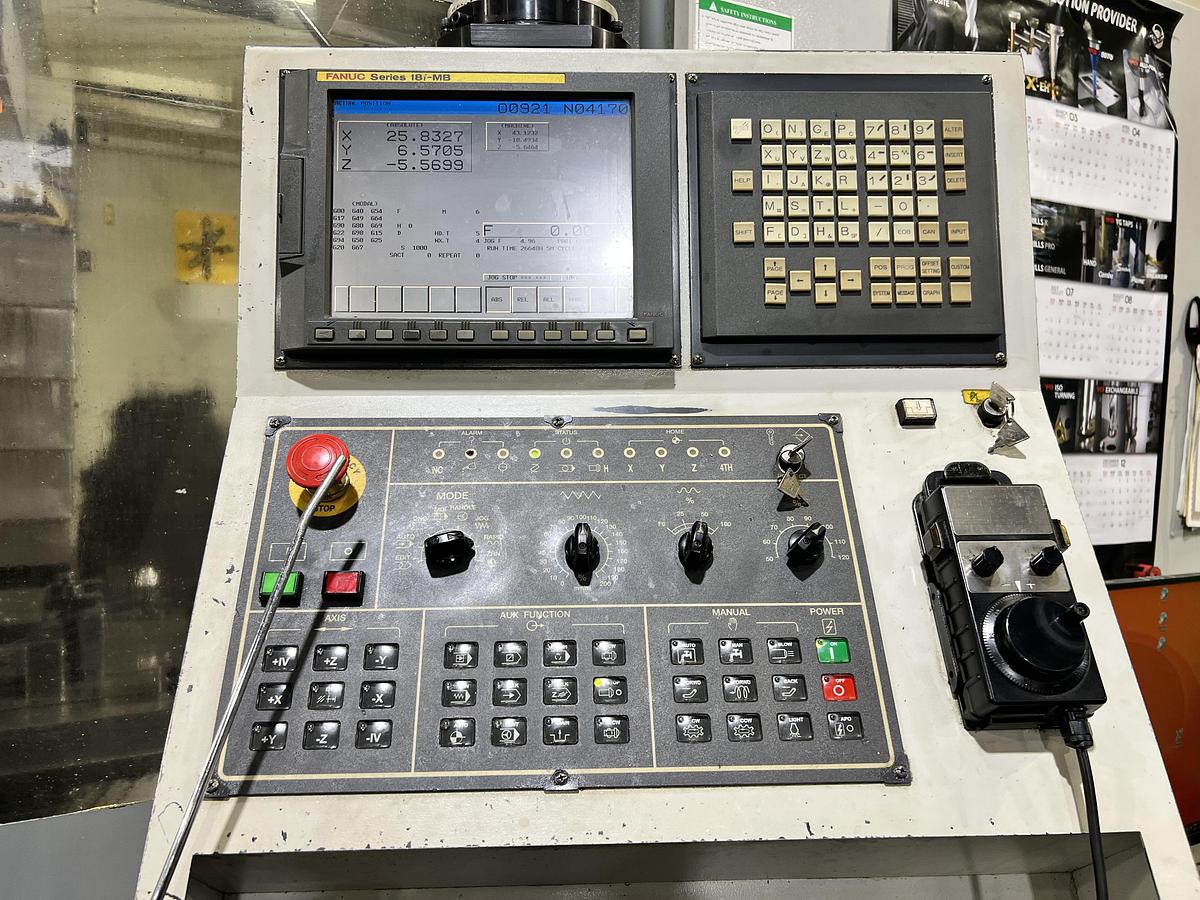

Fanuc 18i-MB CNC Control

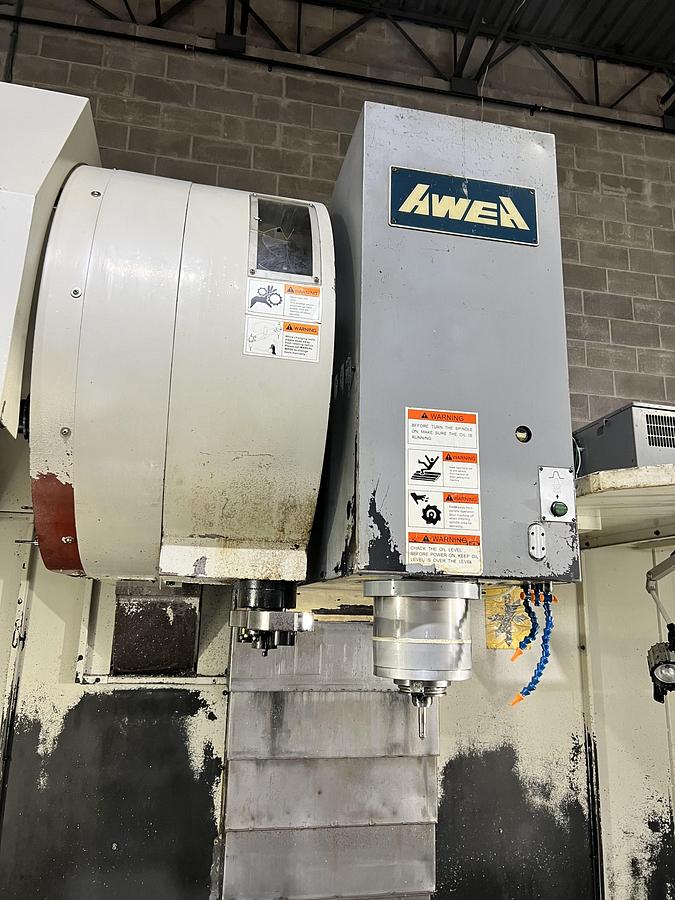

Gear Head Spindle

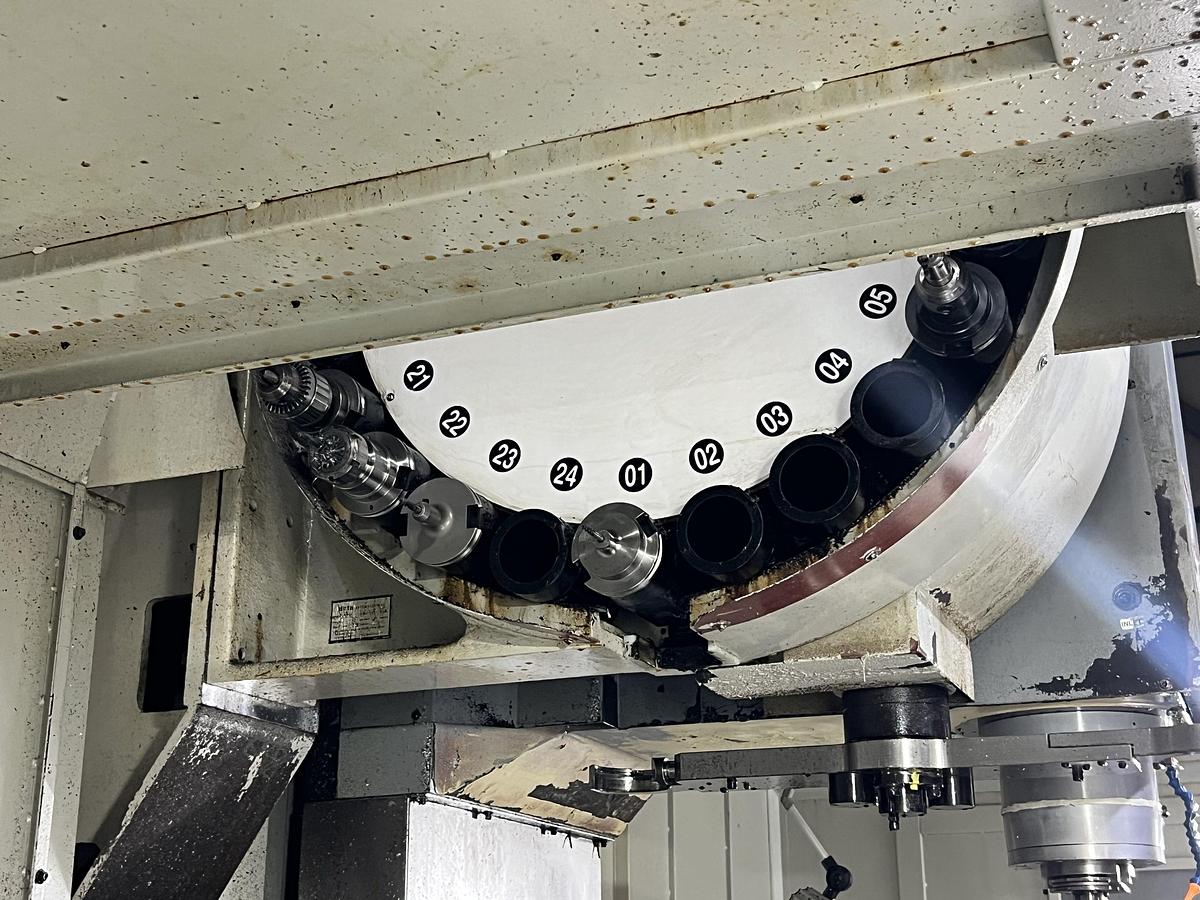

24-Station Automatic Tool Changer
Chip Conveyor
Coolant Tank
