2004 Mori Seiki NV5000 α1A/40
2004 Mori Seiki NV5000 α1A/40
Available quantity:1
Description

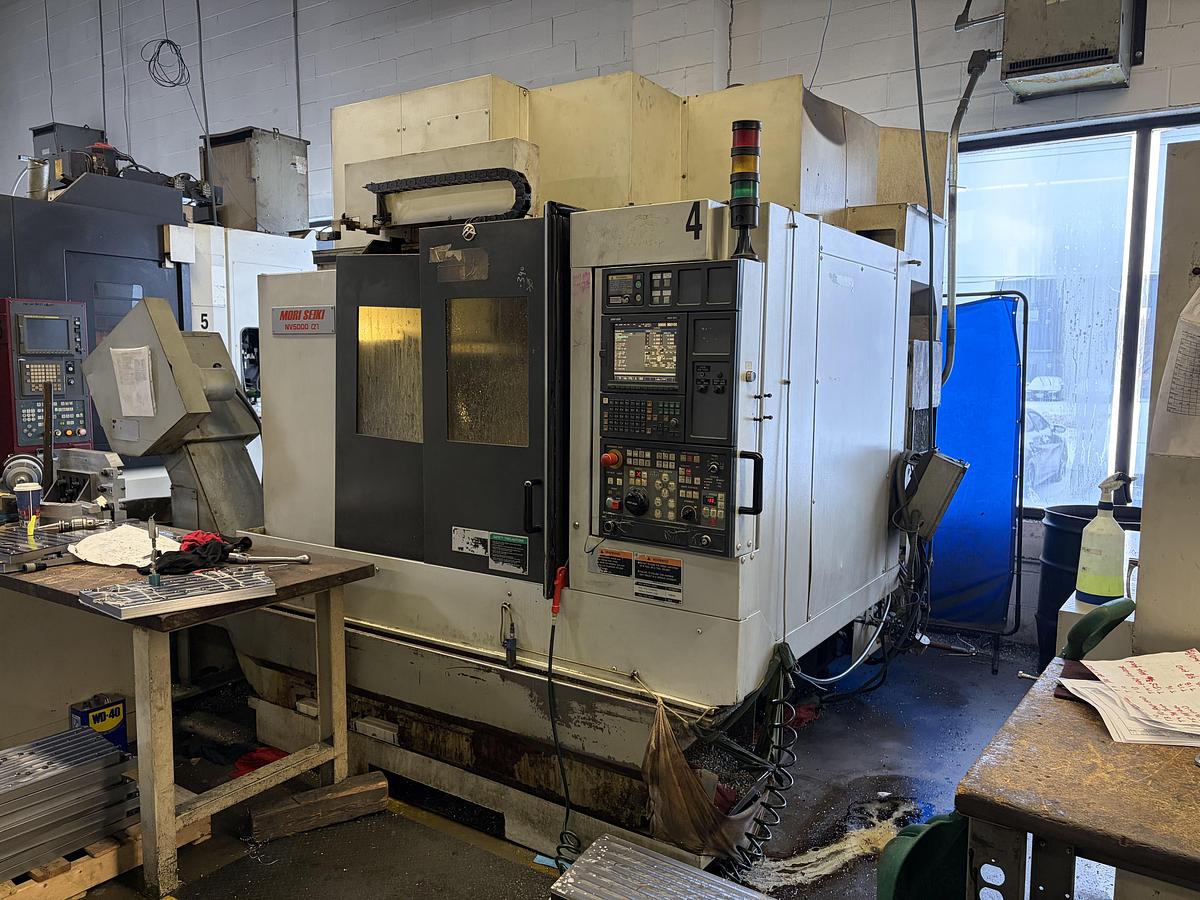

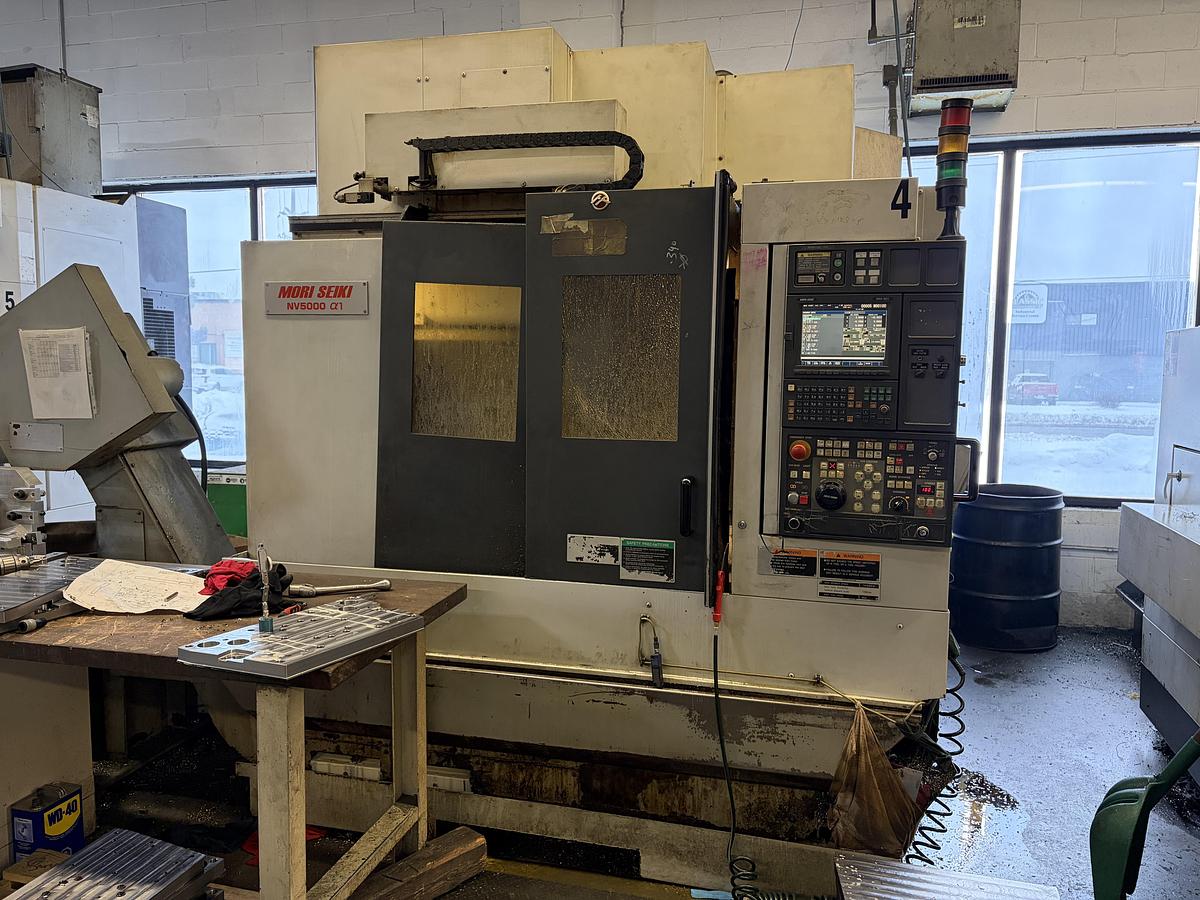

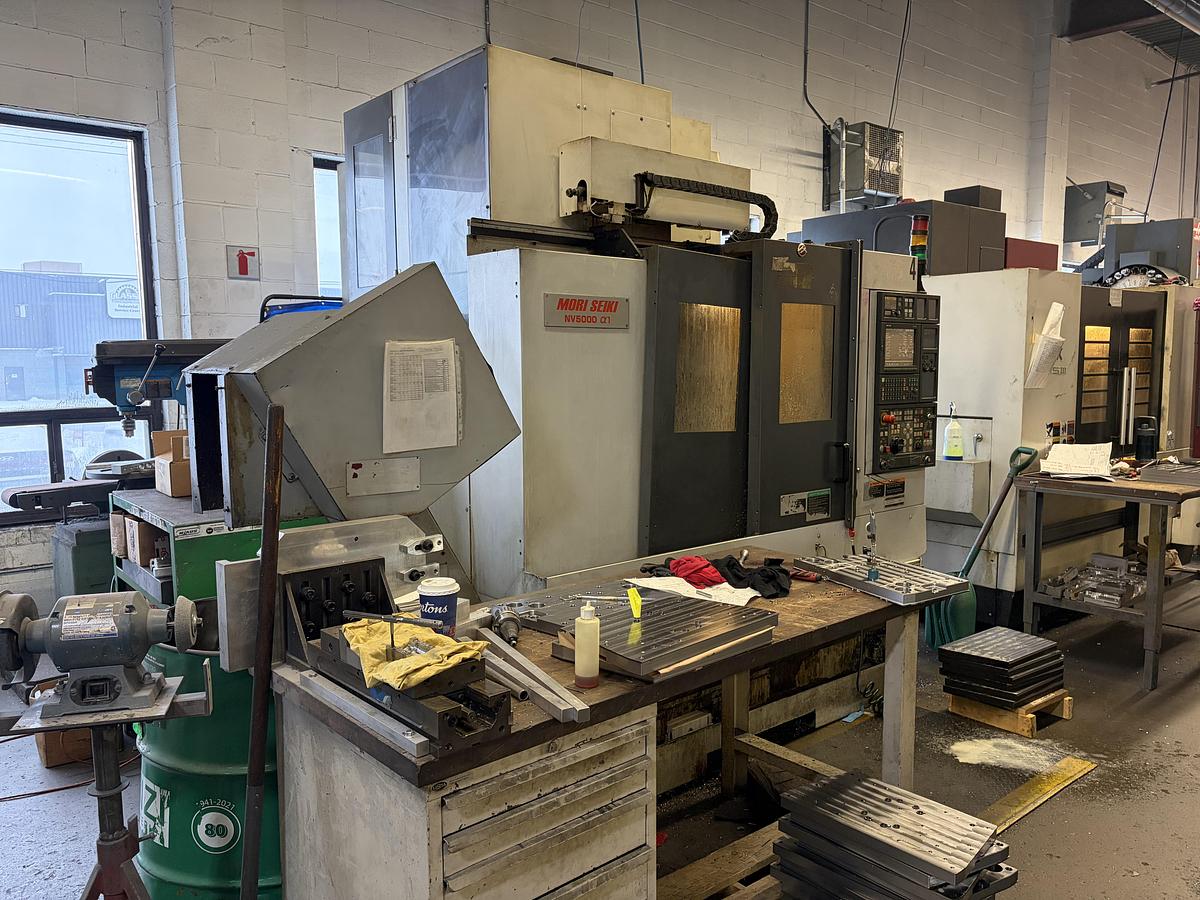

The Mori Seiki NV5000 α1A/40 is a high-performance vertical machining center designed for precision milling and high-speed production. This 2004 machine features a 12,000 RPM BT40 spindle, 30 HP spindle motor, and travels of 31.5" (X), 20.1" (Y), and 20.1" (Z) with a 43.3" × 19.7" table. Equipped with a 30-tool automatic tool changer, fast rapid traverse rates up to 1,654 IPM, and the Mori Seiki MSX-501 CNC control, the NV5000 delivers excellent accuracy, reliability, and productivity for demanding machining applications. Includes chip conveyor and coolant system.
Specifications
| Manufacturer | Mori Seiki |
| Model | NV5000 α1A/40 |
| Year | 2004 |
| Condition | Used |
| Stock Number | MAC-VMC-MOR-1753 |
| X-Axis Travel (IN) | 31.5 |
| Y-Axis Travel (IN) | 20.1 |
| Z-Axis Travel (IN) | 20.1 |

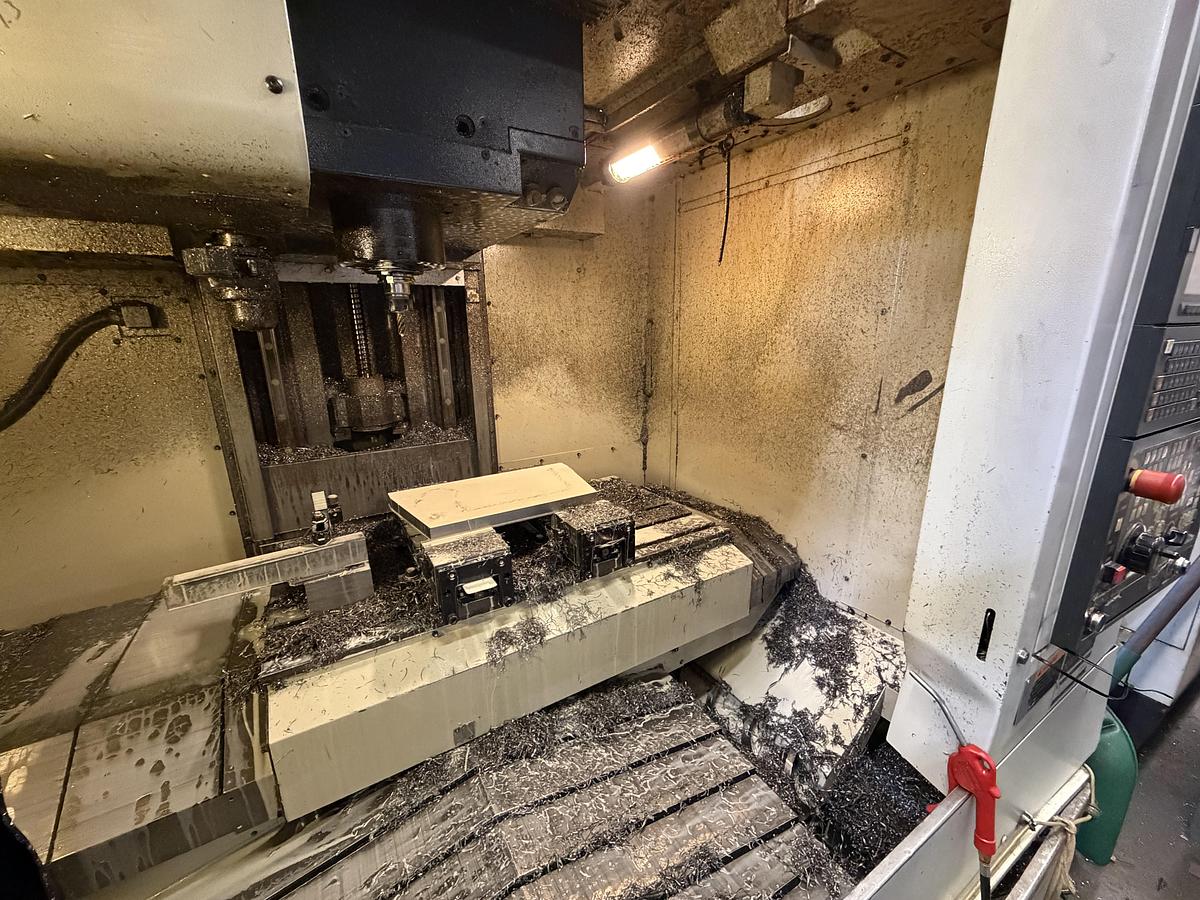

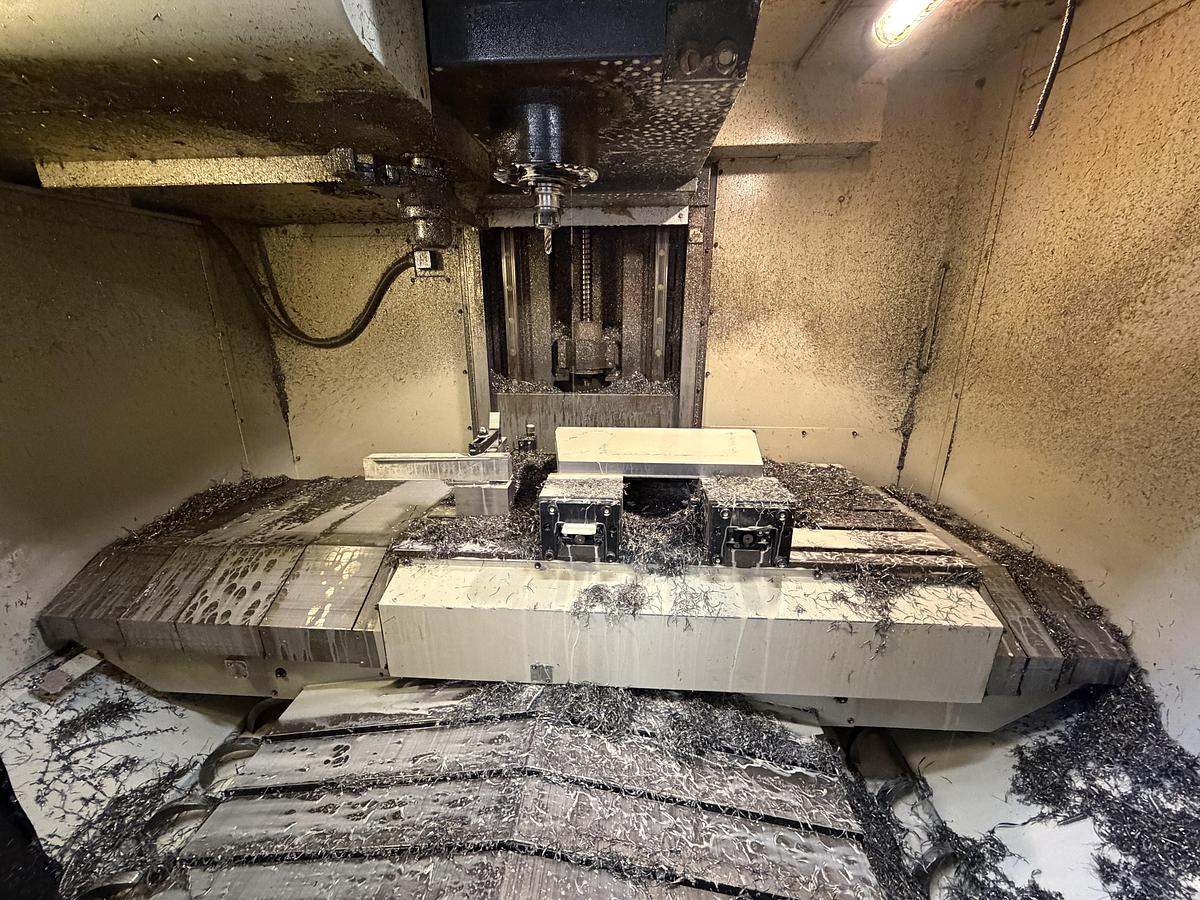

| Table Size (IN) | 43.3 x 19.7 |
| Table Load Capacity (LBS) | 1,760 |
| Spindle Speed (RPM) | 12,000 |
| Spindle Taper | BT40 |
| Spindle Motor (HP) | 30 HP |
| Rapid Traverse (X/Y/Z) (IPM) | 1,654 / 1,654 / 1,417 |
| Cutting Feed Rate (IPM) | 787 |
| Automatic Tool Changer | 30 ATC |
| Maximum Tool Diameter (IN) | 3.1 |
| Maximum Tool Length (IN) | 11.8 |
| Maximum Tool Weight (LBS) | 17.6 |
| Machine Weight (LBS) | 14,330 |
Equipped With

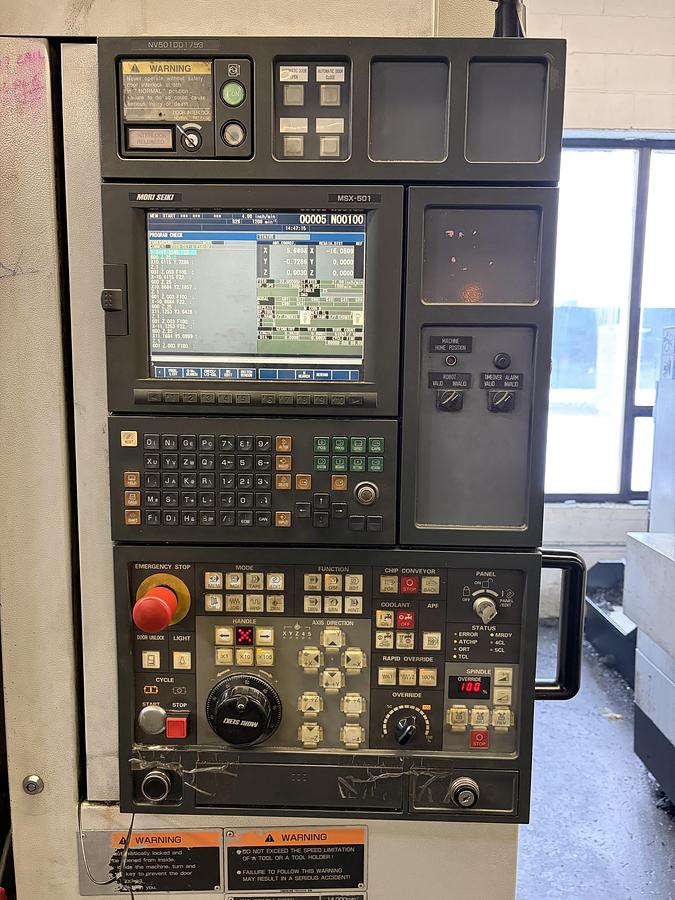

Mori Seiki MSX-501 CNC Control

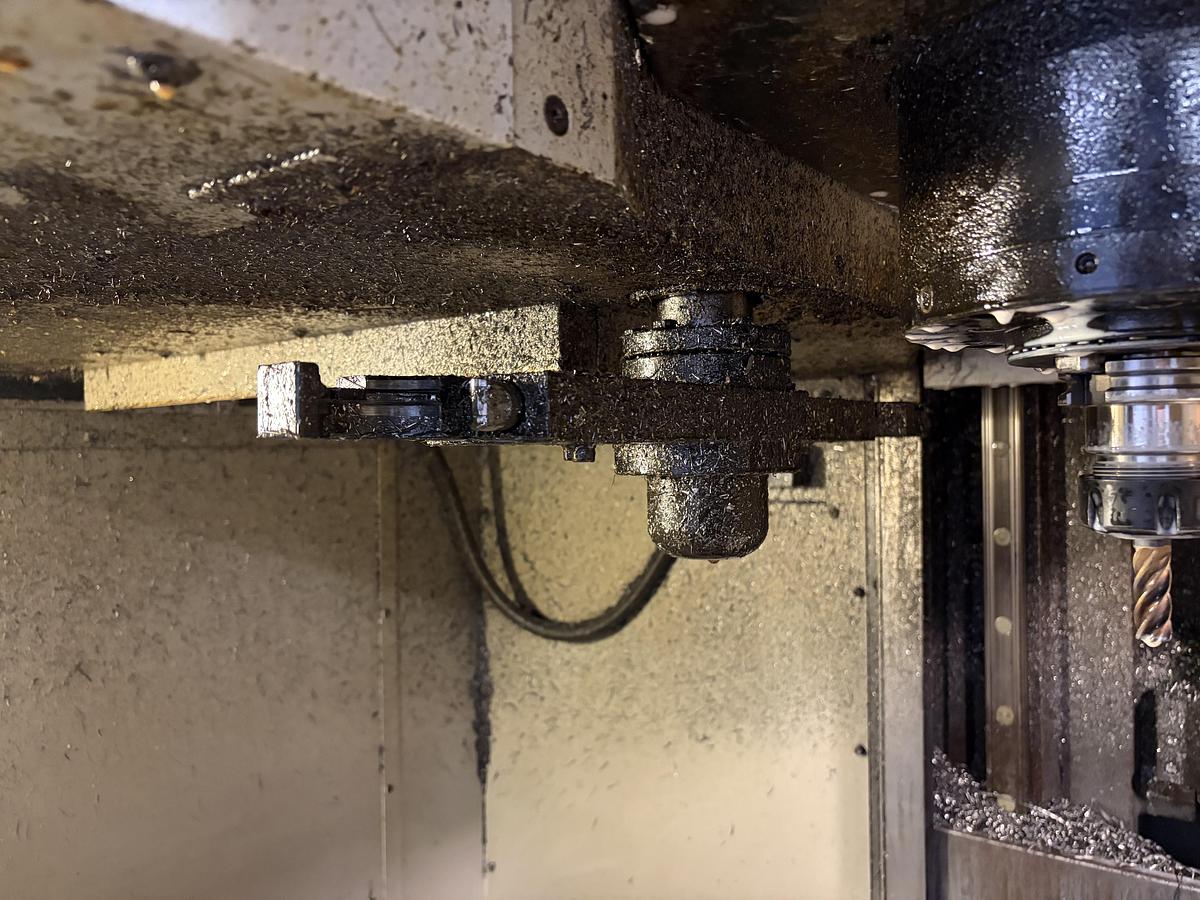

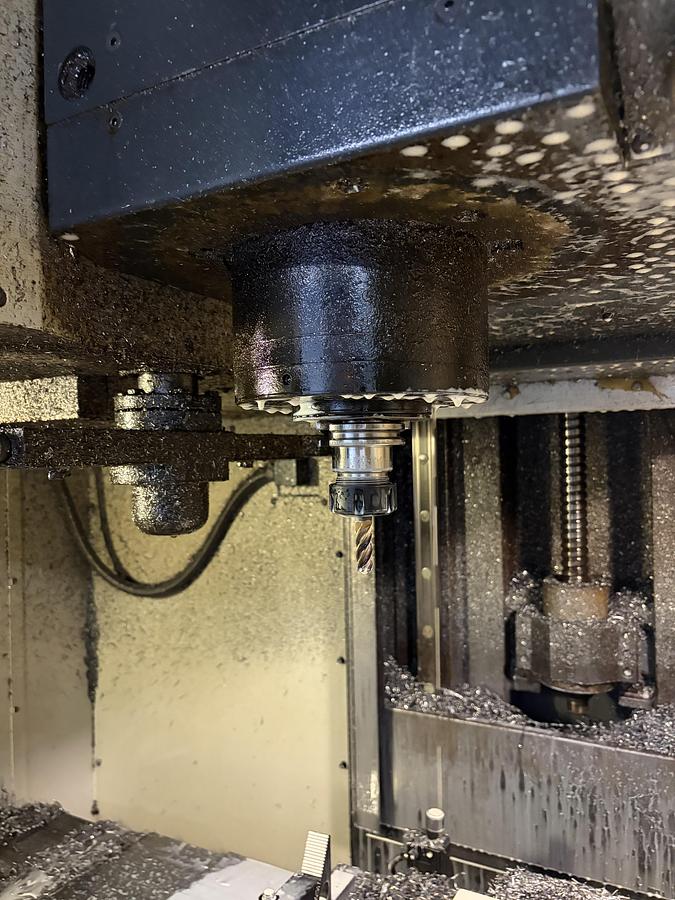

12,000 RPM BT40 Spindle

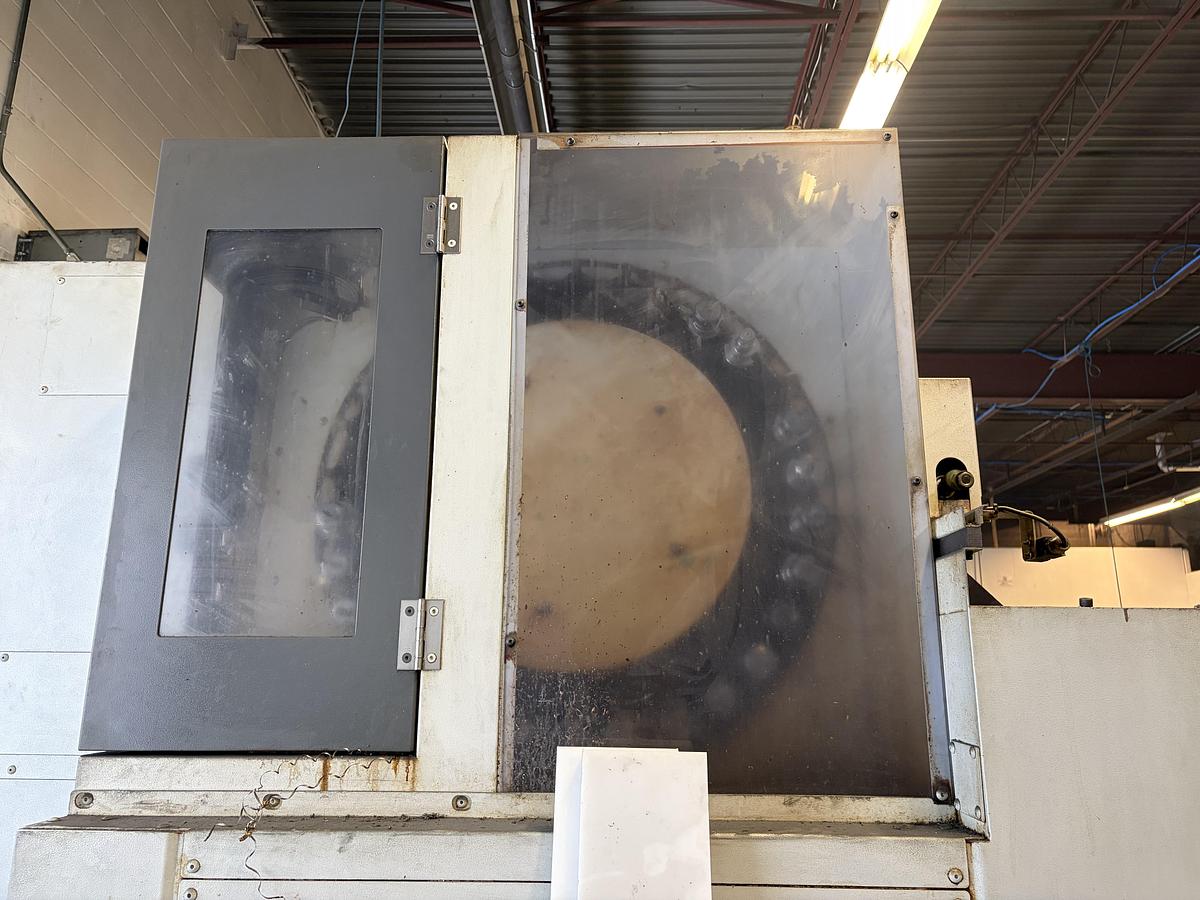

30 Tool Automatic Tool Changer

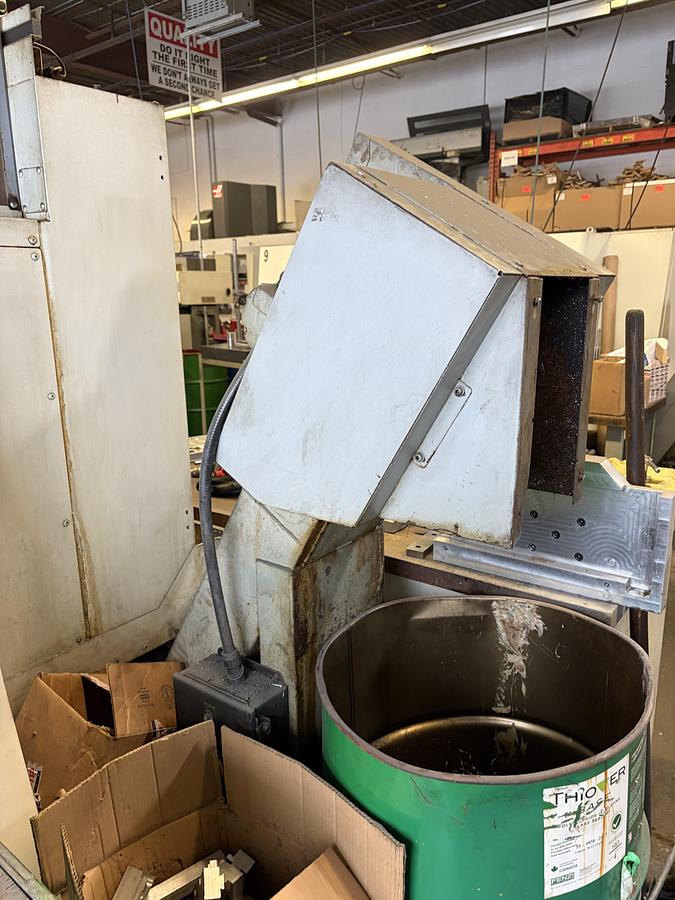

Chip Conveyor
Coolant System
