Daewoo DMV-5025
Daewoo DMV-5025
Available quantity:1
Description

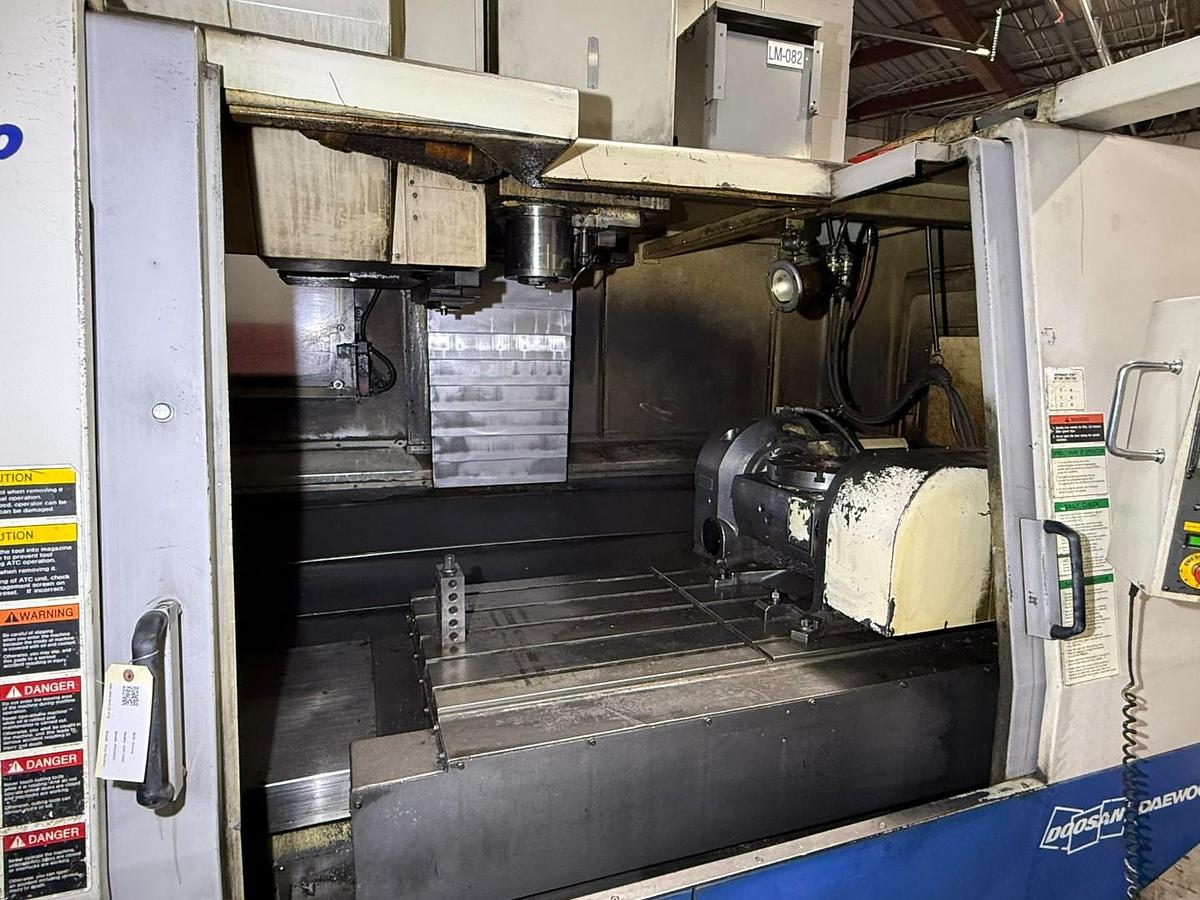

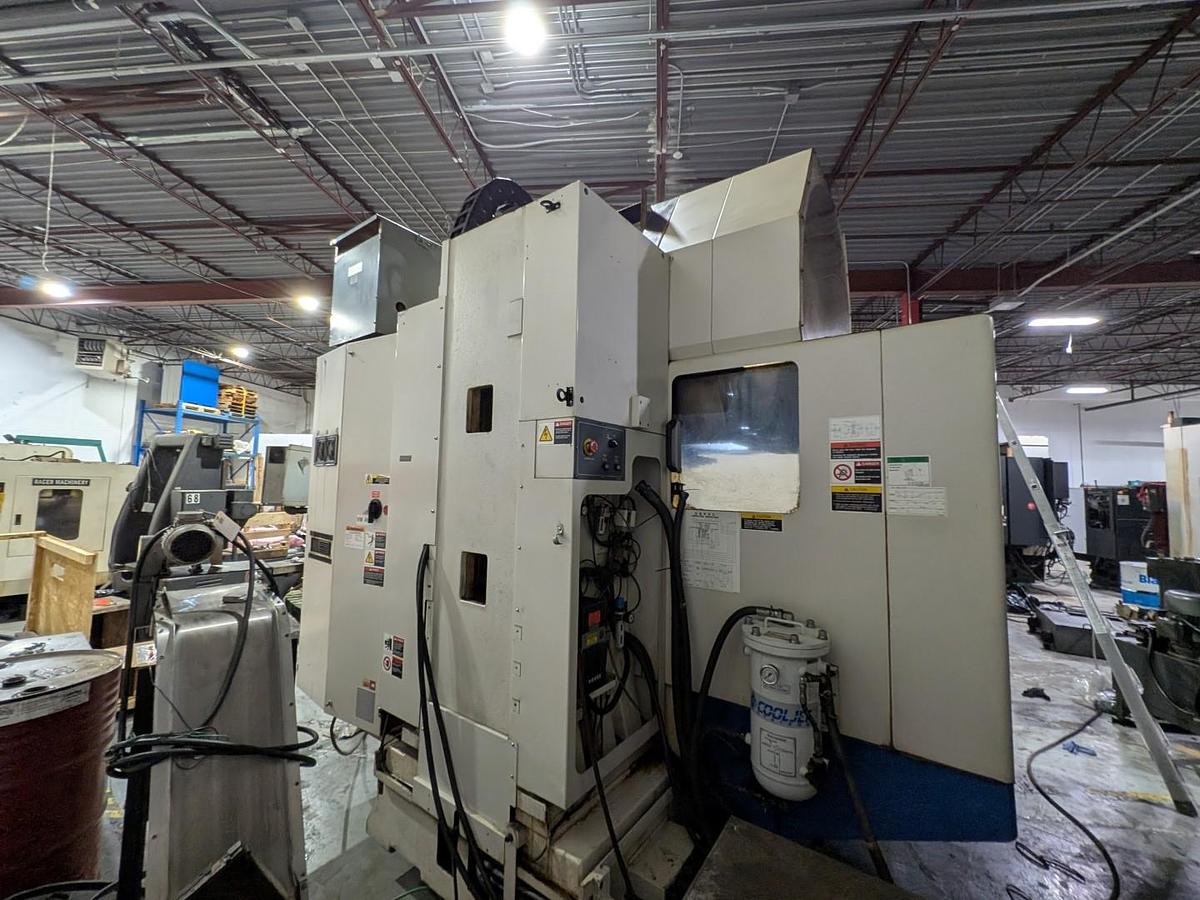

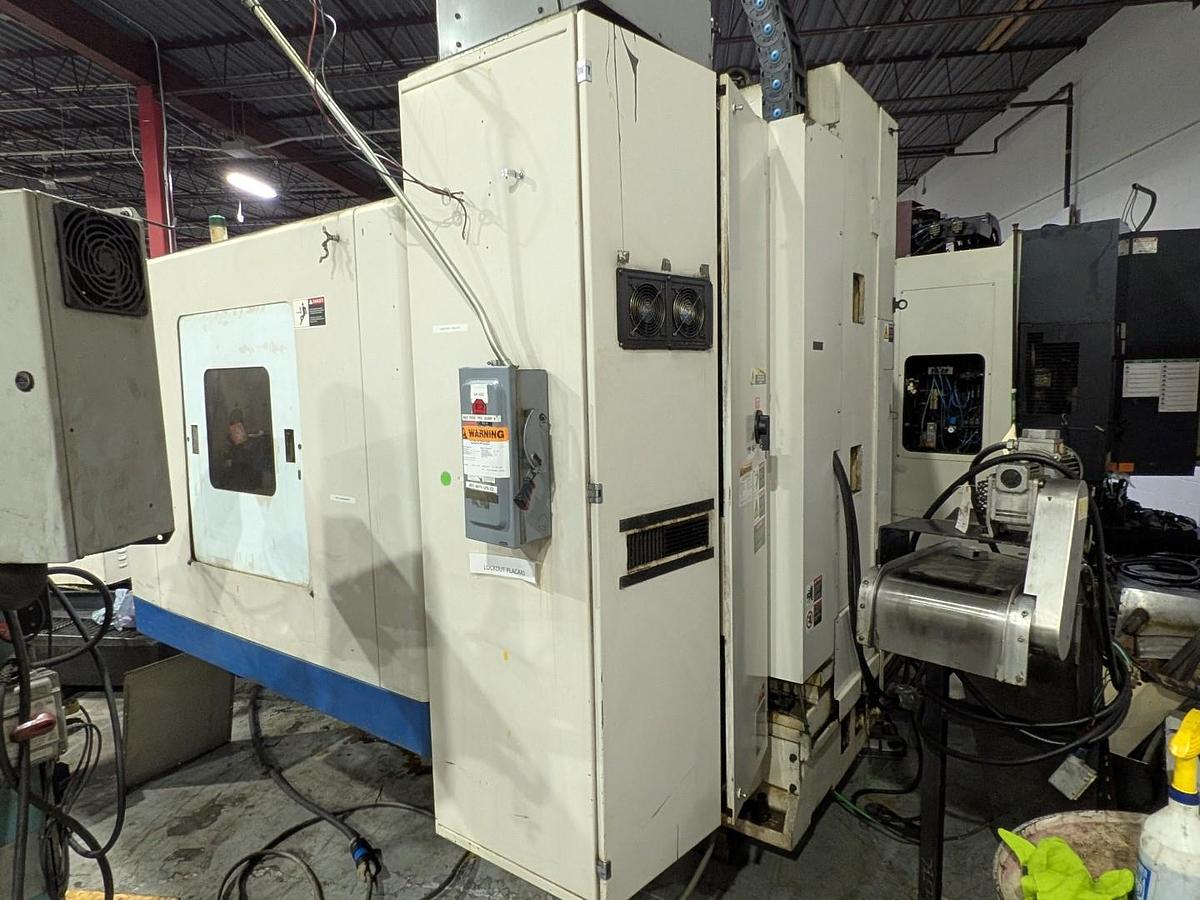

The Doosan Daewoo DMV 5025/50 is a heavy-duty CNC vertical machining center designed for high-torque milling and large-part machining. Featuring 50" × 25" × 25" travels, a CAT50 spindle with 8,000 RPM, and a 30 HP spindle motor, this machine delivers powerful cutting performance and excellent rigidity. Equipped with a 55.1" × 24.8" table, 3,300 lb load capacity, and a 30-tool automatic tool changer, the DMV 5025/50 is ideal for production machining, mold work, and heavy milling applications. Controlled by Fanuc Series 21i-MB and complete with chip conveyor and coolant system.
Specifications
| Manufacturer | Daewoo |
| Model | DMV-5025 |
| Condition | Used |
| Serial Number | AV630641 |
| Stock Number | VMC-DOO-0641 |
| X‑Axis Travel (IN) | 50 |
| Y‑Axis Travel (IN) | 25 |
| Z‑Axis Travel (IN) | 25 |
| Table Size (IN) | 55.1 x 24.8 |
| Table Load Capacity (LBS) | 3,300 |
| Spindle Speed (RPM) | 8,000 |
| Spindle Taper | CAT50 |
| Spindle Motor (HP) | 30 HP |
| Rapid Traverse X/Y (IPM) | 945 |
| Rapid Traverse Z (IPM) | 787 |
| Cutting Feed Rate (IPM) | 394 |
| Automatic Tool Changer | 30 ATC |
| Maximum Tool Diameter (IN) | 4.9 |
| Maximum Tool Length (IN) | 11.8 |
| Maximum Tool Weight (LBS) | 33 |
| Machine Weight (LBS) | 22,000 |
Equipped With

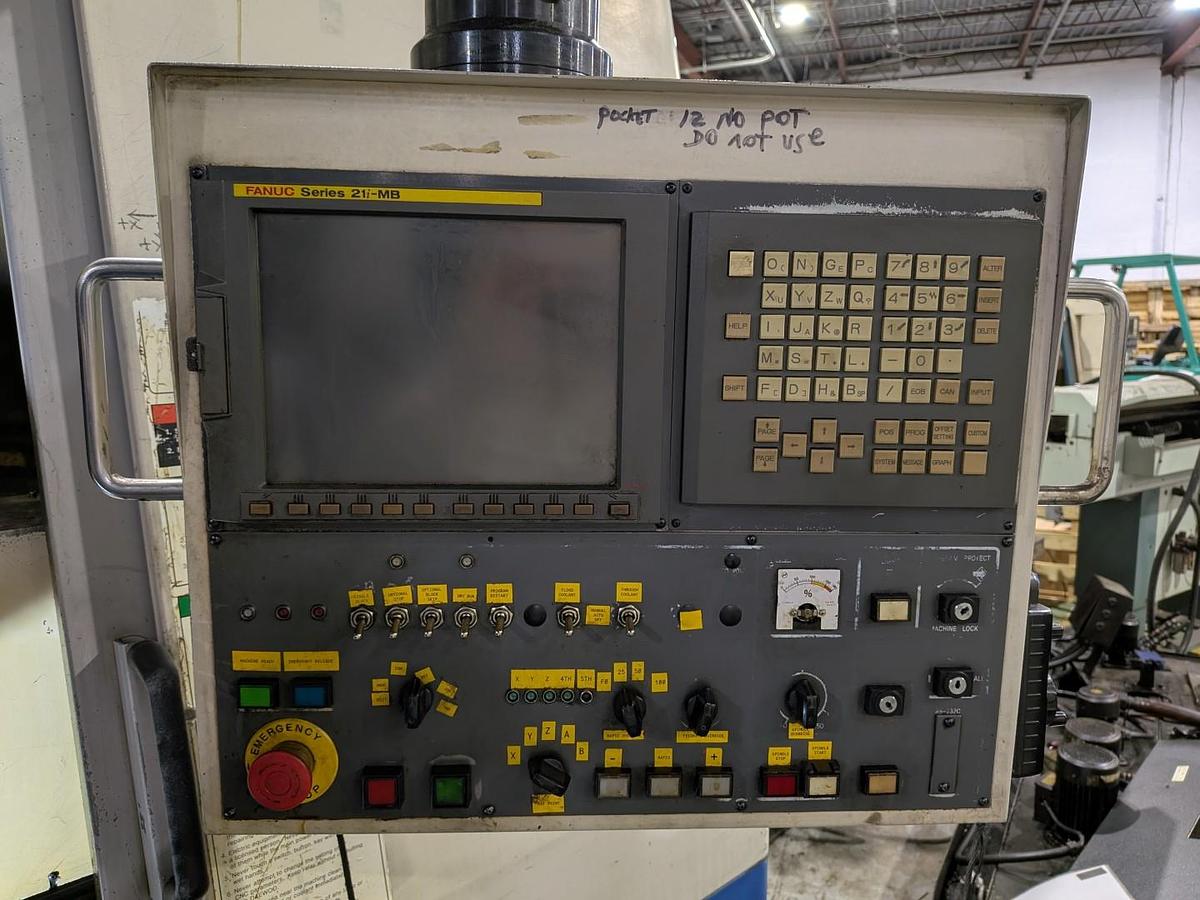

Fanuc 21i‑MB CNC Control
CAT50 High‑Torque Spindle
30 Tool Automatic Tool Changer
Chip Conveyor
Coolant System
