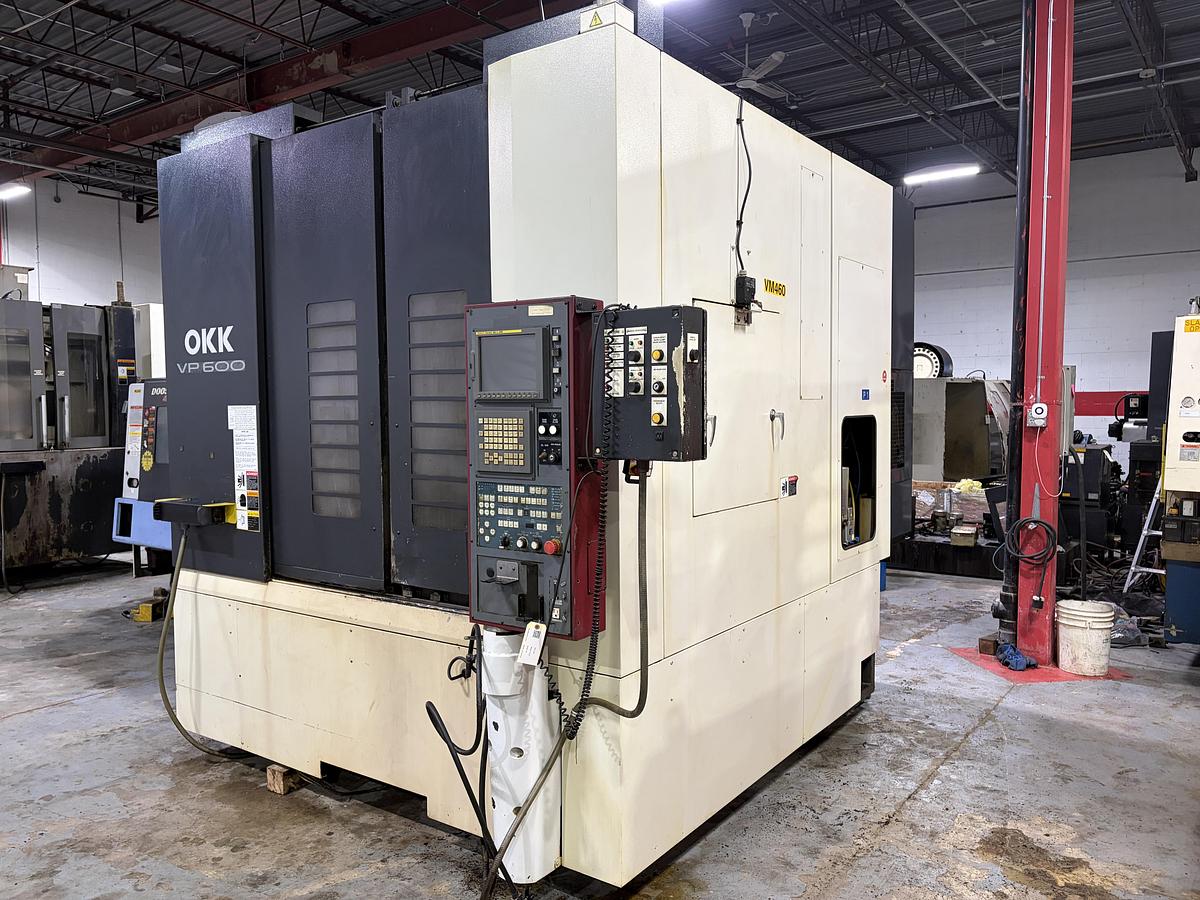

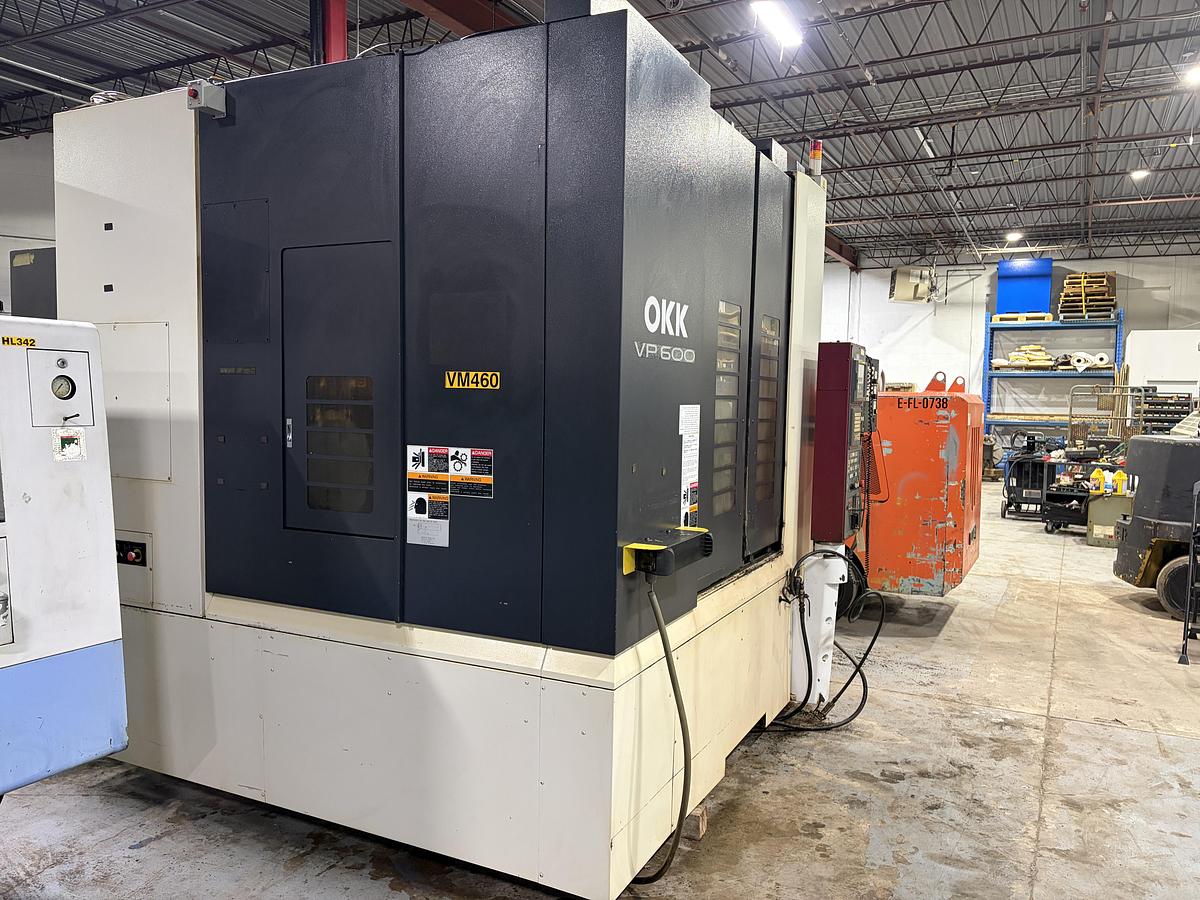

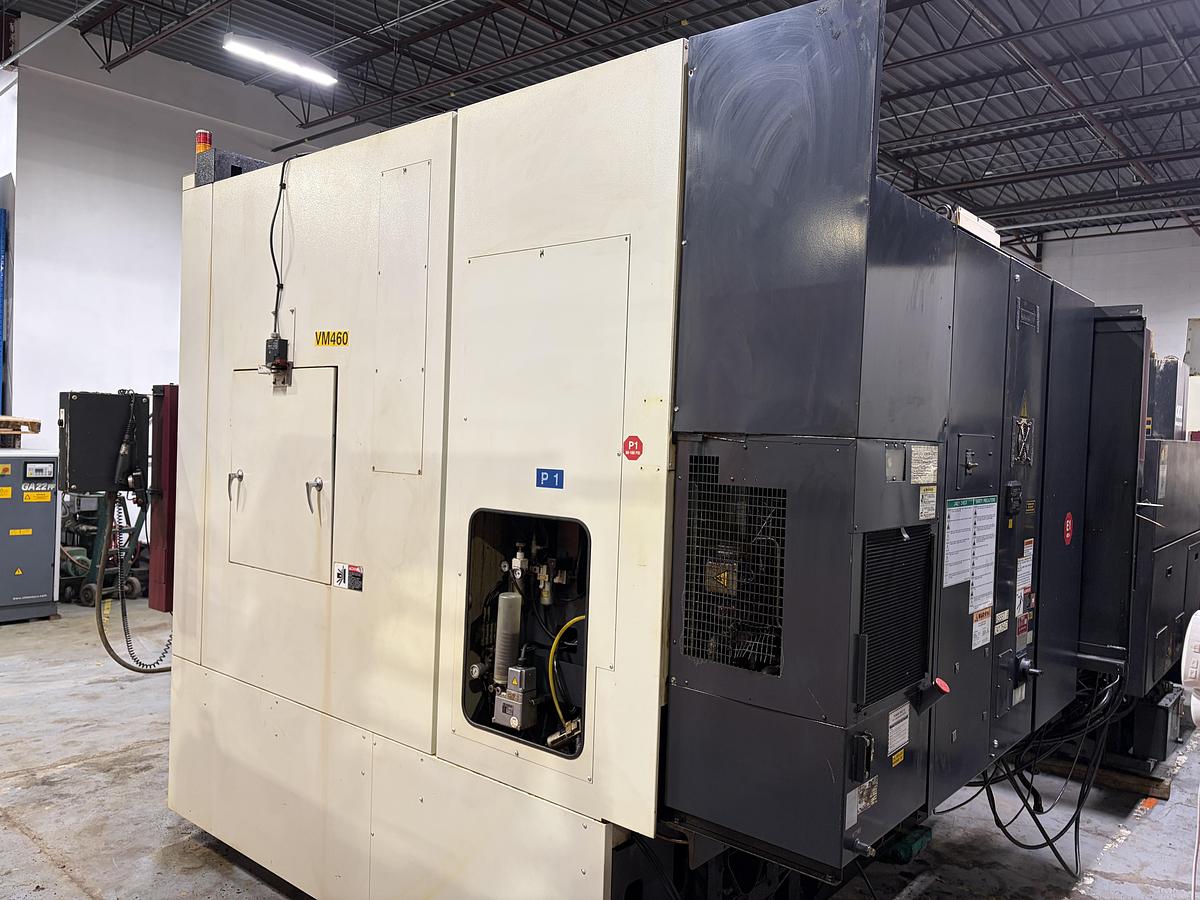

OKK VP-600 Vertical Machining Center
OKK VP-600 Vertical Machining Center
Available quantity:1
Description
The OKK VP600 is a reliable CNC vertical machining center built for precision milling and consistent production performance. Featuring travels of 24" (X), 16" (Y), and 18" (Z) with a 28.7" × 16.5" table, this machine provides excellent rigidity for small to medium-sized parts. Equipped with a 10,000 RPM HSK-63 spindle, 20 HP spindle motor, and 20-tool automatic tool changer, the VP600 delivers high-speed machining capability and efficient tool changes. Controlled by Fanuc Series 180iS-MB and complete with coolant system and full enclosure, it is ideal for job shops and precision manufacturing environments.
Specifications
| Manufacturer | OKK |
| Model | VP-600 |
| Condition | Used |

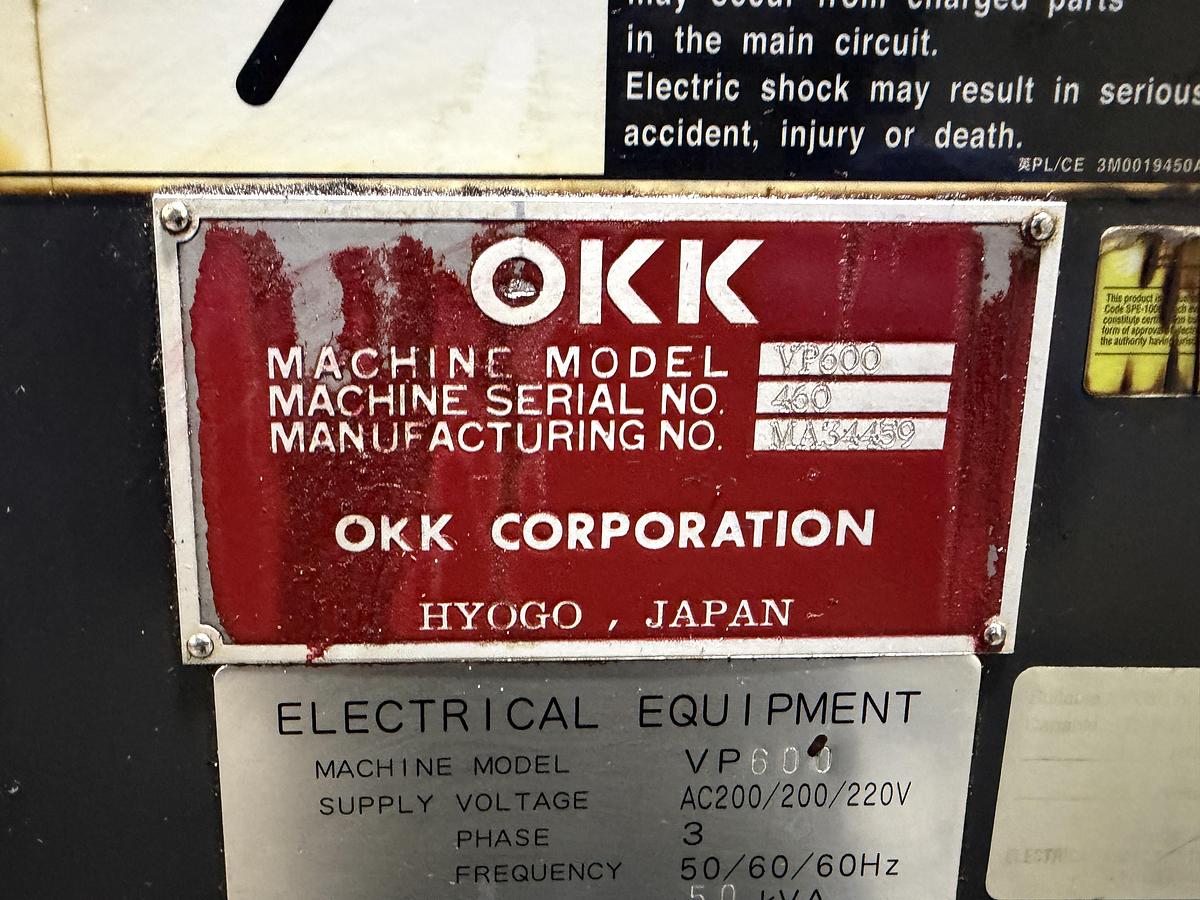

| Serial Number | 460 |
| Stock Number | VMC-OKK-0460 |
| X-Axis Travel | 24" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 18" |
| Table Size | 28.7" × 16.5" |
| Table Load Capacity | 1,320 LBS |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | HSK-63 |
| Spindle Motor | 20 HP |
| Rapid Traverse X/Y | 1,181 IPM |
| Rapid Traverse Z | 945 IPM |
| Automatic Tool Changer | 20 ATC |
| Max Tool Diameter | 3.5" |
| Max Tool Length | 11.8" |
| Max Tool Weight | 13 LBS |
| Approx Machine Weight | ~11,000 LBS |
Equipped With

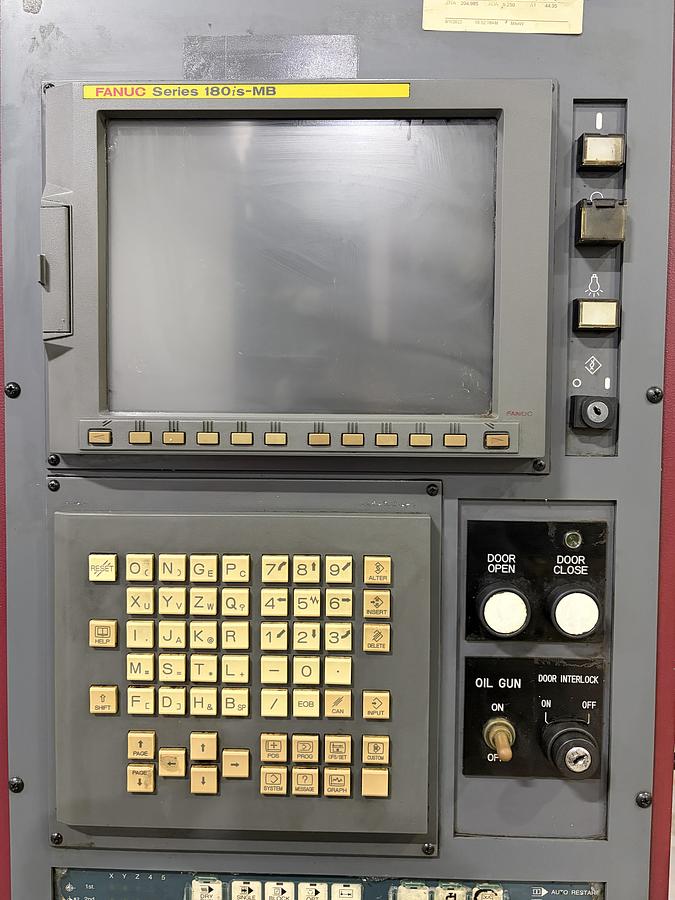

Fanuc Series 180iS-MB CNC Control
High pressure through spindle coolant
Chip Conveyor
Coolant Tank
